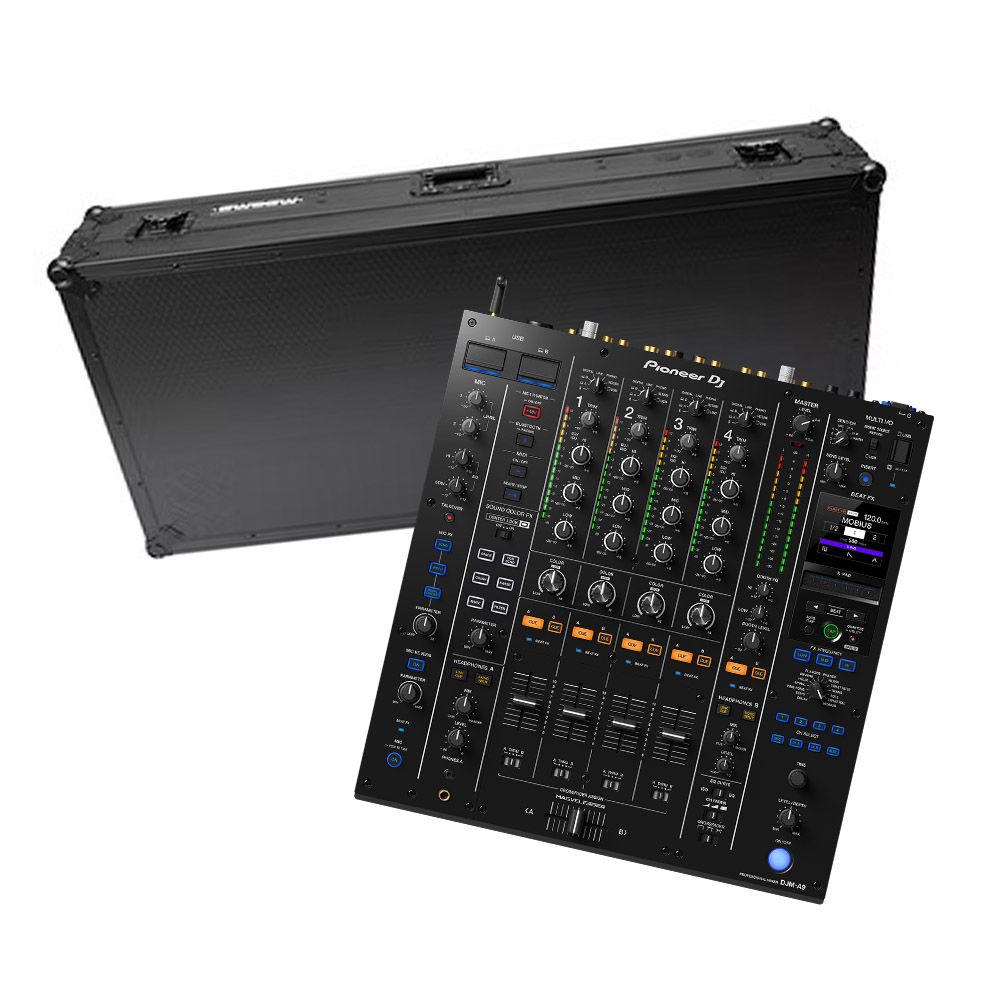

Pioneer DJ DJM-A9 Mixer with Magma Multi-Format Case Set
The Pioneer DJM-A9 mixer with Magma multi-format case set combines a four-channel professional mixer with a protective transport case. The mixer brings clear sound, evolved playability, advanced effects and expanded connectivity. Meanwhile, the case adds padded storage, adjustable foam, cable access and recessed wheels for mobile use.
Shape More Dynamic Sets
Firstly, the four-channel mixer is designed for emotional, dynamic performances. All while retaining a familiar club-standard layout. Sound Color FX includes a Center Lock knob. Also, the advanced Beat FX section gives you more hands-on ways to shape transitions and movement. Its clear sound quality keeps the focus on the mix.
Keep Monitoring Practical
Moreover, an enhanced mic section and expanded connectivity suit demanding performance setups. Dual independent headphone outputs let two people monitor separately, while booth EQ gives the booth feed its own adjustment. Support for the Stagehand app and the built-in Sound Check function add further tools for preparing and managing a performance.
Transport the Complete Setup

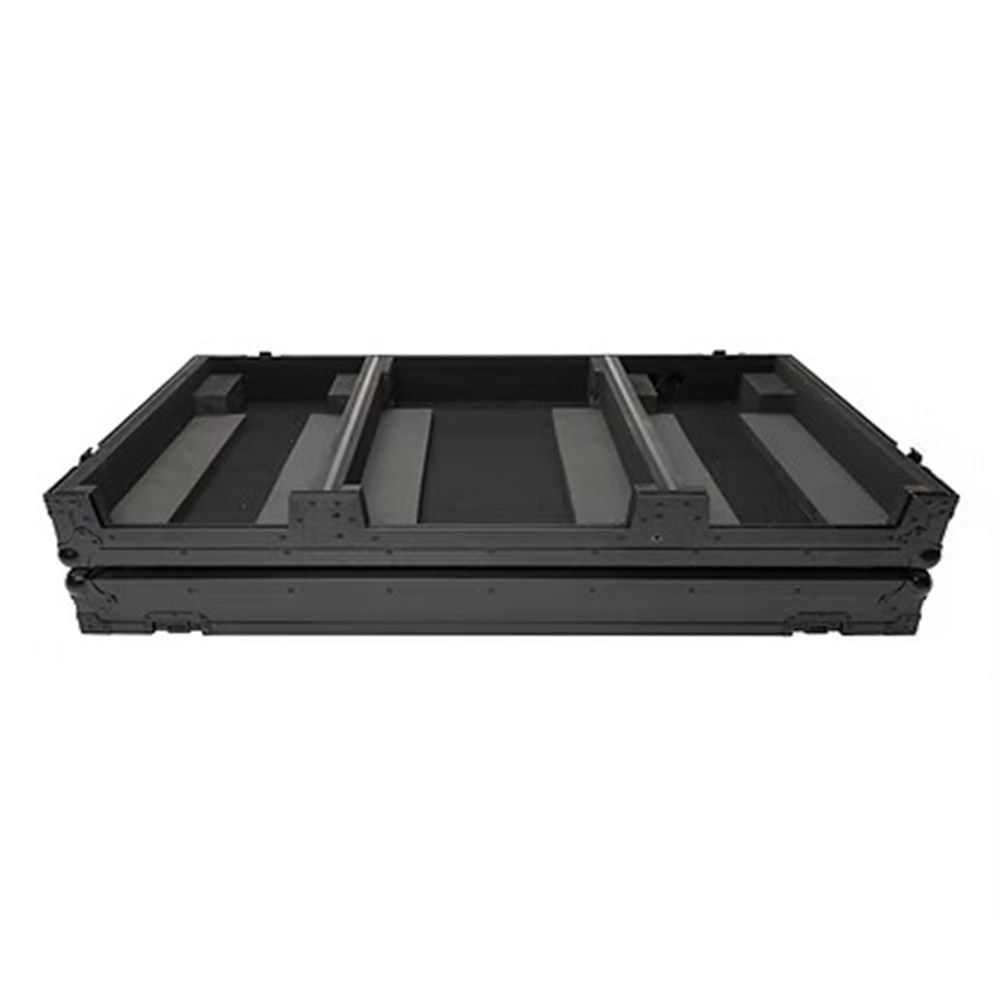

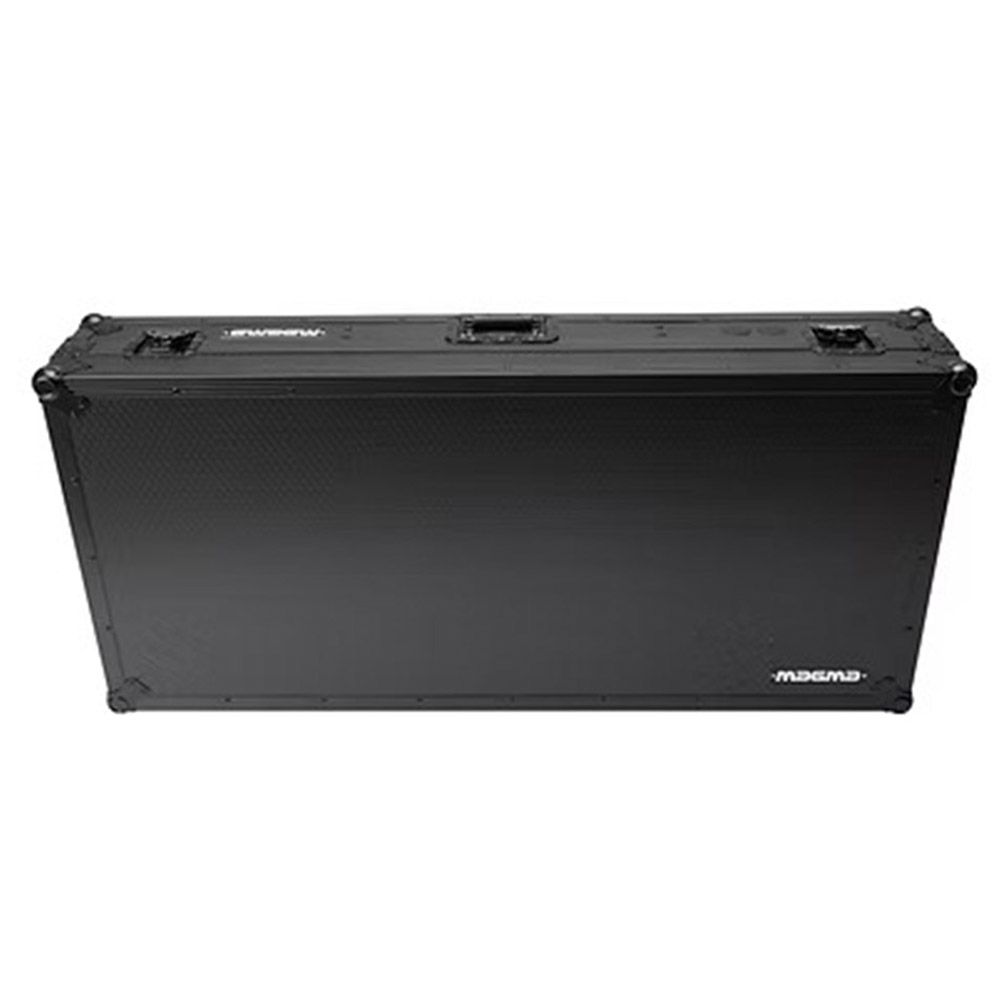

The Magma V10/A9 case is included as the second component of this set, not an optional add-on. Its vinyl laminated plywood body, solid aluminum profiles and spring loaded latches create a sturdy outer shell, while the full padded interior and additional foam accommodate different mixer and CD-player sizes.
Move In and Out Efficiently

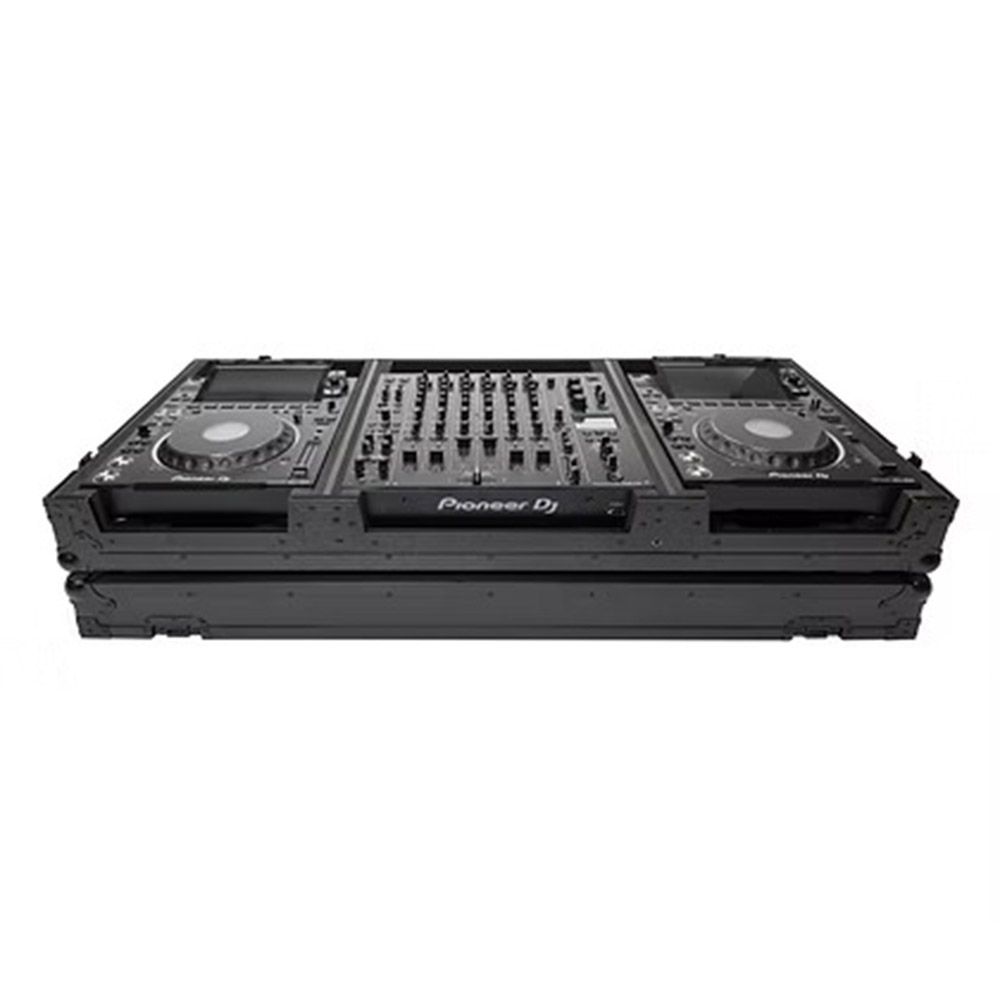

Three removable front panel covers make access more convenient, and cable access ports let connections pass through the case. Recessed wheels support easier transportation, while the case’s outer and inner measurements provide a clear reference when planning your equipment layout. It is built for transporting two CDJ/Multimedia Players and a 6 or 4-channel club mixer.
Key Features
- Four-channel professional mixing with clear sound quality and evolved playability
- Center Lock knob, advanced Beat FX and an enhanced mic section
- Dual independent headphone outputs, booth EQ and expanded connectivity
- Protective case with padded interior, adjustable foam, cable access ports and recessed wheels

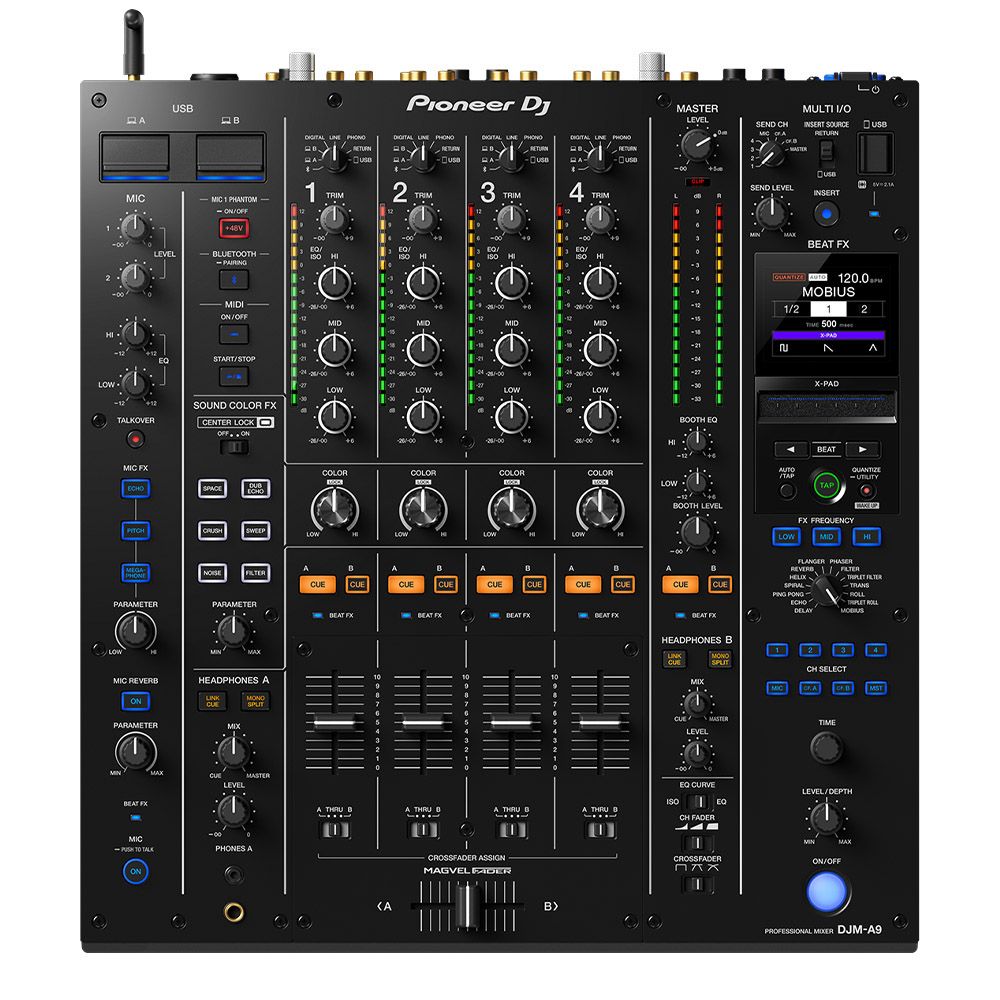

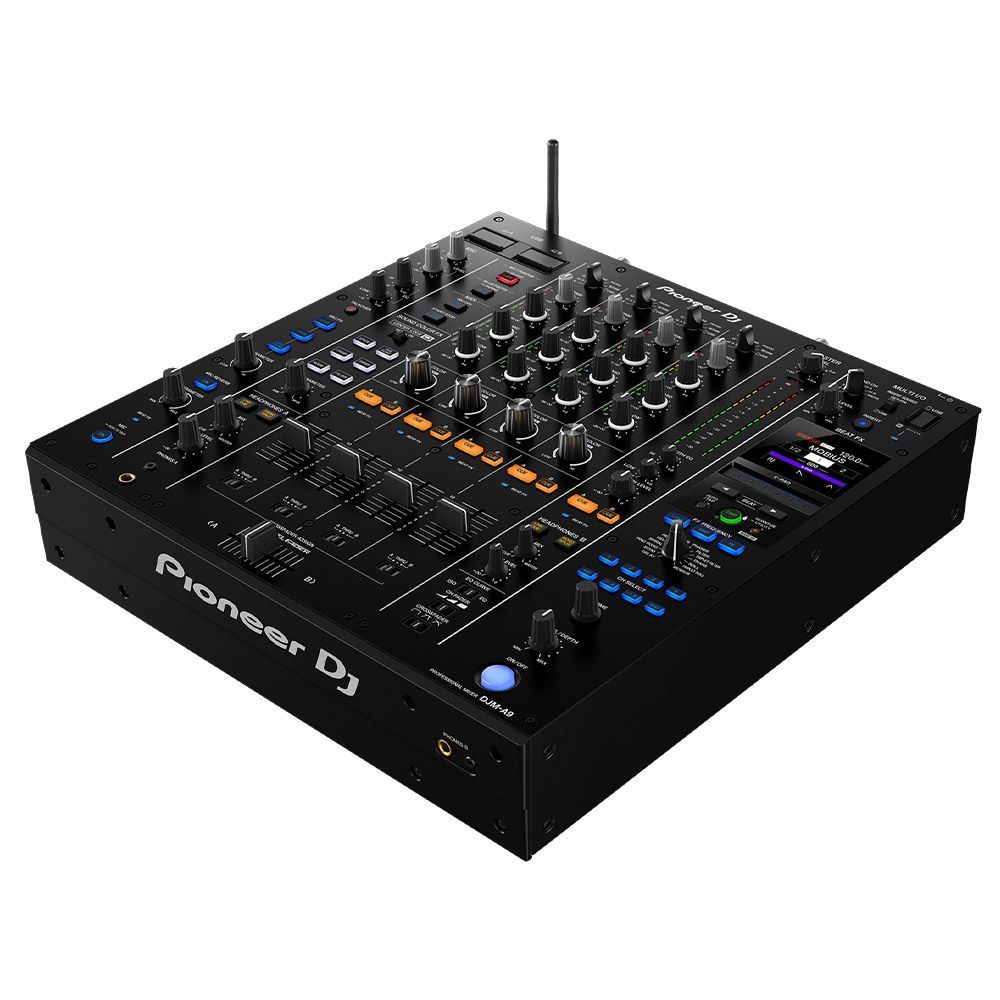

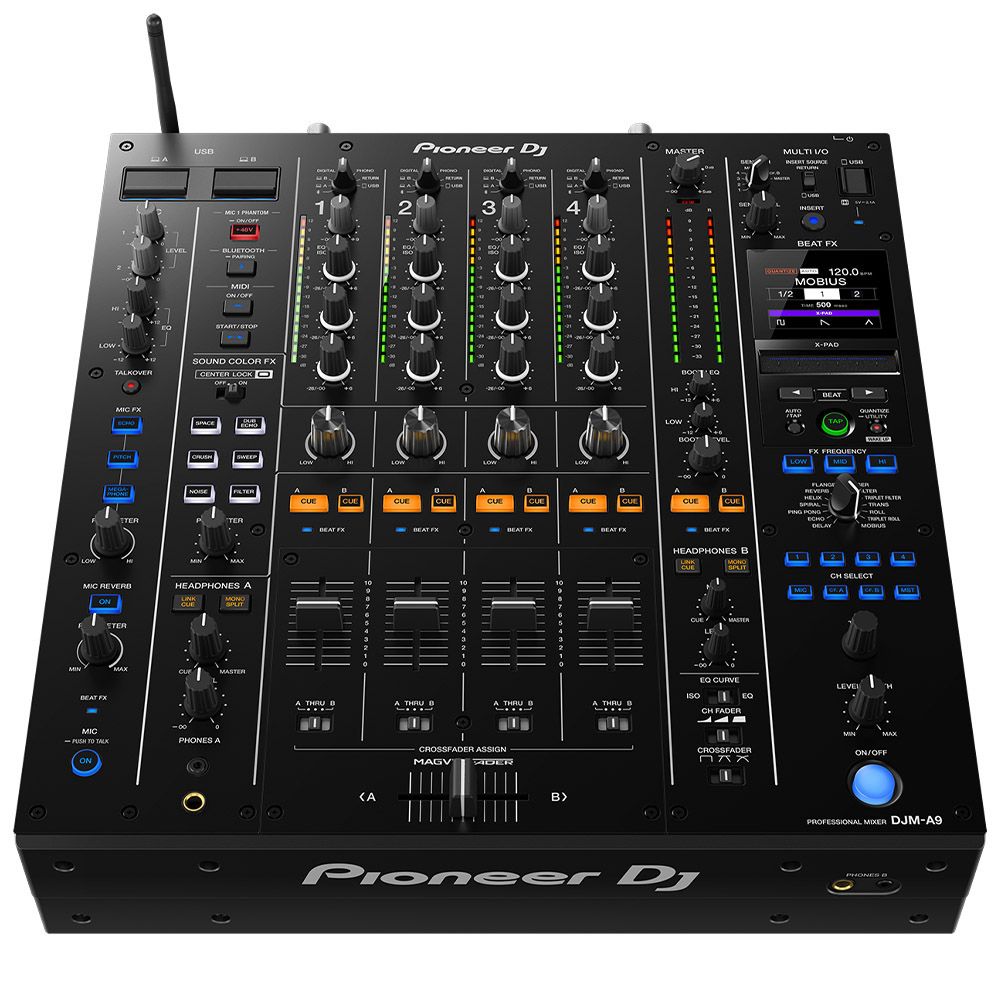

Pioneer DJ DJM-A9 4-Channel Professional DJ Mixer
- Delivers stunning clear sound quality
- Provides evolved playability
- Features Sound Color FX with the world’s first Center Lock knob
- Includes newly advanced Beat FX
- Features an enhanced microphone section

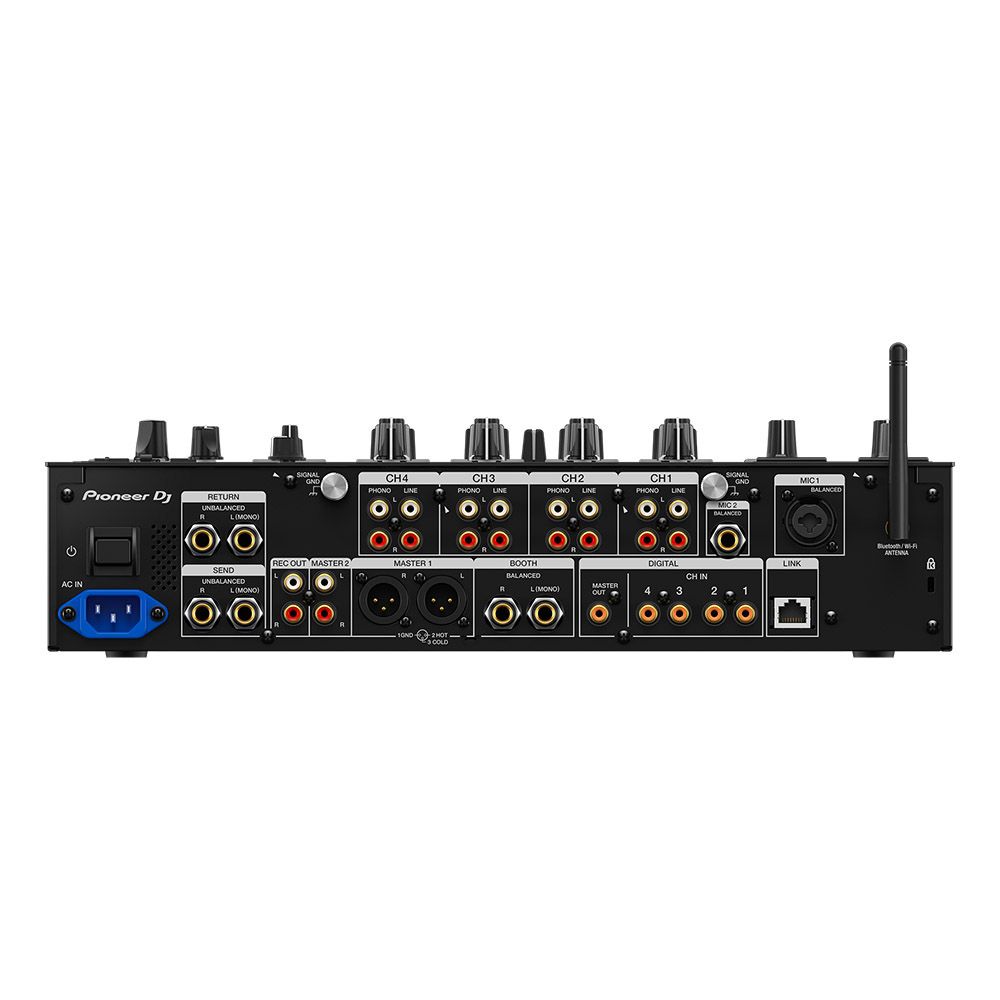

- Provides expanded connectivity

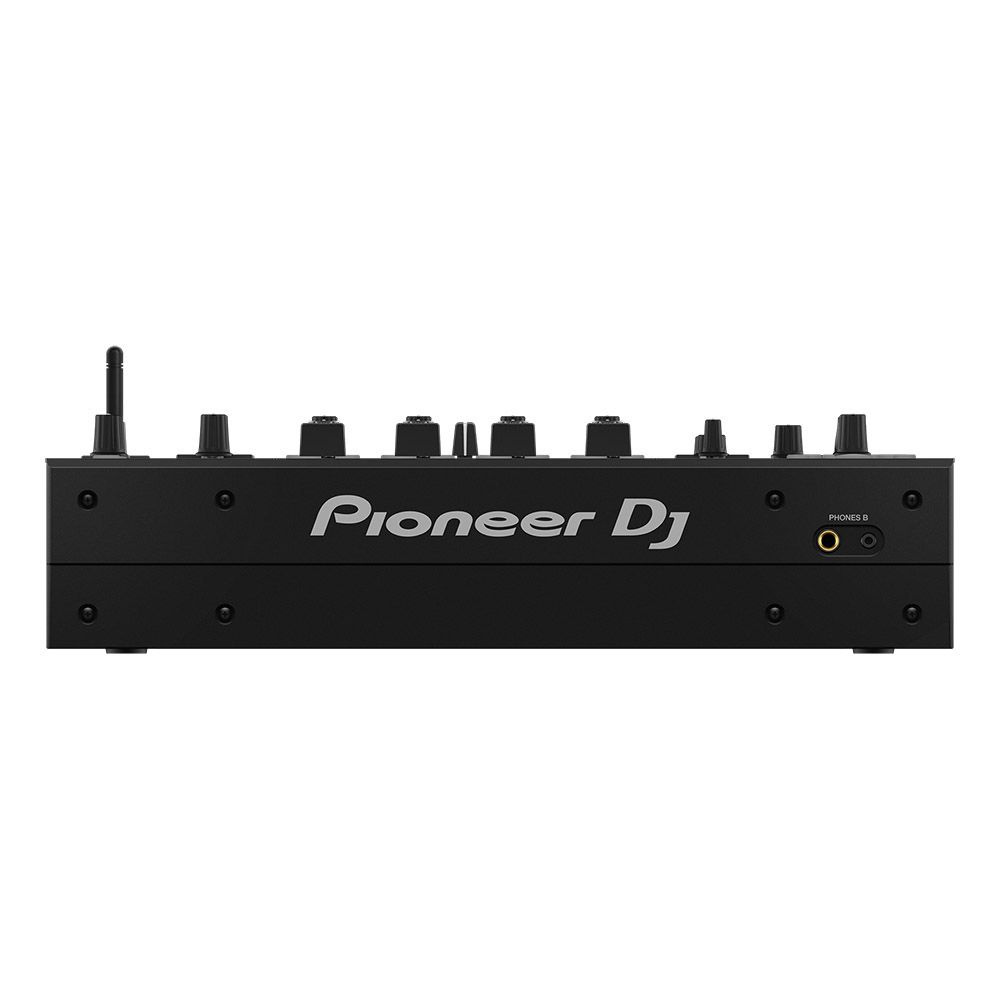

- Includes dual independent headphone outputs and booth EQ
- Supports the brand-new Stagehand app and built-in Sound Check function

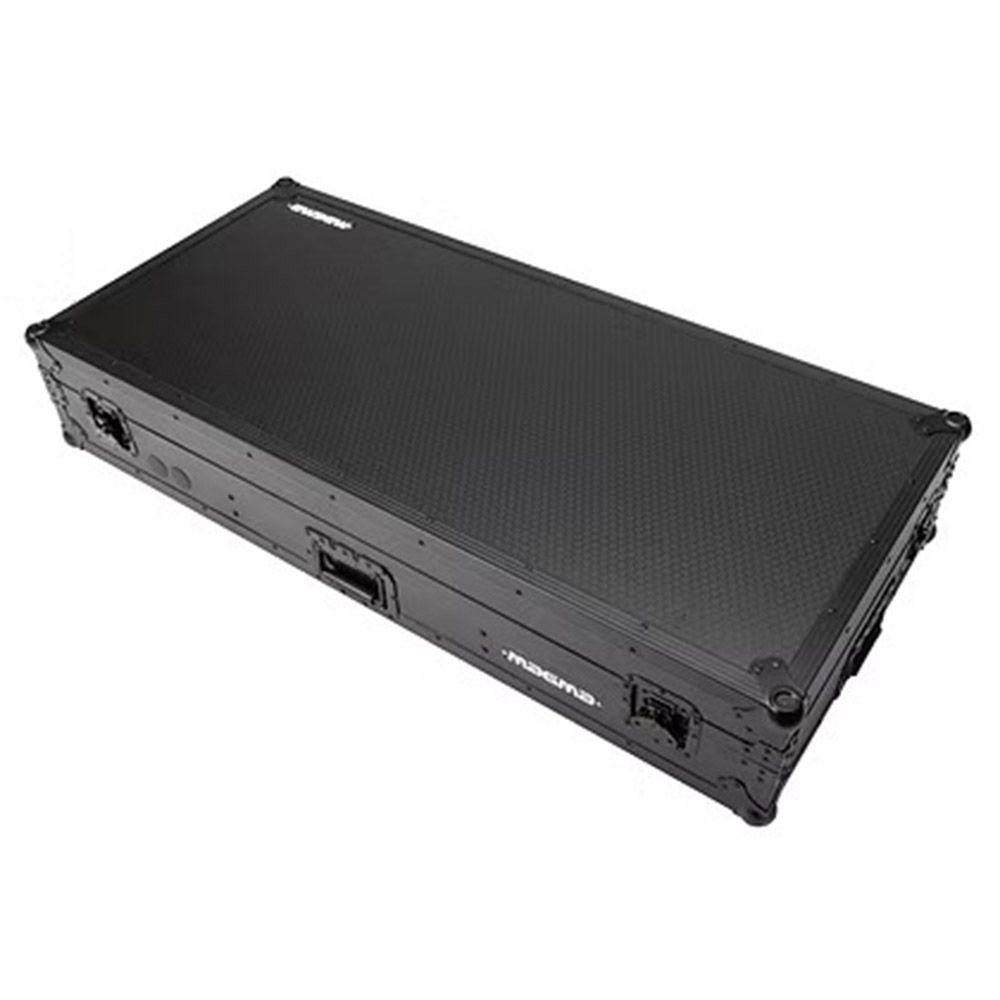

Multi-Format Case Player/Mixer (V10/A9) Set
- Features heavy-duty construction with 9 mm vinyl-laminated plywood
- Includes solid aluminum profiles and spring-loaded latches

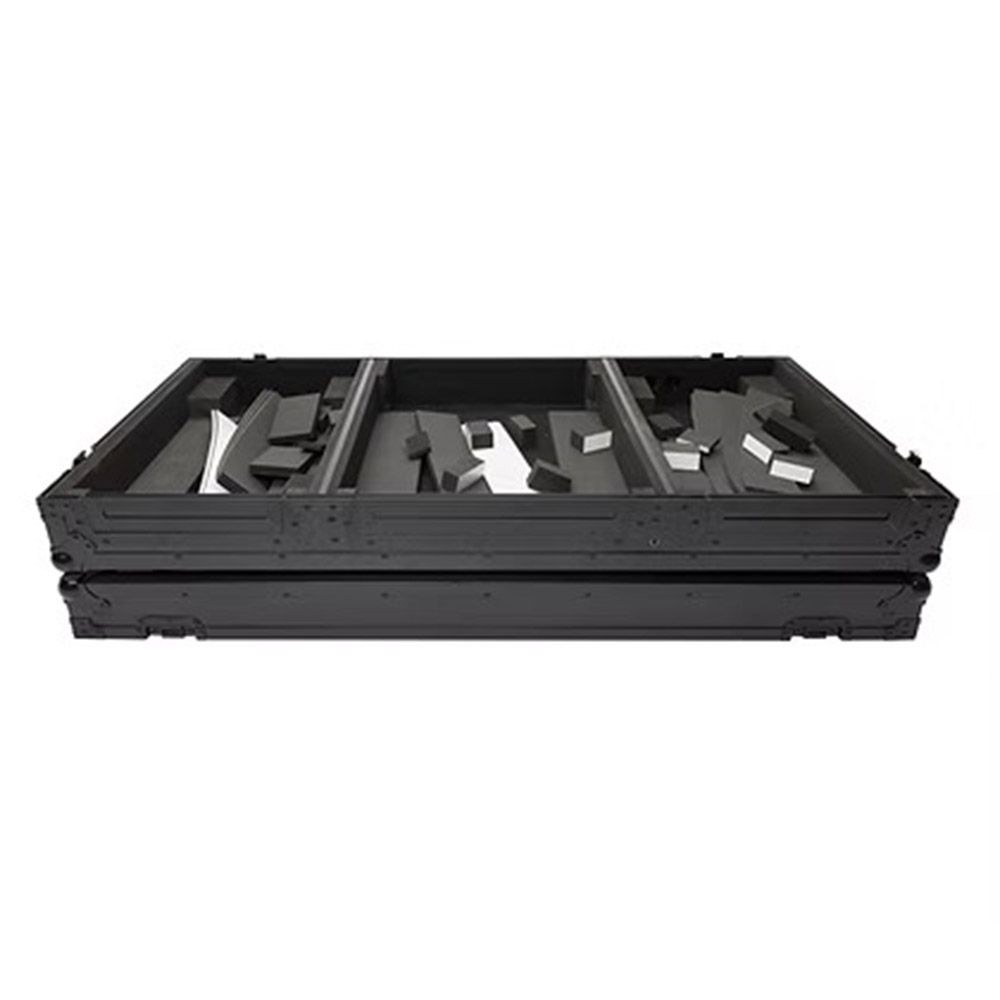

- Includes additional foam to fit various mixer and CD-player models
- Features 3 removable front panel covers
- Provides convenient cable access ports
- Features a fully padded interior
- Includes recessed wheels for easy transportation
Pioneer DJ DJM-A9 4-Channel Professional DJ Mixer
Power Requirements: AC 110 V – 240 V, 50 Hz / 60 Hz
Power Consumption: 61 W
Power Consumption (Off): 0.3 W
Main Unit Weight: 10.2 kg / 22.5 lbs
Max. External Dimensions (W × D × H): 407.4 × 458.3 × 107.9 mm / 16.4 × 18.4 × 4.25 in
Max. External Dimensions with Wireless Antenna Upright (W × D × H): 407.4 × 458.3 × 140.7 mm / 16.4 × 18.4 × 5.54 in
Tolerable Operating Temperature: +5 °C – +35 °C (+41 °F – +95 °F)
Tolerable Operating Humidity: 5% – 85% (no condensation)
Sampling Rate: 96 kHz
MASTER, BOOTH, REC, SEND D/A Converter: 32-bit
CH Input A/D Converter: 32-bit
Other A/D and D/A Converters: 24-bit
Frequency Characteristic, LINE: 20 Hz – 40 kHz
S/N Ratio, USB, DIGITAL IN: 114 dB
S/N Ratio, PHONO: 88 dB
S/N Ratio, LINE: 105 dB
S/N Ratio, MIC 1, MIC 2: 79 dB
Total Harmonic Distortion (LINE – MASTER 1, 20 Hz – 40 kHz BW): 0.005%
Standard Input Level / Input Impedance, PHONO: -52 dBu / 47 kΩ
Standard Input Level / Input Impedance, LINE: -12 dBu / 47 kΩ
Standard Input Level / Input Impedance, MIC 1, MIC 2: -57 dBu / 3.5 kΩ
Standard Input Level / Input Impedance, RETURN: -12 dBu / 47 kΩ
Max. Input Level, PHONO: -17.8 dBu
Max. Input Level, LINE: +15 dBu
Max. Input Level, MIC 1, MIC 2: +2 dBu
Max. Input Level, RETURN: +12 dBu
Standard Output Level / Load Impedance / Output Impedance, MASTER 1: +6 dBu / 10 kΩ / 360 Ω
Multi-Format Case Player/Mixer (V10/A9) Set
Outer Dimensions: 129 × 59 × 25 cm
Inner Dimensions, CDJ Compartment: 34.5 × 42.5 × 8.4 cm
Inner Dimensions, Mixer Compartment: 43.7 × 45.4 × 8.4 cm
Weight: 21.5 kg
Color: Black/Silver
Item No.: 41034
