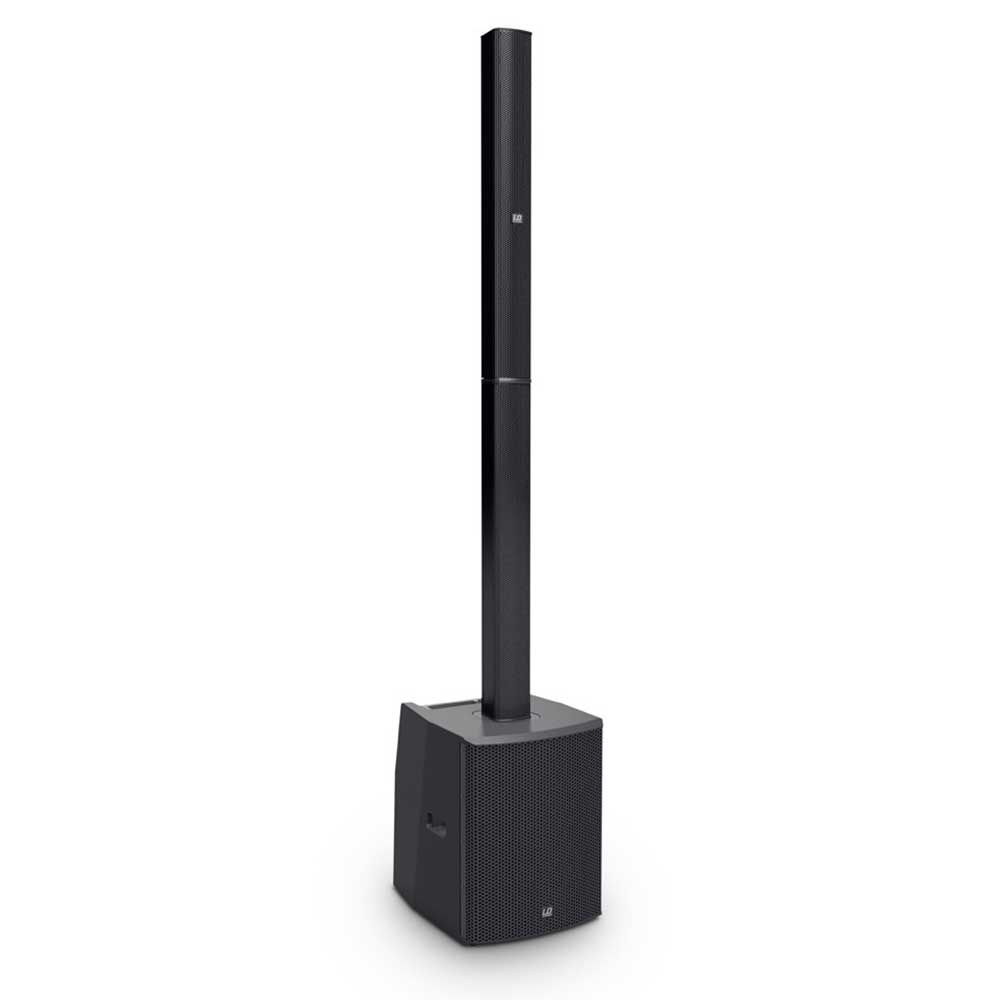

LD Systems MAUI 28 G2 Active Column PA System
Built to travel from the car to the stage, the LD Systems MAUI 28 G2 brings PA and monitoring together in a compact column format. Its two-piece column breaks down for transport, while the subwoofer, integrated mixer and wide-dispersion array arrangement keep setup practical for medium-sized gigs.
Carryable Power for Live Sound

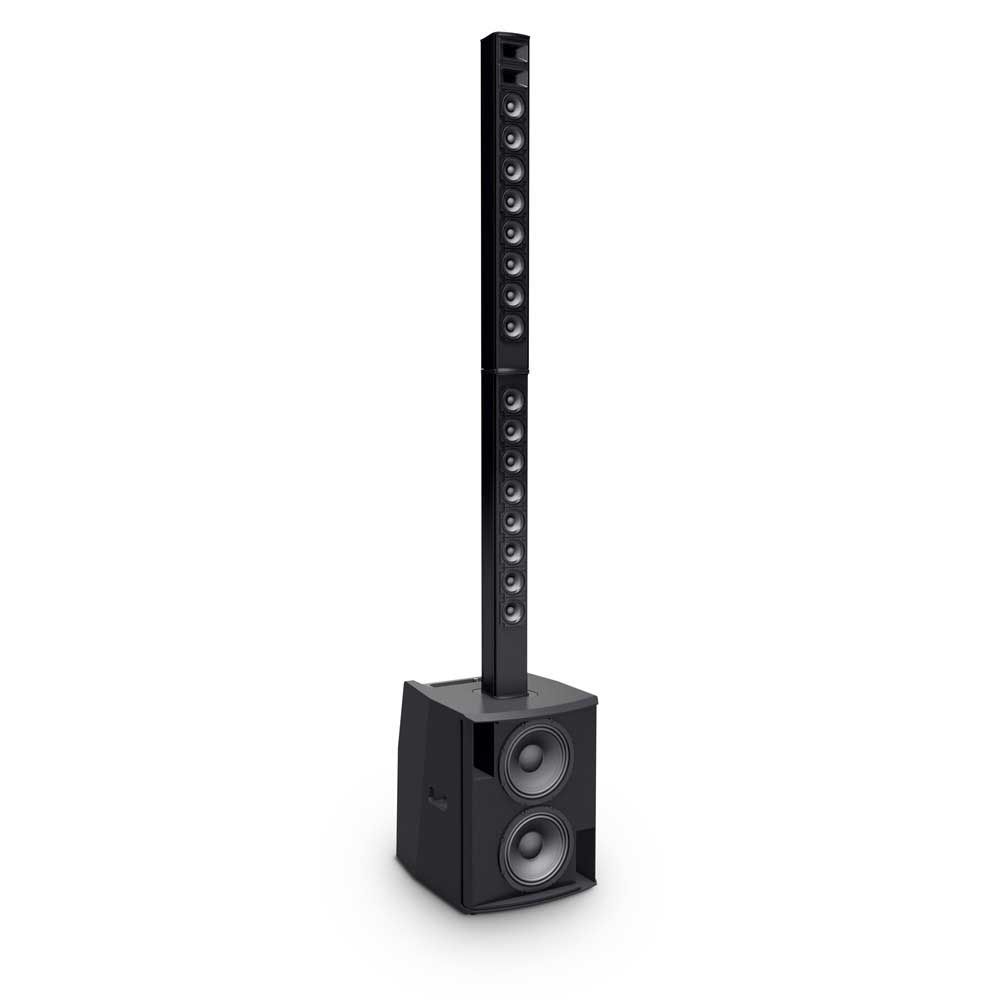

Firstly, the active system uses a Class-D amplifier with 2,000 W peak output and 1,000 W RMS output. Two 8″ woofers supply the low end, sixteen 3″ full-range speakers handle the middle. Also, two 1″ high-frequency drivers complete the multi-driver system with balanced mids and precise highs.
Wide, Even Sound Coverage
Moreover, the array arrangement extends range and spreads sound across a 120° horizontal and 20° vertical beam angle. A BEM-optimised tweeter waveguide reduces floor and ceiling reflections, while the homogeneous dispersion pattern and increased feedback resistance can make separate monitor speakers unnecessary in suitable setups.
Shape the Mix at the System

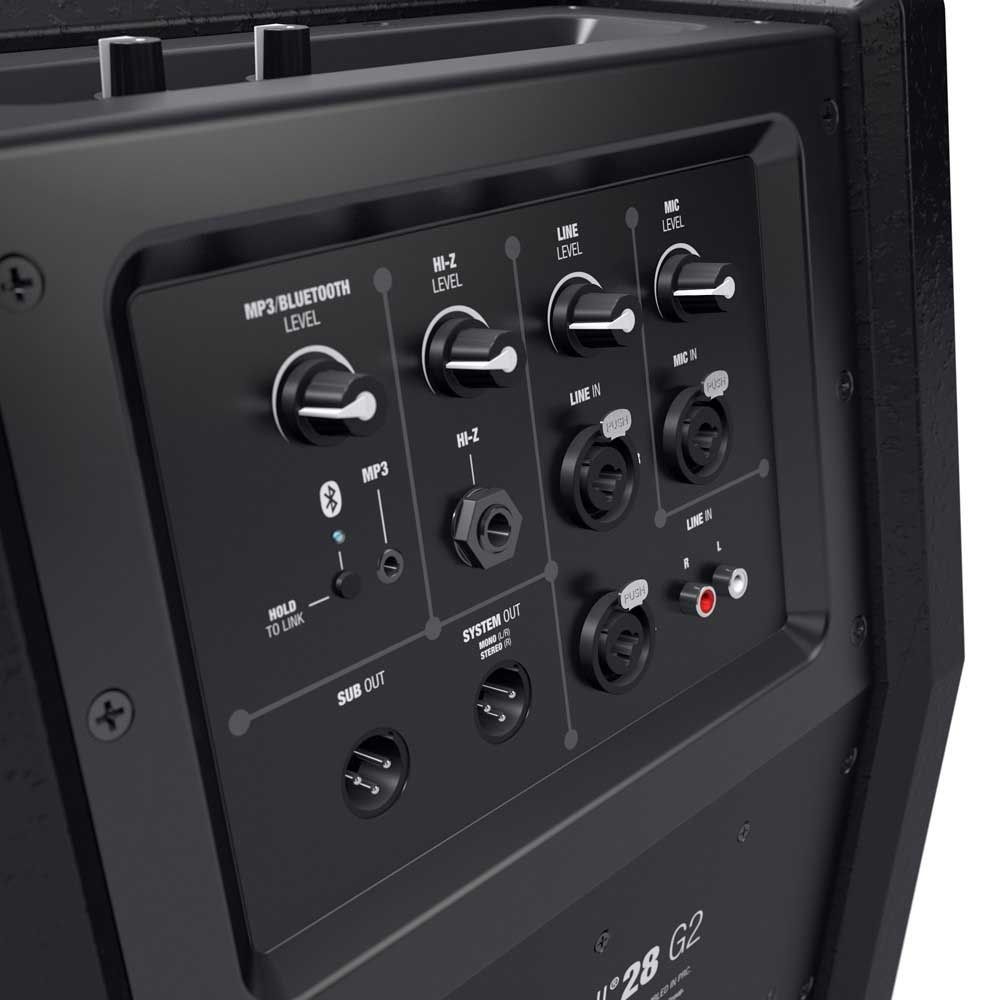

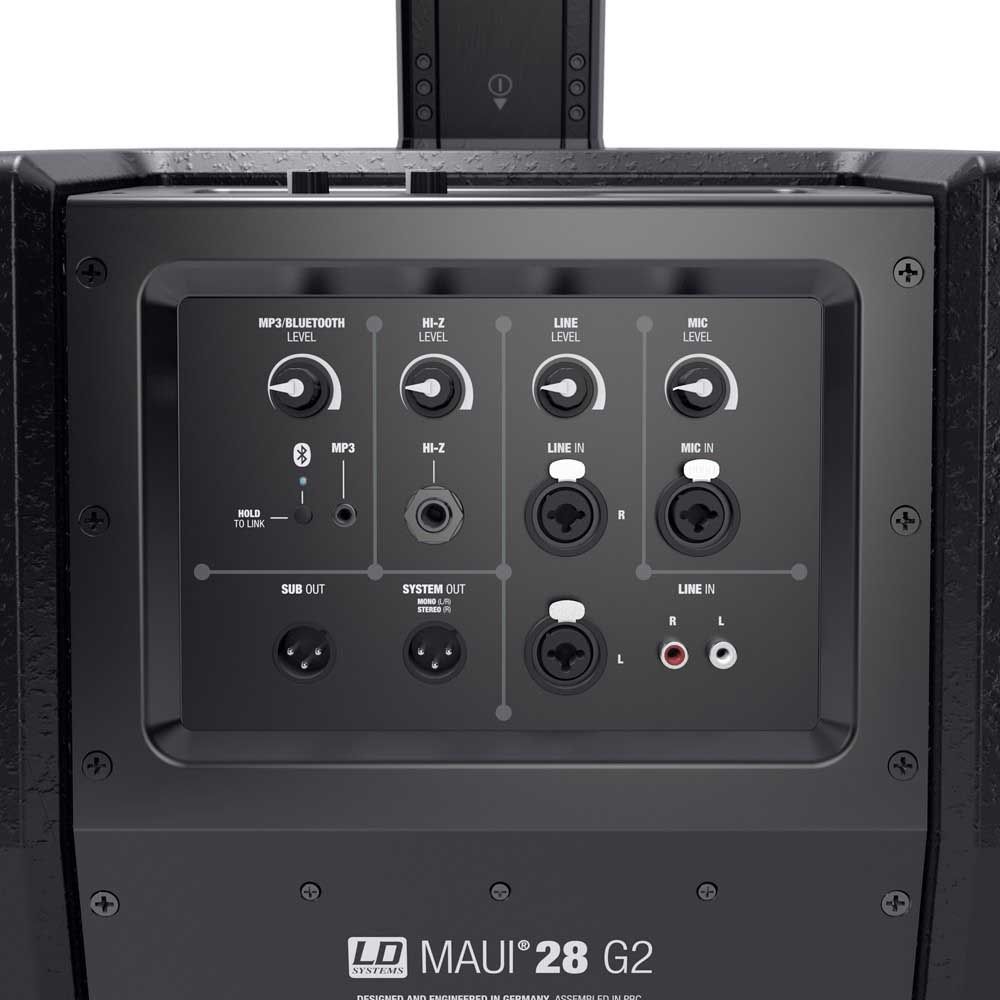

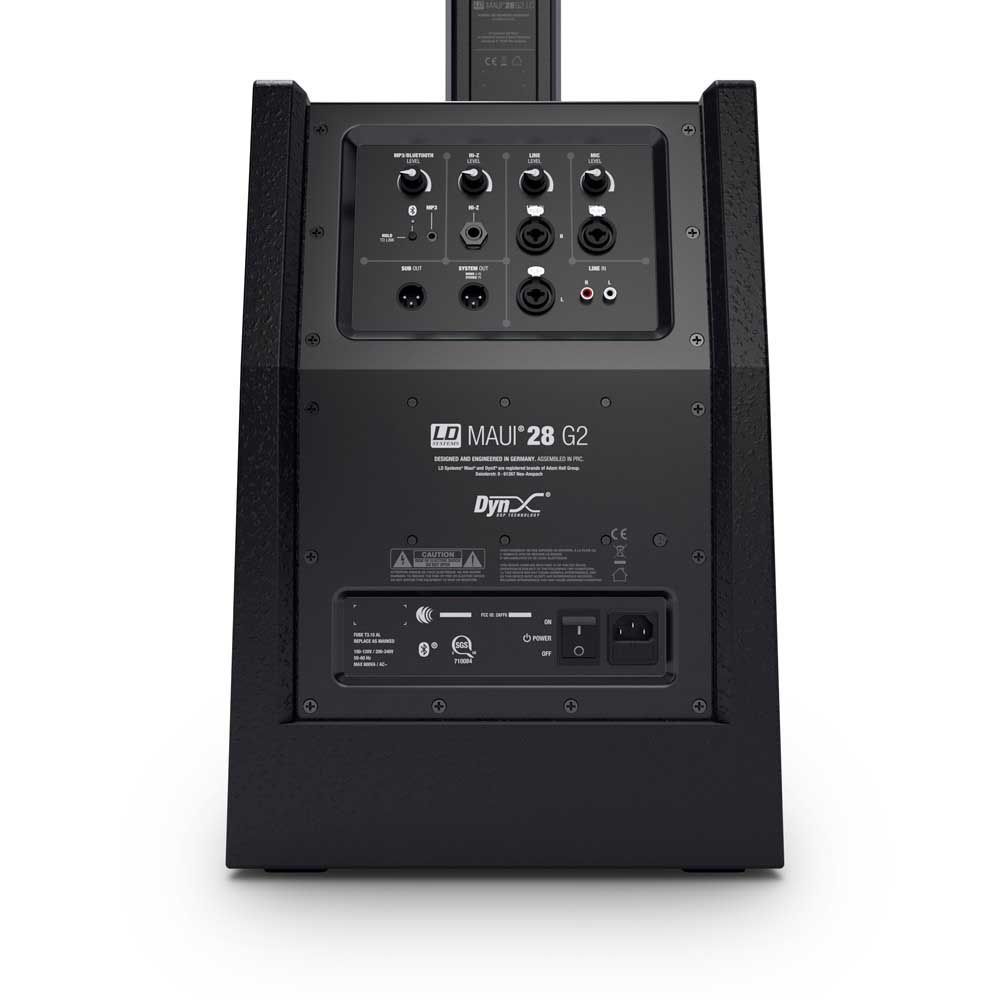

An integrated 4-channel mixer brings microphone, instrument, line and music sources into the system, with presets for mono or stereo configuration. Bluetooth® Stereo Audio Streaming adds a straightforward way to play audio, while DynX® DSP technology combines EQ, compressor, multiband limiter and crossover processing.
Built for Setup and Installation
The two column elements connect through a secure multi-pin mechanism for plug-and-play setup, then pack down for transport. Aluminium column construction, an aluminium front grille and a painted textured-lacquer subwoofer finish suit both portable use and fixed installations, while the dismountable columns add placement flexibility.
Key Features
- Complete PA and monitor system for medium-sized gigs and fixed installations
- Class-D amplification with 2,000 W peak system power
- Column array arrangement for increased range and wider coverage
- Integrated 4-channel mixer with Bluetooth® Stereo Audio Streaming
- Two-piece, dismountable column design for compact transport and flexible setup
Type: Active
Peak output power: 2000 W
RMS output power: 1000 W
Amp class: Class D
Max. SPL peak: 126 dB
Frequency response: 45 – 20,000 Hz
Beam angle: Hor.: 120° / Vert.: 20°
Number of inputs: 4
Number of outputs: 2
Bluetooth version: Bluetooth® 4.2
Audio Streaming: Audio Streaming (A2DP)
Supported audio codecs: SBC
Number of microphone inputs: 1
Mic-in connector type: XLR combo socket
Number of instrument inputs: 1
Inst-in connector type: 6.3 mm Jack TRS female
Number of line inputs: 2
Line-In connector type: XLR combo socket
Number of music inputs: 1
Music inputs connector types: 3.5 mm Jack TRS female
Number of speaker outputs: 1
Speaker output connection type: XLR combo socket
Mixer: Yes
Mixer channels: 4
Audio processing: 3 band EQ (High, Mid, Low), Digital effects (DFX), Presets
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 100 dB
Bass driver size: 8 ”
Bass driver quantity: 2
Bass driver magnet: Ferrite
Bass driver voice coil: 2 ”
Mid range size: 3 ”
Mid range quantity: 16
Mid range voice coil: 1 ”
Mid range magnet: Ferrite
Tweeter driver size: 1 ”
Tweeter quantity: 2
Tweeter magnet: Neodymium
Tweeter voice coil: 1 ”
Operation voltage: 100 V AC – 120 V AC / 50 – 60 Hz, 220 V AC – 240 V AC / 50 – 60 Hz
Rated power: 11 W
Max. Stand-by power consumption: 0 W
Mains connector: IEC C14 plug male
Cooling system: Convection cooling
Satellites/columns design: Closed
Satellites/columns chassis material: Aluminium
Satellites/columns housing coating: HD coated Aluminium
Satellites/columns front grille material: Aluminium
Satellites/columns width: 96 mm
Satellites/columns height: 780 mm
Satellites/columns depth: 104 mm
Satellites/columns weight: 5.6 kg

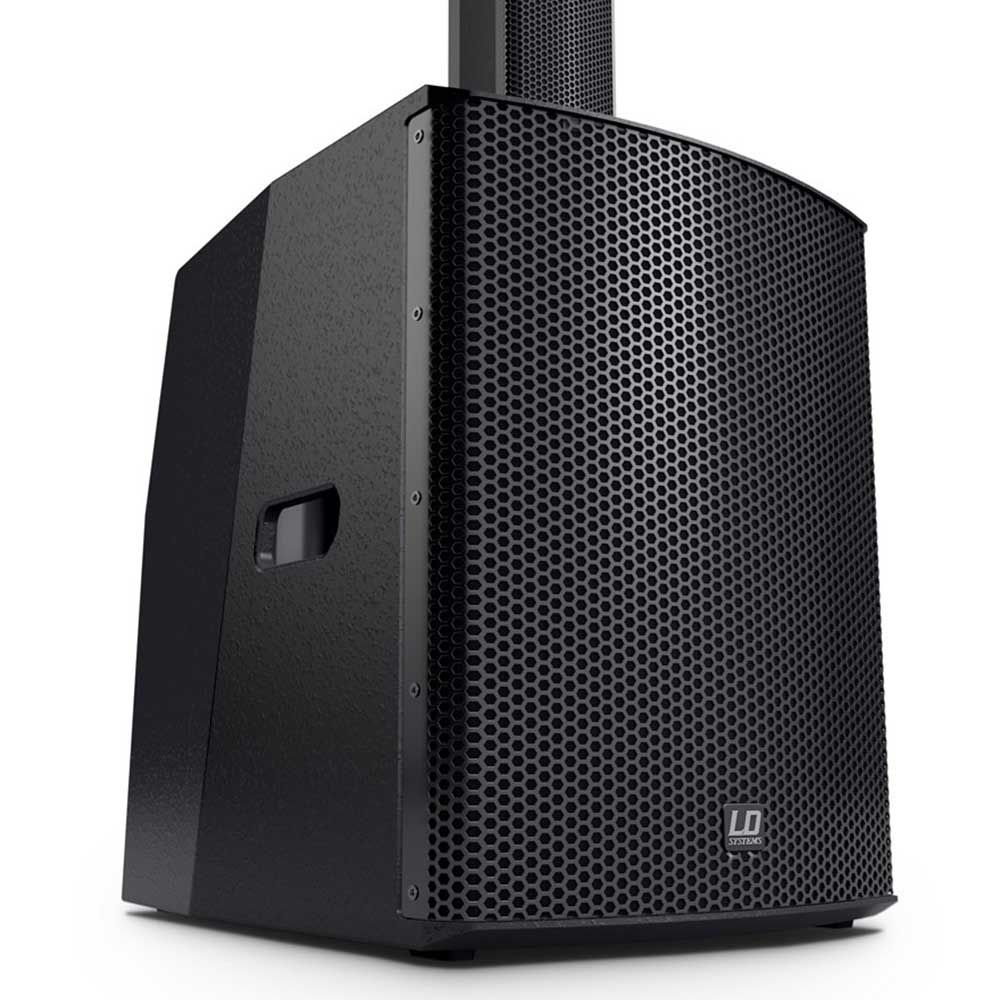

Subwoofer design: Bass reflex
Subwoofer number of handles: 4
Subwoofer material thickness: 15 mm
Subwoofer surface coating: Painted (textured lacquer)
Subwoofer front grille material: Aluminium
Subwoofer width: 370 mm
Subwoofer depth: 480 mm
Subwoofer height: 484 mm
Subwoofer weight: 19.7 kg
Ambient temperature: 0 – 40 °C
Maximum air humidity (non-condensing): 80 %
Overall width: 370 mm
Overall height: 2,059 mm
Overall depth: 480 mm
Overall weight: 30.9 kg
Included accessories: Mains cable
