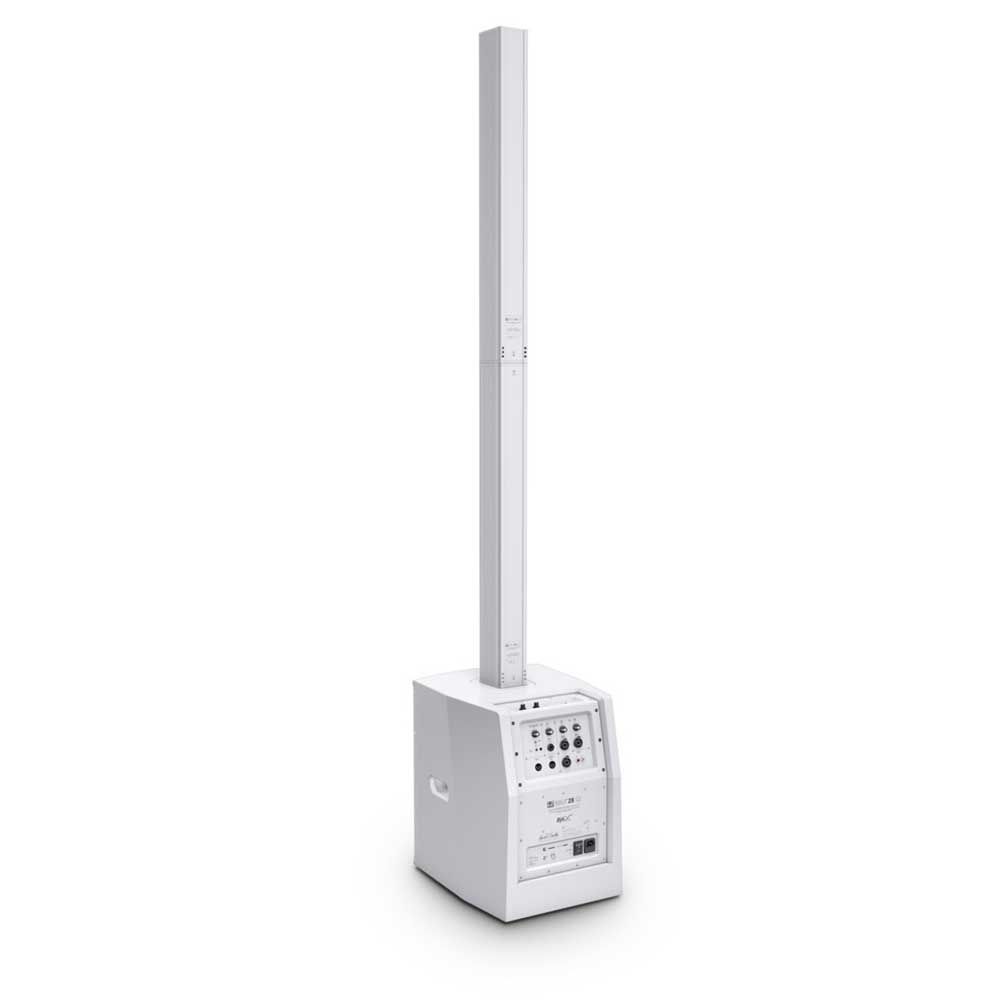

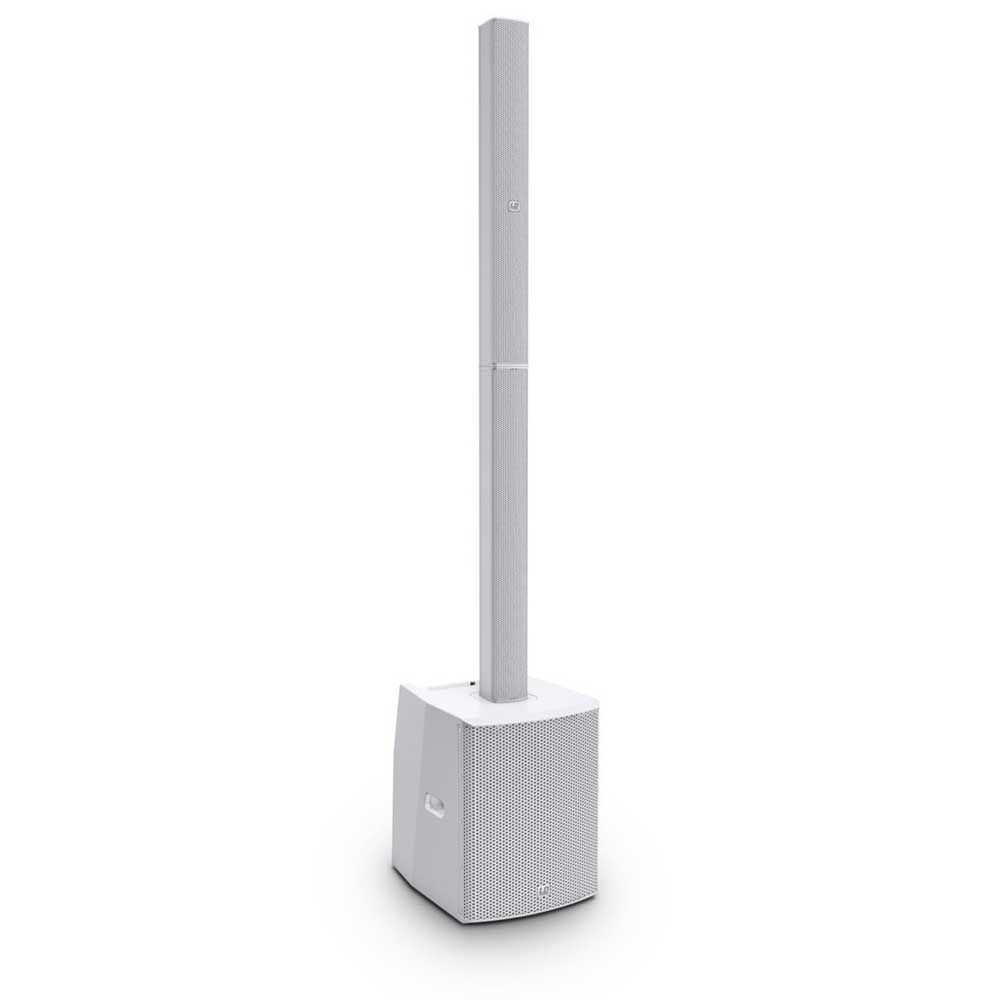

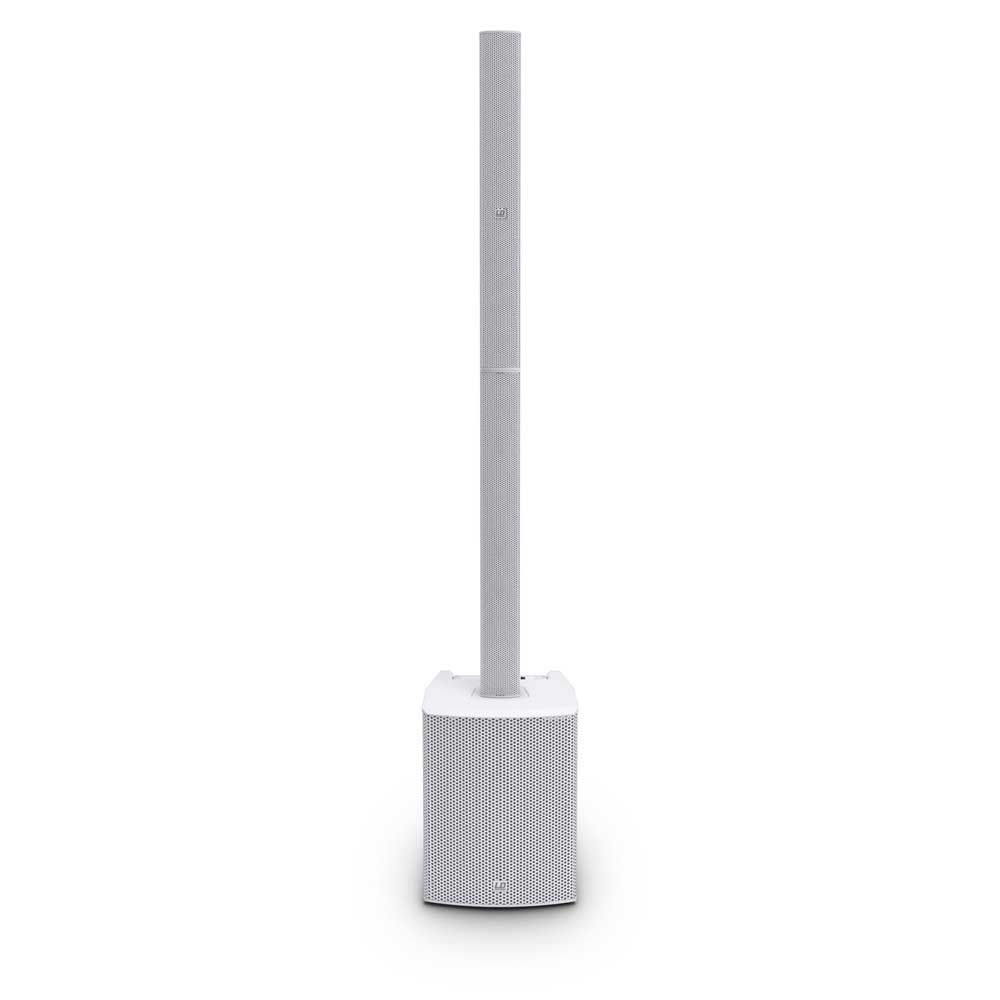

LD Systems MAUI 28 G2 Active Column PA System (White)
The LD Systems MAUI 28 G2 (White) brings PA and monitoring together in a portable column system for medium-sized gigs and fixed installations. A 2,000 W peak Class-D amplifier, integrated mixer and wide-dispersion array deliver a practical setup for all.
Full Sound From a Compact System

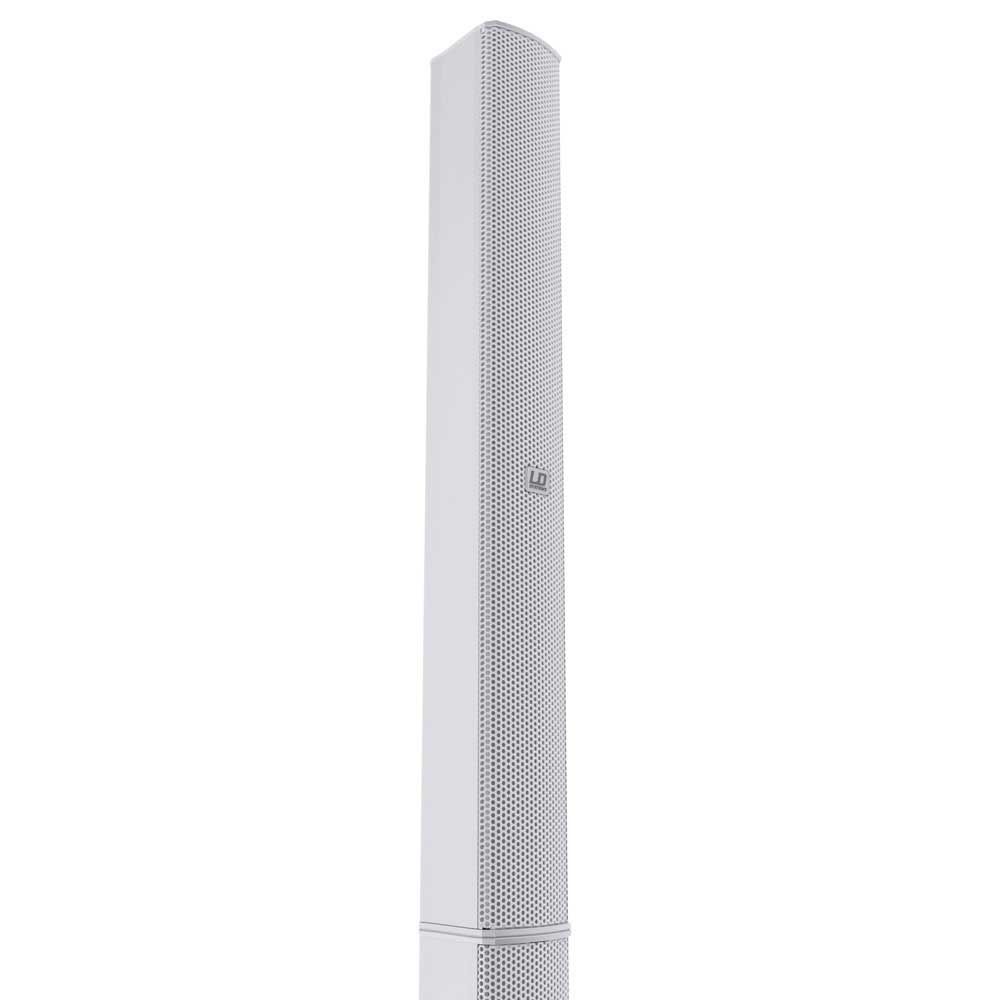

Firstly, two 8″ woofers build the low end, while sixteen 3″ full-range speakers handle the mids and two 1″ high-frequency drivers add detail up top. The array arrangement extends range and coverage. Therefore, the system can serve as both PA and monitor while keeping the footprint tidy.
Even Coverage Across the Room
The BEM-optimised tweeter wave guide shapes sound dispersion to reduce floor and ceiling reflections. With a 120° horizontal and 20° vertical beam angle, the MAUI 28 G2 W spreads audio across the audience area and can make separate monitor speakers unnecessary.
Control Without a Separate Mixer

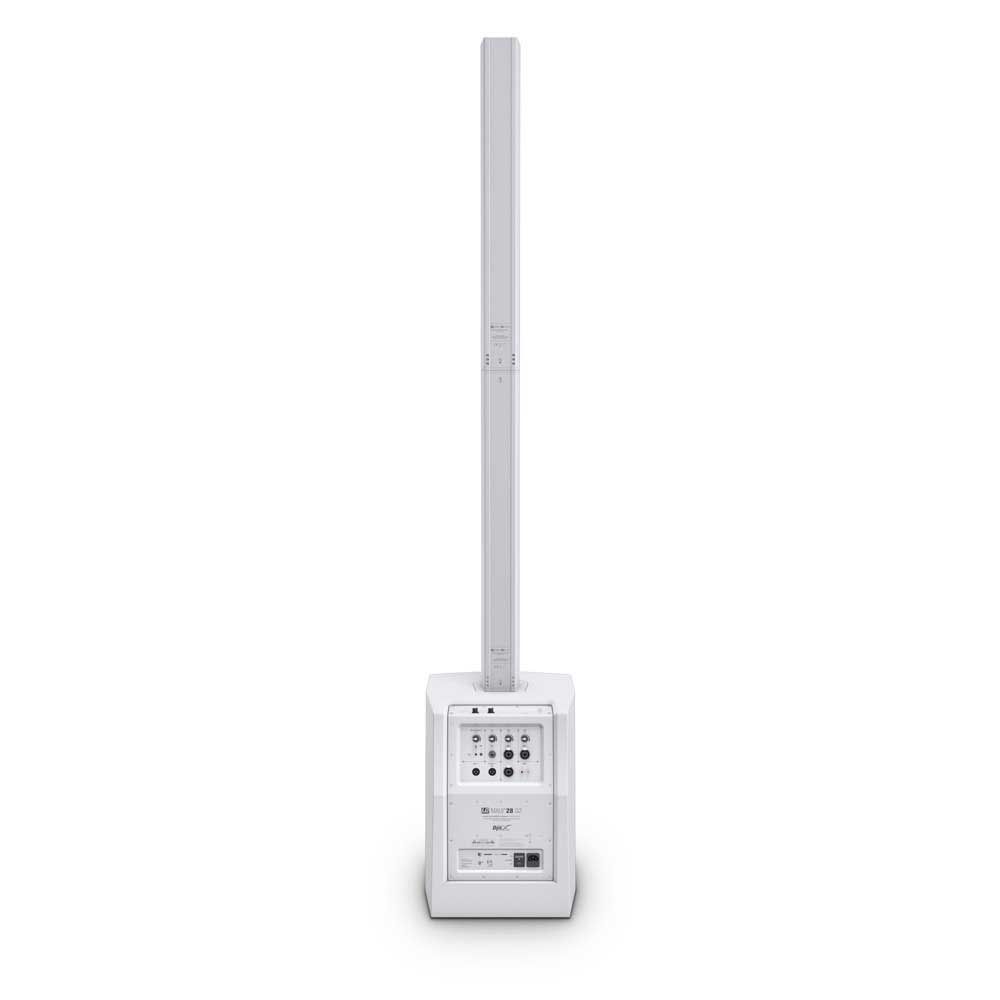

An integrated 4-channel mixer gives the system a focused control centre, with microphone, instrument, line and music input options. Three-band EQ, digital effects and presets make it easier to shape the setup, while Bluetooth® Stereo Audio Streaming adds a straightforward way to play wireless audio.
Simple Transport and Setup

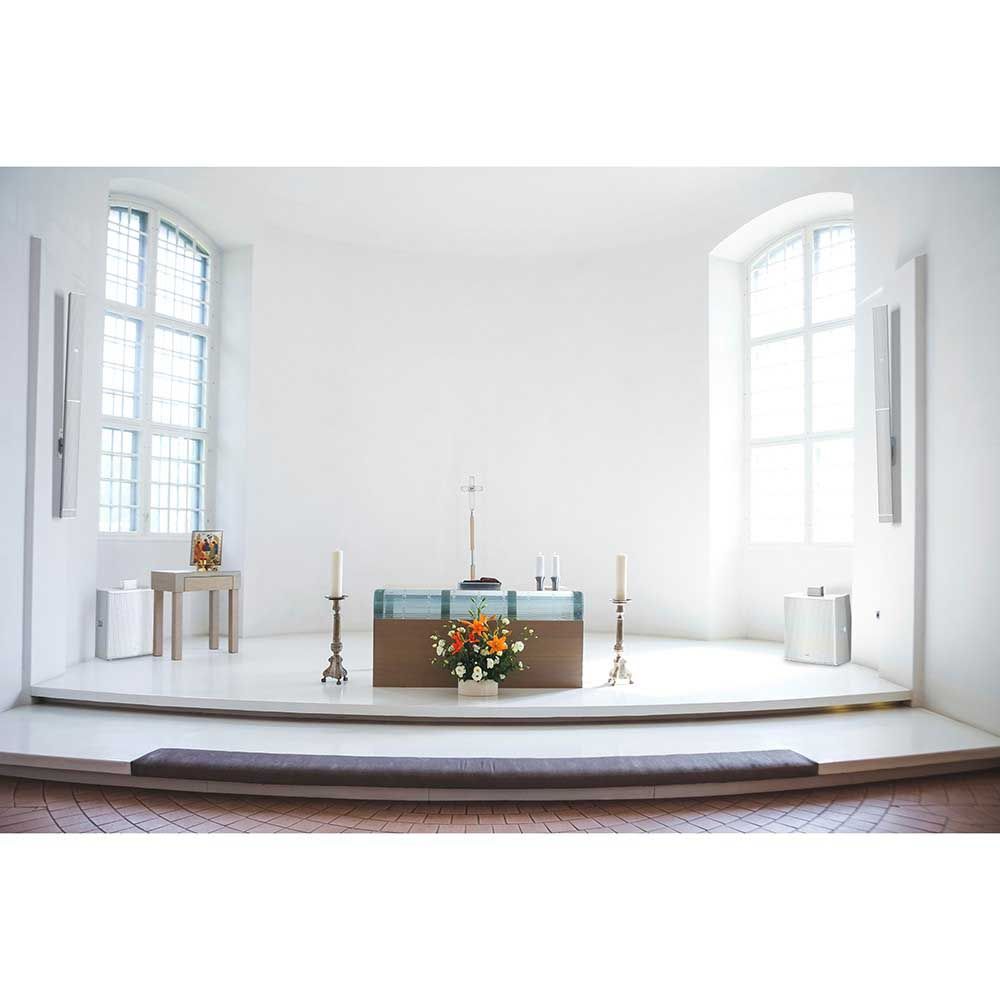

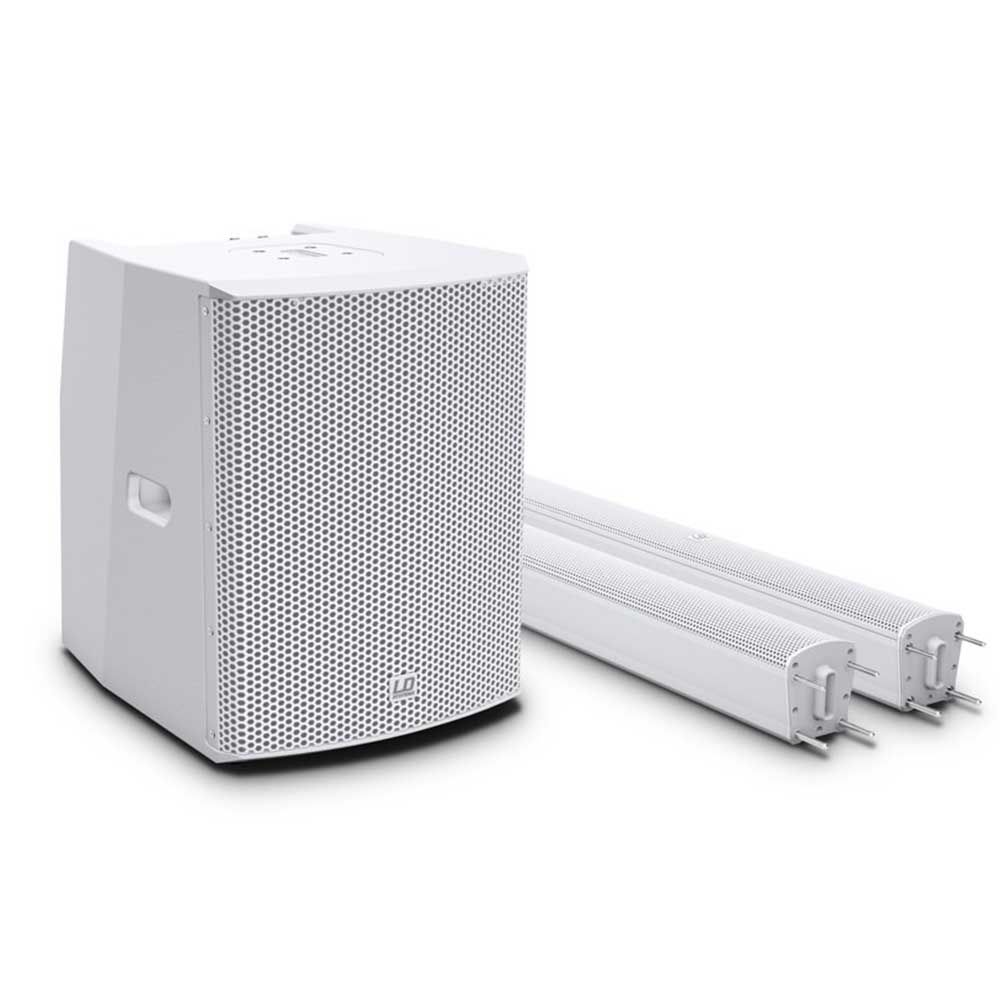

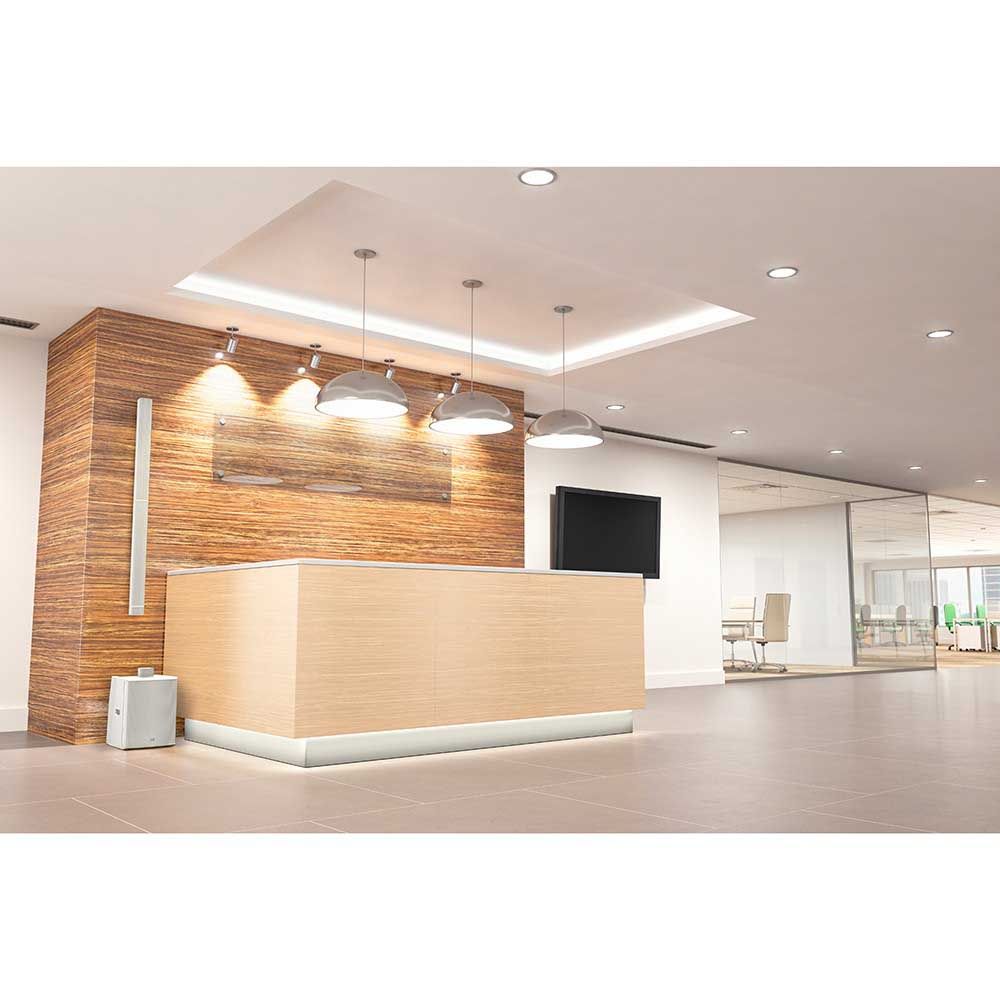

The column comprises two elements that connect to the subwoofer using special multi-pin cable plugs. The column and subwoofer can also be set up separately, supporting flexible PA use and fixed installations. Four handles on the subwoofer and the compact column format make handling and storage more manageable.
Key Features
- PA and monitor functionality in one active column system
- DynX® DSP processing with limiter, EQ, compressor and crossover functions
- Wide, homogeneous dispersion for more consistent room coverage
- Integrated mixer with presets and Bluetooth® Stereo Audio Streaming
- Two-piece column design with special multi-pin cable plugs for setup
Type: Active
Peak output power: 2000 W
RMS output power: 1000 W
Amp class: Class D
Max. SPL peak: 126 dB
Frequency response: 45 – 20,000 Hz
Beam angle: Hor.: 120° / Vert.:20°
Number of inputs: 4
Number of outputs: 2
Colour: White
Bluetooth® version: Bluetooth® 4.2
Audio Streaming (A2DP): Supported
Supported audio codecs: SBC
Number of microphone inputs: 1
Mic-in connector type: XLR combo socket
Number of instrument inputs: 1
Inst-in connector type: 6.3 mm Jack TRS female
Number of line inputs: 2
Line-In connector type: XLR combo socket
Number of music inputs: 1
Music inputs connector types: 3.5 mm Jack TRS female
Number of speaker outputs: 1
Speaker output connection type: XLR combo socket
Mixer: Yes
Mixer channels: 4
Audio processing: 3 band EQ (High, Mid, Low), Digital effects (DFX), Presets
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 100 dB
Bass driver size: 8 ”
Bass driver quantity: 2
Bass driver magnet: Ferrite
Bass driver voice coil: 2 ”
Mid range size: 3 ”
Mid range quantity: 16
Mid range voice coil: 1 ”
Mid range magnet: Ferrite
Tweeter driver size: 1 ”
Tweeter quantity: 2
Tweeter magnet: Neodymium
Tweeter voice coil: 1 ”
Operation voltage: 100 V AC – 120 V AC / 50 – 60 Hz, 220 V AC – 240 V AC / 50 – 60 Hz
Rated power: 11 W
Max. Stand-by power consumption: 0 W
Mains connector: IEC C14 plug male
Satellites/columns design: Closed
Satellites/columns chassis material: Aluminium
Satellites/columns housing coating: HD coated Aluminium
Satellites/columns front grille material: Aluminium
Satellites/columns width: 96 mm
Satellites/columns height: 780 mm
Satellites/columns depth: 104 mm
Satellites/columns weight: 5.6 kg
Subwoofer design: Bass reflex
Subwoofer number of handles: 4
Subwoofer material thickness: 15 mm
Subwoofer surface coating: Painted (textured lacquer)
Subwoofer front grille material: Aluminium
Subwoofer width: 370 mm
Subwoofer depth: 480 mm
Subwoofer height: 484 mm
Subwoofer weight: 19.7 kg
Ambient temperature: 0 – 40 °C
Maximum air humidity (non-condensing): 80 %
Overall width: 370 mm
Overall height: 2,059 mm
Overall depth: 480 mm
Overall weight: 30.9 kg
Included accessories: Mains cable
