Beamz DMX8-SPLIT DMX Splitter/Booster 8-way
The Beamz DMX8-SPLIT provides a practical way to distribute DMX control signals across eight separate outputs. Its isolated input and outputs, dedicated drivers and passive loop output help keep signal distribution organised and reliable.
Eight Separate DMX Paths
The incoming DMX signal is split across eight outputs. Each output uses a 3-pin XLR socket with electronic isolation. Dedicated drivers boost the signal at each output. As a result, the isolated design helps reduce ground-loop problems and supports reliable data distribution.
Keep the Signal Moving

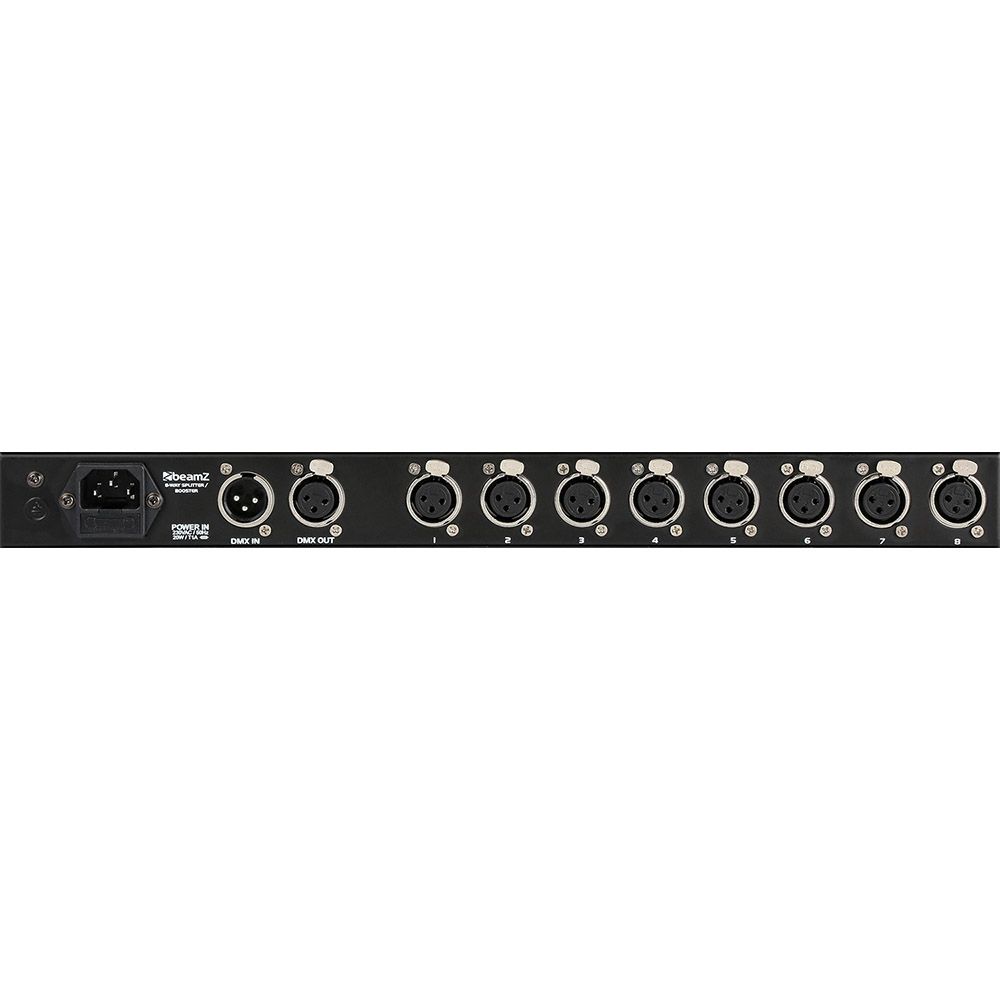

The 3-pin XLR isolated input accepts the incoming control signal. Meanwhile, the 3-pin XLR passive loop output lets the signal continue to another device. Together, these connections make it easier to arrange DMX distribution throughout a lighting system.
Rack-Ready Control Hardware
The black unit uses a 19-inch, single rack-space format. Therefore, it fits neatly into organised equipment installations. An On/Off power switch keeps operation simple. In addition, the supplied 120 Ohm terminating resistor provides a defined termination option for the DMX connection.
Made for Structured Lighting Setups
For lighting technicians and operators using DMX-512 control, this splitter/booster provides a clear way to divide one signal across multiple destinations. Furthermore, the 3-pin XLR connection standard keeps the physical signal layout easy to follow as the system grows.
Key Features
- Splits one incoming DMX signal across eight isolated outputs
- Dedicated drivers boost the incoming signal at each output
- Electronic isolation helps reduce ground-loop problems
- Passive loop output allows the signal to continue onward
- 19-inch single rack-space format suits organised installations
