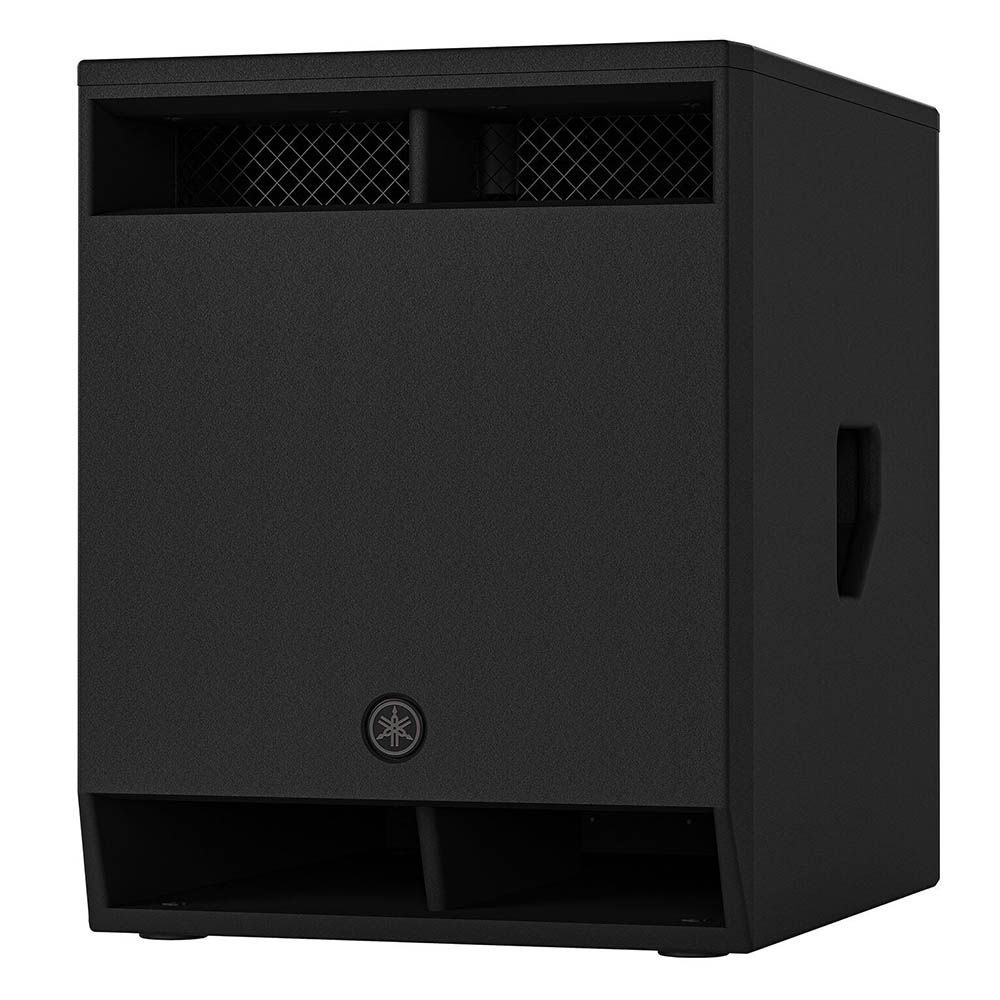

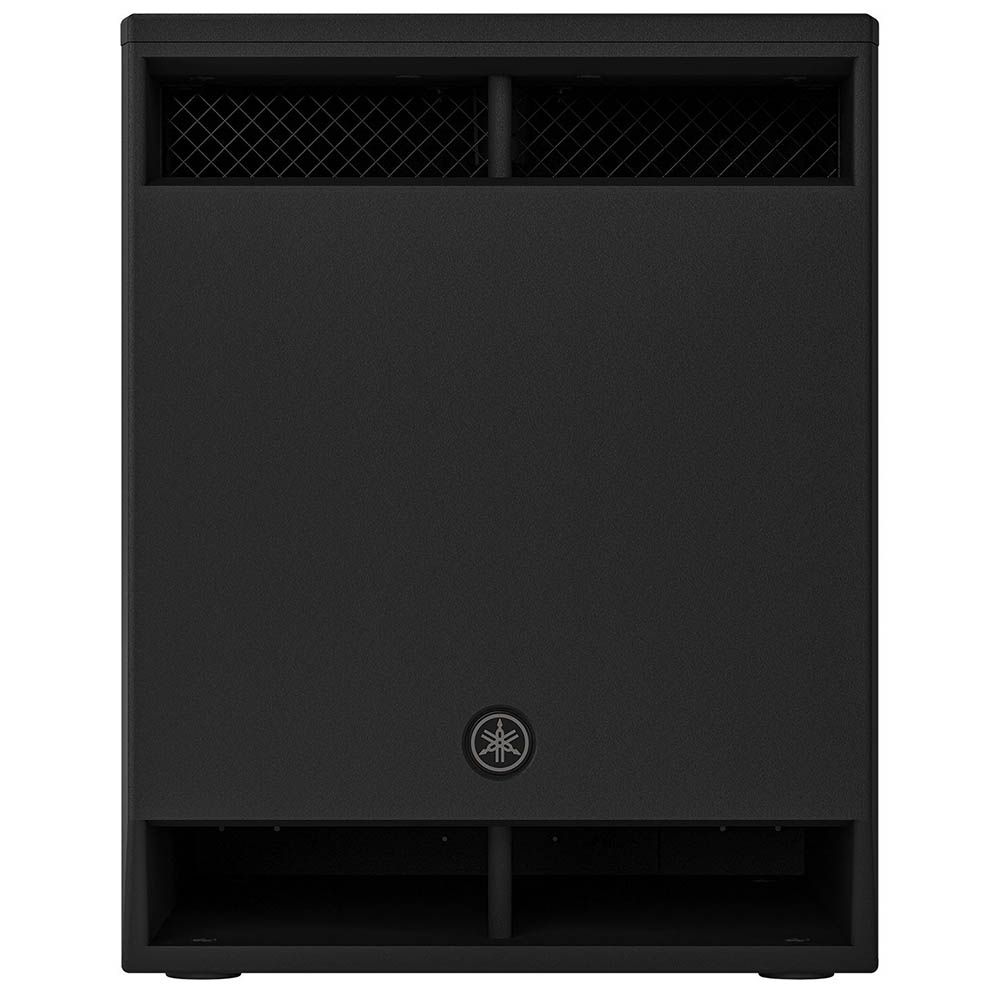

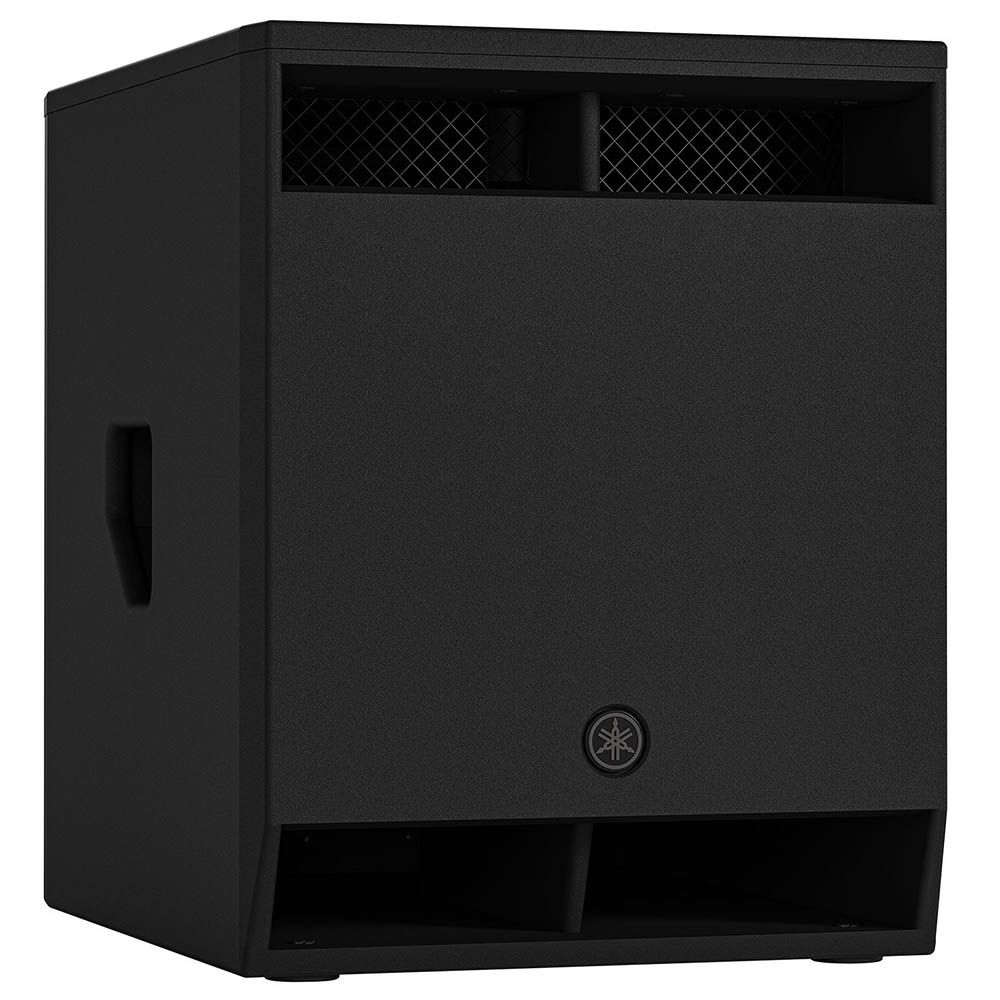

Yamaha DXS15 mk3 Powered Subwoofer
The Yamaha DXS15 mk3 Powered Subwoofer brings deep, clear low end to sound systems that need more impact. Its high-durability 15″ cone, 2500 W Class-D amplifier and band-pass cabinet work together for powerful bass. Meanwhile, D-XSUB processing helps extend response down to 35 Hz.
Powerful Low-End Foundation
Firstly, the high-output woofer and ideal band-pass cabinet design are built around strong bass response, with a maximum output level of 133 dB SPL. The plywood enclosure is acoustically optimised for sound quality. Therefore, giving the DXS15 mk3 a solid foundation for powered loudspeaker systems and other demanding audio setups.
Shape the System Response
Moreover, built-in D-XSUB processing offers NORMAL and XTENDED LF modes. Thus, helping extend the frequency response lower when the setup calls for it. Flexible X-OVER settings with DSP and the selectable HPF provide practical control over how the subwoofer works with the rest of the system.
Practical Control and Connections

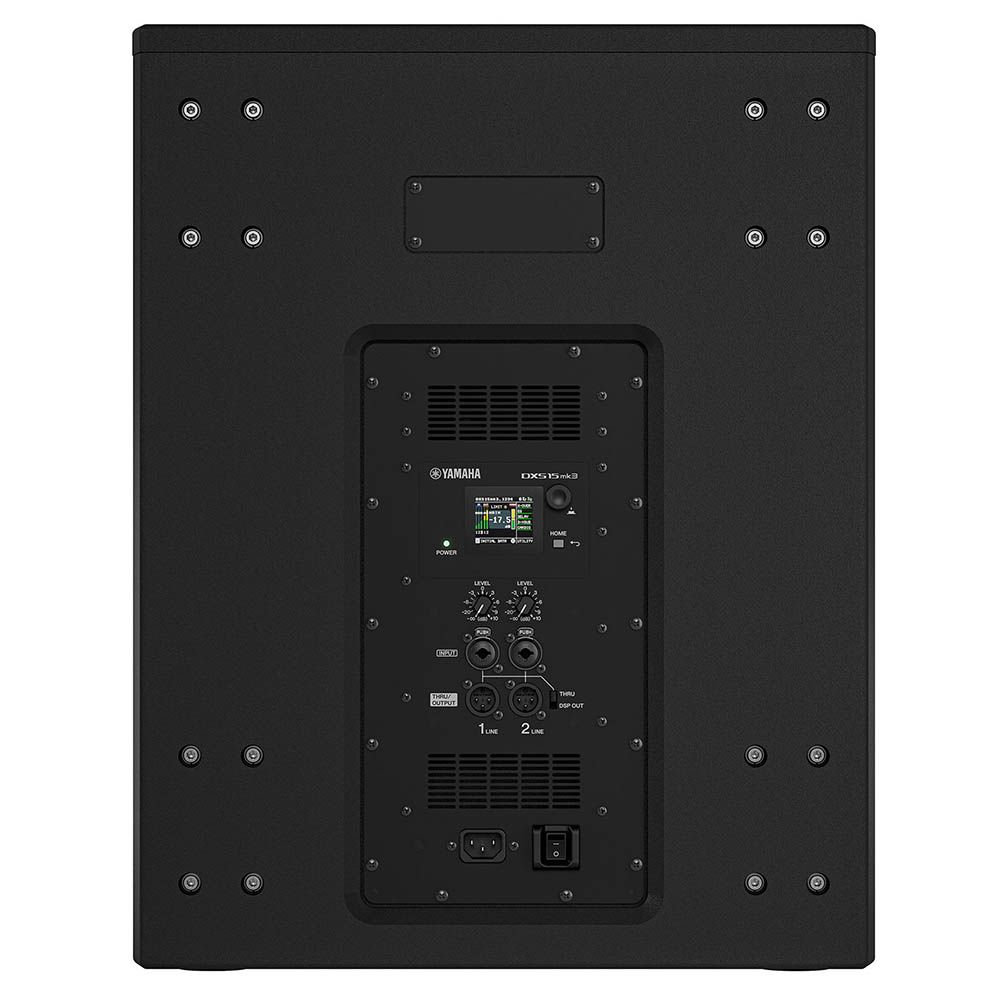

Analog INPUT 1 & 2 use a combo input, while OUTPUT 1 & 2 can operate as XLR3-32 THRU or DSP OUT. Bluetooth Version 5.0 with A2DP is included, and the D-Remote iOS/Android app provides remote control. Cardioid mode adds bass-management control for onstage setups.
Built for Sound-System Setup
Side handles, dual M20 and Ø35 mm pole sockets, and a durable black polyurea finish suit the practical demands of installed or portable sound systems. Optional SPW-1 speaker wheels and the SPCVR-DXS153 speaker cover are available for easier movement and protection between uses.
Key Benefits
- Deep low-frequency response extending down to 35 Hz with D-XSUB processing
- High-output bass from the 15″ cone and 2500 W Class-D amplifier
- Flexible DSP crossover and HPF settings for system matching
- Cardioid mode for bass management onstage
- Durable plywood cabinet with dual pole-socket options
