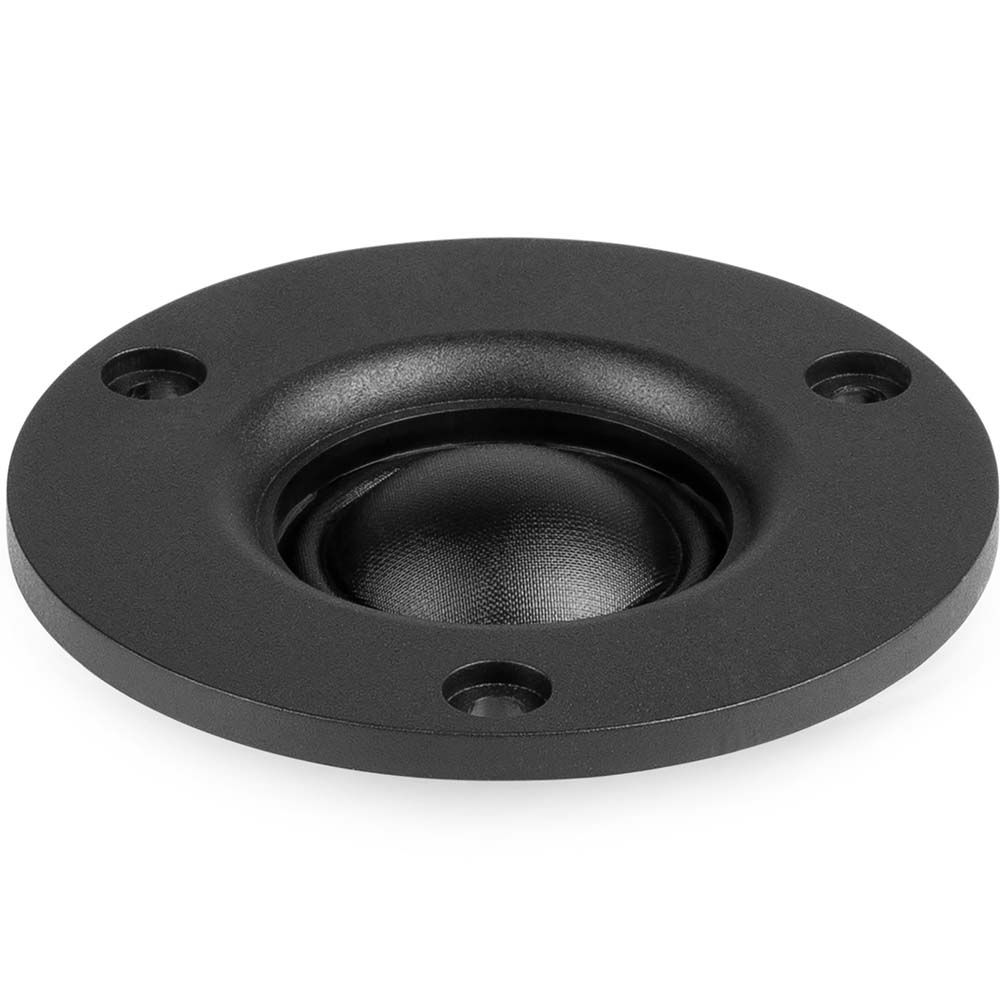

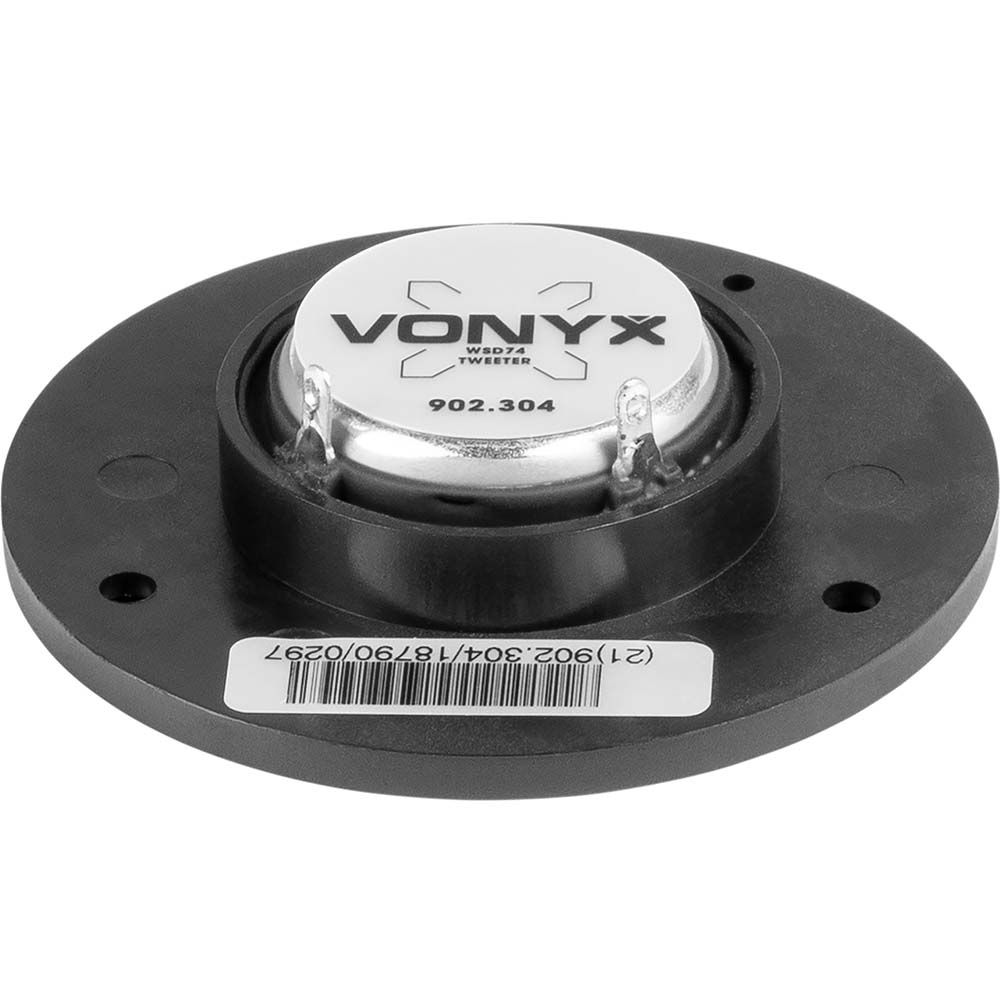

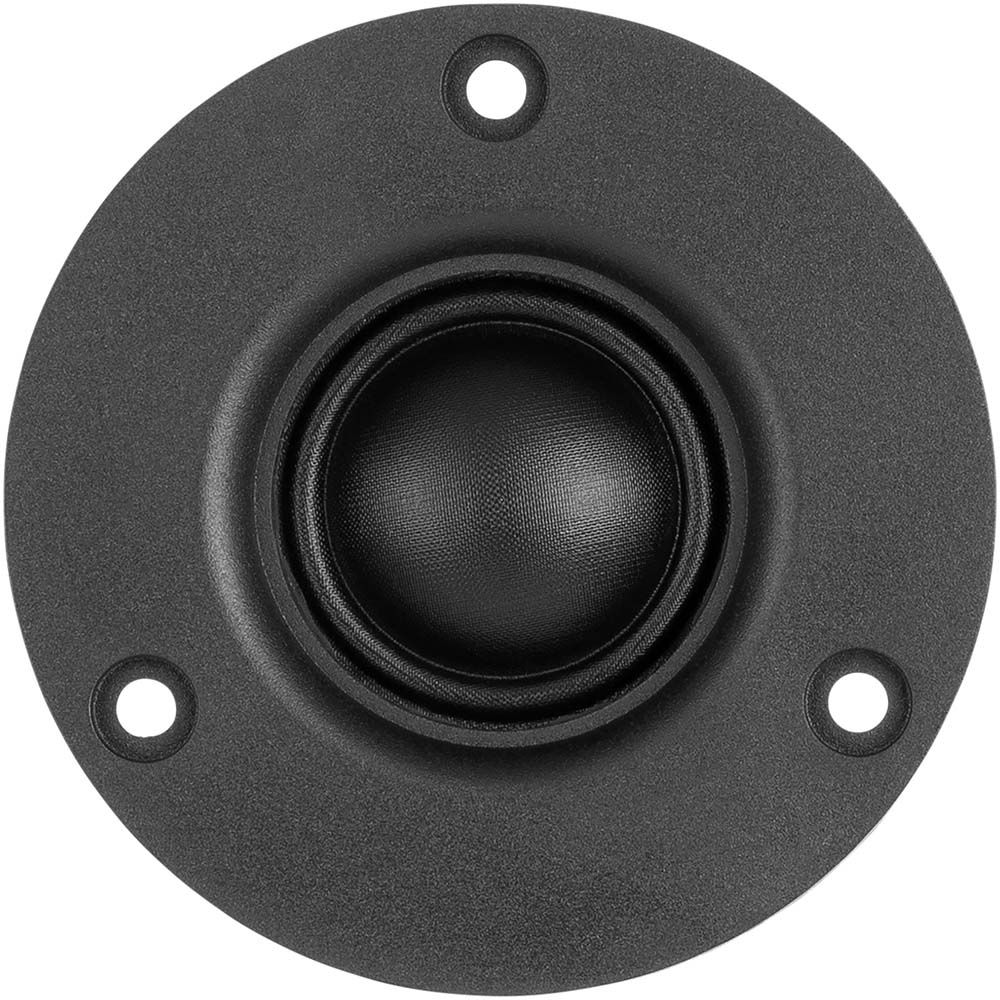

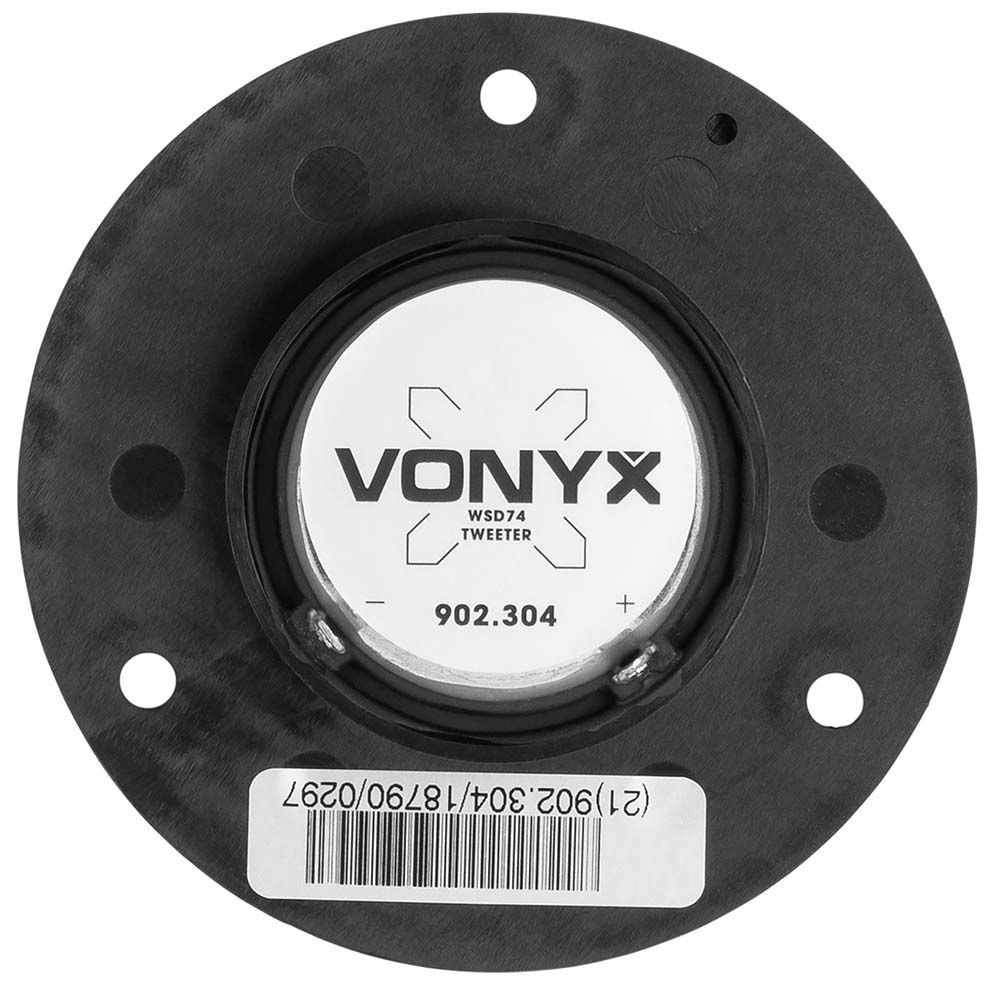

Vonyx WSD74 Silk Dome Tweeter (74mm)
The VONYX WSD74 silk dome tweeter is designed to bring precise, clear high-frequency detail to replacement and hi-fi applications. Its laminated silk film, neodymium magnet and dome construction work together for a smooth, controlled presentation, while the black ABS faceplate keeps the installation visually straightforward.
Clearer High-Frequency Detail
The soft silk dome tweeter covers a frequency response of 1400Hz – 20KHz, making it suited to reproducing the upper range of music and audio. Excellent radiation supports an even spread of high-frequency sound, so the tweeter can add definition without relying on an overly hard presentation.
Silk Film with Laminated Construction
Laminate technology is paired with a top-quality laminated silk film to shape the tweeter’s sound. The neodymium magnet and 25mm voice coil complete the core design, giving this replacement component the key elements needed for its stated hi-fi applications.
Check the Fit Before Installation
The black ABS faceplate measures Ø74 x 18mm overall, with a 57.5mm mounting diameter and 14mm mounting depth. Checking these measurements against the intended speaker position before installation helps confirm the physical fit, while the 8 Ohm impedance provides an important reference for the speaker system.
Key Features
- Precise, clear high-frequency sound from a soft silk dome design
- Laminated silk film and laminate technology for the tweeter construction
- Neodymium magnet with a 25mm voice coil
- Black ABS faceplate for replacement and hi-fi applications
- 90dB SPL @ 1W/1m and 8 Ohm impedance
