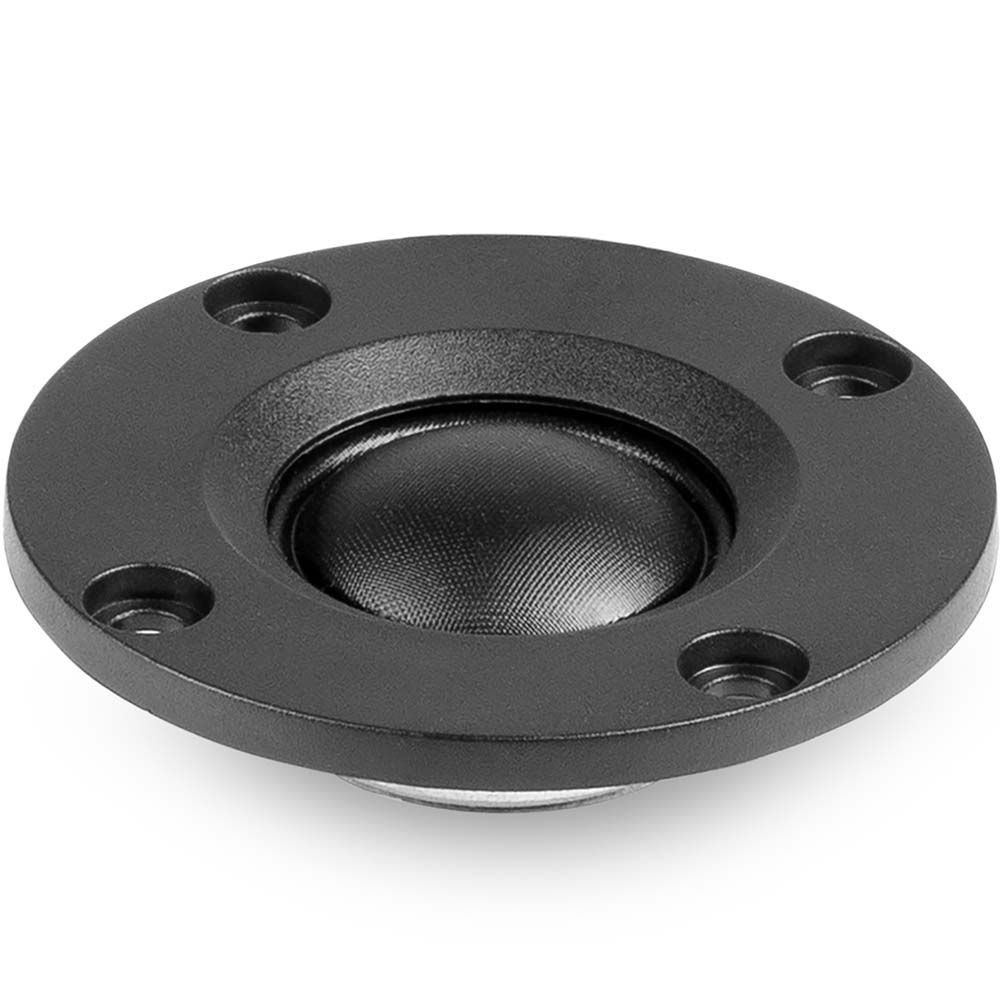

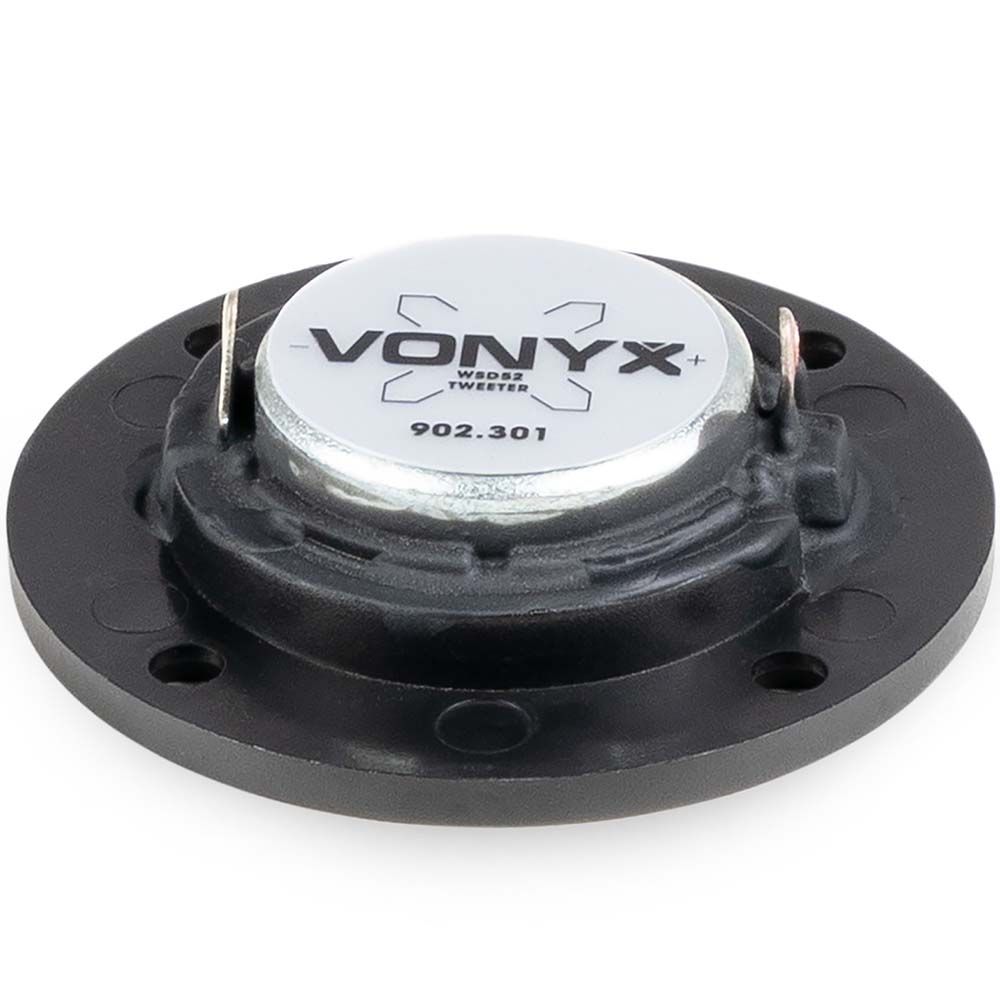

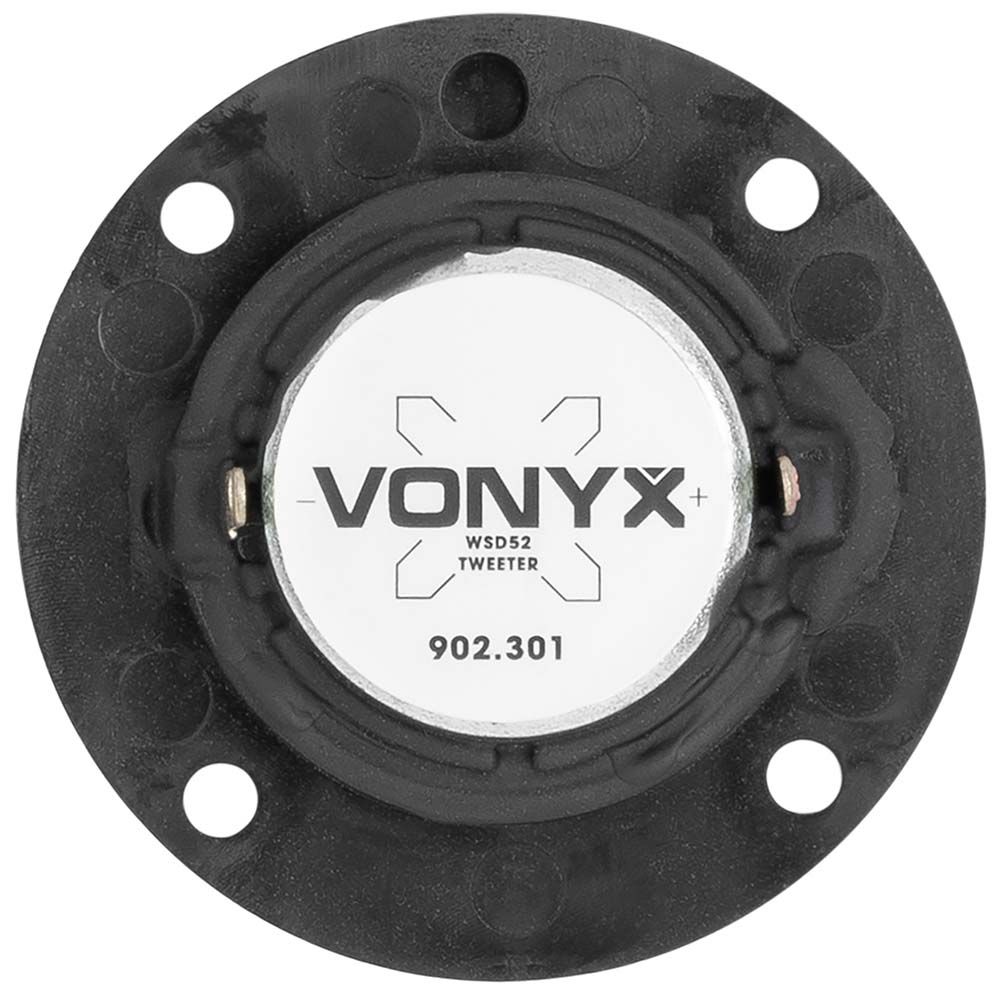

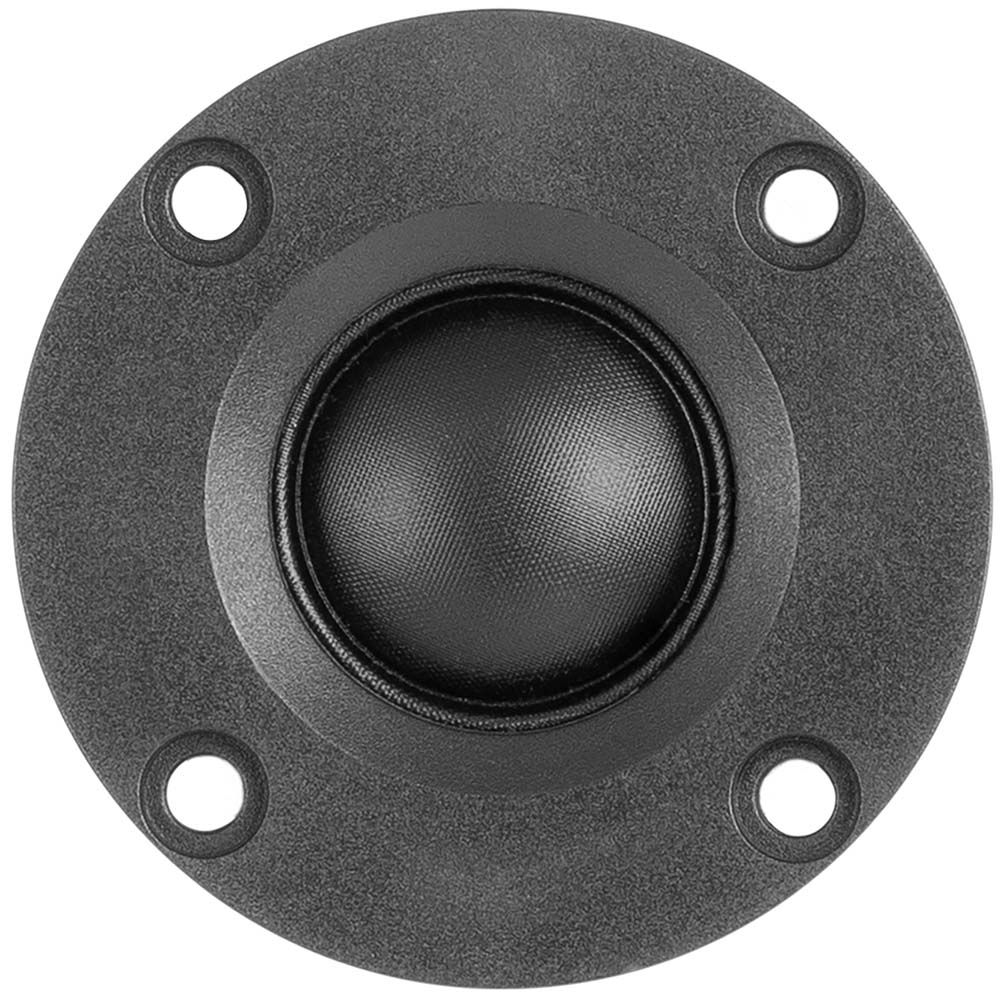

Vonyx WSD52 Silk Dome Tweeter (52mm)
The VONYX WSD52 silk dome tweeter is designed to bring precise, clear high-frequency sound to replacement and hi-fi applications. Its laminated soft silk dome, neodymium magnet and 20mm voice coil give speaker builders a focused way to refresh the treble section. All while keeping the installation format straightforward.
Clearer High-Frequency Detail
Firstly, the soft silk dome tweeter is built for precise, clear high-quality sound. Get a frequency response from 1800Hz to 20KHz. That range covers the upper part of a speaker’s output. Thus, making the WSD52 a practical choice when you need to restore or develop a more articulate high-frequency section.
Controlled Dome Construction
Moreover, laminate technology forms part of the tweeter’s silk film construction. Meanwhile, the neodymium magnet and 20mm voice coil complete the design. Together, these specified elements support the tweeter’s stated focus on clear sound and excellent radiation. Get this without adding unnecessary complexity to a replacement project.
Ready for Speaker Projects
With a black finish, ABS faceplate and dome tweeter format, this unit has a clean, purpose-built appearance for speaker work. Its 44mm mounting diameter and 9.3mm mounting depth give you key dimensions to check when planning a replacement or hi-fi installation.
Output Matched to the Application
The tweeter is rated at 15W RMS and 30W maximum power, with an 8 Ohm impedance and 88dB SPL @ 1W/1m. These figures give speaker builders the essential electrical and output information needed to assess the component for their intended hi-fi or replacement setup.
Key Features
- Soft silk dome construction for precise, clear high-frequency sound
- Laminate technology and excellent radiation for the specified tweeter design
- Neodymium magnet with a 20mm voice coil
- ABS faceplate and black finish
- Suitable for replacement purposes and hi-fi applications
