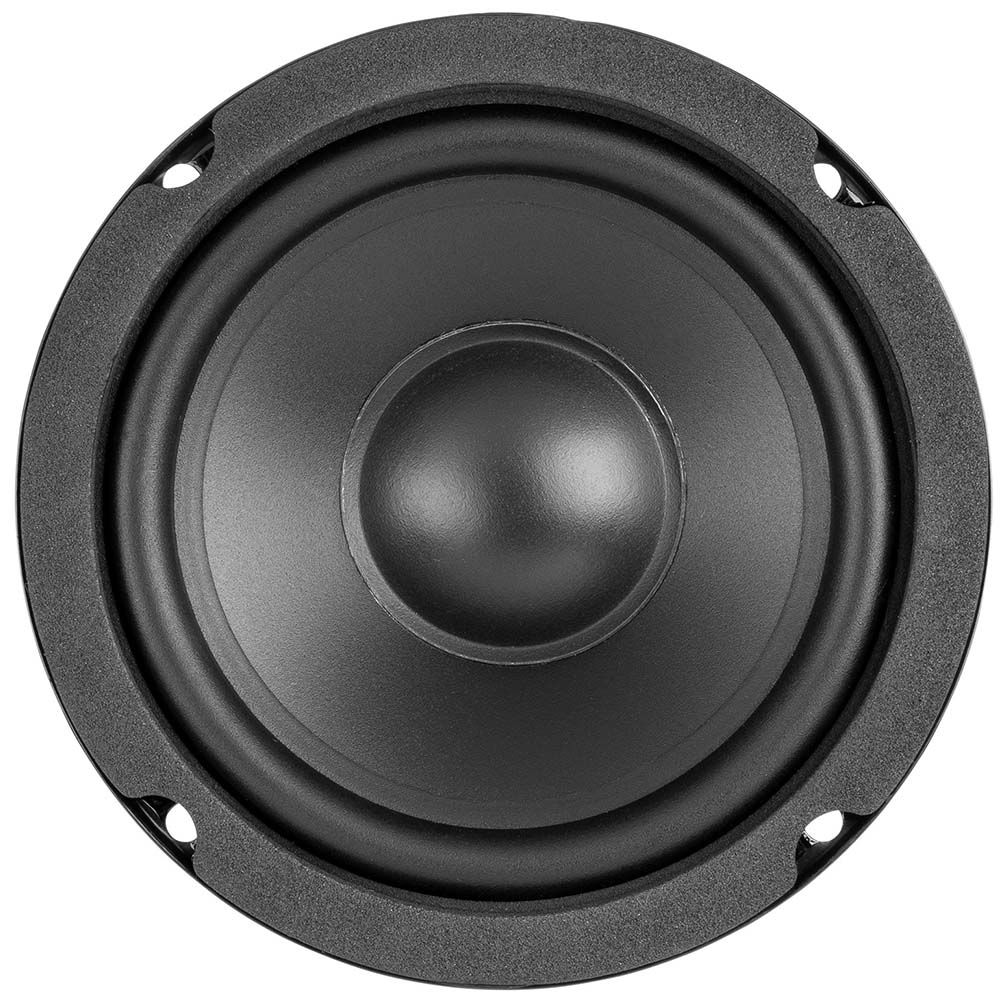

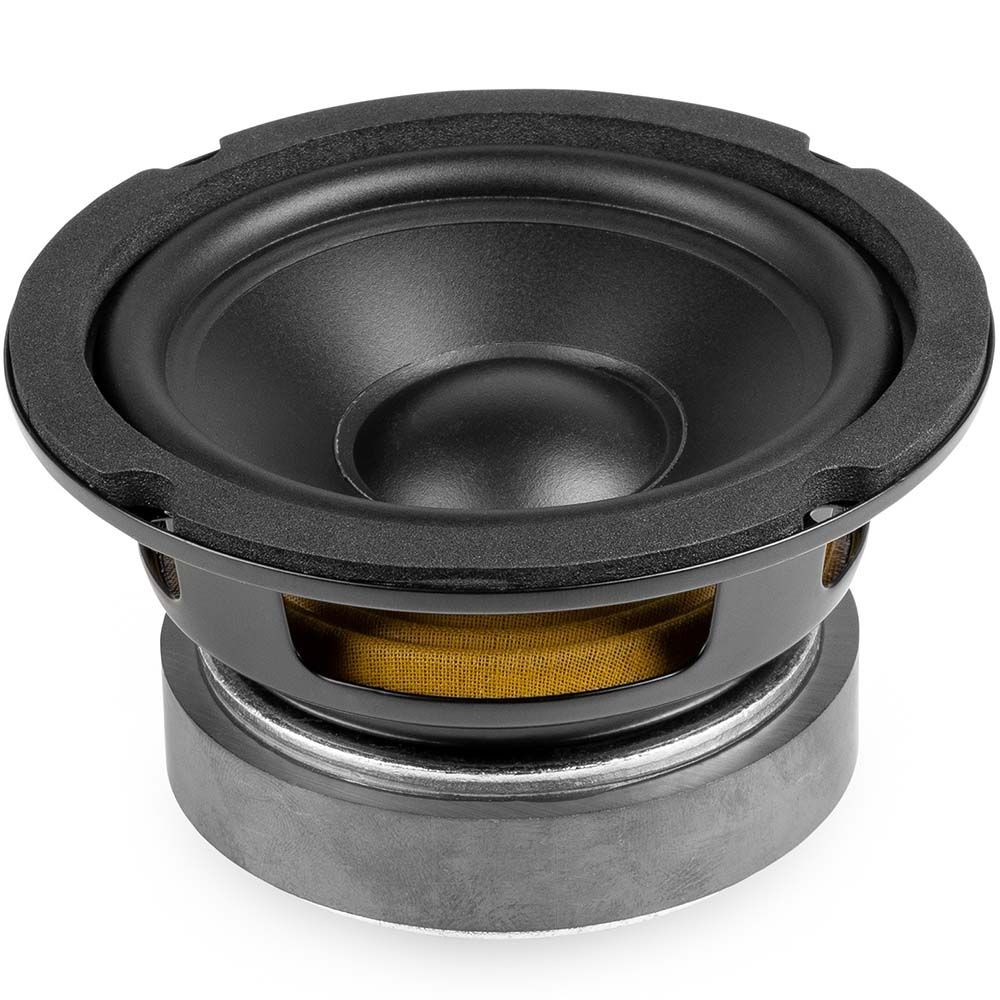

Vonyx WPP10 Woofer Polypropylene Hi-Fi 10cm 50W
The Vonyx WPP10 is a hi-fi woofer built around a polypropylene cone and rubber suspension. With 50W RMS power handling, an 8 Ohm impedance and a ferrite magnet, it gives you a straightforward way to select a replacement or build component when these core requirements match your design.
Polypropylene Cone Construction
The polypropylene cone is the defining material choice in this woofer. It works alongside the rubber suspension as part of the WPP series construction, keeping the design focused on the two features specified for the cone and its movement. The black finish also gives the component a clean, understated appearance.
Power for Hi-Fi Builds
Rated at 50W RMS, with a maximum output power of 100W, the WPP10 gives you clear power figures to compare against your project requirements. Its 4-inch woofer diameter and 1-inch voice coil provide useful sizing information when checking the available space and matching components.
Check the Fit Before Installation
Installation planning is easier when the key dimensions are on hand. The woofer has a 92mm mounting diameter, 60mm mounting depth and overall dimensions of Ø113 x 65mm. Confirm those measurements, along with the 8 Ohm impedance, before choosing it for your hi-fi setup.
Specified Audio Performance

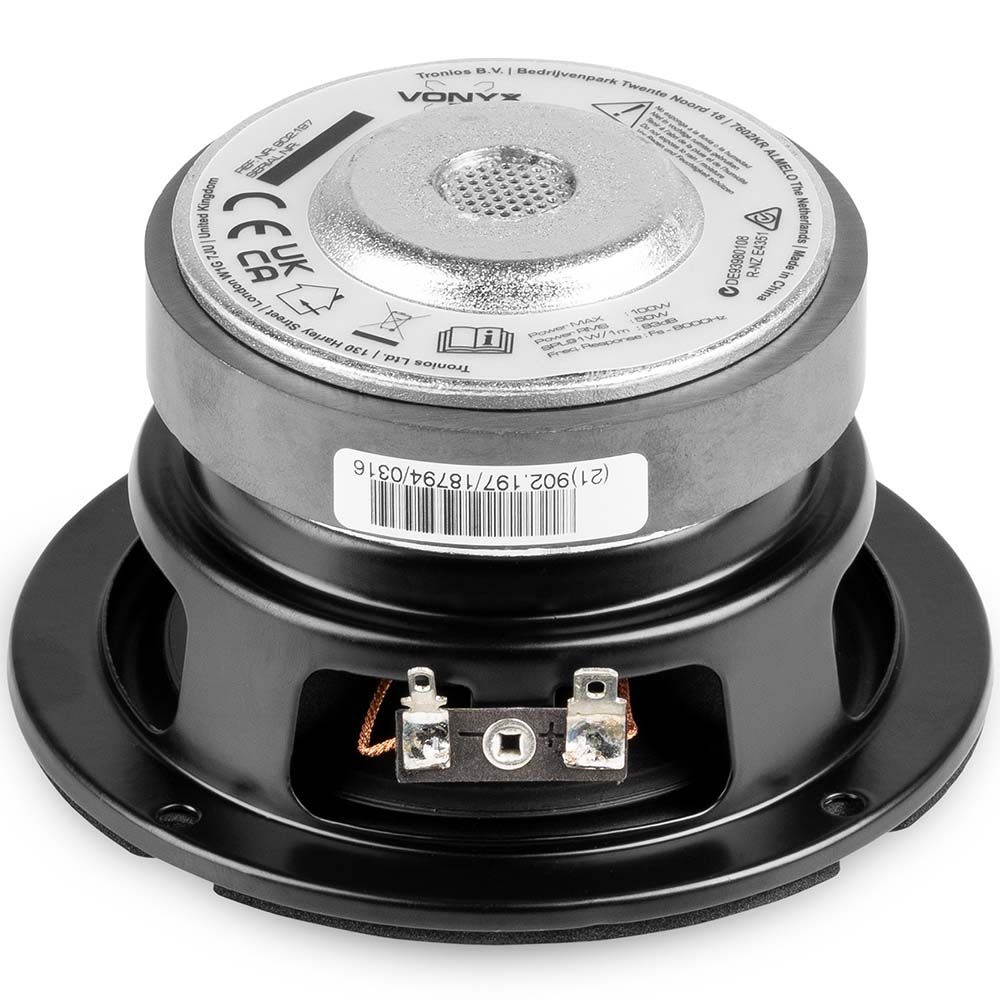

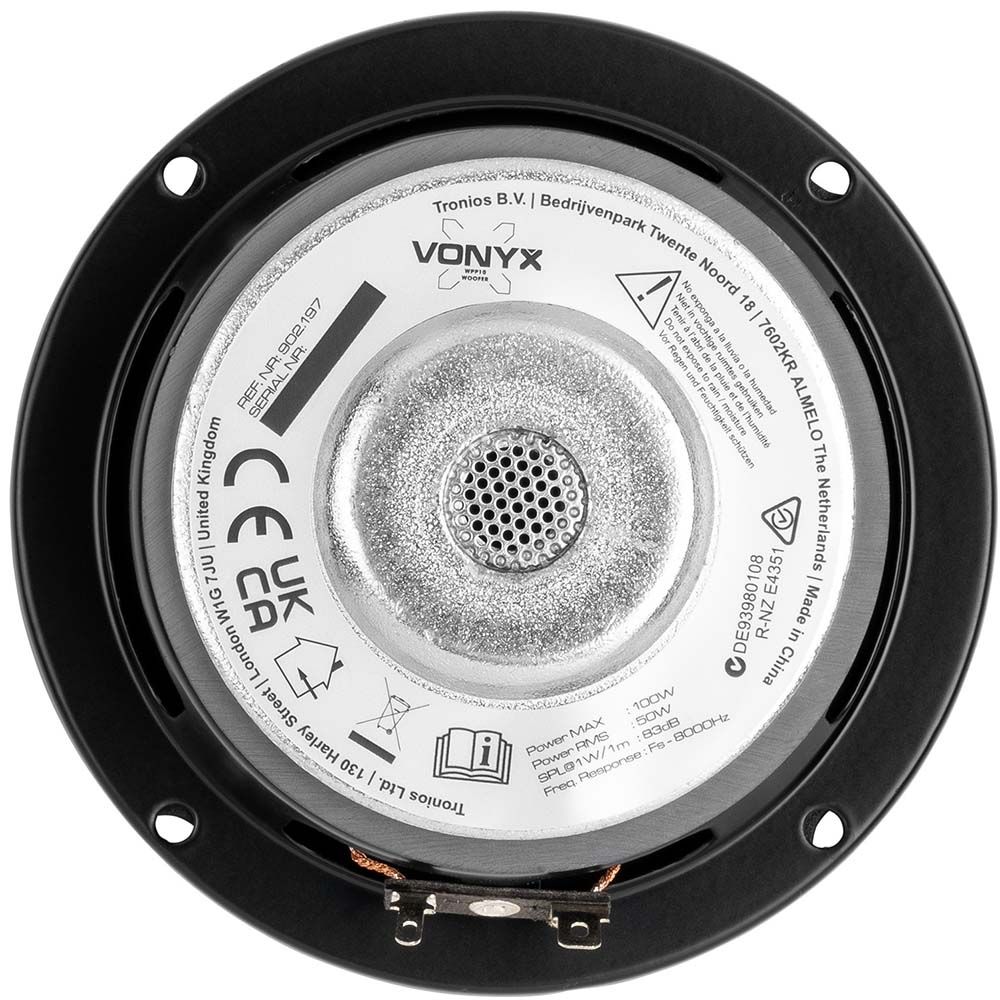

The frequency response is rated from 71 – 8.000Hz, while the sensitivity is listed as 83dB SPL @ 1W/1m. A 10 oz ferrite magnet completes the stated construction details, giving you the essential information needed to compare this woofer with other component options.
Key Features
- Polypropylene cone for the specified WPP series construction
- Rubber suspension included in the woofer design
- 50W RMS power handling with 100W maximum output power
- 8 Ohm impedance for straightforward component matching
- Ferrite magnet with a 10 oz magnet weight
