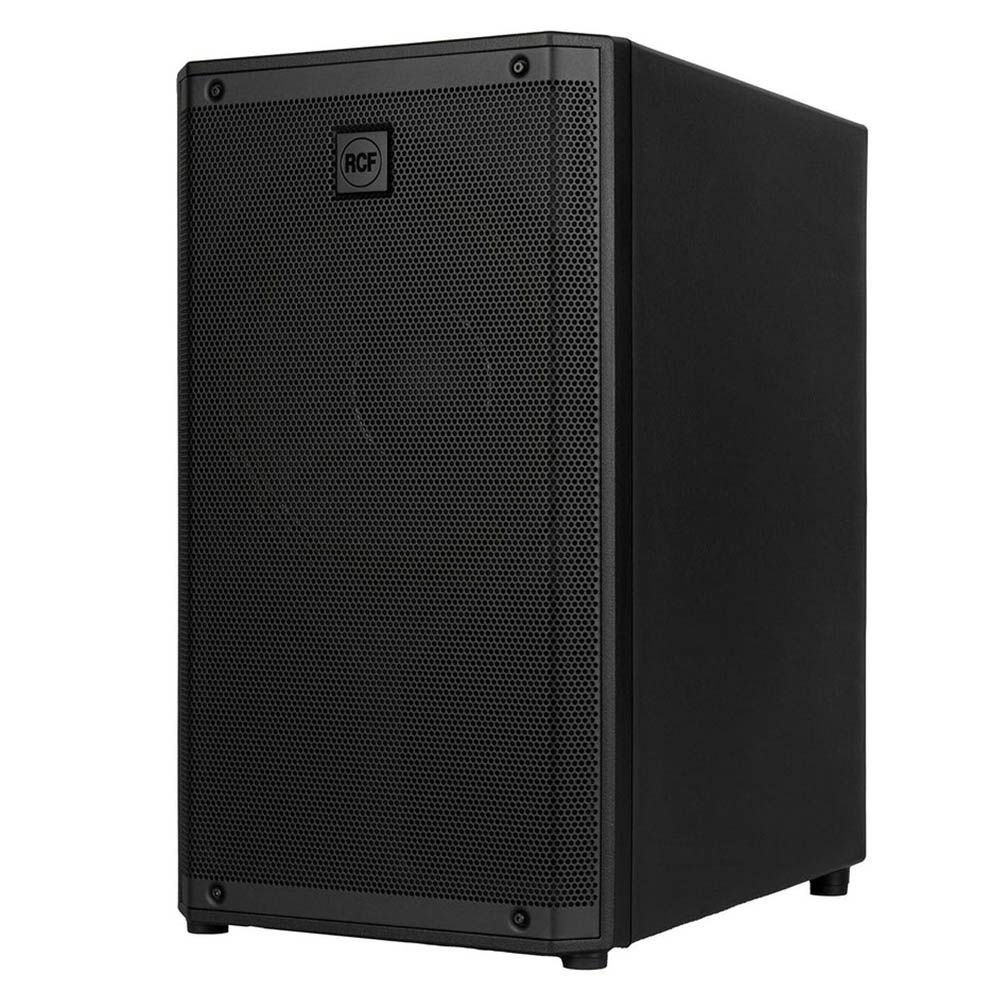

RCF EVOX JMIX9 Subwoofer Part – Black
The RCF EVOX JMIX9 Sub is an active, three-way portable music system featuring a digital 8-channel mixer and Bluetooth® streaming and control. Flexibly get your hands on just the touring-grade subwoofer component.
Build the low end with controlled power
Firstly, the 12″ precision low-frequency woofer sits in a bass-reflex enclosure. Meanwhile, the dual-channel Class-D amplifier delivers 2100 W Peak with built-in DSP. Thermal and RMS protection, plus a Soft Limiter, are included in the processing section for a controlled system response during demanding playback.
Keep vocals clear across the room
For a picture of the full RCF EVOX JMIX9 Sub, a 1.75″ neo compression driver works with a True Resistive Waveguide and six full-range neo transducers to maintain broad, consistent coverage. The 120° horizontal and 40° vertical pattern of the JMIX9 Sub makes it easier to share articulate vocals. Also, just about any musical detail across the listening area!
Pack the system for practical setup

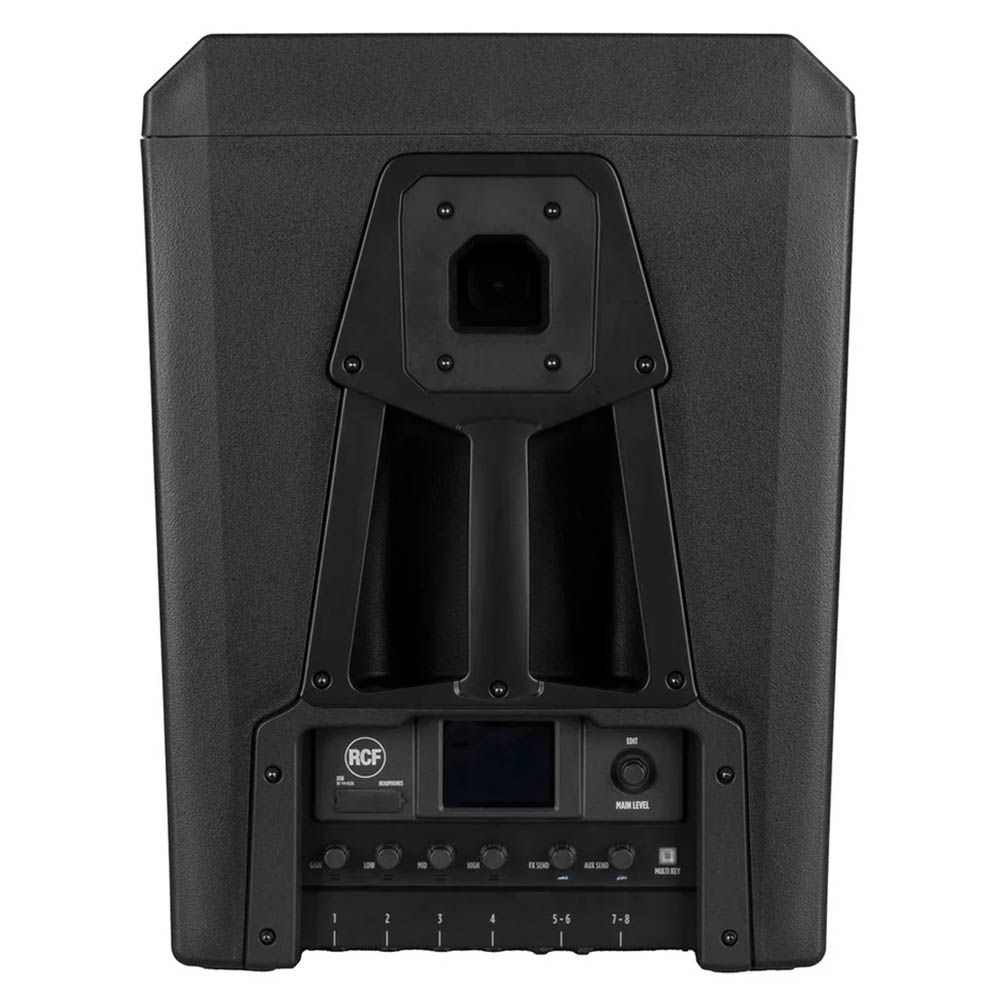

Additionally, the sleek PP Composite cabinet uses a quick-fit socket and aluminium stand mount for the column speaker. Not forgetting a steel grille and one top handle. The assembled system weighs 28.8 kg, and the top speaker’s padded carrying bag is included for transport between setups.
Key Benefits
- Mix microphones, line sources and Bluetooth® audio through one integrated system.
- Shape vocals and music with EQ, reverb, phantom power and built-in DSP.
- Deliver broad, consistent coverage through the waveguide and column transducers.
- Add deep low-frequency response from the 12″ precision woofer.
- Set up and transport the composite column-and-subwoofer system with its quick-fit socket and padded top-speaker bag.
Frequency Response: 40 Hz-20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Compression Driver: 1 x 0.75″ neo, 1.75″ v.c
Fullrange: 6 x 3.0″ neo, 1.0″ v.c
Woofer: 1 x 12″, 2.5″ v.C
Input signal: bal/unbal

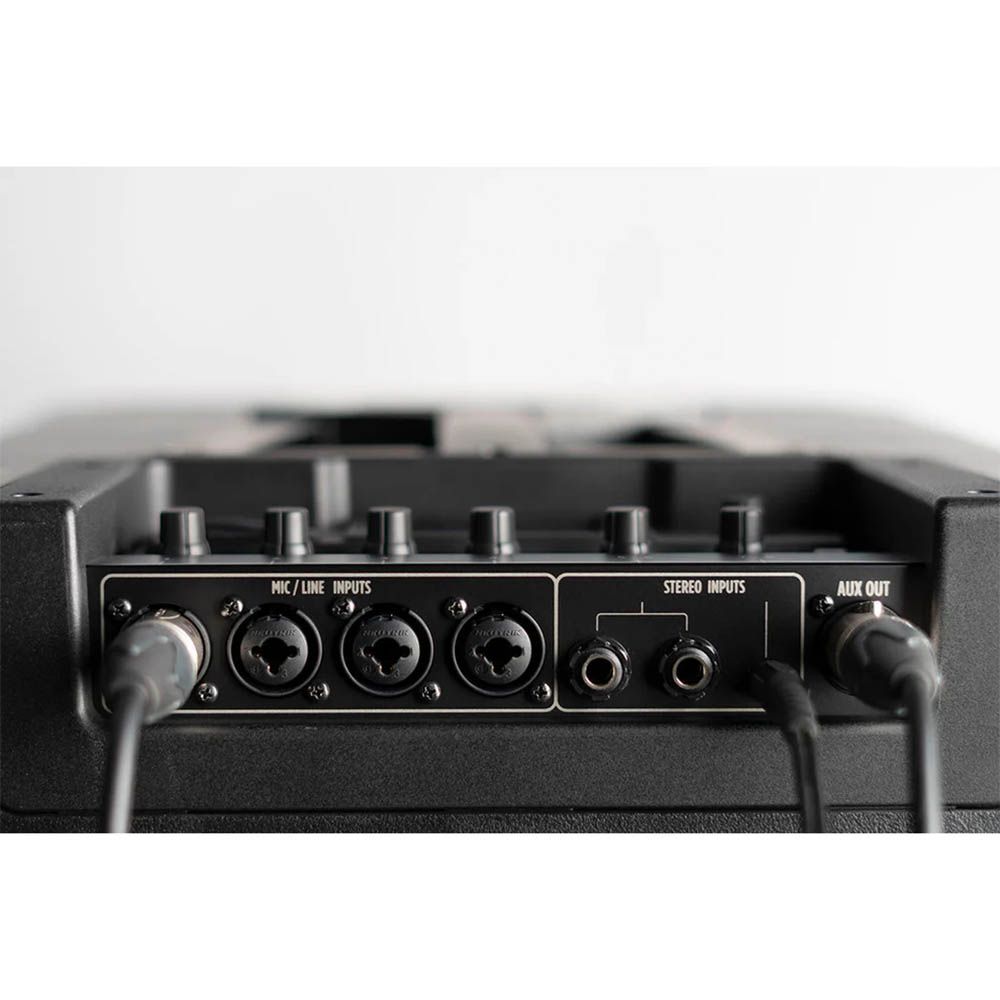

Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter</strong>: Soft Limiter

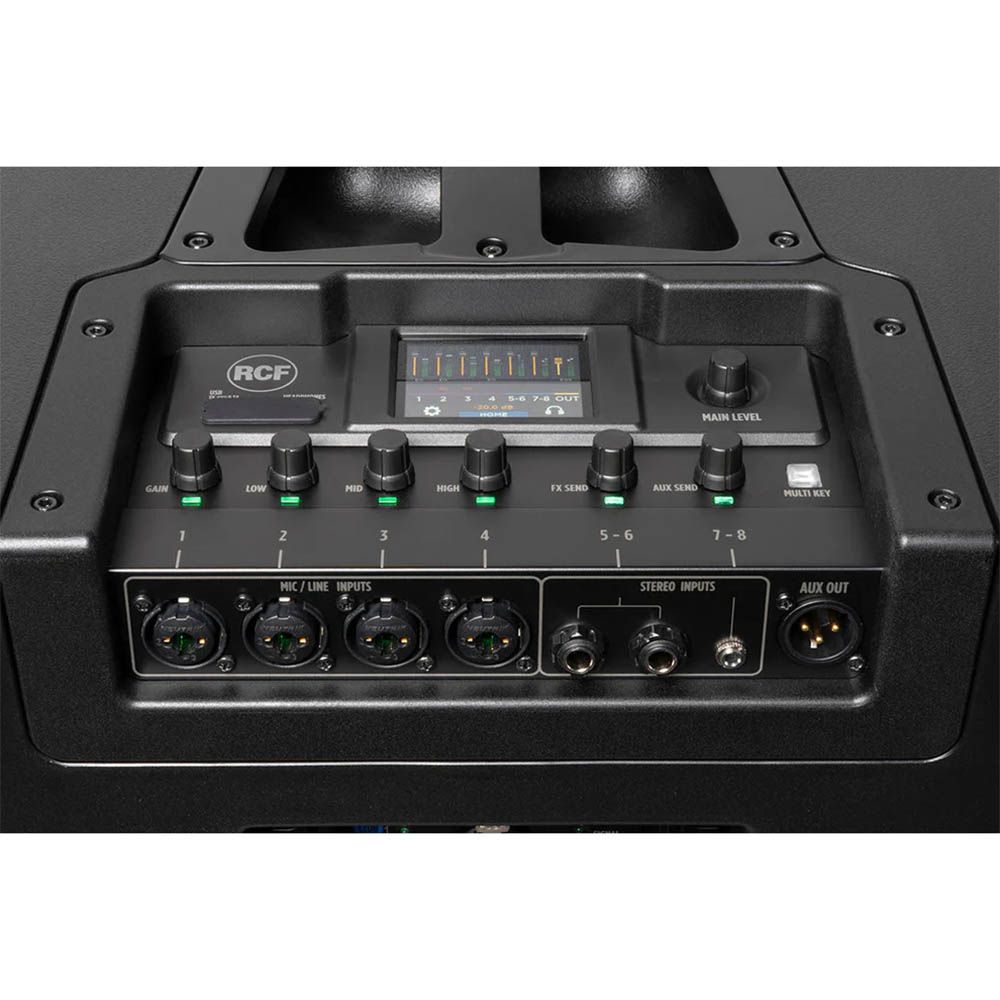

Controls: Digital mixer controlled by touch screen and encoders
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Processing Channels: 8
Signal Processing: 32 Bit
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic Range: 114
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB-36 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kohm
Low Cut: 20 Hz-400 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB-36 dB
Line Input Impedance: 10 kohm
A/D Dynamic range: 120 dB
Stereo Line: 2
Gain Selection: 0 dB-0 dB
Stereo Line Input Impedence: 24 kohm
Main MIX: 1
FX Send: 1
AUX Send: 1
AUX Output: 1
Phones: 1
Main Out Impedance: 150 ohm
Main Out Level: 20 dBu
Aux Out Impedance: 150 ohm
Aux Out Level: 20 dBu
Phones Out impedance (ohm): 100 ohm
Phones Out Level: 20 dBm
D/A Dynamic Range: 118 dB
Compressors: Compressors on MIC/LINE CHI to CH4 Inputs
Input Channels EQ: 1 Semi Parametric/2 Shelving
3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
AUX: 1 PRE/POST
FX POST: 1
Send Effects: 1
Main OUT processors: 1
Main OUT type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Power supply: Internal
Safety agency: CE compliant
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Assembled Height: 2080 mm/81.89 inches
Assembled Width: 350 mm/13.78 inches
Assembled Depth: 460 mm/18.11 inches
Sub Dimensions: 18 x 13.78 x 24 inches
Top Dimensions: 4 x 4 x 29.13 inches
Weight: 28.8 kg/63.49 lb
