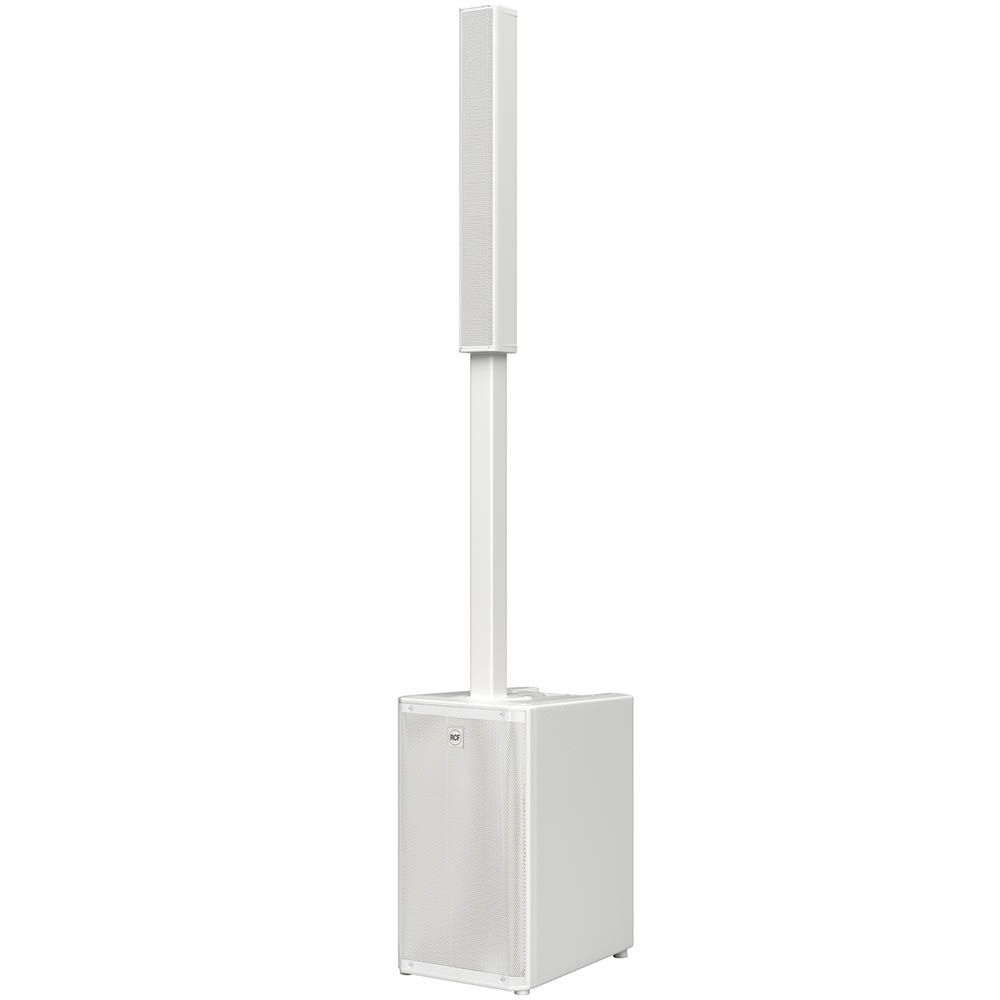

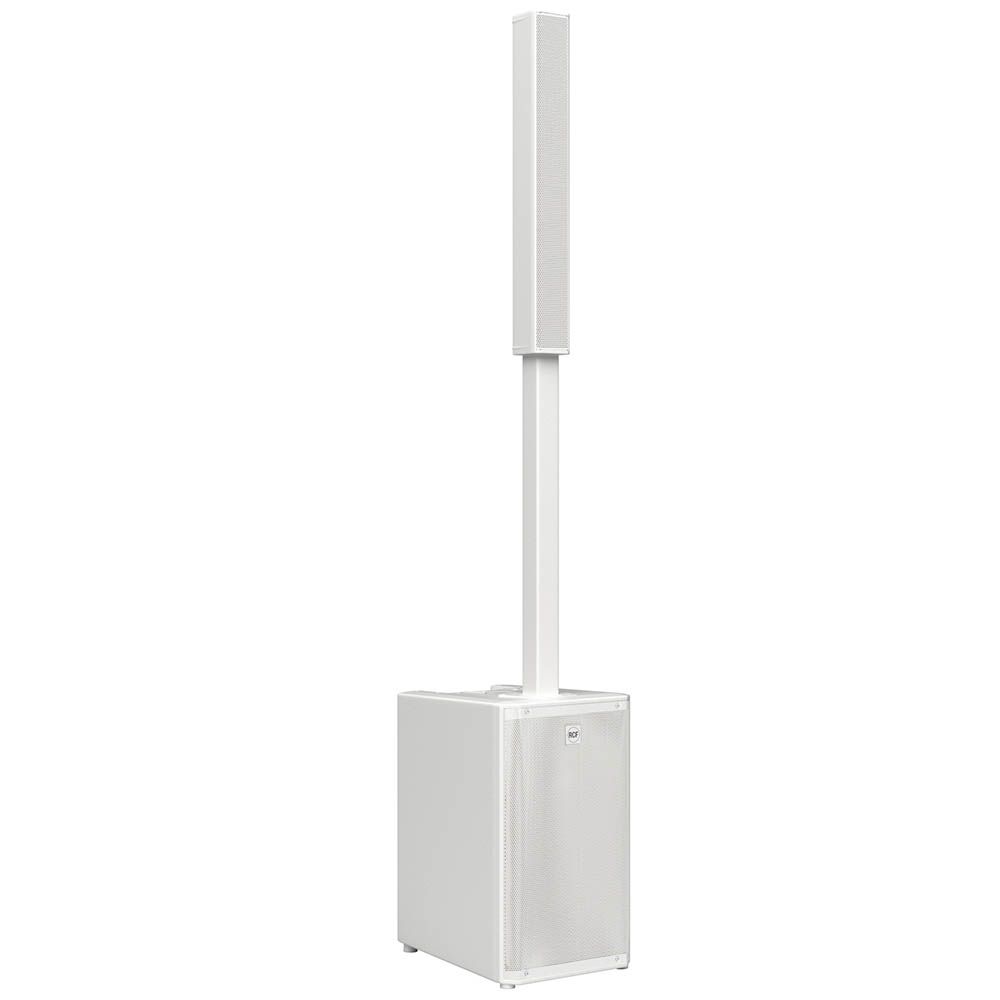

RCF EVOX JMIX9 Active Three-Way Column Music System
Experience the power and clarity of the RCF EVOX JMIX9, a three-way active portable column music system. This compact system combines a robust 2100W Class-D amplifier with an integrated 8-channel stereo digital mixer. Ultimately, offering total control and exceptional sound quality in one sleek unit.
Powerful, Clear Sound with Advanced Speaker Design
Firstly, the EVOX JMIX9 features a 1.75” neodymium compression driver and six 3” full-range transducers. All arranged on a True Resistive Waveguide that delivers wide, consistent 120° by 40° coverage. Moreover, a high-power 12” bass-reflex woofer ensures deep, precise lows and enhances the overall sound clarity.
Integrated 8-Channel Stereo Digital Mixer with Bluetooth
Additionally, control your sound easily with the built-in 8-channel stereo digital mixer. It is accessible via a bright 2.4” color touch display and high-quality encoders. Furthermore, four combo XLR/Jack inputs feature individual phantom power and digital gain control for microphones and instruments. Bluetooth connectivity adds convenient stereo audio streaming. Also, the JMixRemote app offers wireless system management from your smartphone for a flexible, wireless workflow.
Durable, Portable Design with Professional Features
The EVOX JMIX9’s sleek composite cabinet and quick-fit aluminum pole mount maximize portability without compromising style or durability. The included top speaker padded carrying bag adds protection for transport. Lastly, advanced DSP processing includes a soft limiter and RCF compressors on channel inputs for reliable operation and pristine audio quality.
Key Features
- 8-Channel True-Stereo Digital Mixer with Bluetooth® connectivity
- 2100 W Peak Power Class-D Amplifier with Built-In DSP
- 130 dB Max SPL for powerful sound output
- 1.75” Neo Compression Driver with 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neodymium Transducers
- 12” High-Power Woofer for deep lows
- Enhanced audio coverage and clarity
- Sleek composite cabinet with aluminum stand mount

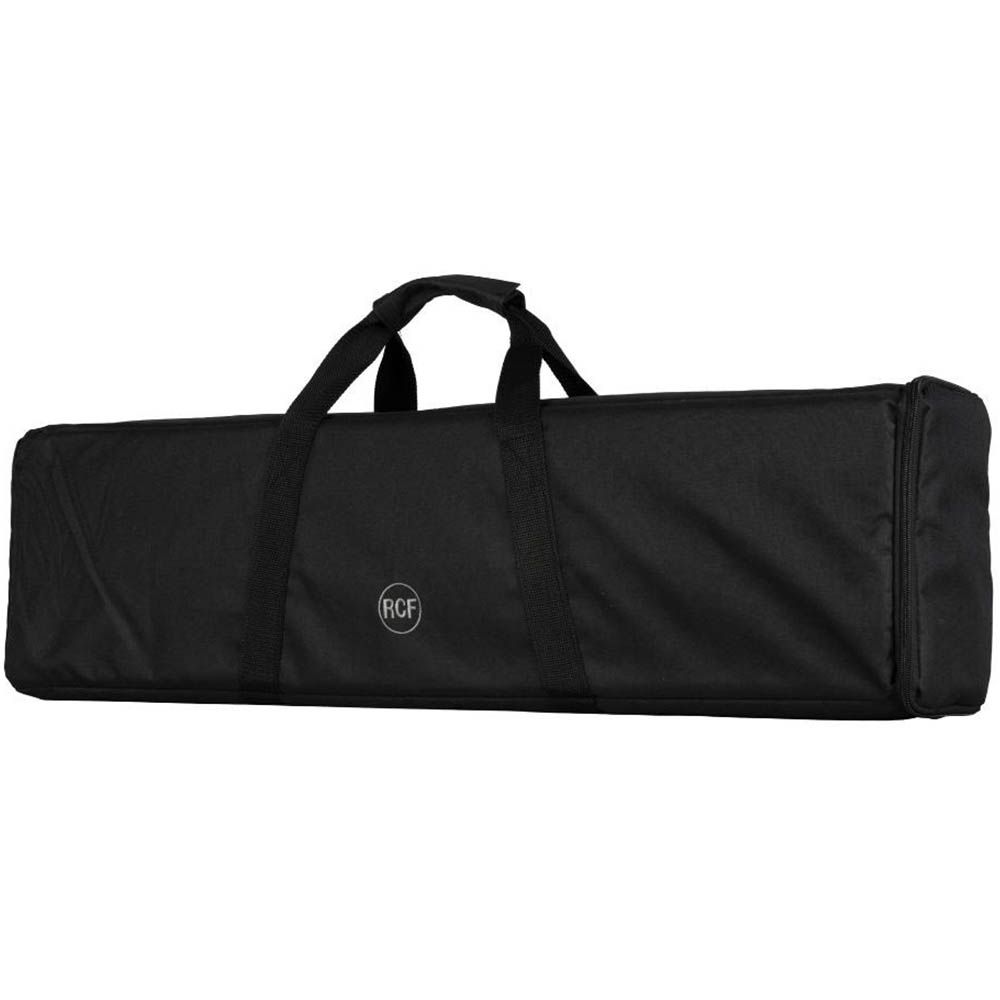

- Top speaker padded carrying bag included for easy transport
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Compression Driver: 1 x 0.75” neo, 1.75” v.c
Fullrange: 6 x 3.0” neo, 1.0” v.c
Woofer: 1 x 12”, 2.5” v.c
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Digital mixer controlled by touch screen and encoders
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Frequency Response (Electronic): 20 Hz – 20 Hz
THD+N, 20dB gain, 0dBu out: 0.003% A-Weighted
Processing Channels: 8
Signal Processing: 32 Bit
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 114
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB – 36 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kohm
Low Cut: 20 Hz – 400 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB – 36 dB
Line Input Impedance: 10 kohm
A/D Dynamic range: 120 dB
Stereo Line: 2
Stereo Line Input Impedance (kOhm): 24 kohm
Main MIX: 1
FX Send: 1
AUX Send: 1
AUX Output: 1
Phones: 1
Main Out Impedance: 150 ohm
Main Out Level: 20 dBu
Aux Out Impedance (ohm): 150 ohm
Aux Out Level: 20 dBu
Phones Out impedance (ohm): 100 ohm
Phones Out Level: 20 dBm
D/A Dynamic Range: 118 dB
RCF Compressors: Compressors on MIC/LINE CH1 to CH4 Inputs
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description: 3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
AUX: 1 PRE/POST
FX POST: 1
Send Effects: 1
Main OUT processors: 1
Main OUT type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Power supply: Internal
Safety agency: CE compliant
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Color: Black, White – RAL 9003
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 460 mm / 18.11 inches
Weight: 28.8 kg / 63.49 lbs
Package Height: 676 mm / 26.61 inches
Package Width: 451 mm / 17.76 inches
Package Depth: 581 mm / 22.87 inches
Package Weight: 32.5 kg / 71.65 lbs
