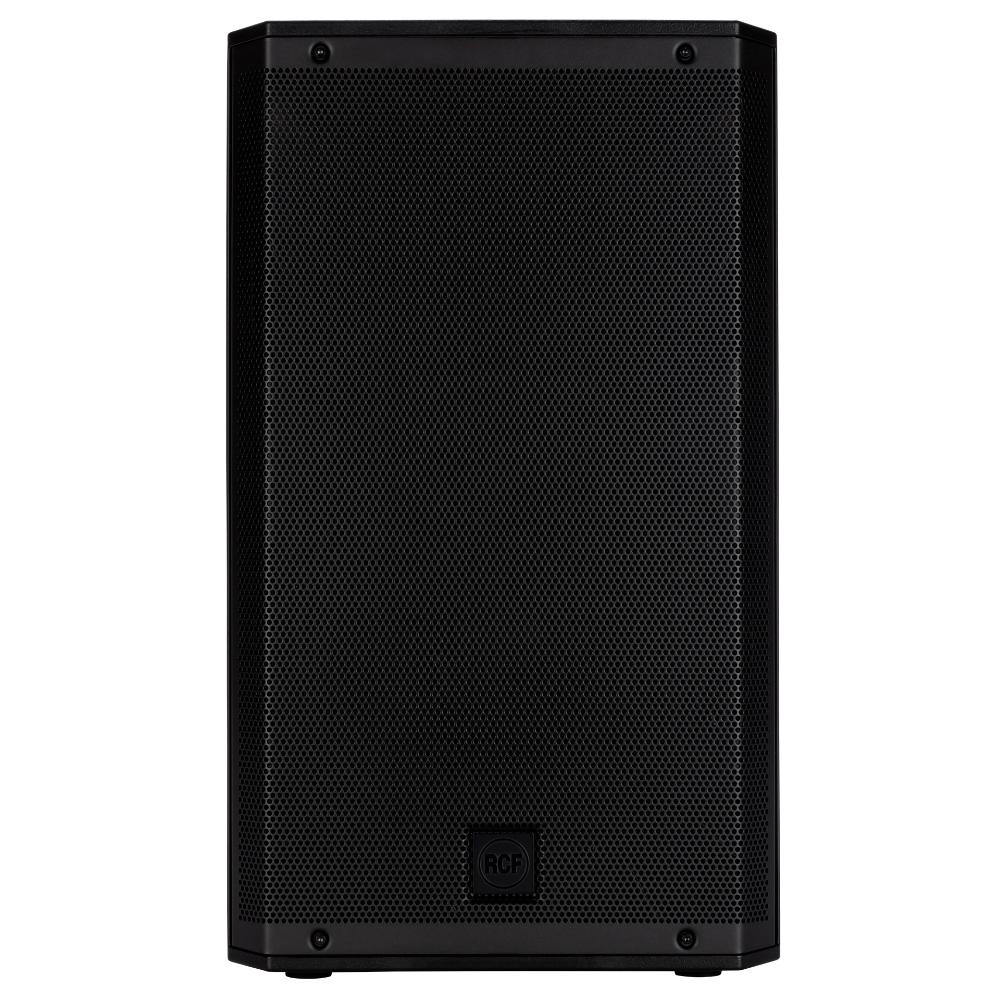

RCF ART 912-A Professional 12″ Active Speaker – 2100W
RCF ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75″ compression driver, 12″ woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound.
ART 912-A merges RCF’s proprietary FiRPHASE and Bass Motion Control DSP processing. The audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement. It’s easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Highlights:
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 1.75″ Compression Driver
ACOUSTICAL SPECIFICATIONS
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 60°
TRANSDUCERS
Compression Driver: 1 x 1.0”, 1.75” v.c
Woofer: 12”, 2.5” v.c
INPUT/OUTPUT SECTION
Input Signal: bal/unbal
Input Connectors: XLR, Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume
POWER SECTION
Total Power: 2100 W Peak
High Frequencies: 700 W Peak
Low Frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
STANDARD COMPLIANCE
Safety Agency: CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 Top, 1 x M10 each side
Handles: 1 Top, 1 each side
Pole Mount/Cap: Yes
Grille: Steel
Colour: Black
SIZE
Height: 642 mm / 25.28 inches
Width: 370 mm / 14.57 inches
Depth: 363 mm / 14.29 inches
Weight: 19 kg / 41.89 lbs
SHIPPING INFORMATION
Package Height: 685 mm / 26.97 inches
Package Width: 430 mm / 16.93 inches
Package Depth: 423 mm / 16.65 inches
Package Weight: 21.2 kg / 46.74 lbs
