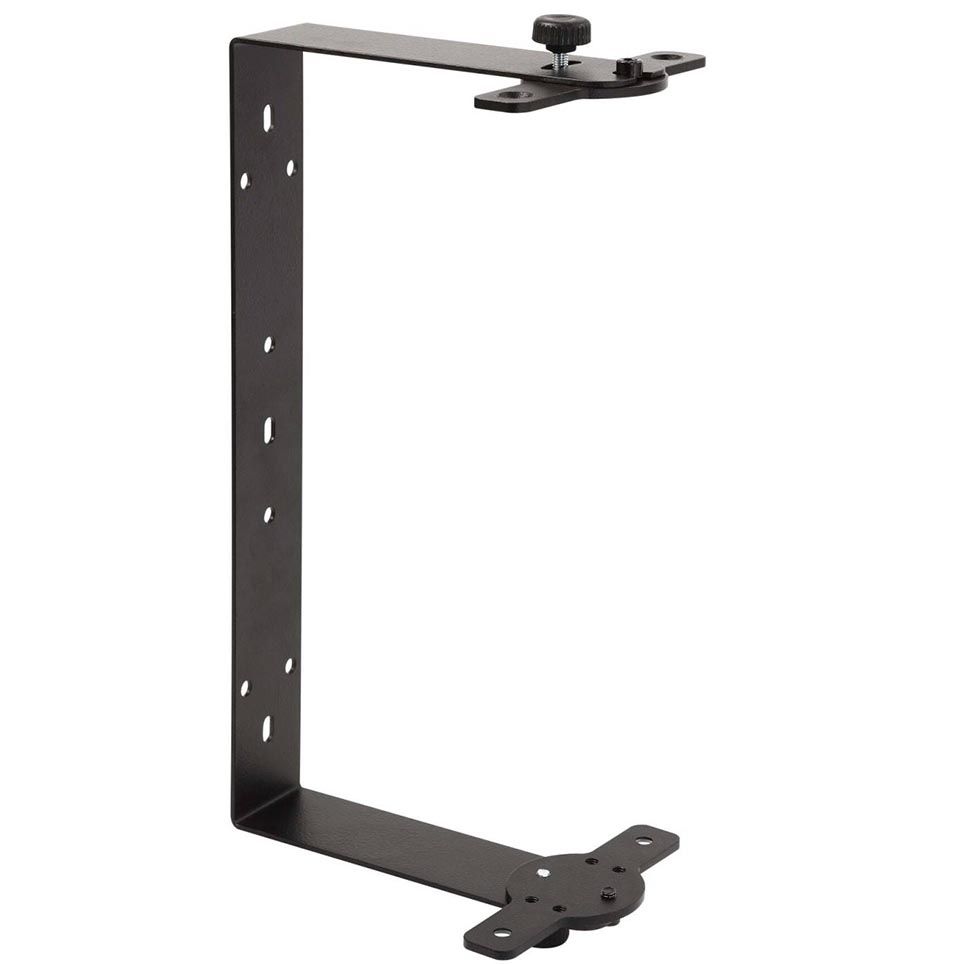

PROEL KPTFL120 Wall/Truss Mount Bracket
The PROEL KPTFL120 is a professional C-shaped bracket built to give Axiom FL120A or FL120P loudspeakers solid stability and precise aiming. You can mount it safely on either walls or truss structures, making it ideal for flexible installations.
Precision 5-Position Aiming
Select from five fixed angles to cover every application with confidence: 0° (straight ahead), ±15°, ±30°, ±35°, ±50°, ±65° (maximum tilt).
All-Inclusive Mounting Kit
1 × C-shape bracket, 2 × steering plates, 4 × M10×20 mm hex socket screws, 2 × M8×8 mm hex socket screws and 2 × M8×12 mm threaded locking knobs.
Engineered for Safe Installation
Use anchoring hardware rated for at least 10× the combined weight of bracket and loudspeaker. Additionally, secure the bracket with a minimum of two independent anchoring points. Also, installation must be carried out by certified personnel in accordance with local building regulations
Key Features
- Five fixed rotational angles up to ±65°
- Heavy-duty steel construction, approx. 4.35 kg
- Complete hardware set included
- Wall or truss mounting versatility
- Designed exclusively for Axiom FL120A / FL120P
