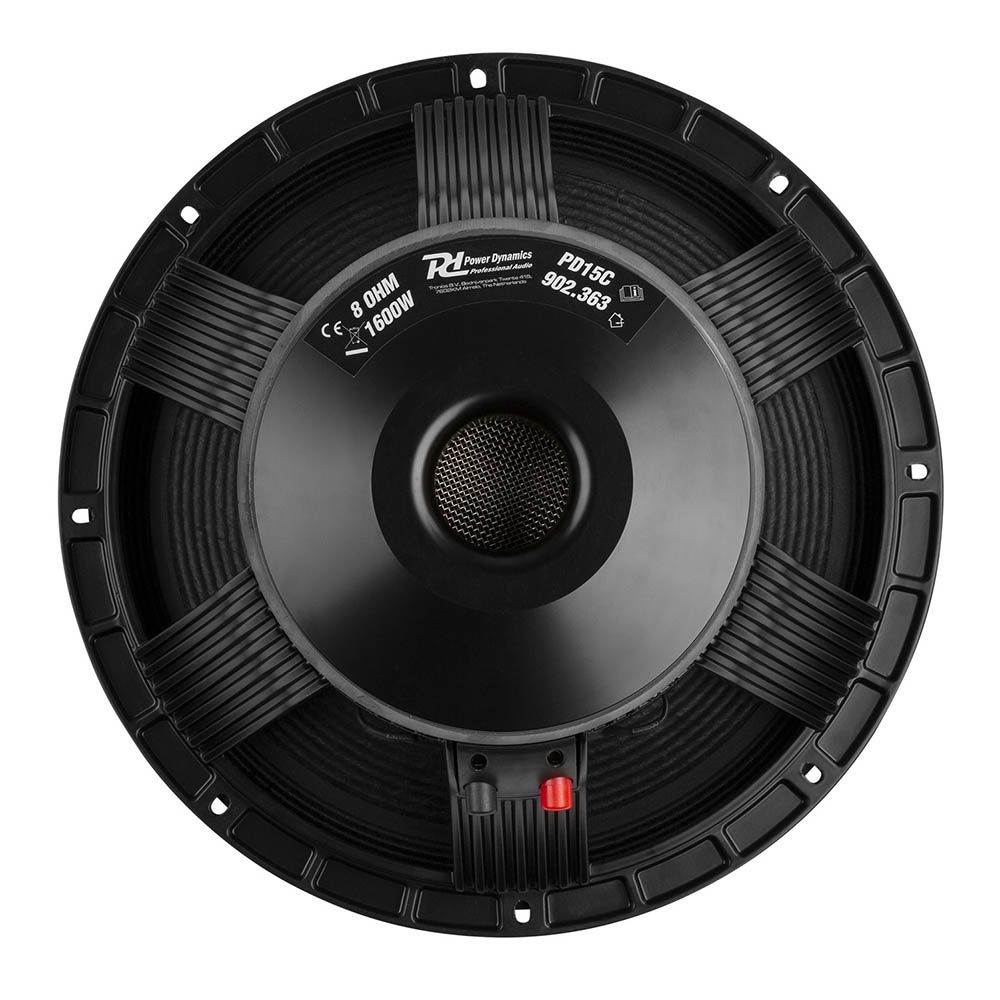

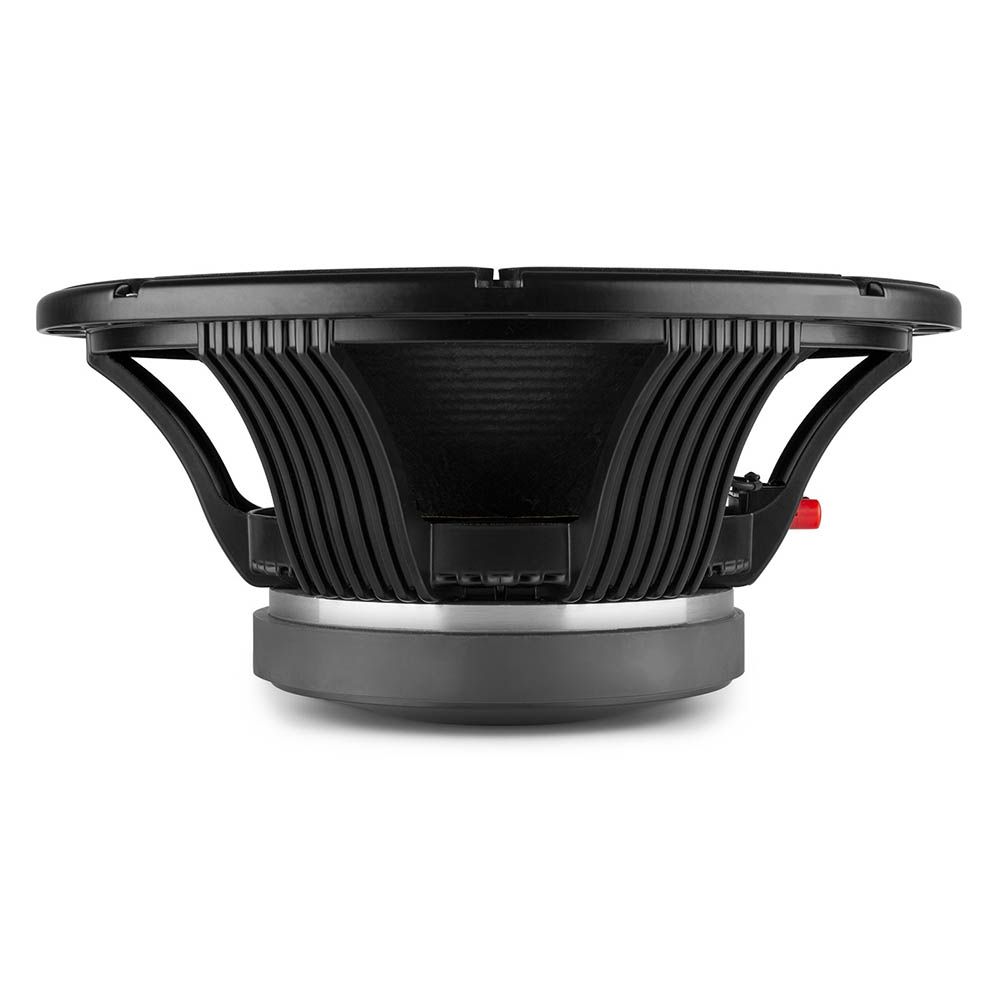

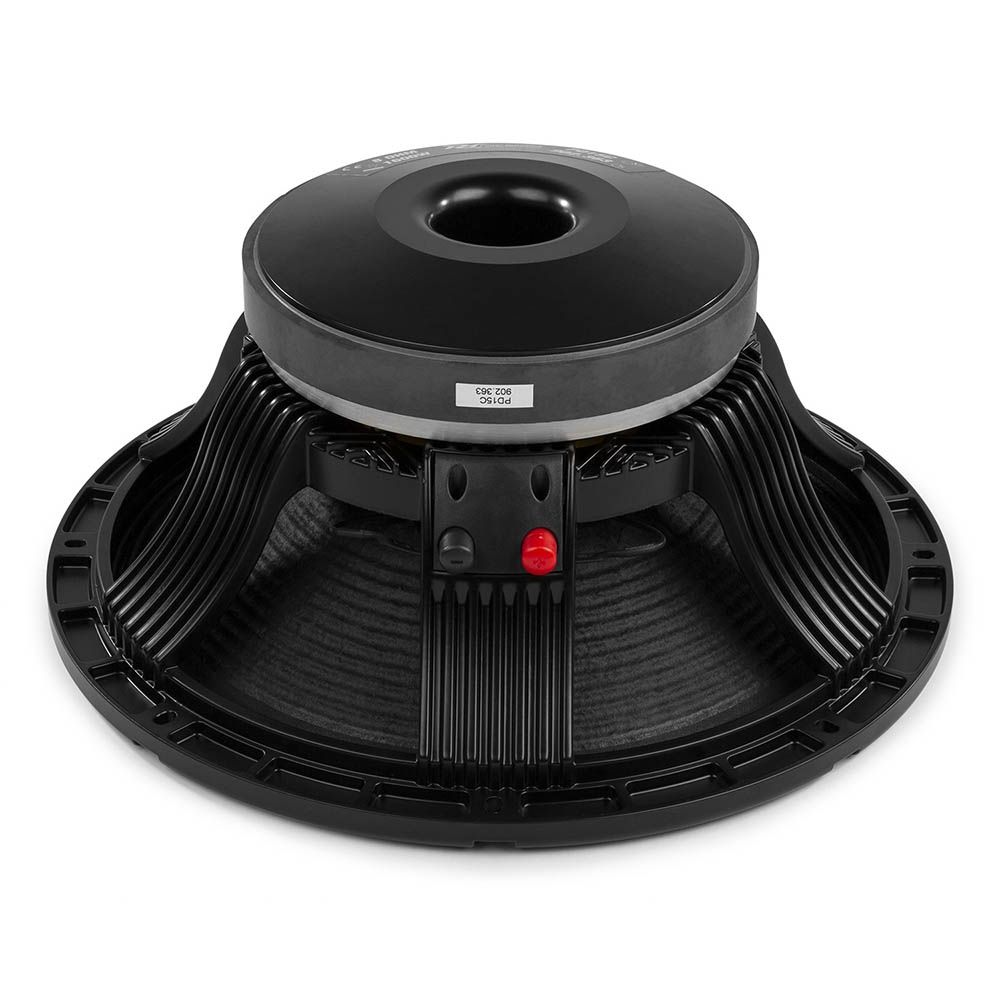

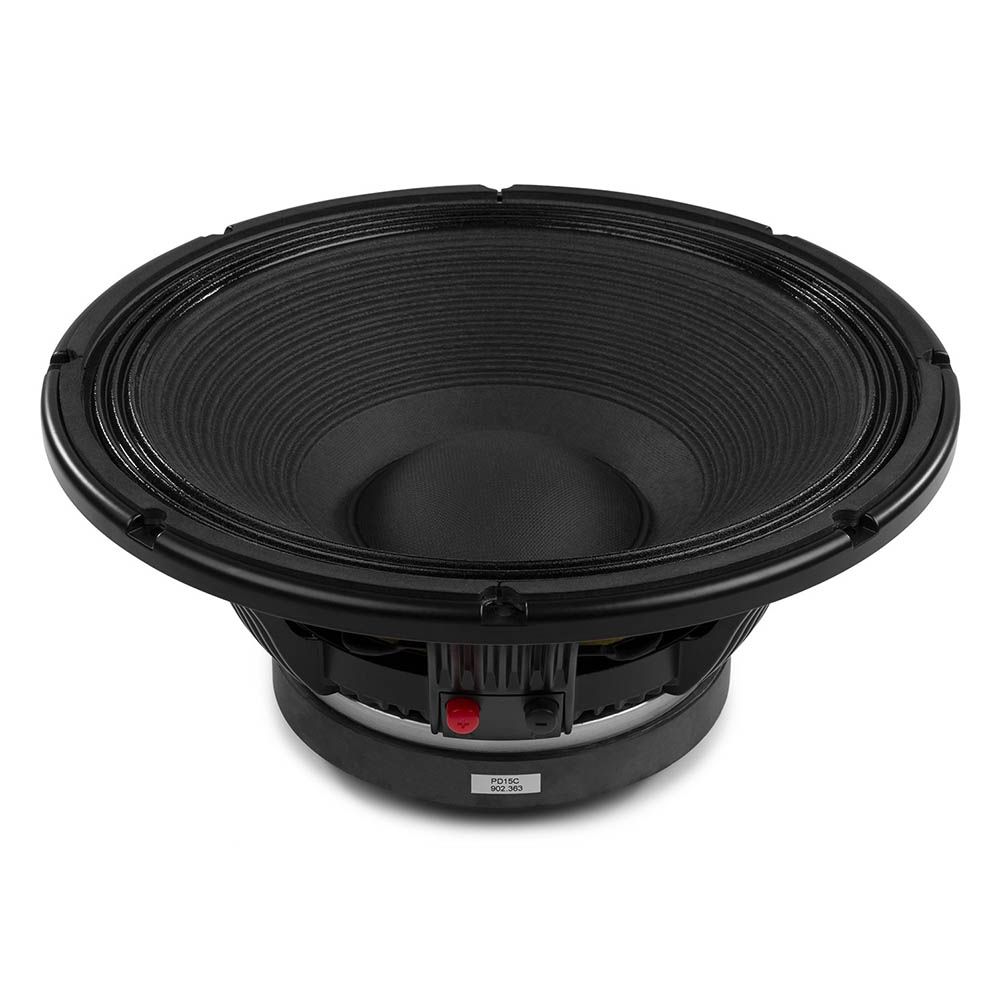

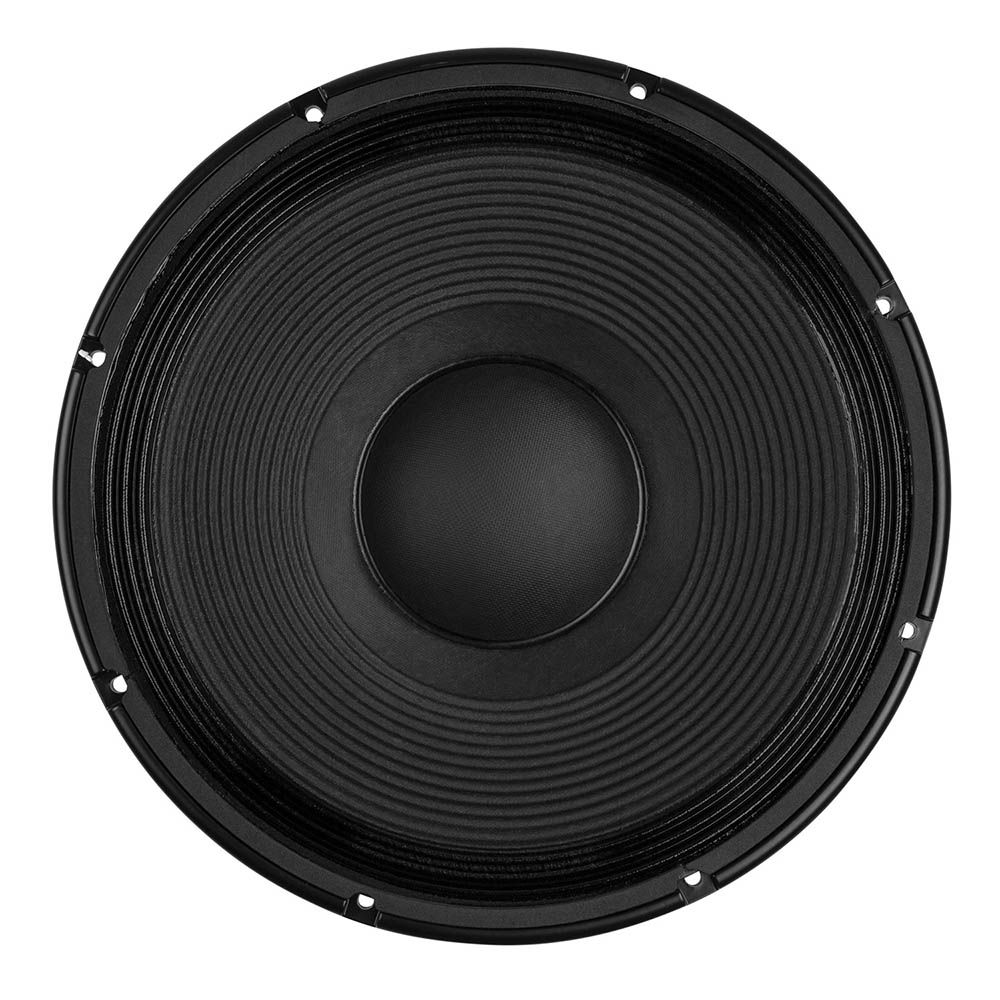

Power Dynamics PD15C 15″ 1600W Woofer
Designed for serious speaker builds, the PD15C combines high power handling with a long-excursion woofer design for controlled low-frequency performance. Its ferrite magnet, copper voice coil and reinforced paper cone make it a practical choice for two-way speakers and bass reflex solutions.
Power for Speaker Builds
With 1600W maximum output and 800W RMS output, this 15-inch woofer is built for applications that demand substantial power handling. The 8 Ohm impedance makes its electrical requirements clear when planning a compatible speaker cabinet or replacement installation.
Strong, Controlled Construction
The glass-fibre reinforced paper cone combines with the radial cone shape to support the woofer’s long-excursion design. Together, these construction details are suited to speaker projects where controlled movement and dependable physical support are important.
Built Around Practical Details

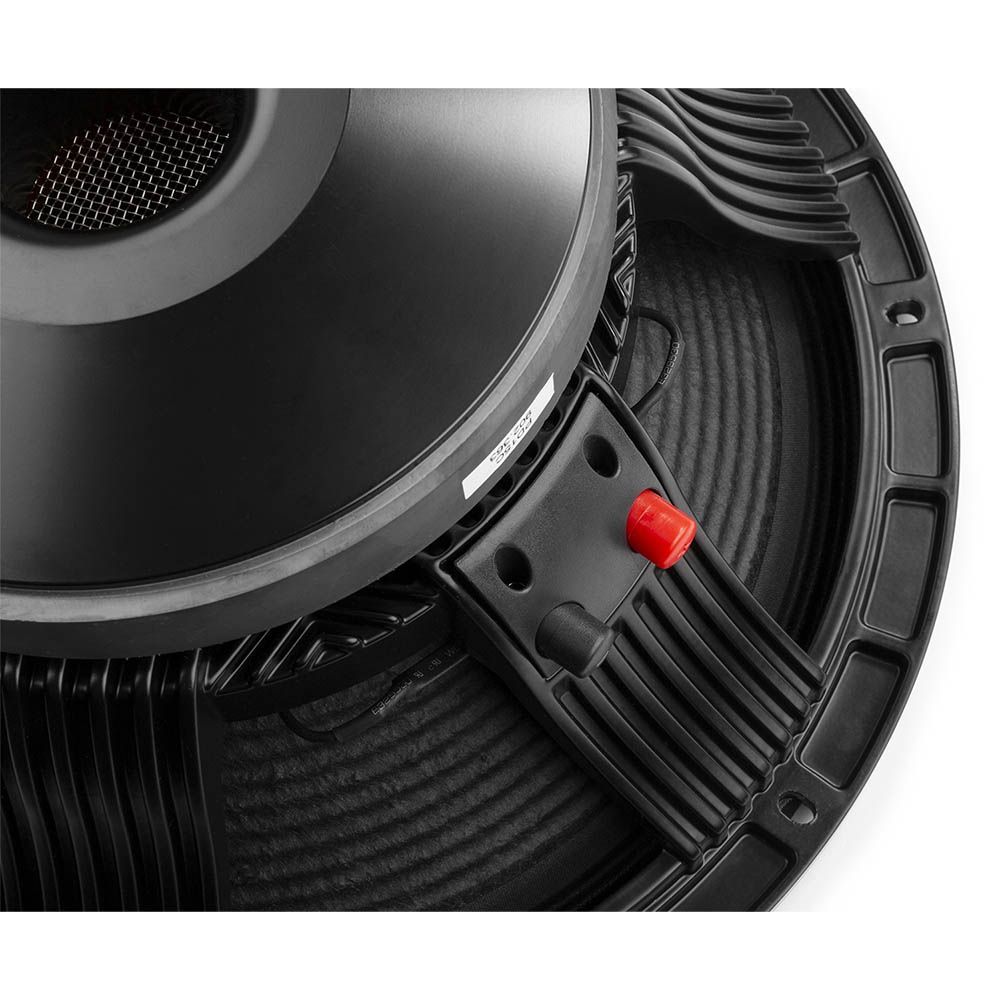

A 4-inch inside-outside copper voice coil sits within a ferrite magnet assembly, while the die-cast aluminium basket reduces magnetic interference. The result is a robust woofer format that can suit a wide variety of applications without unnecessary complexity.
Plan Your Cabinet
The 15-inch frame measures 430 x 430 x 250mm, with a 360mm mounting diameter and 167mm mounting depth. These dimensions make it easier to check cabinet space, baffle cut-out and available depth before beginning a two-way or bass reflex build.
Key Features
- High power handling for demanding speaker applications
- Reinforced cone construction for a supported long-excursion design
- Aluminium basket designed to reduce magnetic interference
- Suitable for two-way speakers and bass reflex solutions
