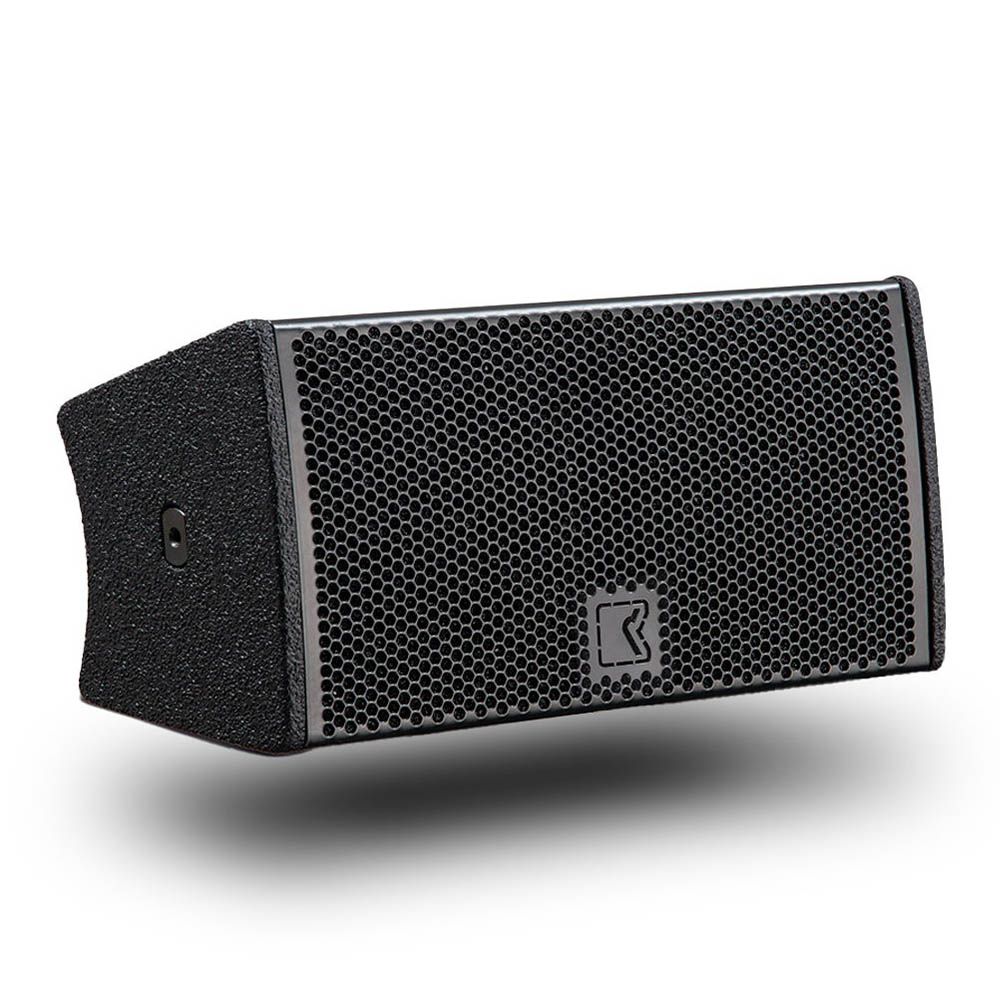

Outline VEGAS 24 Compact High-Power Wide-Dispersion Loudspeaker
The Outline VEGAS 24 is a compact loudspeaker made for installs that need clear sound without a bulky cabinet. With wide dispersion, strong output, and a low-profile design, it suits front fill, under balcony fill, and delay work where intelligibility matters most. It’s a practical choice when you need coverage that stays neat and controlled.
Clear sound where it matters
Firstly, built as an Outline VEGAS 24, this speaker focuses on vocal and instrument intelligibility. The 1.5″ diaphragm compression driver and two 4″ woofers work together to keep speech and music easy to follow. Also, in spaces where clarity can get lost. That makes it a solid fit for venues and installation jobs.
Outline VEGAS 24 for wide coverage
Moreover, the 150° x 90° dispersion helps spread sound across a wider area. Therefore, fewer cabinets may be needed for the job. In addition, the low-profile cabinet and selectable angles make placement easier for front fill and under balcony use. As a result, the speaker can blend into the space while still doing the job properly.
Built for installation flexibility
The VEGAS 24 uses a lightweight Baltic birch plywood cabinet with 8 x M6 threaded points for mounting. It also includes two NL4 and a 4-pin Phoenix connector package, which helps when wiring multiple loudspeakers in parallel. Because the voicing is compatible with other Outline loudspeakers, it fits neatly into mixed system setups.
Key Features
- 2-way ultra-compact passive enclosure: 2 X 4″ LF + 1.5” HF diaphragm
- High bandwidth, low profile design
- Optimized for vocal and instrument intelligibility
- Nominal dispersion: 150° x 90° (H x V)
- Maximum SPL Output: 122 dB SPL
- Cabinet Material: Baltic birch plywood
- Installation Points: 8 x M6 threaded points
- Connectors: 2 x NL4 PAR Pins 1+/1-, 4PIN PHX
