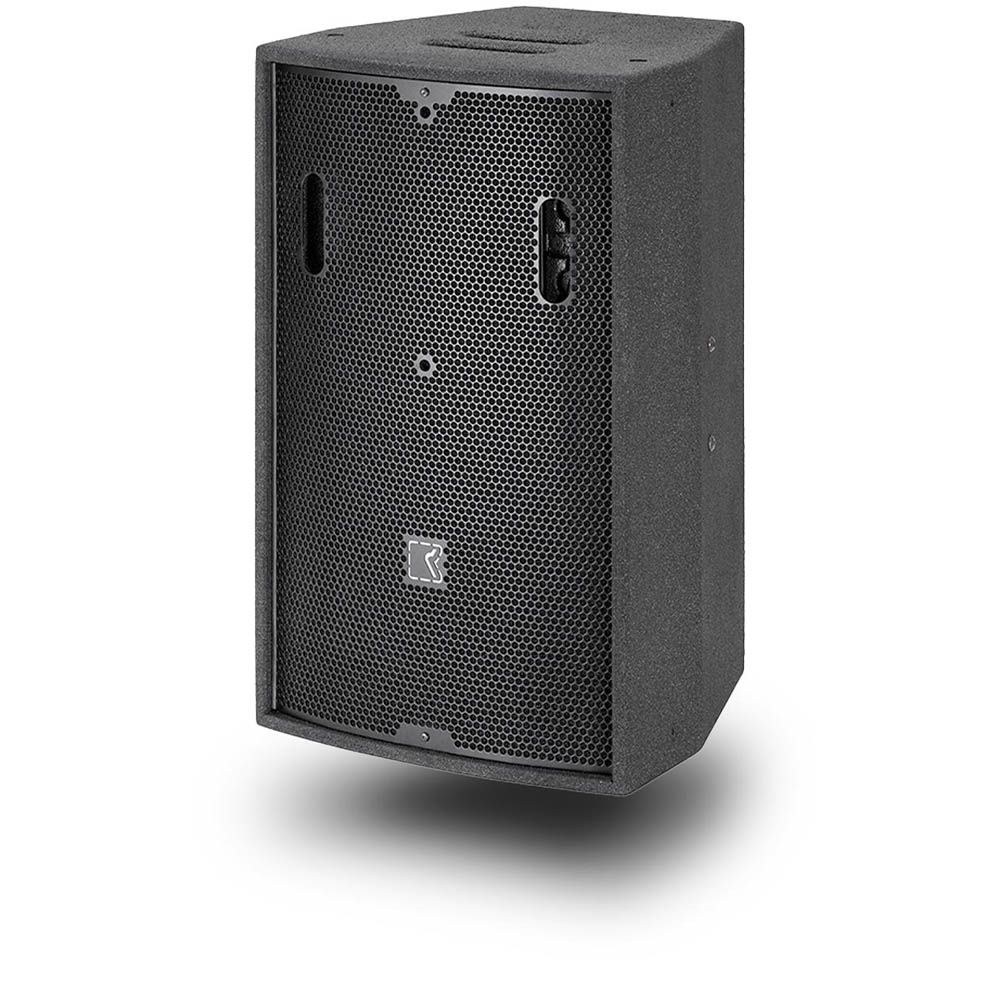

Outline Ki 12 Passive 12-inch Full-Range Speaker
The Outline Ki 12 delivers clear, full-range sound for installed audio systems that need reliable coverage and simple setup. It combines a 12″ woofer, a 1.5″ compression driver, and a rotatable waveguide to help installers control sound direction for different spaces. As a result, the Ki 12 gives venues a flexible speaker solution without complicated adjustments.
Built for flexible installed sound
Firstly, the Outline Ki 12 works well in many permanent installations, including meeting rooms, hospitality spaces, and areas with limited ceiling height. Its compact cabinet helps installers place it easily, while the 132 dB peak SPL provides strong output for demanding environments. Additionally, the speaker maintains clear sound performance when audiences need higher volume levels.
Outline Ki 12 speaker control made simple
Moreover, the Ki 12 uses a built-in passive crossover, which reduces the need for extra amplifier channels and simplifies system design. In addition, installers can rotate the waveguide without taking the speaker apart, making it quick to adjust the coverage pattern during installation. Therefore, it’s easier to aim sound accurately for different room layouts.
Reliable components for everyday use
Furthermore, the Ki 12 pairs a 12″ high-pass-loaded woofer with a 1.5″ diaphragm compression driver to produce balanced, full-range audio. The bass-reflex cabinet and rotatable moulded horn further improve performance while keeping installation straightforward. Finally, the Baltic birch plywood enclosure, black polyurea coating, and epoxy powder-coated steel grille provide lasting durability for everyday professional use.
Key Features
- Outline Ki 12 full-range installed sound speaker
- 132 dB SPL peak
- 1 x 12” high-pass loaded woofer
- 1 x 1.5” diaphragm compression driver
- Two-way system with a built-in passive crossover
- Rotatable waveguide: 100° x 50° or 50° x 100°
- 18 x M8 threaded installation points
