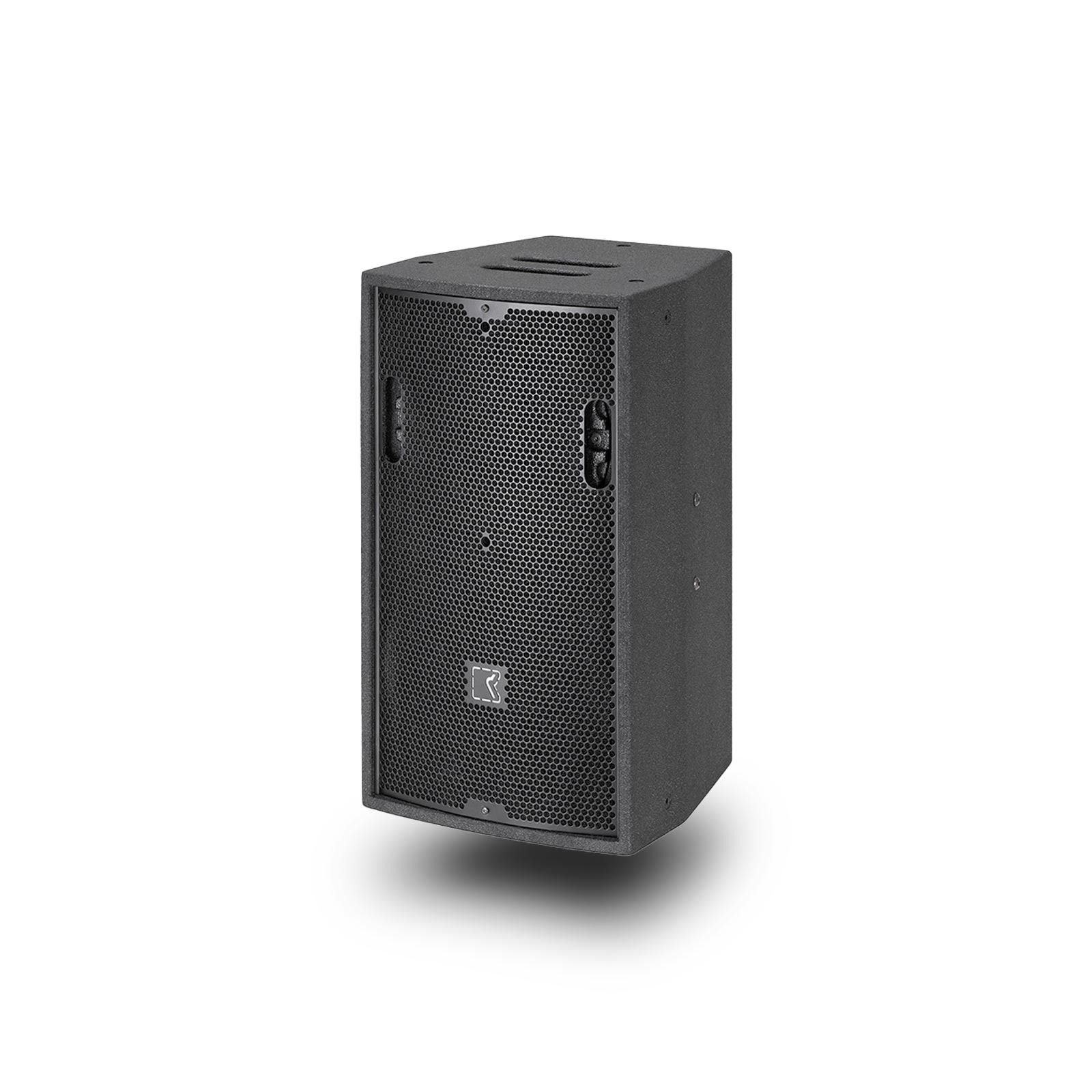

Outline Ki 10 Full-Range Installation Speaker
The Outline Ki 10 is built for installed audio where clear coverage, solid output and simple setup matter. This full-range installation speaker combines a 10″ woofer, a 1.5″ diaphragm compression driver and a rotatable waveguide. Therefore, suiting different room shapes without extra fuss.
Built for flexible installed sound
Firstly, with a two-way design and built-in passive crossover, the Outline Ki 10 keeps the system straightforward. All while still delivering strong performance. It is a practical choice for venues, function spaces and other permanent installs that need dependable sound.
Outline Ki 10 coverage that adapts to the room
Moreover, the rotatable waveguide lets the horn and HF section switch between 100° x 50° and 50° x 100° without removing the front grille. That makes it easier to match dispersion to the room layout, especially where ceiling height or speaker position needs a smarter approach.
Power handling and detail that works in real spaces
Furthermore, with a frequency response of 47.5 Hz – 22 kHz and a maximum SPL output of 130 dB SPL, the Ki 10 is ready for all duties. Stay composed in everyday installed use through the bass-reflex low end and 250 W AES rating.
Installation-friendly cabinet design
Additionally, the Baltic birch plywood cabinet, black polyurea coating and epoxy powder coated grille are made for regular use in fixed systems. 18 x M8 threaded points, a 35 mm socket and a recessed top handle give installers practical mounting and handling options.
Key Features
- Powerful full-range application-flexible speaker
- 130 dB SPL peak
- 1 x 10” high-pass loaded woofer and 1 x 1.5” diaphragm compression driver
- Two-way system with a built-in passive crossover
- Rotatable waveguide (100° x 50° or 50° x 100°) without removing the front grille
- 18 x M8 threaded installation points
- Frequency Response (-10 dB): 47.5 Hz – 22 kHz
