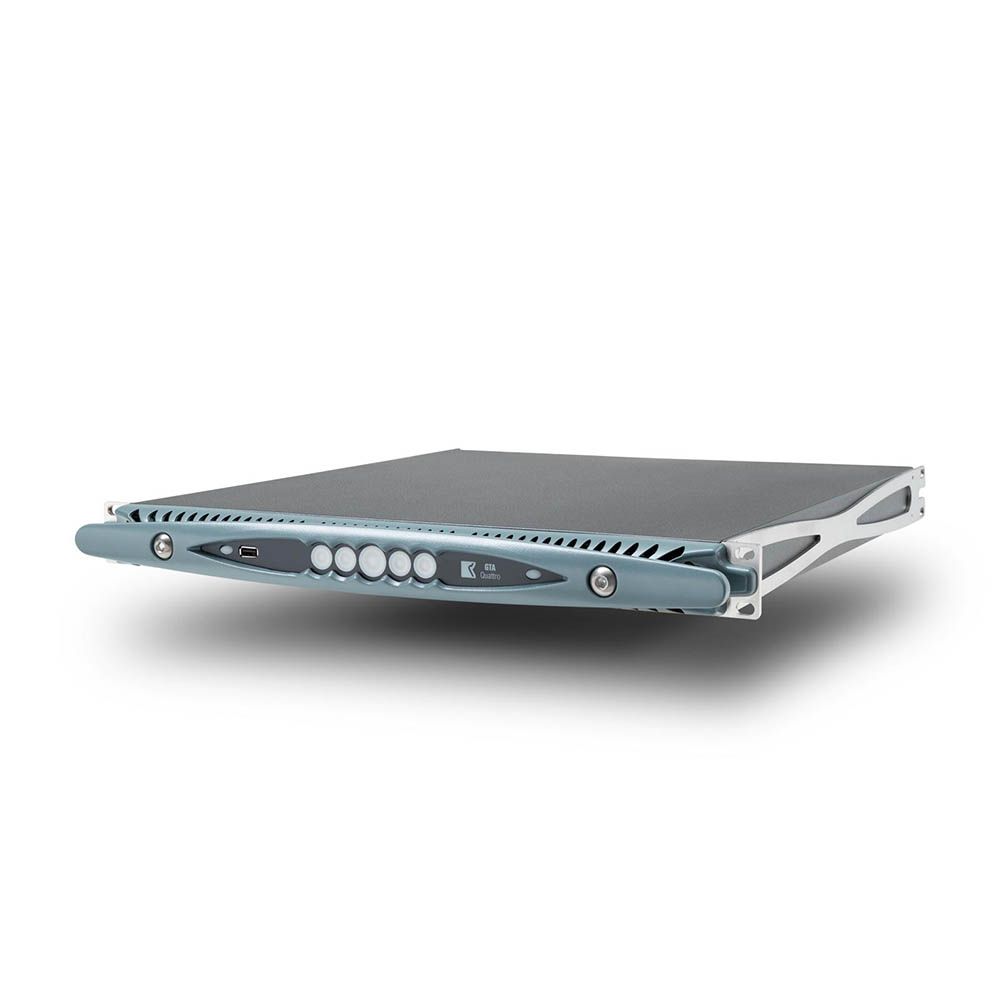

Outline GTA Quattro 4-Channel Touring Amplifier – 4 x 3000 W @ 4 Ω
The Outline GTA Quattro combines massive power with unmatched versatility. It is the ultimate all-in-one engine for subwoofers and high-output full-range systems. This is because of the universal multi-phase power supply, powerful on-board DSP and seamless Dante networking make
Gigantic Power, Compact Footprint
Firstly, delivering up to 4 × 3000 W at 4 Ω—or a staggering 10.4 kW in bridge mode—the GTA Quattro packs arena-level punch into one chassis. Furthermore, a damping factor >5000 and THD+N below 0.01 % keep every transient tight and transparent.
Universal Mains & Intelligent Protection
Moreover, the amplifier’s switch-mode supply with power-factor correction automatically adapts while balancing phase loads. This is from the 85 VAC club that feeds to 460 VAC three-phase stadium power. Additionally, comprehensive protection—thermal, short-circuit, DC, clip, over/under-voltage—safeguards your investment night after night.
Advanced DSP & Seamless Networking
An ARM Cortex-A8 processor plus TI C6000 DSP platform offers raised-cosine EQ, linear-phase FIR crossovers, TruePower™ limiters and up to 2 s of input delay. Route any analog, AES3 or redundant Dante stream via the 4 × 4 matrix, then take complete control over Ethernet, WiFi or the intuitive Armonía Pro Audio Suite™ mobile app.
Key Features at a Glance
- 4 channels, 3000 W each @ 4 Ω; 10400 W bridged
- Universal 85-460 VAC single/bi/three-phase PSU with PFC
- Integrated low-latency DSP with FIR/IIR processing & TruePower™
- Redundant Dante, AES3 and analog inputs plus Gigabit Ethernet
- WiFi remote monitoring via smartphone or tablet
- Lightweight 15 kg, 1U rackmount chassis for easy touring logistics
Number of channels: 4
Output power (per channel): Single channel mode: 5200 W @ 2 9, 3000 W @ 4 9, 1600 W @ 8 9; Bridge mode: 10400 W @ 4 9, 6000 W @ 8 9
Max output voltage: 175 V peak
Max output current: 130 A peak
AC Mains Power: Universal, Single Phase, Bi-Phase or Three Phase acceptance, switching mode with PFC
Operating voltage: 85 V
440 V
Operating temperature range: 0 35 C 32 95 F
Frequency response: 5 Hz 22.5 kHz ( ) ( ) )
Noise floor: < -70.0 dBV
Crosstalk separation: -70 dB
THD+N: < 0.5% (typically < 0.01%)
IMD: < 0.5% (typically < 0.01%)
Input impedance: 20 k9 balanced
Slew rate: > 50 V/bcs
Damping factor: > 5000 @ 8 ohm, 20Hz 500Hz
DSP architecture: ARM Cortex A-8 processor and TI C6000 DSP platform
AD Converter: Dual 24 bit 48 kHz Tandem architecture with 129 dBA of dynamic range
DA Converter: Dual 24 bit 48 kHz Tandem architecture with 121 dBA of dynamic range
Internal precision: 40 bit floating point
Firmware: Network upgradable firmware
Latency: 2.53 ms fixed latency architecture
Input equalizer: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Output equalizer: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover: Linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Delay: up to 2 s on input section; up to100 ms per output for time alignment
Limiters: TruePower™, RMS voltage, RMS current, Peak limiter
Damping control: Active DampingControl™
Input connector: 4 x XLR-F Analog signal input, 2 x XLR-F AES3 signal input
Network connector: 2 x RJ45 port with Dante
Output connector: 2 x speakON
Height: 44 mm 1 3/4
Width: 483 mm 19
Depth: 495 mm 19 1/2
Weight: 15 kg 33 lb
Shipping Dimensions: 180 800 600 mm
Shipping Weight: 16 kg
