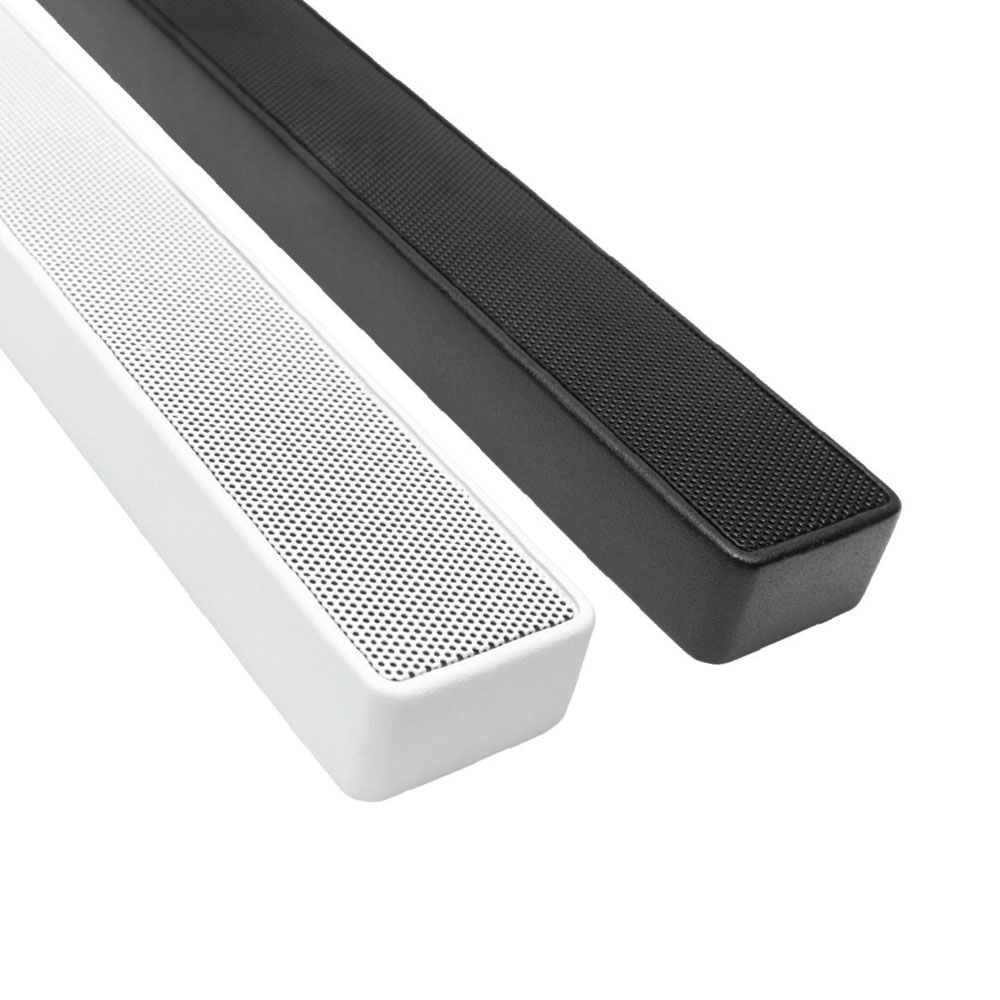

Outline Ai 81 2-Way Ultra-Slim Passive Column Loudspeaker
The Outline Ai 81 redefines architectural audio with its ultra-slim profile and professional-grade performance. Designed for seamless integration into any space, this passive column loudspeaker delivers exceptional intelligibility while maintaining a minimal visual footprint.
Discreet Design Meets Professional Performance
The Ai 81 combines form and function in an elegant package measuring just 46mm wide and 25mm deep. Furthermore, its sophisticated HCDF cabinet construction ensures durability even in demanding environments. Additionally, the sleek profile allows for effortless integration into restaurants, museums, conference rooms, and premium installations where aesthetics matter.
Advanced Driver Configuration
Featuring eight 1.3″ neodymium full-range drivers paired with a 0.7″ treated silk dome tweeter, the Ai 81 delivers remarkable clarity across its 300 Hz to 20 kHz frequency range. Moreover, the symmetrical MTM design ensures superior imaging and precise sound reproduction. The wide 160° horizontal dispersion provides excellent coverage, while the controlled 40° vertical dispersion minimizes unwanted reflections.
Efficient Installation and Flexibility
With a 16-ohm nominal impedance, you can deploy up to eight Ai 81 speakers on a single amplifier channel, making it a cost-effective solution for multi-zone installations. Additionally, the passive crossover features top-grade components with integrated driver protection. The unit weighs just 0.85 kg and includes multiple mounting options for versatile installation scenarios.
Built to Last
The cabinet features hydrophobic compact density fiber construction with polyurethane paint coating, ensuring reliable operation in challenging conditions. Also, the epoxy powder-coated galvanized steel grille provides robust protection. Custom RAL color finishes are available to perfectly match any architectural design.
Key Features:
- Unibody HCDF technology for superior durability
- Symmetrical MTM driver configuration
- Outstanding speech intelligibility
- Ultra-compact footprint (570 x 46 x 25 mm)
- High sensitivity with 112 dB SPL maximum output
- Cost-effective parallel installation (up to 8 units per channel)
- Professional-grade passive crossover with driver protection
- Custom color options available
- Ideal for discrete architectural installations
- Lightweight design at only 0.85 kg
