Ortofon Scratch MkI Replacement Stylus

$79
SKU: SCRATCH-S-MK1 Category:

Designed for scratch and back-cueing, the Ortofon Scratch MkI combines very high output with a reinforced rubber suspension, spherical stylus and energetic bass-forward sound.

PID: 235

In stock

$79
Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
3 in stock
Web
Online 3 in stock
Updating stores stocks...
Shipping Info
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

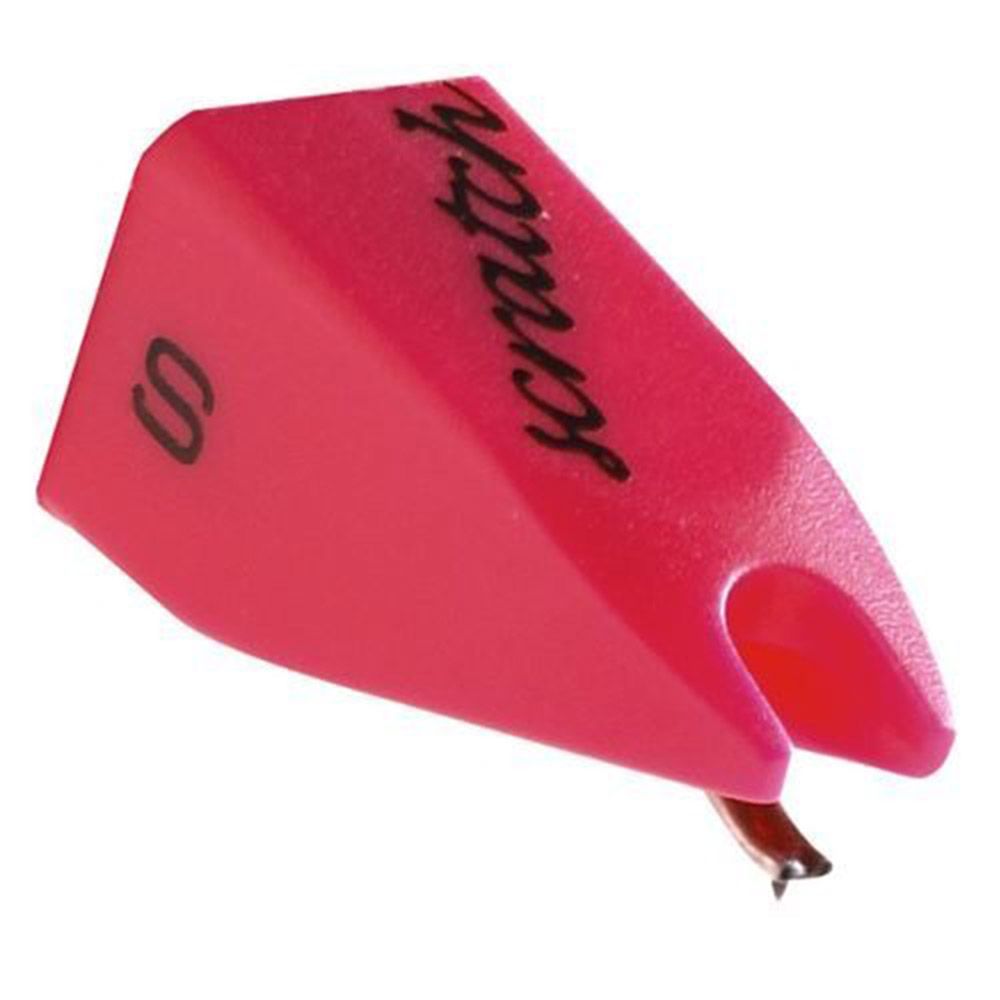

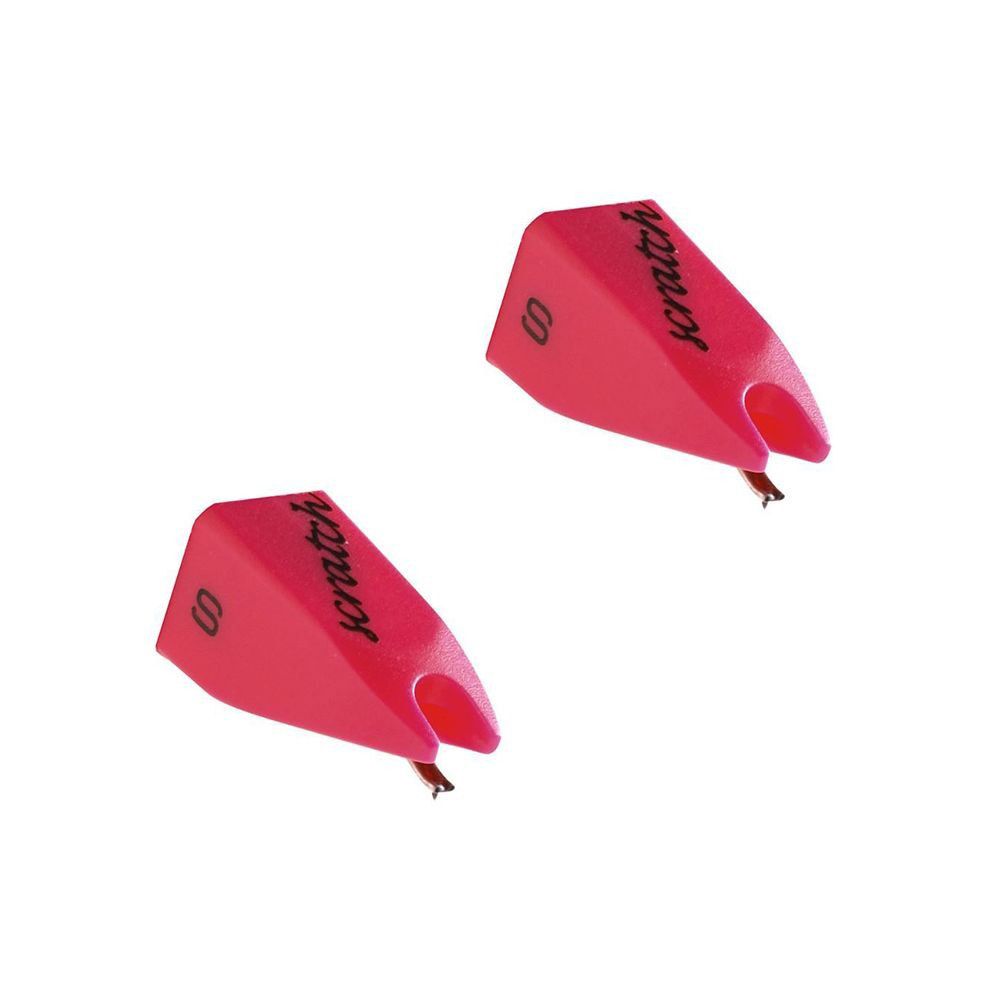

Ortofon Scratch MkI Replacement Stylus

Built for scratch and back-cueing, the Ortofon Scratch MkI brings very high output and an energetic sound to turntable work. Its reinforced rubber suspension is paired with solid bass reproduction and extended highs. Meanwhile, the fluorescent neon-red material is highly apparent in spotlight and luminous in ultraviolet light.

Made for Scratch Technique

Firstly, the Scratch is intended especially for scratch and back-cueing. It has a tracking force range of 3.0-5.0 g (30-50 mN) and a recommended tracking force of 4.0 g (40 mN). Its tracking ability is 80 μm at 315 Hz at the recommended tracking force, giving the cartridge a clear set of stated figures for setup.

Reinforced Suspension

Moreover, the reinforced rubber suspension is central to the cartridge’s increased tracking ability. The design is intended for use with higher tracking forces. The source description specifically notes that DJs need not worry about compromising sound quality and stylus life when working at those forces.

Energetic Vinyl Sound

Furthermore, solid bass reproduction and extended highs give the Scratch an energetic. Also, in-your-face character across any style. The 7 mV output voltage at 1000Hz, 5cm/sec. also makes very high output one of its defining traits. Therefore, keeping the emphasis on a strong, lively cartridge signal.

Distinctive Fluorescent Finish

Additionally, the fluorescent neon-red material gives this cartridge a distinctive visual identity. It is intended to be highly apparent in spotlight and luminous in ultraviolet light, adding a vivid finish without changing the Scratch’s core focus on scratch and back-cueing performance.

Key Features

  • Scratch-focused design for back-cueing
  • Reinforced rubber suspension for increased tracking ability
  • Solid bass reproduction with extended highs
  • Very high output with 7 mV output voltage
  • Fluorescent neon-red material, highly apparent in spotlight and luminous in ultraviolet light
  • Intended especially for scratch and back-cueing
  • Highly apparent in spotlight and luminous in ultraviolet light
  • Reinforced rubber suspension
  • Solid bass reproduction and extended highs
  • Very high output1

Output voltage at 1000Hz, 5cm/sec.: 7 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency response: 20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force: 80 μm
Compliance, dynamic lateral: 6 μm/m N
Stylus type: Spherical
Stylus tip radius: R 18 μm
Tracking force range: 3.0-5.0 g (30-50 mN)
Tracking force recommended: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Concorde cartridge weight: 18.5 g
Weight (Each): 2g
Colour: Red

For more information, please visit the manufacturer's website.
