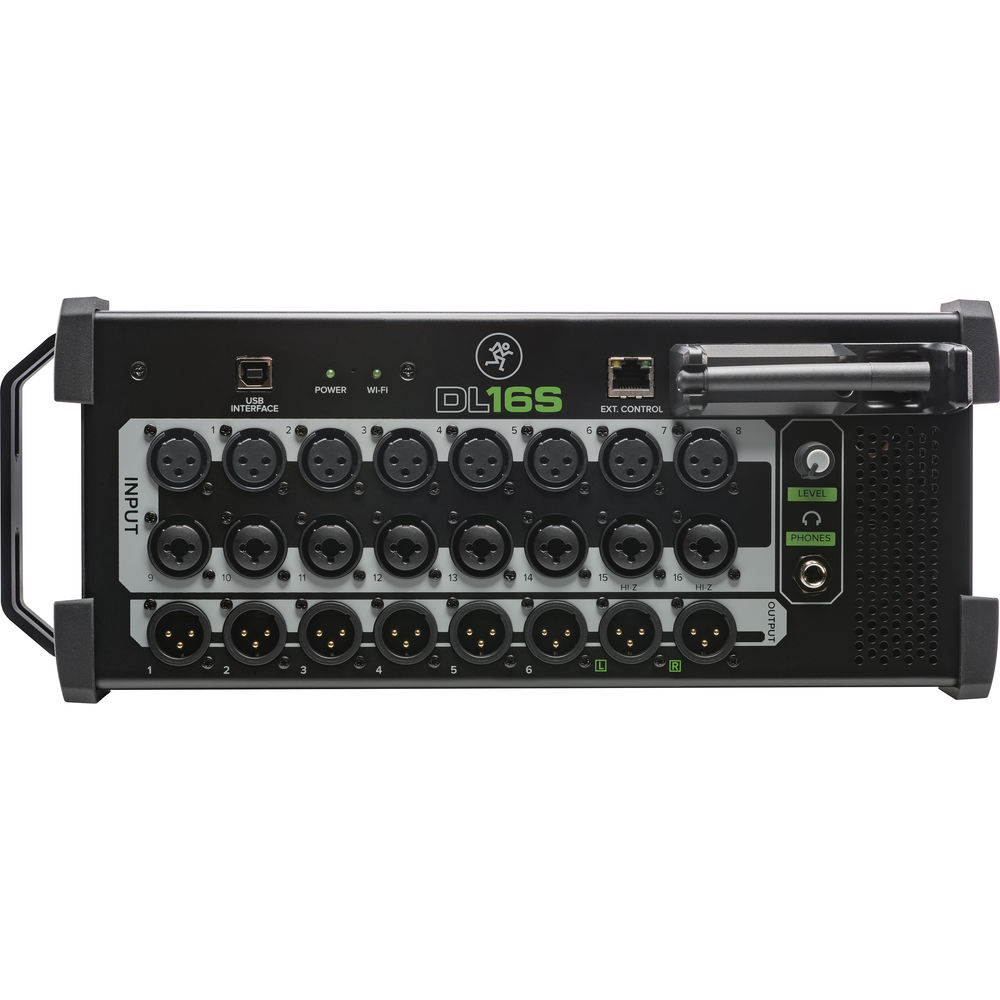

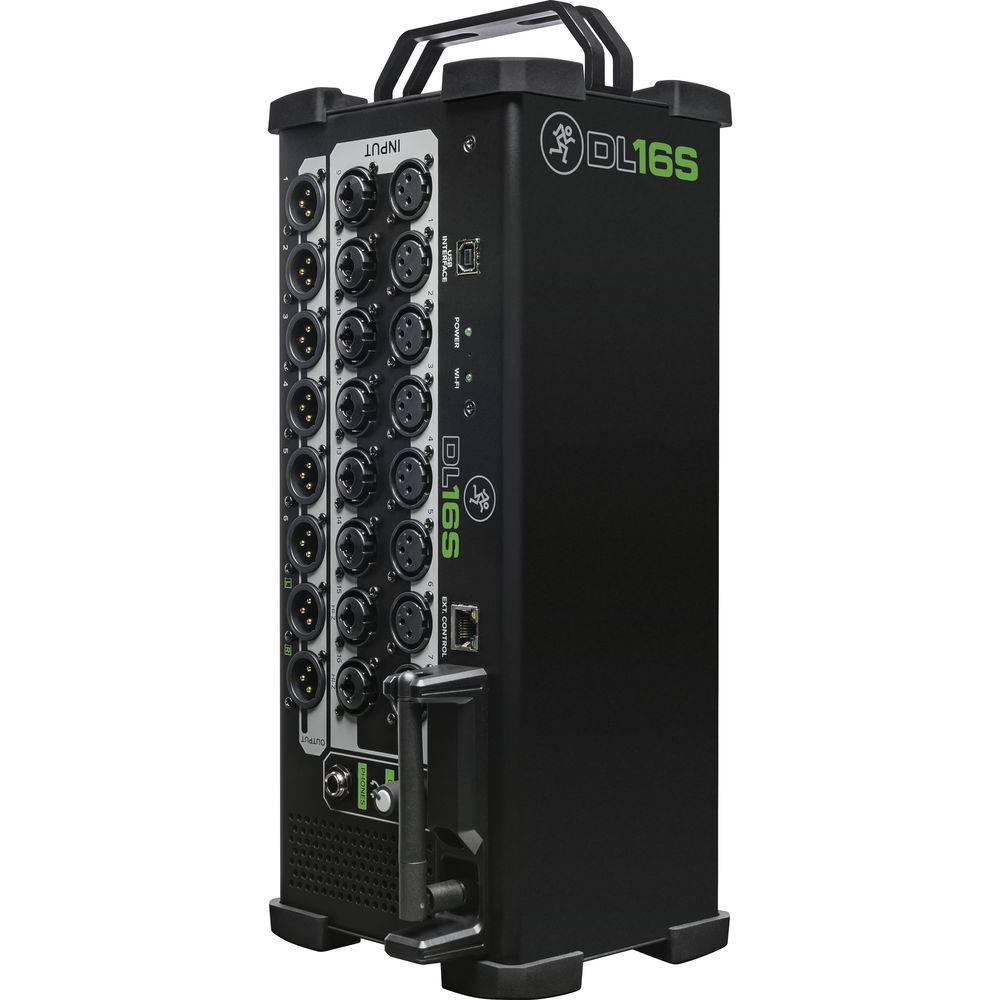

Mackie DL16S

Mackie DL16S is a 16-channel wireless digital live sound mixer with integrated Wi-Fi, well suited for musicians, engineers, clubs, bars, coffee shops, and more. The mixer features 16 Onyx+ re-callable preamps available on 8 XLR inputs and 8 combo XLR-1/4″ inputs, while 8 fully-assignable outputs are available on XLR connectors, plus there is a dedicated 1/4″ headphone output.

Control everything from anywhere with wireless mixing

Leave that bulky snake at home! Because you can control the Mackie DL16S with your iPad, you can place it anywhere. Even if the DL16S is onstage, you can walk around the venue to fine-tune your mix. It’s a great way to ensure optimal sound quality for every member of your audience. And because the DL16S supports up to 20 iPads at once, multiple engineers can work from one DL16S. You can even set up personal mixes for each performer that are tweak-able via any iOS device. Back in the day, you would have needed miles of cable and a pile of submixers to pull off this much signal routing. But with the DL16S in your rack, all you need is an iPad and your fingers!

All your connections are covered

With the Mackie DL16S in your live rig, you’ll never run short of I/O. Providing you with 16 stereo-linkable input channels, 8 fully assignable XLR outputs, and 16 great-sounding Onyx+ mic preamps, the DL16S has your I/O needs covered. On top of that, you also get 13 output buses, 6 stereo-linkable aux sends, 6 stereo-linkable subgroups, a Main L/R bus, and a headphone output. And best of all, the DL16S gives you total recall of your settings!

Integrated USB 2.0 audio interface

One of the Mackie DL16S’s most useful features is multitrack recording and playback. Use the DL16S as an audio interface to record straight to your DAW. Play intermission music, backing tracks, and more. Play back your full multitrack recording for a virtual sound check. You can also use your DAW’s audio plug-ins in a live environment. The DL16S is a value-packed, high-channel-count studio recording solution.

  • Ample I/O including 16 stereo-linkable input channels, 8 fully assignable XLR outputs, 13 output buses, 6 stereo-linkable aux sends, 6 stereo-linkable subgroups, a Main L/R bus, and a headphone output
  • 16 recallable Onyx+ mic preamps deliver top-notch sound
  • Wireless mixing allows you to take control of your mix via an iPad
  • Tweak your mix, processing, and routing from anywhere in the venue
  • Built-in Wi-Fi networking and instant recall ensure easy setup
  • Supports up to 20 iPads at once to accommodate multiple engineers
  • 4 onboard FX processors with dedicated sends and returns create polished, professional-sounding mixes
  • 16-in/16-out USB interface for recording straight to your DAW
  • Play intermission music, backing tracks, and more
  • Play back your full multitrack recording for a virtual sound check
  • Use your DAW’s audio plug-ins in a live environment

Type: Digital Stage Box Mixer

Channels: 16 input channels, 32 mixing channels

Inputs – Mic Preamps: 8 x XLR, 6 x XLR-1/4″ combo, 2 x XLR-1/4″ combo (mic/line/Hi-Z)

Outputs – Main: 2 x XLR (L/R, assignable), 6 x XLR (assignable)

Aux Sends: 6 x Stereo Sends

Busses/Groups: 6 x Stereo Sub Groups, 13 x Output Busses, 6 x Mute Groups

Data I/O: 1 x RJ45 (external control)

USB:1 x Type B

Computer Connectivity: USB (16 x 16), Wi-Fi

Headphones: 1 x 1/4″

EQ Bands: 4-band Parametric EQ, Highpass Filter

Effects: 4 x Stereo FX Processors, Reverb, Delay, Chorus, Flange

Signal Processing: Gate, Compressor

Software: Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)

Dimesnions: 142 x 147 x 358 mm

Weight: 2.81 kg
