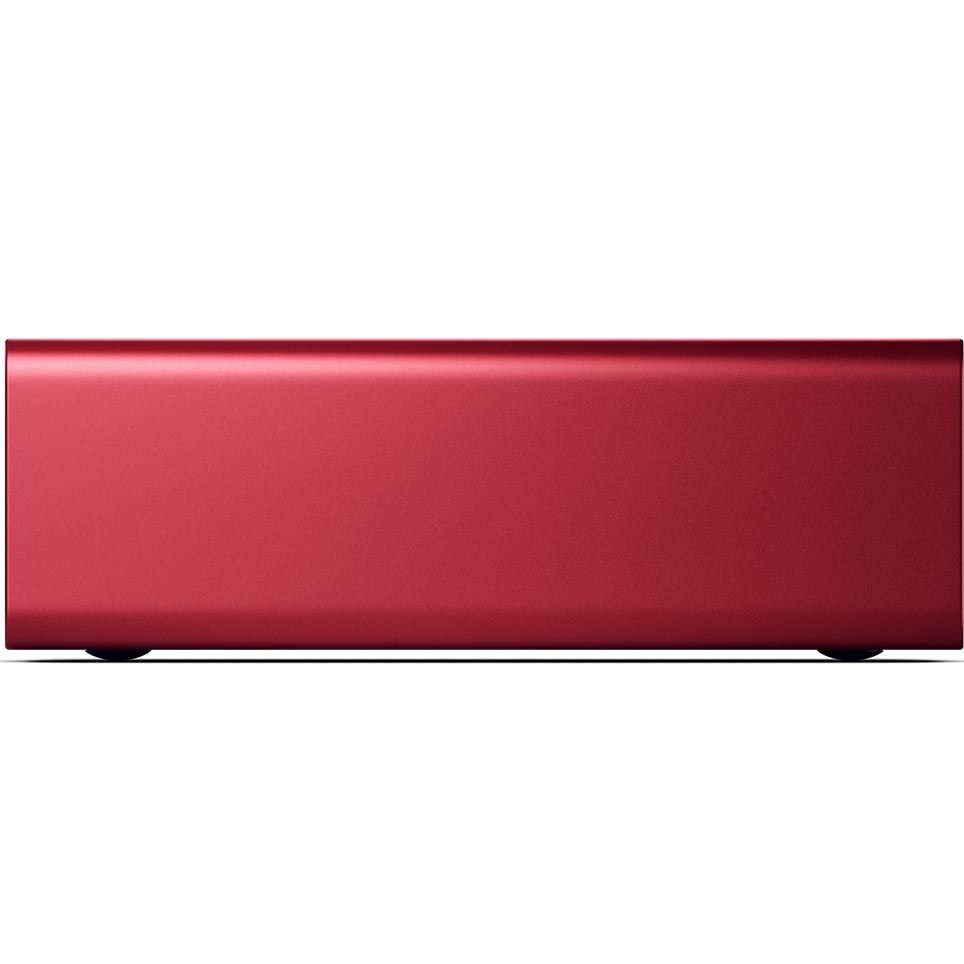

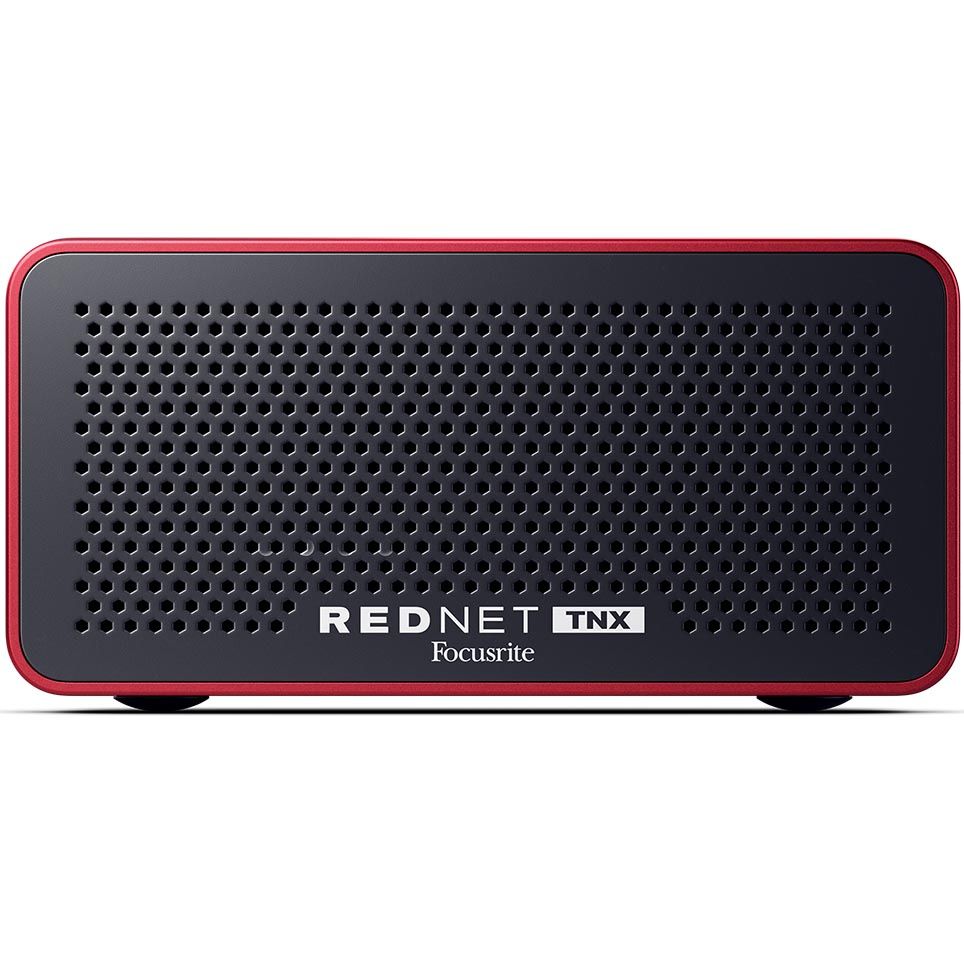

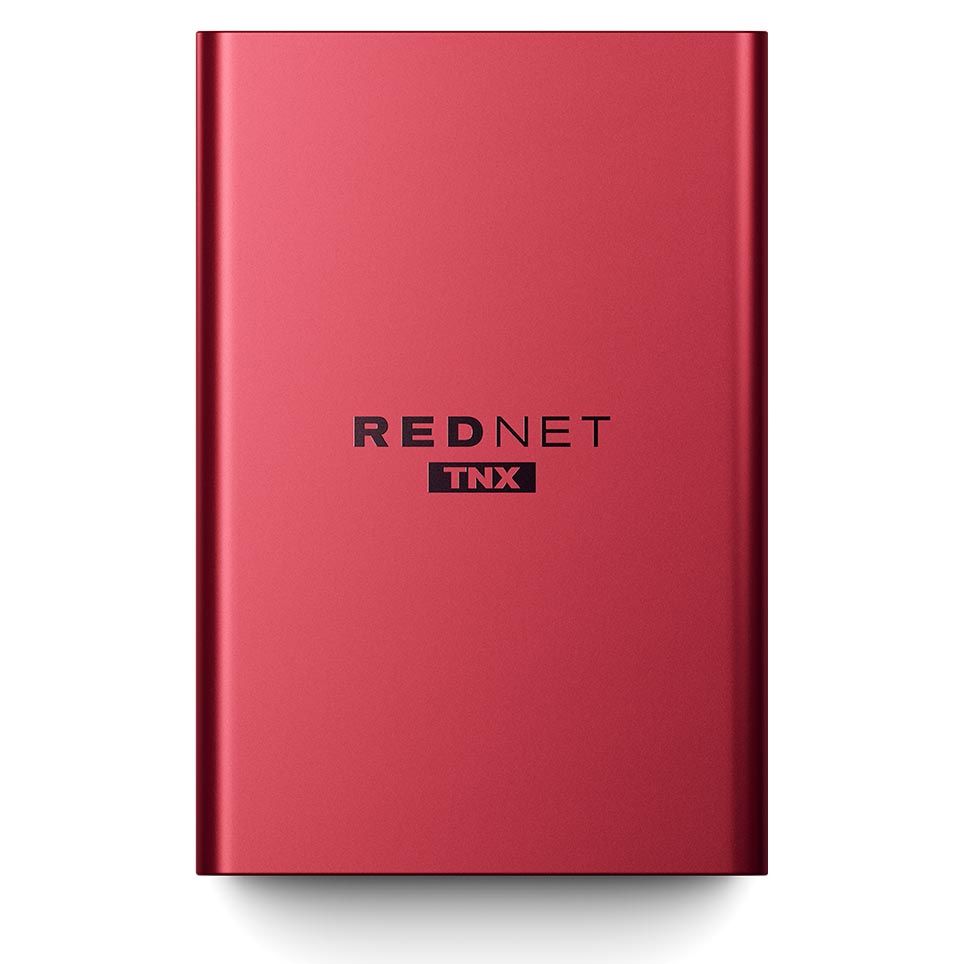

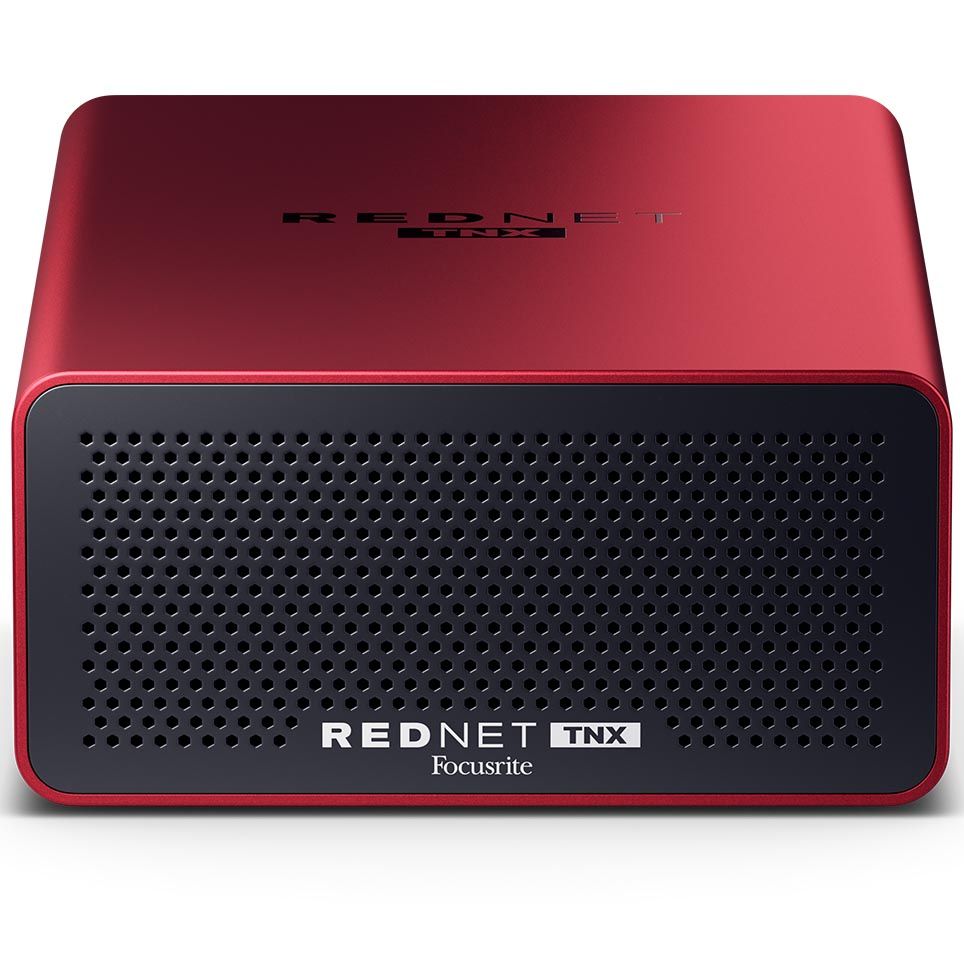

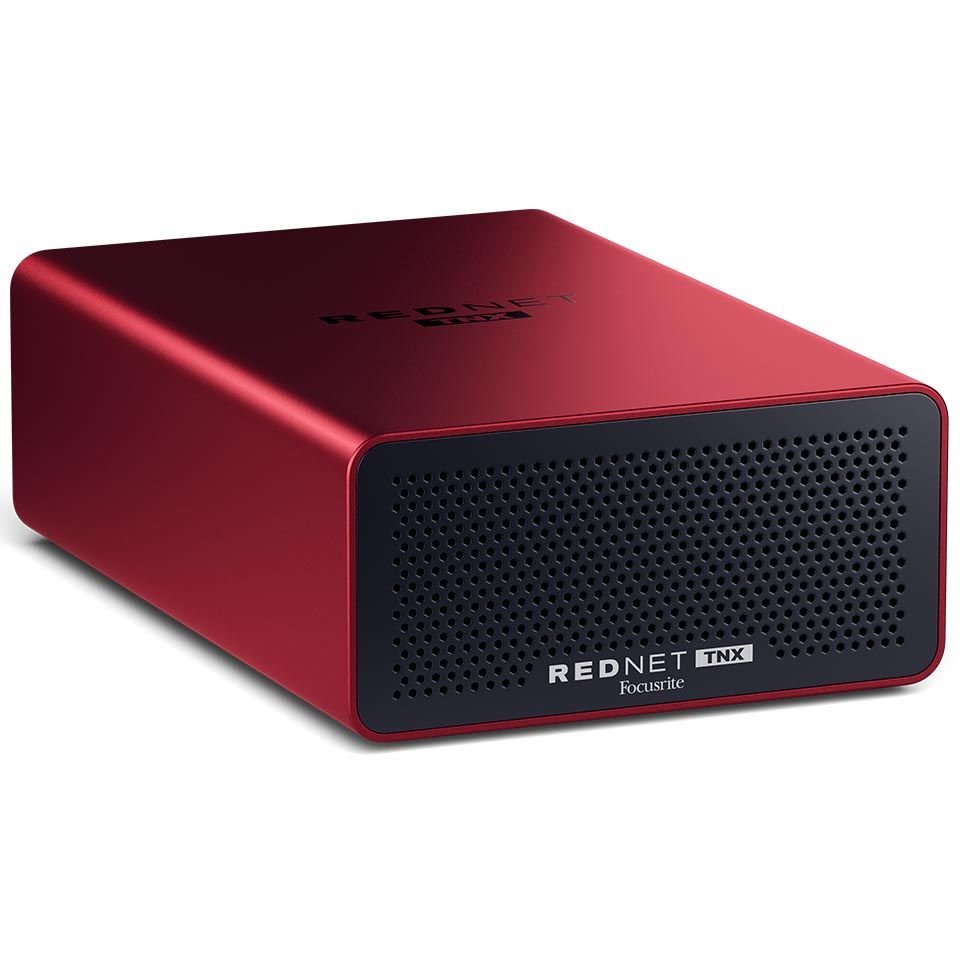

Focusrite RedNet TNX Portable Dante Audio Interface
The Focusrite RedNet TNX delivers exceptional Dante I/O performance through a single Thunderbolt 3 connection. It offers 24-bit/192 kHz audio, high channel counts, and compact portability—ideal for studios, OB trucks, and post-production suites that demand speed, reliability, and scalability.
High-Density Dante Conversion
Right out of the box, RedNet TNX supports 128×128 channels of uncompressed Dante audio with ultra-low latency. However, if you need more, the Dante Ready upgrade doubles the capacity to 256×256 channels at 96 kHz. This allows you to tackle large Atmos mixes, multitrack sessions, or live broadcasts—without changing your hardware.
Seamless Integration & Control

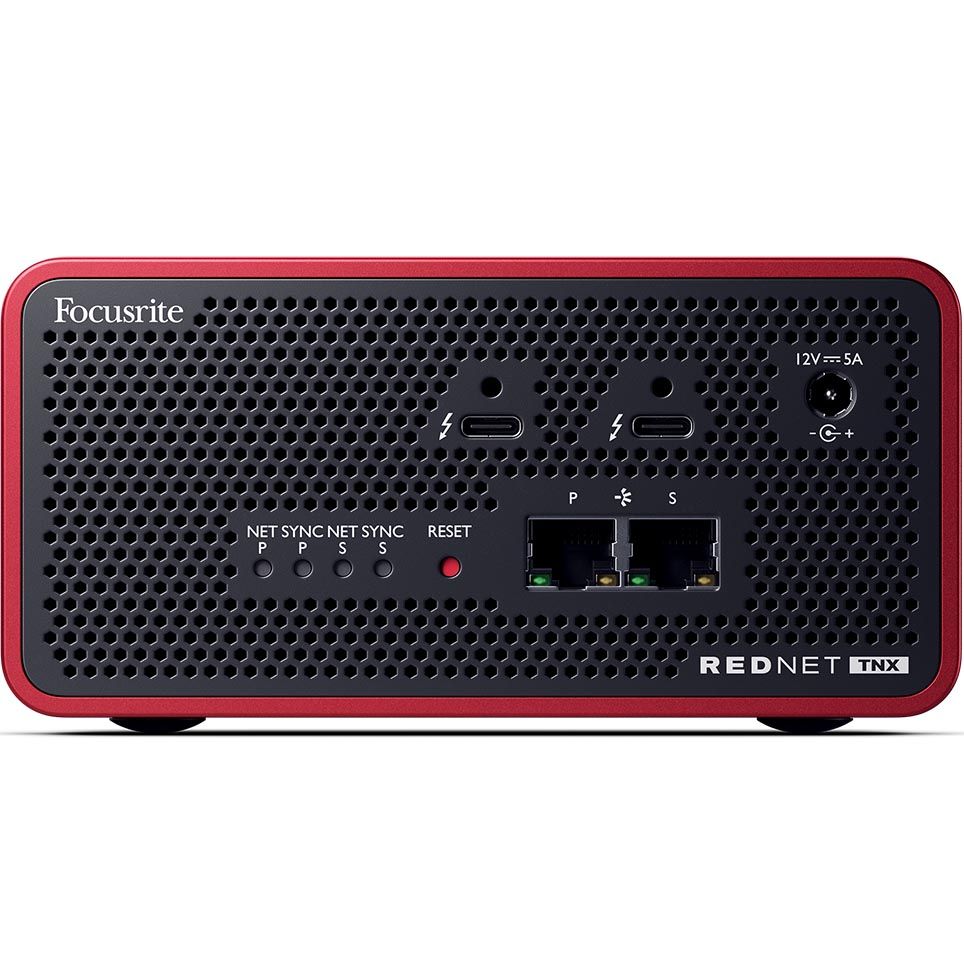

With dual Thunderbolt 3 ports (each supplying 15 W of power), the interface allows daisy-chaining for cleaner setups. Additionally, twin RJ-45 ports offer switched or redundant network modes, ensuring fail-safe performance. RedNet Control software centralizes routing and configuration across your RedNet devices. Meanwhile, full AES67, SMPTE ST 2110, and Dante Domain Manager compliance ensures effortless integration into existing broadcast systems.
Portable Reliability

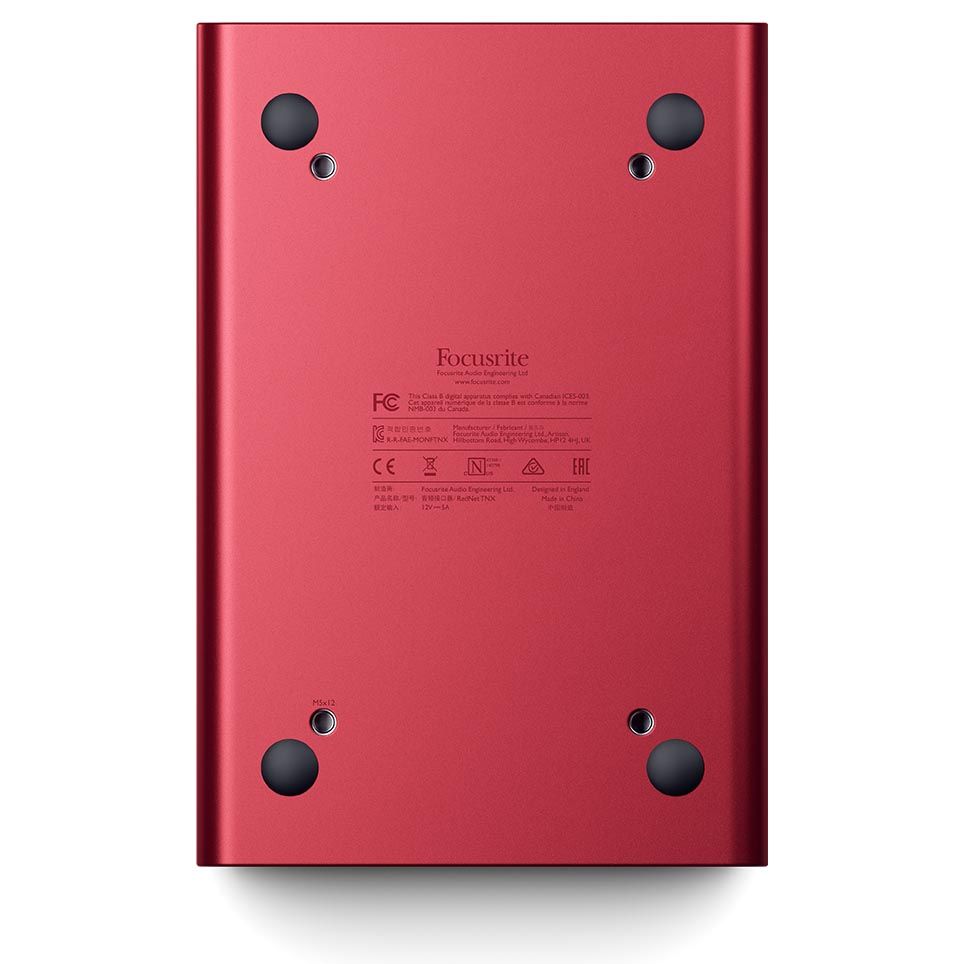

Weighing just 1.49 kg, RedNet TNX is easy to move between control rooms, scoring stages, and OB vans. Built-in M5 threads let you securely mount it in racks or shelves. Plus, it’s backed by Focusrite’s 3-year warranty and 24/7/365 global support—giving professionals complete peace of mind.
Key Features
- 128×128 channels of 24-bit/192 kHz Dante audio via Thunderbolt 3
- Optional upgrade to 256×256 channels at 96 kHz with Dante Ready
- Dual Thunderbolt 3 and dual Ethernet ports for flexible, redundant connectivity
- AES67, SMPTE ST 2110 & Dante Domain Manager compliant
- RedNet Control software for unified device management
- Compact 1.49 kg chassis with rack-mount threads
- Three-year Focusrite warranty and 24/7/365 technical support
