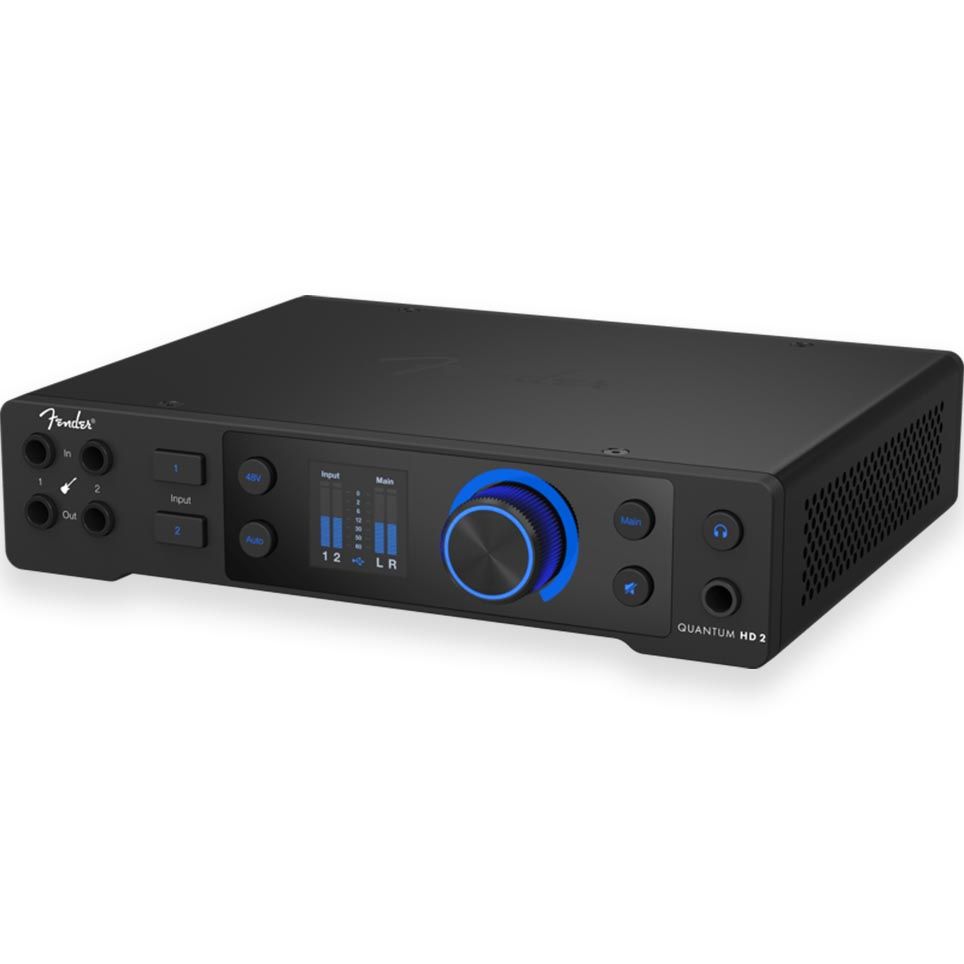

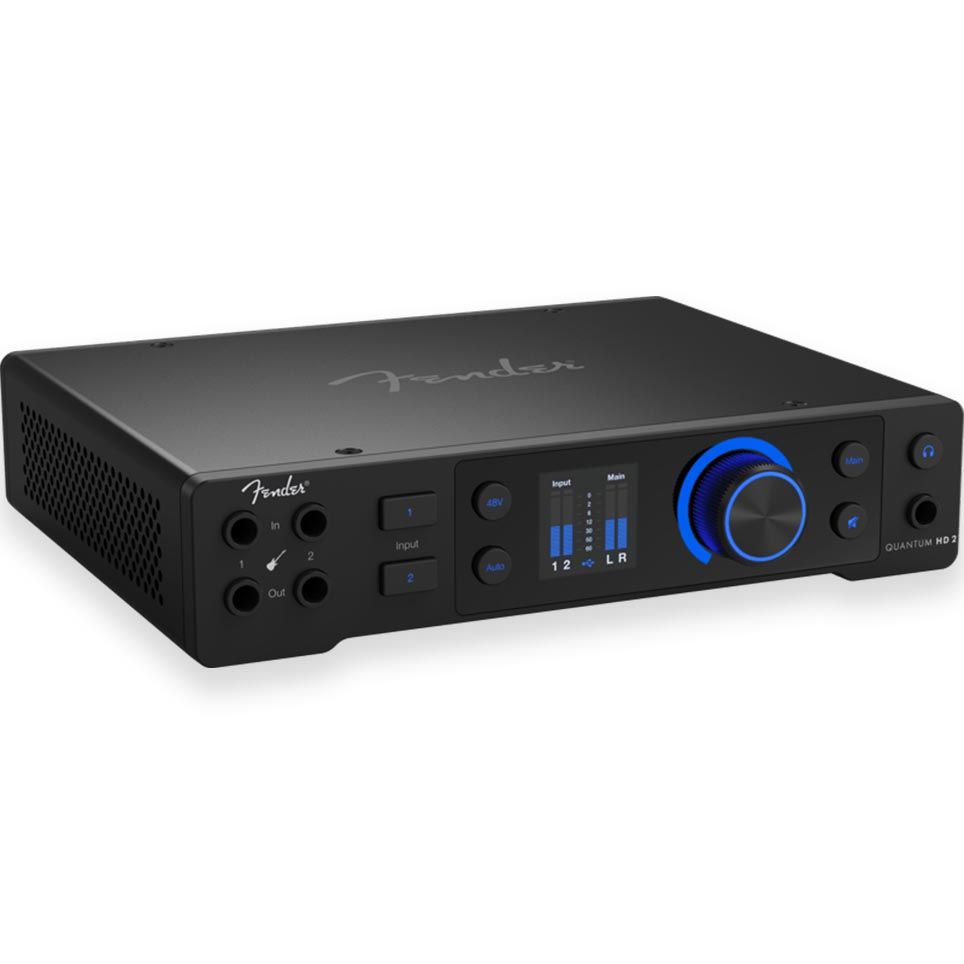

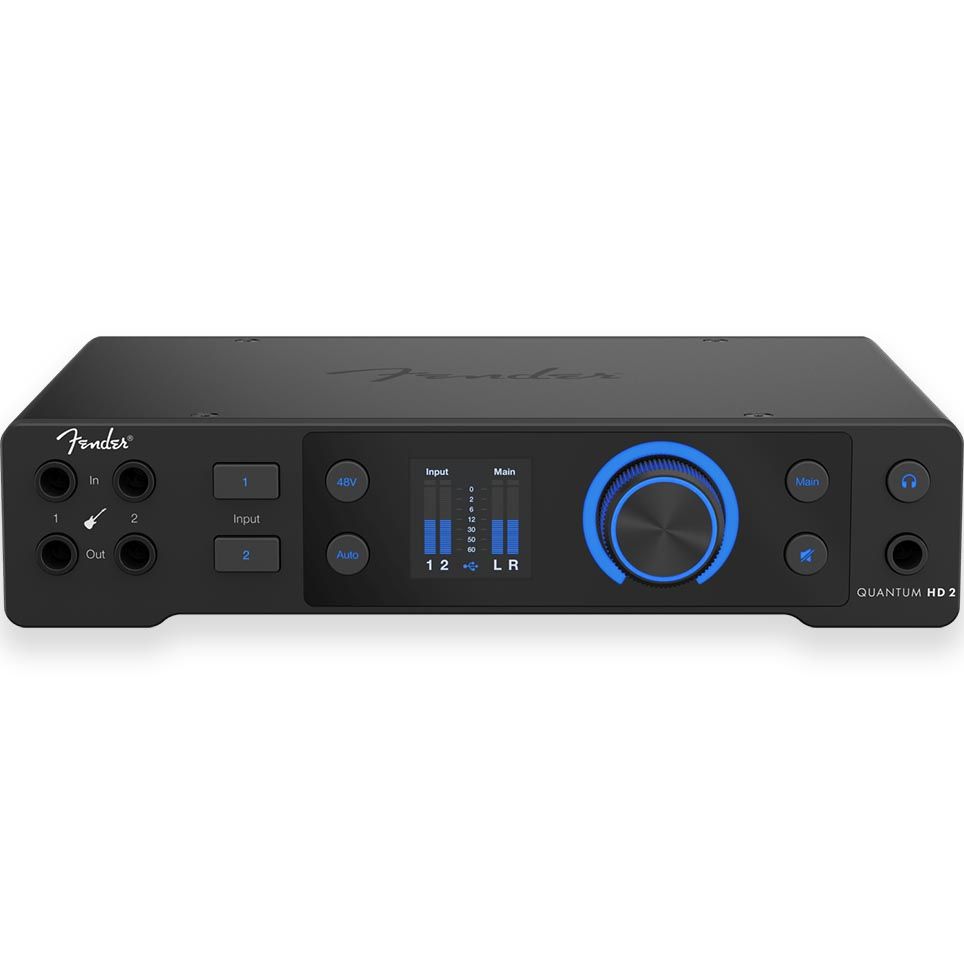

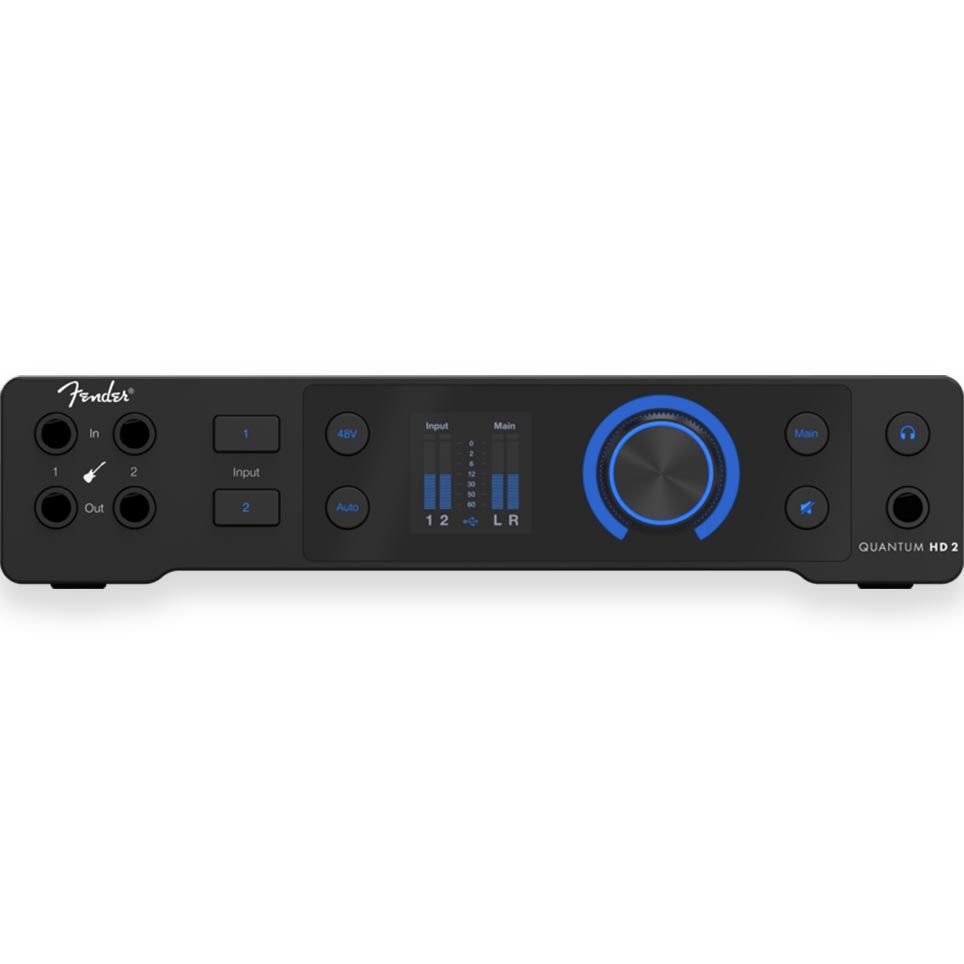

Fender Quantum HD 2 USB-C Audio Interface
Step into the world of professional recording with the Fender Quantum HD 2 USB-C Audio Interface. This powerhouse captures every detail with stunning clarity, thanks to its ultra-high-fidelity MAX-HD mic preamps and 32-bit / 192 kHz converters. Whether you’re tracking vocals, guitars, or full bands, your sound is always pristine and authentic.
Precision and Clarity in Every Note
The MAX-HD preamps deliver ultra-clean audio with a dynamic range up to 116 dB and extremely low noise levels, ensuring your recordings are free from unwanted hiss or distortion. The high-performance converters support exceptionally high sample rates, preserving every nuance of your performance.
Designed for Guitarists and Bassists
Front-facing Fender instrument inputs are specially optimized to translate your guitar or bass tone perfectly to your mix. Plus, with convenient re-amp outputs, you can creatively experiment with amps and pedals, expanding your sonic palette like never before.
Streamline Your Workflow
Features like Auto Gain, DSP monitor mixer, and loopback routing make recording and streaming smooth and hassle-free. Control everything from preamps to phantom power using the Fender Studio Pro or Universal Control app, making your session more efficient and enjoyable.
Key Features
- 20 x 24 USB-C interface with MAX-HD mic preamps
- High-performance 32-bit / 192 kHz converters
- 16 ADAT channels and S/PDIF digital I/O
- Front Fender instrument inputs for guitar and bass
- Auto Gain for instant level setting
- Re-amp outputs for tone creativity
- DSP monitor mixer and loopback routing
- Software included: Fender Studio Pro license
Color: Black
Connection Type (Microphone): XLR Female (Combo), Balanced
Frequency Response (Microphone): 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance (Microphone): 1600 Ohms
Dynamic Range (Microphone): 116 dB (A-Weighted, Minimum Gain)
EIN: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N (Microphone): 0.002% (1 kHz, Minimum Gain)
Gain Range (Microphone): 75 dB
Maximum Input Level (Microphone): +18 dBu (Balanced, Minimum Gain)
Phantom Power: +48 VDC
Frequency Response (Line Input): 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance (Line Input): 10K Ohms
Dynamic Range (Line Input): 118 dB (A-Weighted, Minimum Gain)
THD+N (Line Input): 0.001% (1 kHz, Minimum Gain)
Gain Range (Line Input): ± 10 dB
Maximum Input Level (Line Input): +18 dBu (Balanced, Minimum Gain)
Frequency Response (Instrument Input): 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range (Instrument Input): 111 dB (A-Weighted, Minimum Gain)
THD+N (Instrument Input): 0.003% (1 kHz, Minimum Gain)
Gain Range (Instrument Input): 75 dB
Maximum Input Level (Instrument Input): +21 dBu (Unbalanced, Minimum Gain)
Connection Type (Line Outputs): 1/4″ TRS Female
Connection Type (Main Outputs): 1/4″ TRS Female
Connection Type (Headphone Outputs): One – 1/4″ TRS Female Stereo
Frequency Response (Headphone Outputs): 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range (Headphone Outputs): 33 Ohms
Dynamic Range (Headphone Outputs): 118 dB (A-Weighted)
THD+N (Headphone Outputs): 0.001% (1 kHz)
Maximum Output Level (Headphone Outputs): 11 dBu (50 Ohms)
Connection Type (MIDI I/O): 5-Pin Female DIN
Voltage (Power): 120V
Voltage Requirements (Power): 100-240 VAC, 50-60 Hz
Connectivity (Digital Audio): USB-C
Bit Depth (Digital Audio): 32-bit
Dynamic Range (Digital Audio): 124 dB
Supported Sample Rates (Digital Audio): 44.1, 48, 88.2, 96, 176.4, 192 kHz
Height: 1.9″ (48.3 mm)
Depth: 7.5″ (191 mm)
Width: 8.5″ (216 mm)
Weight: 2.9 lbs (1.3 kg)
