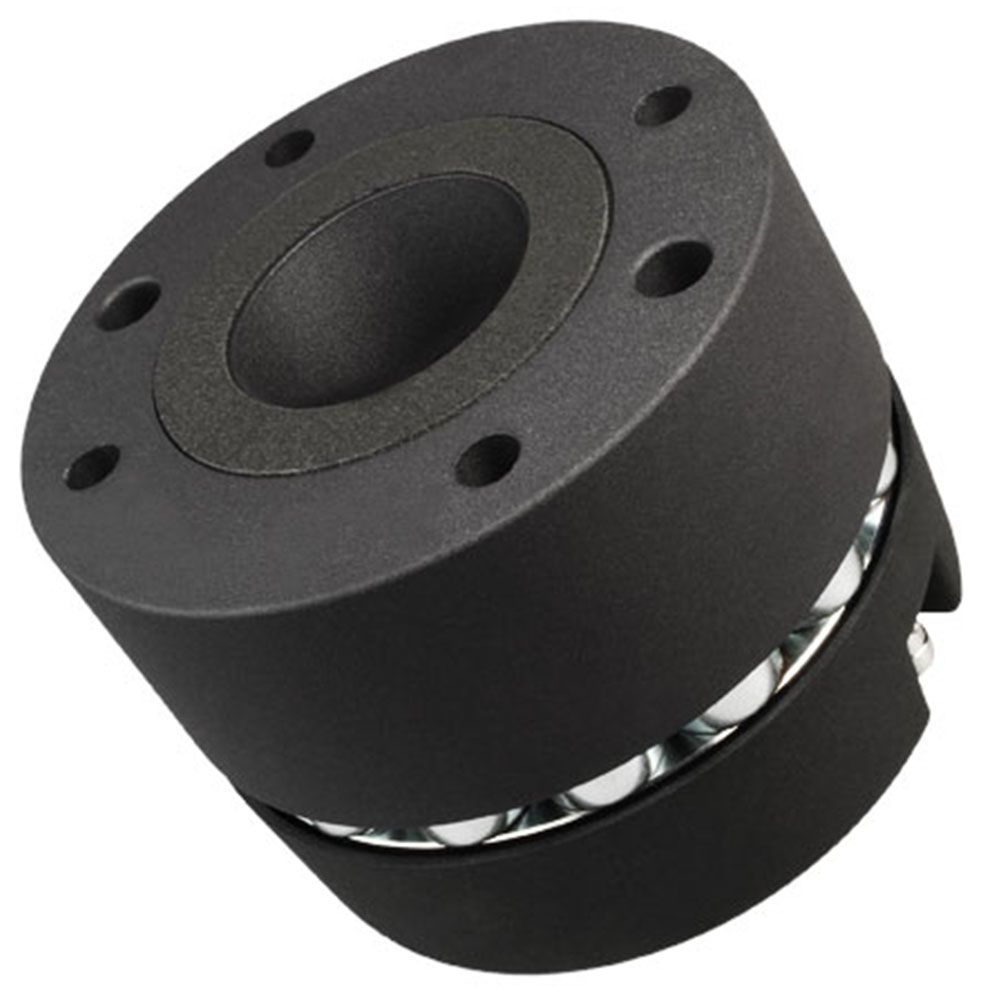

Faital Pro HF200 8 Ohm (Ω), 2-Inch Compression Driver
The Faital Pro HF200 8 Ohm compression driver delivers high sensitivity for horn and waveguide speaker designs. It combines a titanium dome diaphragm, an annular phase plug and 109 dB sensitivity. Plus, its 70 W AES power rating above 0.9 kHz helps speaker builders plan their high-frequency systems.
Efficient Output for High-Frequency Systems
Firstly, with 109 dB sensitivity measured at 1W/1m, the HF200 can produce strong output from a given amount of amplifier power. Its 8 Ohm nominal impedance and 5.8 Ohm minimum impedance give system designers clear electrical figures to work around. Especially, when matching the driver with a suitable crossover and amplifier.
Built Around a Titanium Diaphragm
Moreover, the titanium diaphragm uses a dome shape. Meanwhile, the annular phase plug design forms part of the driver’s high-frequency construction. Together, these defined components give builders a clear starting point when developing horn-loaded speaker systems. Specifically, around the driver’s stated 0.5–18 kHz frequency range.
Power Handling for Crossover-Based Designs
Furthermore, the HF200 is rated for 70 W AES power above 0.9 kHz, with 140 W maximum power over the same range. Its minimum crossover frequency is 0.9 kHz. Therefore, the driver suits designs where the high-frequency section is crossed over in line with that specified operating point.
Compact Installation Format
Additionally, the 50.8 mm throat, 130.5 mm overall diameter and 102 mm 90° mounting-hole pattern keep the installation details straightforward. At 95 mm deep and 3.2 kg net, the driver offers defined dimensions for cabinet planning, mounting clearance and overall system weight calculations.
Key Features
- High 109 dB sensitivity for efficient high-frequency output
- Titanium dome diaphragm with annular phase plug design
- 70 W AES power above 0.9 kHz
- 2-inch throat diameter for compatible horn and waveguide designs
- Compact 95 mm depth for easier enclosure planning
