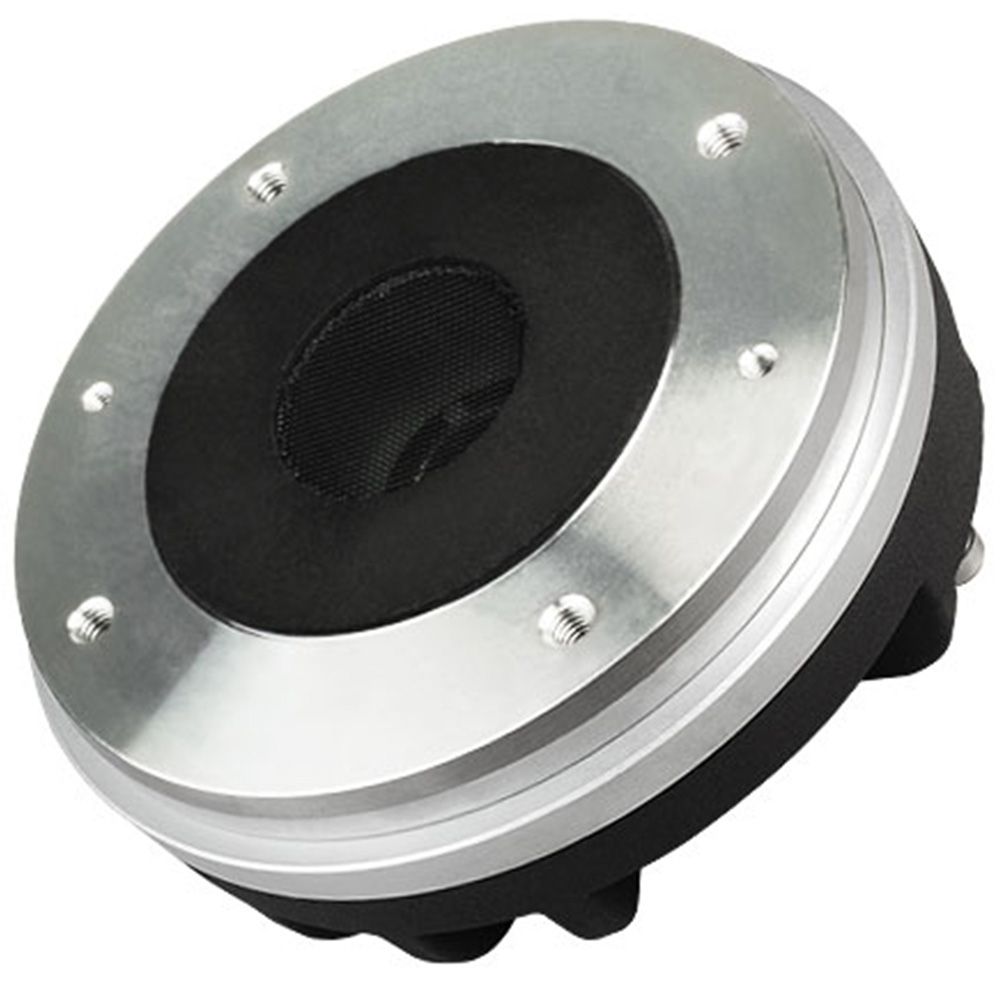

Faital Pro HF1400 8 Ohm (Ω), 1.4-Inch Compression Driver
The HF1400 combines a titanium diaphragm, strong sensitivity and an 8 Ohm load. With 100 W AES power above 0.9 kHz and a neodymium ring magnet. It gives custom cabinet projects a focused, practical compression-driver foundation.
High Output from a Compact Driver
Firstly, the 110 dB sensitivity makes efficient use of amplifier power. Meanwhile, the 100 W AES rating above 0.9 kHz suits high-frequency sections in demanding loudspeaker designs. Its 200 W maximum power figure above the same point adds useful headroom when the system is driven harder.
Titanium Diaphragm Detail
A titanium dome diaphragm forms the working surface of this 1.4-inch compression driver. The design covers a 0.5÷18 kHz frequency range, giving builders broad high-frequency coverage to work with when developing or servicing a compatible loudspeaker enclosure.
Practical Crossover and Mounting Details
The minimum crossover frequency is 0.9 kHz, while the annular phase plug design and 12° conical exit angle define the driver’s acoustic layout. A 35.6 mm throat, 130.5 mm overall diameter and 55 mm depth make the physical fit straightforward to assess during cabinet planning.
Built for Loudspeaker Projects
The neodymium ring magnet keeps the magnetic assembly compact, while the 8 Ohm nominal impedance gives the HF1400 a clear electrical specification for system design. With a 2.5 kg net weight and 102 mm 90° mounting-hole pattern, it suits carefully planned replacement or custom-build work.
Key Features
- Efficient 110 dB sensitivity for strong high-frequency output
- Titanium dome diaphragm for broad HF coverage
- 100 W AES power above 0.9 kHz for demanding designs
- Neodymium ring magnet in a compact driver assembly
- 8 Ohm nominal impedance for clear system planning
