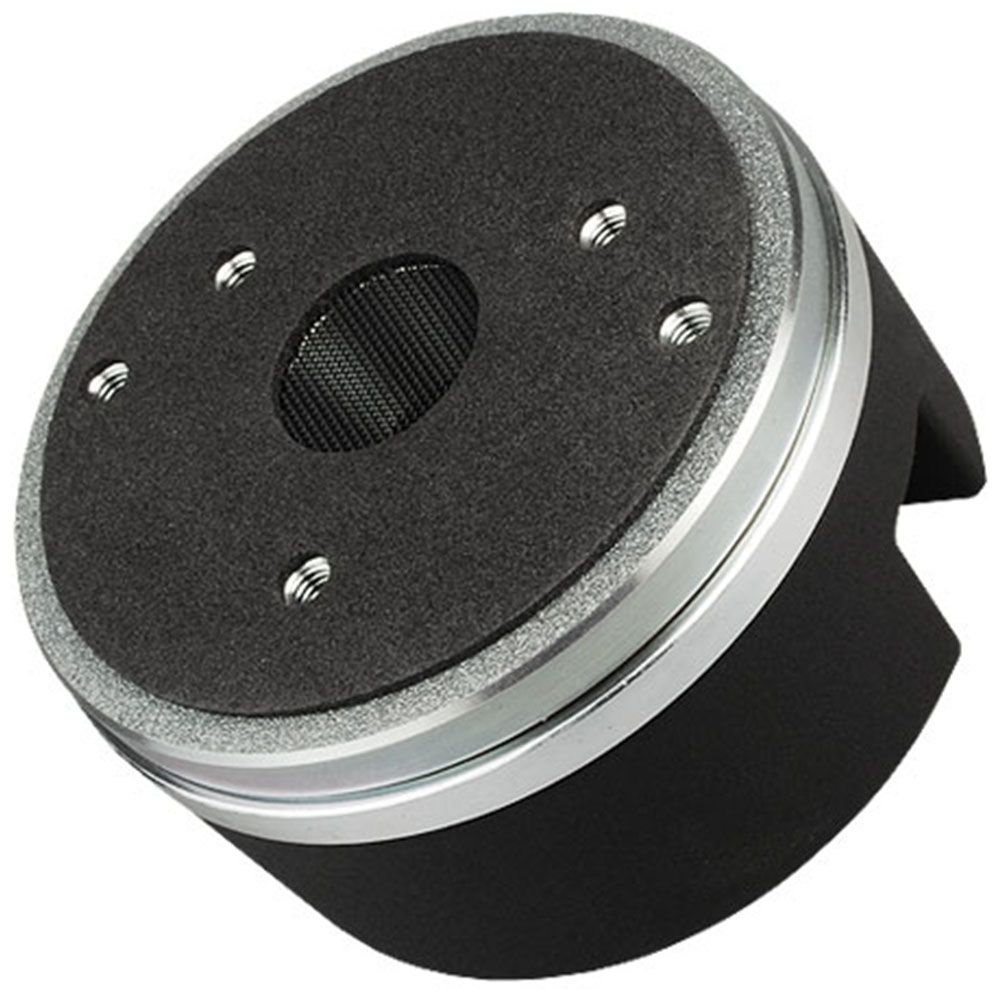

Faital Pro HF10AK 16 Ohm (Ω) 1 Inch HF Driver
The Faital Pro HF10AK 16 Ohm combines high sensitivity with a dome diaphragm, annular phase plug, and robust power handling. Its listed crossover point, broad frequency range, and detailed mounting dimensions give speaker builders clear information for choosing and installing the driver.
Strong Output for High-Frequency Work
Firstly, with 110 dB sensitivity and 60 W AES power handling, this HF driver is built around a strong output rating and clearly defined operating limits. Its 120 W maximum power handling adds another reference for system planning, while the 16 Ohm nominal impedance identifies the electrical load for matching components.
Balanced Diaphragm Construction
The dome diaphragm uses Ketone Polymer, with a 44 mm voice coil, Kapton former, and Al winding material. An annular phase plug completes the assembly. Together, these listed construction details give builders a clear view of the driver’s materials and internal arrangement when selecting components for a high-frequency section.
Useful Range and Crossover Reference
The stated frequency range runs from 0.8÷20 kHz, while the 1.3 kHz minimum crossover frequency offers a clear reference when setting the crossover point. A 21° conical exit angle is also specified, giving system designers another fixed detail to consider alongside the driver’s frequency and crossover figures.
Plan the Fit Before Installation
The 25.4 mm throat, 102 mm overall diameter, and 54 mm depth make the physical format easy to check against an installation. Mounting holes are provided for both 180° and 120° layouts, with the listed diameters supplying practical measurements for mounting preparation and fit checks.
Key Features
- High sensitivity for strong high-frequency output
- Ketone Polymer dome diaphragm with annular phase plug design
- Neodymium ring magnet and 25.4 mm throat
- Specified crossover point and frequency range for system planning
- Two mounting-hole layouts for installation planning
