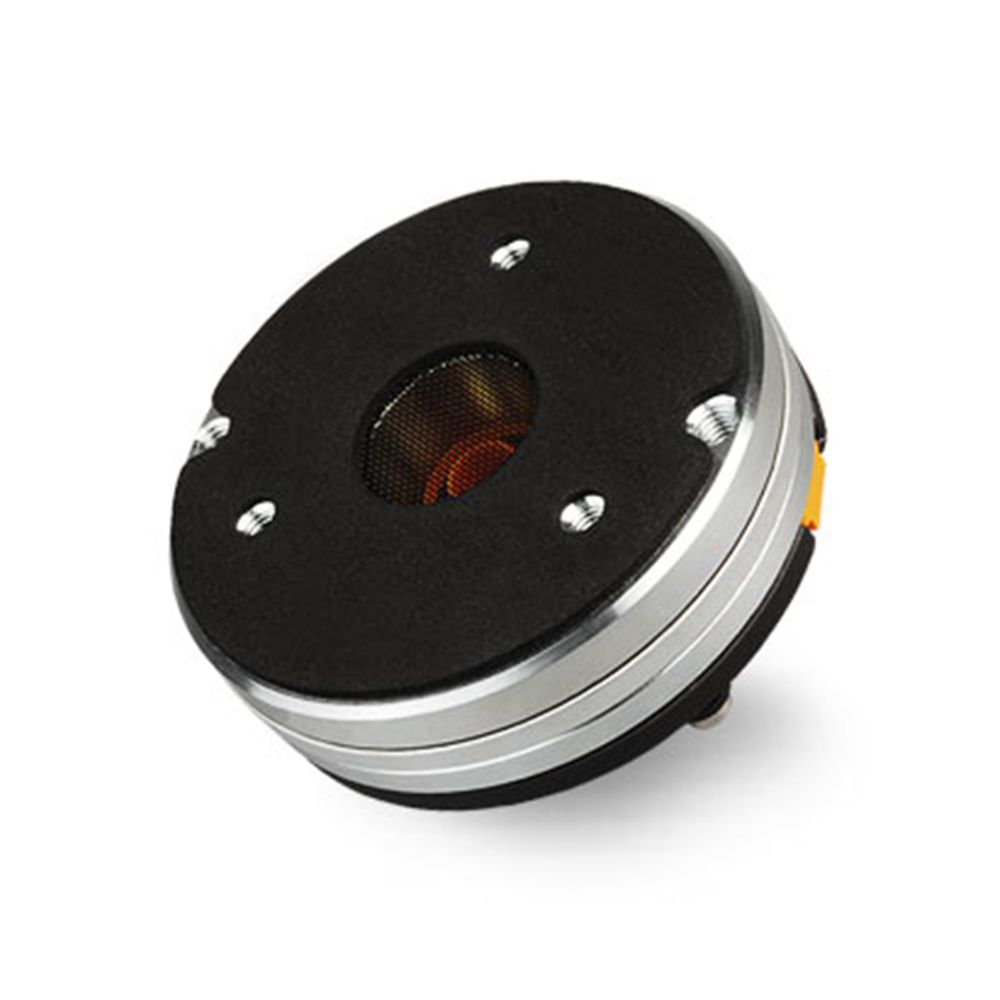

Faital Pro HF108 8 Ohm (Ω), 1-Inch Compression Driver
The Faital Pro HF108 compression driver gives loudspeaker builders a clearly documented high-frequency component for system design. Its 109 dB sensitivity, 60 W AES power handling and 1.3 kHz minimum crossover frequency establish useful electrical references. Meanwhile, the 1-inch throat keeps the driver’s format clear when planning the surrounding assembly.
Electrical Ratings for System Design
With 8 Ohm nominal impedance and 6.8 Ohm minimum impedance, the driver offers straightforward figures to consider when matching it within a loudspeaker system. AES power handling is rated at 60 W, with 120 W maximum power handling. These ratings give builders practical values to weigh when setting crossover and protection choices.
High-Frequency Construction
The 44 mm voice coil uses Al winding material and a Kapton former, while the Ketone Polymer diaphragm uses a dome shape. An Annular phase plug and 31° Conical exit angle complete the stated acoustic construction details, giving designers specific component information to work from rather than relying on broad descriptions.
Plan the Physical Layout
The 87 mm overall diameter, 41 mm depth and 76 mm 180° mounting-hole diameter define the space needed around the driver. Its 800 g net weight is also useful when planning the physical layout of a build. The listed net air volume filled by the HF driver is 0.195 dm³.
Key Features
- 109 dB sensitivity gives builders a clearly stated reference for high-frequency system matching.
- The Neodymium Ring magnet and 800 g net weight suit designs where magnet type and physical mass need to be documented.
- Kapton, Al and Ketone Polymer construction details make the diaphragm assembly easy to identify during component selection.
- The mounting dimensions and 31° Conical exit angle provide concrete information for physical and acoustic layout planning.
