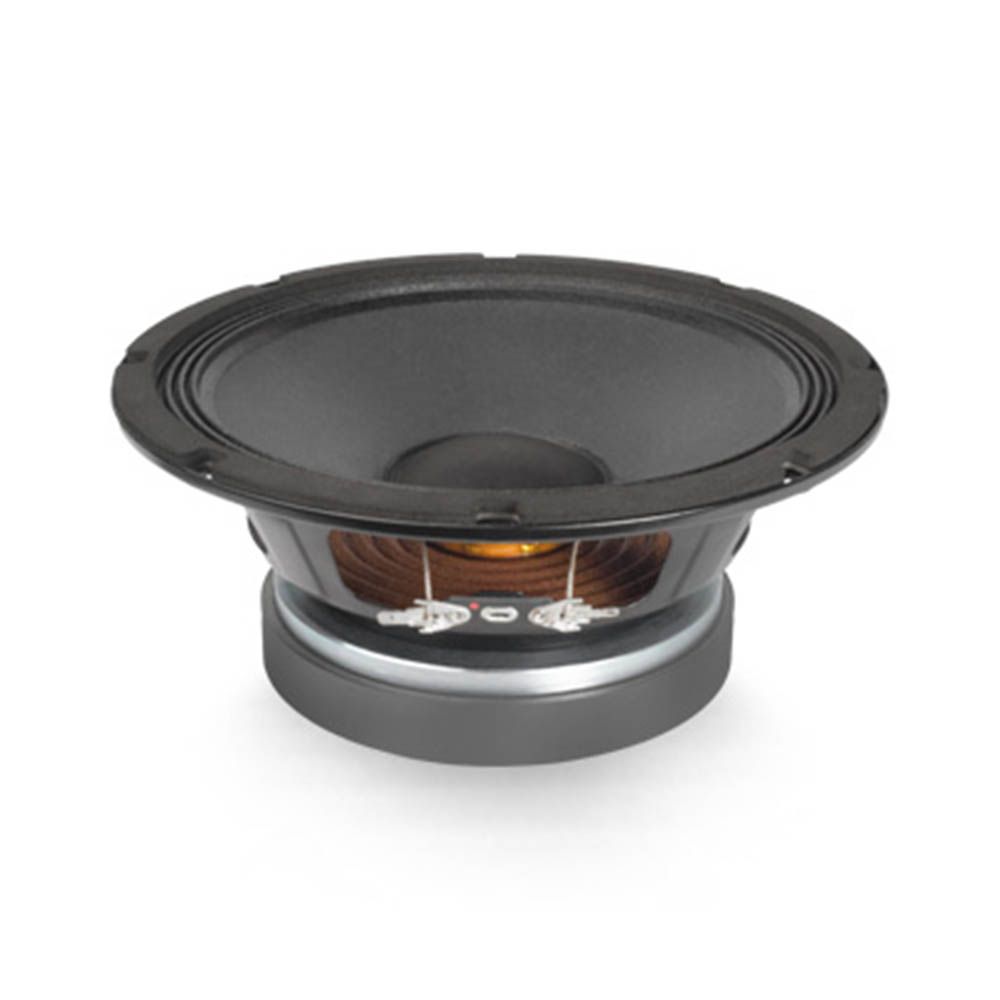

Faital Pro 8FE400 4 Ohm (Ω) 8-Inch Professional Woofer
The Faital Pro 8FE400 is a practical foundation for speaker cabinet designs that need efficient output and clearly defined planning data. Its 96 dB sensitivity, 200 W AES power handling and 100÷6000 Hz frequency range give designers a well-documented woofer platform, while the 4 Ohm nominal impedance suits designs built around that load.
Plan the cabinet with confidence
Fit dimensions are clearly defined, including a 209 mm overall diameter, 183 mm baffle cutout diameter and 96 mm depth. The 197 mm bolt circle diameter and 7 mm flange and gasket thickness add useful detail during front-panel planning, helping the driver sit accurately within a suitable cabinet design.
Efficient output for demanding designs
With 96 dB sensitivity and 200 W AES power handling, the woofer makes efficient use of amplifier power while giving designers a clear reference point for system planning. Its stated 400 W maximum power handling figure describes the upper handling specification, rather than a recommended operating target.
Built around a robust driver structure
The 44 mm voice coil uses aluminium winding material and an aluminium former, with a 12.4 mm winding depth and 8 mm magnetic gap depth. A steel basket, Ferrite Ring magnet and Triple Roll cone surround complete the construction, while the 1x constant height waves spider profile supports the specified moving assembly.
Useful data for enclosure modelling
The Thiele and Small parameters give enclosure designers the information needed to assess the woofer in a cabinet project. Values including Fs, Qts, Vas, Sd and Xmax describe its low-frequency behaviour and movement limits, while the 0.9 dm^3 net air volume figure accounts for the space occupied by the loudspeaker.
Key Features
- Efficient 96 dB sensitivity for amplifier-conscious cabinet designs
- Clearly documented fit dimensions for front-panel planning
- Aluminium winding material and aluminium former in the 44 mm voice-coil construction
- Steel basket, Ferrite Ring magnet and Triple Roll cone surround
- Thiele and Small parameters for informed enclosure modelling
