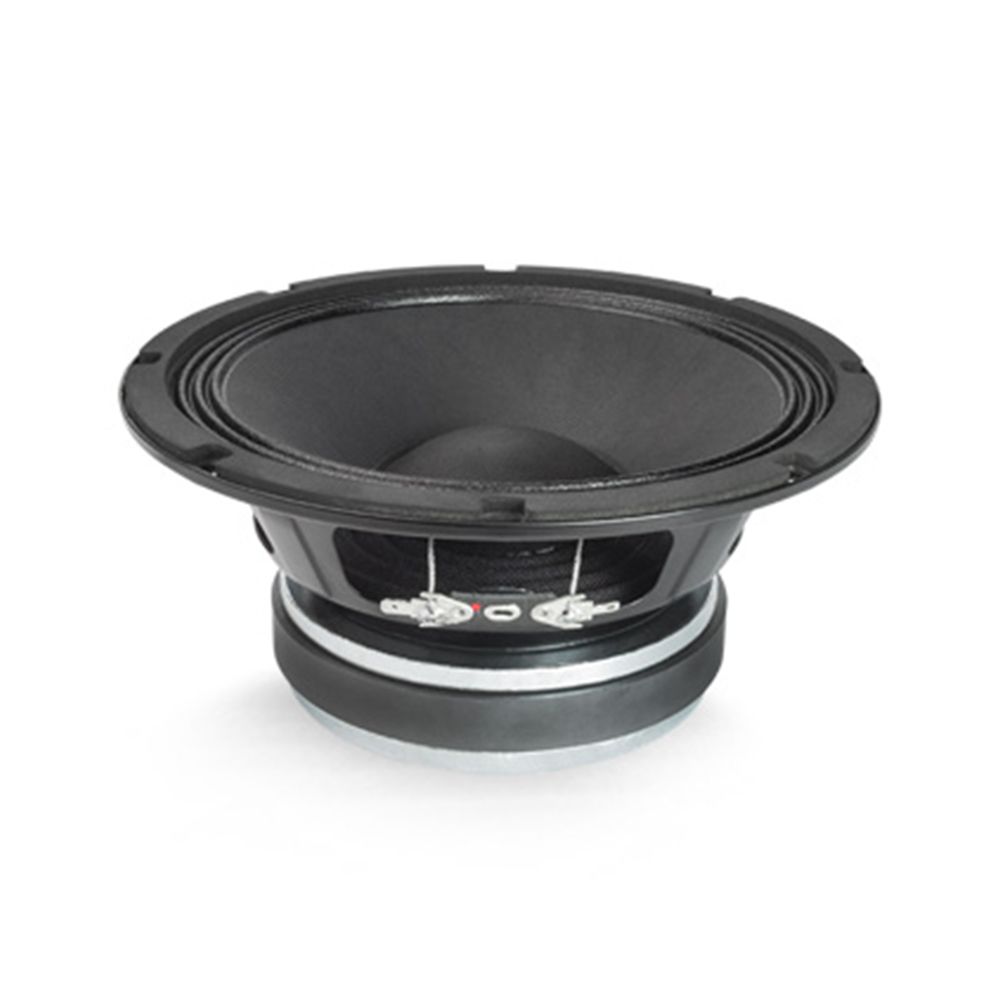

Faital Pro 8FE300 4 Ohm (Ω) 8-Inch Loudspeaker Part
The Faital Pro 8FE300 is a compact 4 Ohm loudspeaker part for builds that need strong output from an 8-inch format. 250 W AES power handling, 93 dB sensitivity and an 80÷5000 Hz frequency range. Giving designers a practical foundation for custom loudspeaker cabinets and replacements!
Compact Installation, Clear Dimensions
Measuring 200 mm (8 in) across with a 183 mm (7.20 in) baffle cutout diameter and 95 mm (3.74 in) depth, the 8FE300 suits projects where enclosure space matters. Its 197.5 mm (7.78 in) bolt circle diameter and 7 mm (0.28 in) flange and gasket thickness make mounting dimensions straightforward to plan.
Power for Custom Loudspeaker Builds
Moreover, the 4 Ohm nominal impedance, 3.8 Ohm minimum impedance and 250 W AES power handling give the driver clear electrical and power-handling figures. Maximum power handling is 500 W, while 93 dB sensitivity supports useful output from the available amplifier power in a compatible enclosure.
Built Around a Practical Motor Assembly
Furthermore, a 52 mm (2.05 in) voice coil uses Aluminium winding material on a Glass Fiber former. It works within an 8 mm (0.31 in) magnetic gap depth and 1.1 T flux density. The Ferrite Ring magnet and steel basket complete a straightforward construction for loudspeaker builders and repair work.
Designed for Controlled Movement
Additionally, the Triple Roll cone surround and 1x variable height waves spider profile shape the driver’s suspension system. With an Xmax of 5.47 mm and Xdamage of 11.6 mm, the published parameters give designers useful reference points when matching the 8FE300 to an enclosure and crossover approach.
Key Features
- Compact 8-inch format with defined mounting dimensions for enclosure planning
- 4 Ohm impedance and 250 W AES power handling for compatible system designs
- 93 dB sensitivity for efficient use of amplifier power
- Steel basket, Ferrite Ring magnet, Triple Roll cone surround and variable-height-wave spider profile
