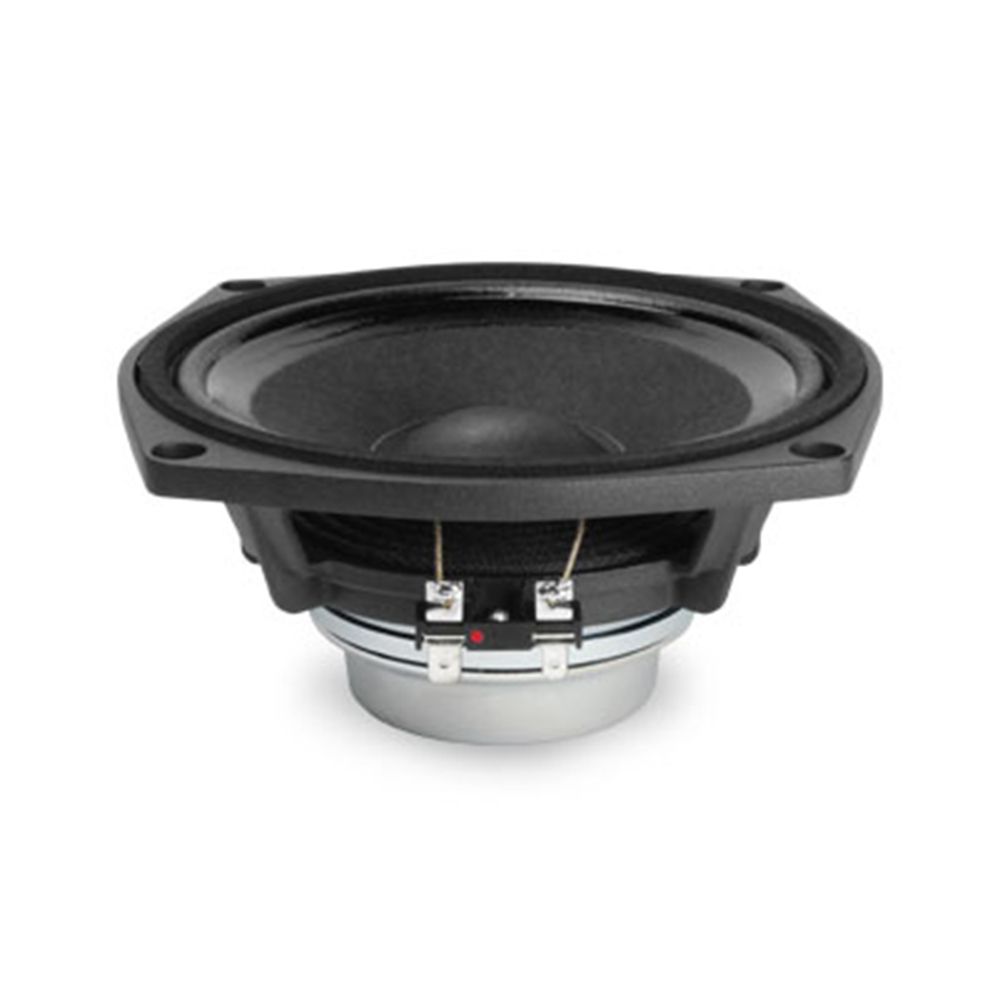

Faital Pro 6PR122 8 Ohm (Ω), 6-Inch Professional Woofer
The Faital Pro 6PR122 is a compact professional woofer for speaker designs that need strong sensitivity and practical power handling. Its 6-inch format combines a neodymium ring magnet, aluminium basket and 8 Ohm impedance. Therefore, giving builders a clearly defined driver platform for custom loudspeaker projects.
Compact Format, Straightforward Installation
With a 160 mm nominal diameter, 147 mm baffle cutout and 78 mm depth, the 6PR122 is suited to compact cabinet layouts. The 172 mm bolt circle and 9.5 mm flange and gasket thickness give cabinet builders precise reference points when planning the mounting area.
Efficient Output for Custom Builds
The 97 dB sensitivity (1W/1m) makes good use of amplifier power, while 120 W AES power handling and 240 W maximum power handling define its working capacity. Its 8 Ohm nominal impedance and 6.8 Ohm minimum impedance provide clear electrical reference points for system design.
Built Around a Practical Motor Structure
A neodymium ring magnet, 1.6 T flux density and aluminium demodulation ring form the motor structure. The 37 mm voice coil uses an Al winding and Kapton former, while the aluminium basket keeps the driver’s construction focused on the stated compact professional format.
Useful Parameters for Enclosure Design
The 125÷10000 Hz frequency range, 110 Hz Fs and 4.7 dm^3 Vas give designers key information for modelling an enclosure. Qes, Qms, Qts, Sd and Xmax add further reference points when matching the driver to a particular cabinet design.
Key Features
- Compact 160 mm nominal diameter for space-conscious cabinet projects
- 97 dB sensitivity for efficient use of amplifier power
- 120 W AES power handling with 240 W maximum power handling
- Neodymium ring magnet and aluminium basket construction
- Detailed Thiele and small parameters for enclosure planning
