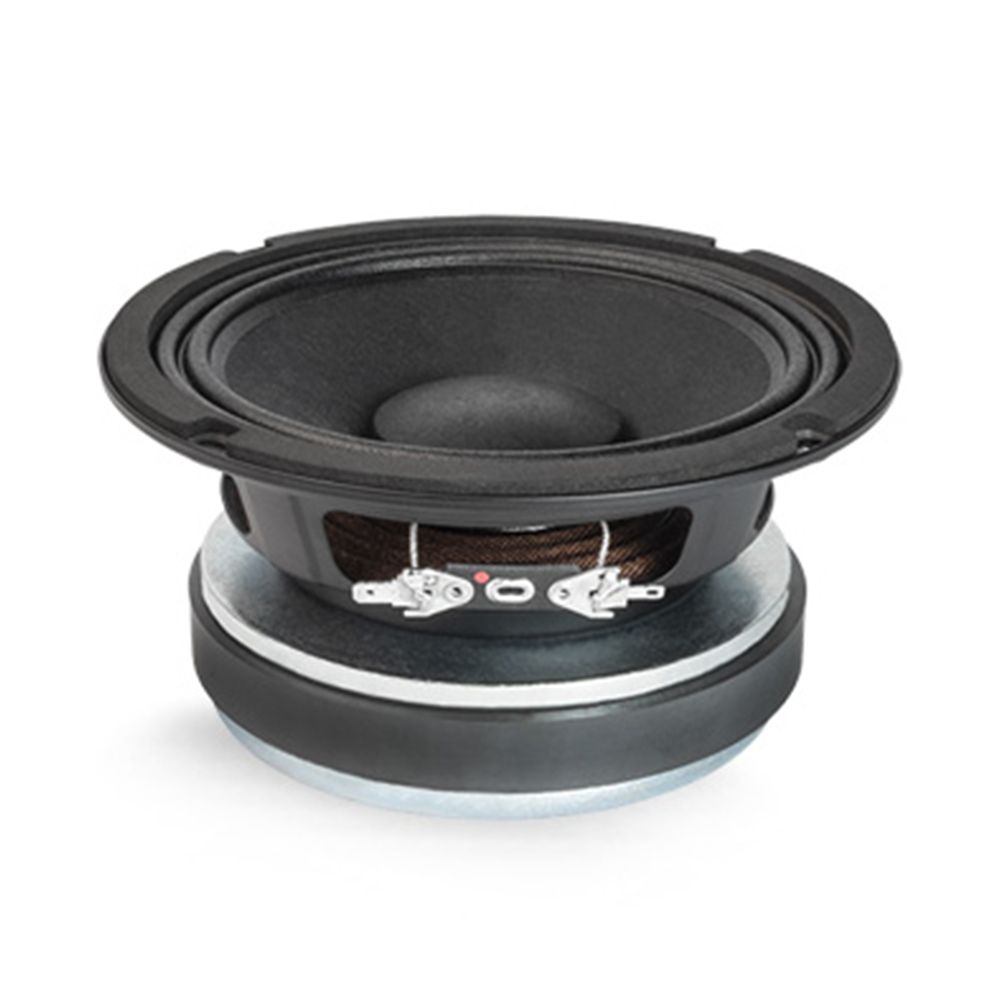

Faital Pro 6FE300 4 Ohm (Ω), 6-Inch Professional Woofer
The Faital Pro 6FE300 is a compact professional woofer for speaker builders who need useful output from a 6-inch format. Its 4 Ohm design, 175 W AES power handling and 92 dB sensitivity suit carefully planned loudspeaker systems. Meanwhile, the steel basket and Ferrite Ring magnet provide a solid foundation for installation.
Compact fit for speaker builds
Firstly, with a 160 mm nominal diameter, 146 mm baffle cutout and 81 mm depth, the 6FE300 is sized for compact cabinet layouts. The 166.5 mm overall diameter and 155 mm bolt circle diameter make those measurements practical when planning mounting space. Also, the 7 mm flange and gasket thickness defines the front mounting interface.
Power for a professional woofer
Moreover, a 175 W AES rating and 350 W maximum power handling give designers clear figures to work with when matching amplification and enclosure plans. The 4 Ohm nominal impedance, 3.4 Ohm minimum impedance and 52 mm voice coil diameter add useful detail for selecting suitable system electronics.
Defined low and mid response
The 100÷4000 Hz frequency range positions this driver for woofer duties across a focused part of the audible spectrum. Its M-Roll cone surround, 1x constant height waves spider profile and 98 Hz Fs describe the suspension and operating characteristics that builders can consider during enclosure development.
Built for measured installation
Additionally, the steel basket, Ferrite Ring magnet, Al winding material and Glass Fiber former give the 6FE300 clearly specified construction details for a considered build. Its 2.8 kg net weight and 0.6 dm^3 NET air volume filled by loudspeaker are also useful when checking cabinet space and overall system design.
Key Features
- Compact 160 mm nominal diameter for speaker cabinet projects
- 175 W AES and 350 W maximum power handling for amplifier matching
- 92 dB sensitivity for a clear design reference
- Steel basket with Ferrite Ring magnet construction
- M-Roll cone surround and 1x constant height waves spider profile
