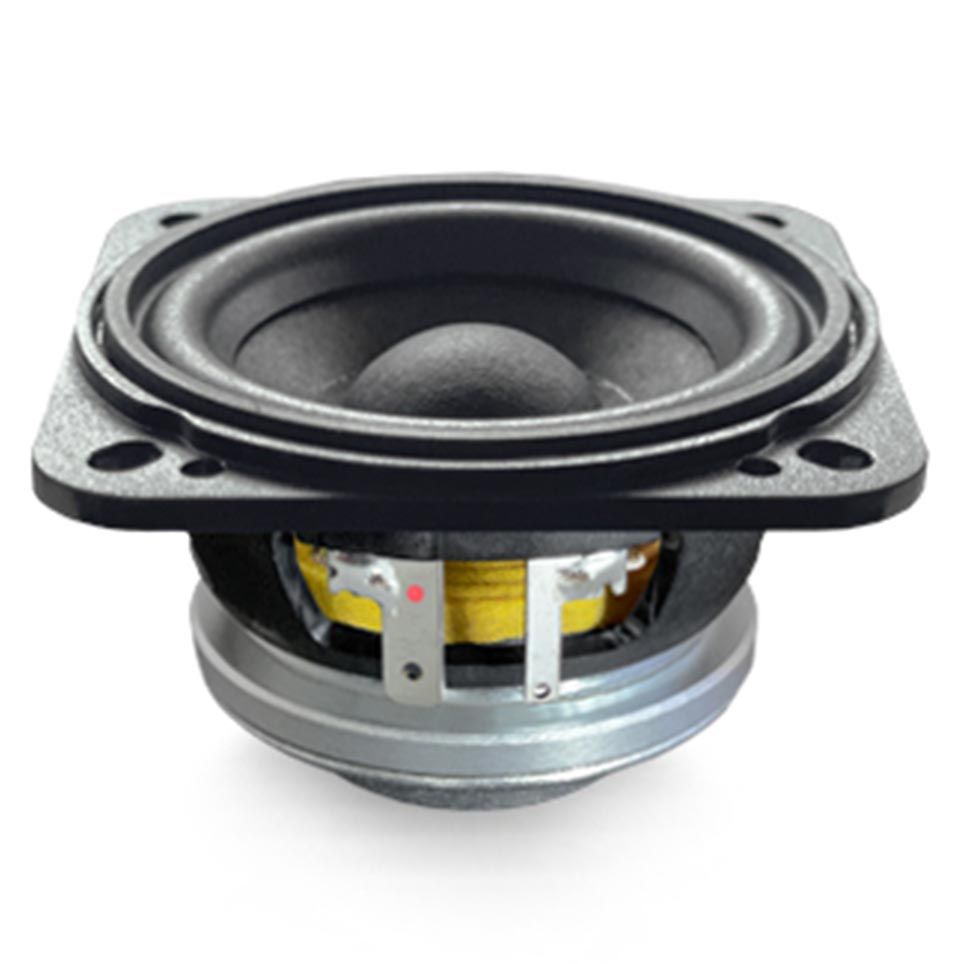

Faital Pro 2FE22 2.5 Inch 25W 89dB 8 Ohm

$49
SKU: FA-2FE22 Category:

Compact and efficient, the Faital Pro 2FE22 delivers clear, full-range sound in a 2.5″ loudspeaker driver. Ideal for custom PA builds or replacements.

PID: 300

In stock

$49
Add to Quote
Shipping Info
Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
3 in stock
Web
Online 3 in stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Shipping Calculator
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 2FE22 – 2.5″ Full-Range Loudspeaker Driver

Upgrade or build your speaker systems with the Faital Pro 2FE22, a compact yet powerful 2.5″ driver designed for professional audio applications. Delivering clean sound and reliable performance, it’s perfect for PA builders, replacement parts, or custom audio projects.

Compact Power

Despite its small size, the 2FE22 offers excellent sensitivity of 89 dB and can handle 25 W nominal power. Its neodymium magnet and high-quality Kapton voice coil ensure consistent performance and durability over extended use.

Versatile Application

Designed for installation in custom enclosures, cabinets, or replacement setups, this driver covers a wide frequency range of 125 Hz to 20 kHz, making it suitable for full-range sound reproduction.

Precision Engineering

With polycarbonate basket construction, EPDM half-roll surround, and optimized Thiele & Small parameters, the 2FE22 ensures precise cone movement, minimal distortion, and long-lasting reliability.

  • Compact 2.5″ full-range driver
  • 25 W nominal / 50 W max power handling
  • 8 Ohm impedance with 89 dB sensitivity
  • Neodymium ring magnet for light weight and strong magnetic flux
  • Durable polycarbonate basket and EPDM surround
  • 2.5″ full-range loudspeaker driver
  • 25 W nominal, 50 W max power
  • 8 Ohm impedance, 89 dB sensitivity
  • Polycarbonate basket with EPDM half-roll surround
  • Neodymium ring magnet for strong performance
  • Frequency range 125 Hz – 20 kHz

Nominal Diameter: 66 mm (2.5 in)
Overall Diameter: 88/68 mm (3.46/2.68 in)
Bolt Circle Diameter: 75 mm (2.95 in)
Baffle Cutout Diameter: 60.5 mm (2.38 in)
Depth: 35.5 mm (1.40 in)
Flange & Gasket Thickness: 6 mm (0.24 in)
Net Weight: 184 g (0.4 lb)
Nominal Impedance: 8 Ohm
Minimum Impedance: 7.1 Ohm
AES Power Handling: 25 W
Max Power Handling: 50 W
Sensitivity (1 W/1 m): 89 dB
Frequency Range: 125 – 20,000 Hz
Voice Coil Diameter: 19 mm (0.75 in)
Winding Material: Al
Former Material: Kapton
Winding Depth: 6.8 mm (0.27 in)
Magnetic Gap Depth: 3 mm (0.12 in)
Flux Density: 1.65 T
Magnet: Neodymium Ring
Basket Material: Polycarbonate
Demodulation: No
Cone Surround: Half Roll EPDM
NET Air Volume: 0.030 dm³ (0.001 ft³)
Spider Profile: 1x constant height waves
Thiele & Small Fs: 125 Hz, Re: 6.5 Ω, Qes: 0.43, Qms: 3.1, Qts: 0.38, Vas: 0.5 dm³ (0.02 ft³), Sd: 20.1 cm² (3.12 in²)
Xmax: 2.90 mm
Xdamage: 5.3 mm
Mms: 2 g
Bl: 5.2 N/A
Le: 0.15 mH
Mmd: 1.9 g
Cms: 0.81 mm/N
Rms: 0.5 kg/s
Eta Zero: 0.23 %
EBP: 291 Hz

For more information, please visit the manufacturer's website.
