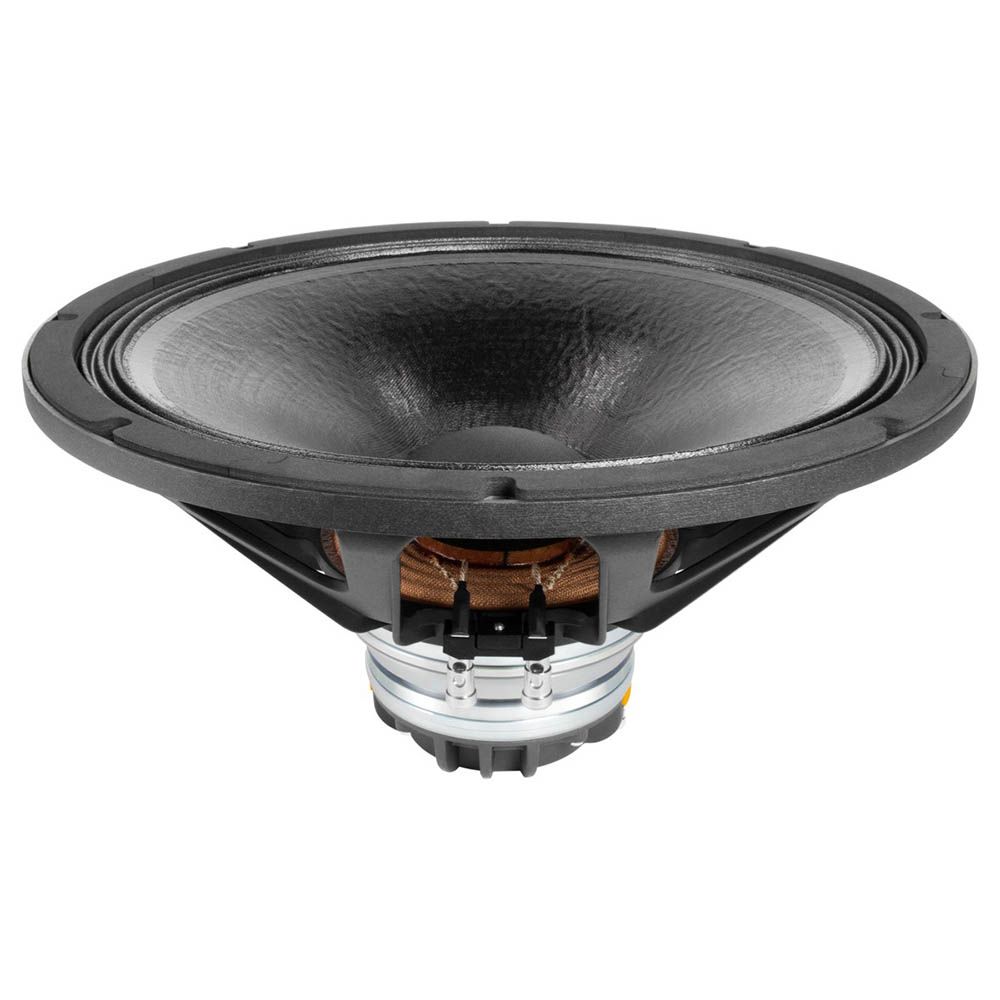

Faital Pro 15HX500-8 Coaxial Driver

$1289
SKU: FA-15HX500-8 Category:

Experience unmatched sound coherence with the Faital Pro 15HX500-8 (8 ohm impedance), a high-performance 15-inch neodymium coaxial driver. Delivers high sensitivity (97 dB for lows and 105 dB for highs) across a wide frequency range from 40 Hz to 20 kHz.

PID: 12890

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 15HX500-8 Coaxial Driver

Unlock superior sound clarity and power with the Faital Pro 15HX500-8 (8 ohm impedance), a precision-engineered coaxial driver. Perfect your stage monitoring and PA setup with a single, coherent sound source. It combines a robust low-frequency woofer and a high-output compression driver.

Powerful and Efficient Performance

Firstly, this driver handles 400 W AES power on the low-frequency section and 90 W AES on the high-frequency section. Therefore, ensuring strong output without distortion. It delivers high sensitivity—97 dB for lows and 105 dB for highs—across a wide frequency range from 40 Hz to 20 kHz. The neodymium magnet system keeps the weight low at just 6.1 kg. Thus, making installation and portability straightforward.

Exceptional Sound Quality and Consistency

Moreover, designed for professional stage monitors, floor wedges, compact PA systems, and more, this coaxial driver offers smooth frequency response and excellent off-axis consistency. The triple roll cone surround and titanium dome diaphragm guarantee detailed and accurate sound reproduction across all volumes and angles.

Versatile Use in Professional Audio Systems

The Faital Pro 15HX500-8 excels in various roles, including side fills, front fills, and installed sound systems. Its compact design suits high-quality monitor cabinets and custom multi-way configurations, providing unmatched versatility for any professional sound setup.

Key Features

  • Professional stage monitors and floor wedges
  • Compact full-range PA loudspeakers
  • Side fills and front fills
  • Installed sound systems and portable PA
  • High-quality monitor cabinets or custom multi-way designs
  • Professional stage monitors and floor wedges
  • Compact full-range PA loudspeakers
  • Side fills and front fills
  • Installed sound systems and portable PA
  • High-quality monitor cabinets or custom multi-way designs

Nominal Diameter: 380 mm (15 in)
Overall Diameter: 393 mm (15.47 in)
Bolt Circle Diameter: 374 mm (14.72 in)
Baffle Cutout Diameter: 352 mm (13.86 in)
Depth: 200 mm (7.87 in)
Flange and Gasket Thickness: 14 mm (0.55 in)
Net Weight: 6.1 kg (13.4 lb)
Nom. Impedance LF: 8 Ohm
Nom. Impedance HF: 8 Ohm
AES Power Handling LF: 400 W
AES Power Handling HF: 90 W
Max Power Handling LF: 800 W
Max Power Handling HF: 180 W
Sensitivity LF: 97 dB
Sensitivity HF: 105 dB
Frequency Range LF: 40÷3150 Hz
Frequency Range HF: 500÷20000 Hz
Voice Coil Diameter LF: 77 mm (3.03 in)
Voice Coil Diameter HF: 74 mm (2.91 in)
Winding Material LF: Cu
Winding Material HF: Al
Former Material LF: Glass Fiber
Former Material HF: Kapton
Winding Depth LF: 21.8 mm (0.86 in)
Winding Depth HF: 3.5 mm (0.14 in)
Magnetic Gap Depth LF: 9 mm (0.35 in)
Magnetic Gap Depth HF: 3.7 mm (0.15 in)
Flux Density LF: 1.2 T
Flux Density HF: 2 T
Min. Cross Frequency HF: 0.9 kHz
Dispersion Angle HF: 100°
Diaphragm Material HF: Titanium
Diaphragm Shape HF: Dome
Magnet LF: Neodymium Ring
Magnet HF: Neodymium Ring
Basket Material LF: Aluminum
Cone Surround LF: Triple Roll
Spider Profile LF: 1x variable height waves
Net Air Volume filled by Loudspeaker LF: 3.4 dm^3 (0.120 ft^3)

For more information, please visit the manufacturer's website.
