Faital Pro 12HX240 8 Ohm 12 Inch Neodymium Speaker

$829
SKU: FA-12HX240-8 Category:

Experience powerful, clear sound with the Faital Pro 12HX240 8 Ohm 12 Inch Neodymium Speaker. 250 W AES power rating on the low-frequency section and 30 W AES on the high-frequency section.

PID: 8290

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

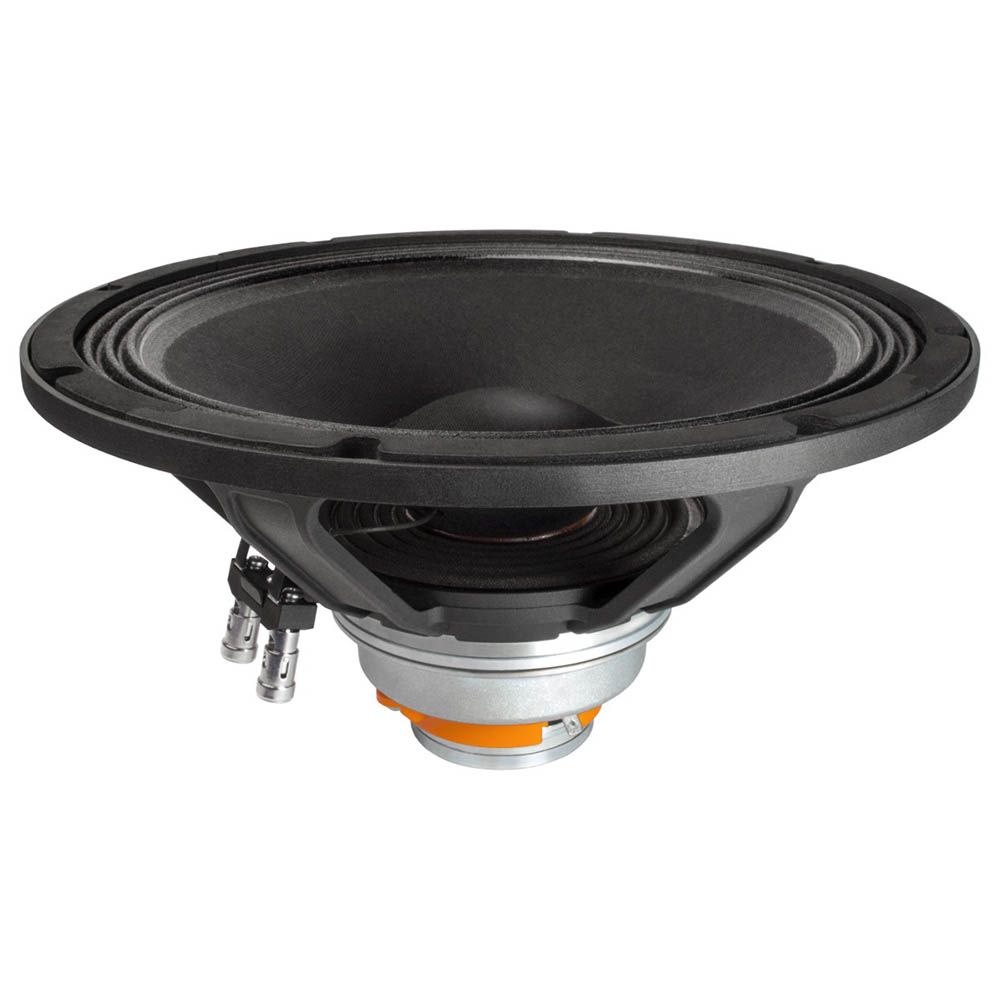

Faital Pro 12HX240 8 Ohm 12 Inch Neodymium Speaker

Discover crystal-clear sound and impressive power with the 12HX240 8 Ohm 12 Inch Neodymium Speaker. This compact coaxial driver blends powerful low-frequency output with an integrated high-frequency driver, making it a versatile choice for various professional audio setups.

Exceptional Sound Quality and Coverage

Firstly, this driver offers a smooth frequency range from 55 Hz to 20 kHz, ensuring full-range audio clarity. The embedded aluminium horn with phase plug provides controlled 100° dispersion, delivering consistent sound coverage and excellent off-axis performance. Whether used in stage monitors, floor wedges, or compact PA systems, it maintains natural, clear sound that fills the space evenly.

Robust Power Handling and Lightweight Design

With a 250 W AES power rating on the low-frequency section and 30 W AES on the high-frequency section, this speaker handles demanding audio without distortion. Despite its power, the twin neodymium magnet system keeps the weight around 4.2 kg. Thus, making it ideal for portable and installed applications where weight matters.

Versatile Applications for Professional Use

Whether you need stage monitors, portable PA speakers, or installed ceiling or wall systems, the Faital Pro 12HX240 delivers flexibility and outstanding performance in a compact package. Its high-quality construction and precise coverage make it perfect for side fills, front fills, and small column systems as well.

Key Features

  • Ideal for compact professional stage monitors and floor wedges
  • Perfect for portable full-range PA loudspeakers
  • Great choice for side fills, front fills, and small column systems
  • Suitable for installed sound systems (ceiling or wall mount)
  • Built for high-quality compact monitor cabinets
  • Ideal for compact professional stage monitors and floor wedges
  • Perfect for portable full-range PA loudspeakers
  • Great choice for side fills, front fills, and small column systems
  • Suitable for installed sound systems (ceiling or wall mount)
  • Built for high-quality compact monitor cabinets

Nom. Diameter: 300 mm (12 in)
Overall Diameter: 316 mm (12.44 in)
Bolt Circle Diameter: 298.5 mm (11.75 in)
Baffle Cutout Diameter: 280 mm (11.02 in)
Depth: 162 mm (6.38 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 4.2 kg (9.3 lb)
Nom. Impedance LF: 8 Ohm
Nom. Impedance HF: 8 Ohm
Minimum Impedance LF: 6.4 Ohm
Minimum Impedance HF: 6.8 Ohm
AES Power Handling LF: 250 W
AES Power Handling HF: 30 W
Max Power Handling LF: 500 W
Max Power Handling HF: 60 W
Sensitivity LF: 97 dB
Sensitivity HF: 107 dB
Frequency Range LF: 55÷5000 Hz
Frequency Range HF: 1500÷20000 Hz
Voice Coil Diameter LF: 65 mm (2.56 in)
Voice Coil Diameter HF: 37 mm (1.46 in)
Winding Material LF: Al
Winding Material HF: Al
Former Material LF: Glass Fiber
Former Material HF: Kapton
Winding Depth LF: 17.4 mm (0.69 in)
Winding Depth HF: 2.1 mm (0.08 in)
Magnetic Gap Depth LF: 8 mm (0.31 in)
Magnetic Gap Depth HF: 2.6 mm (0.10 in)
Flux Density LF: 1.25 T
Flux Density HF: 1.85 T
Min. Cross. Freq.: 1.7 kHz
Dispersion Angle: 100°
Diaphragm Material: Ketone Polymer
Diaphragm Shape: Annular
Magnet: Neodymium Ring
Basket Material LF: Aluminum
Demodulation: Aluminum Ring
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 1.9 dm^3 (0.067 ft^3)
Spider Profile: 1x variable height waves

For more information, please visit the manufacturer's website.
