Faital Pro 10HX240 8 Ohm 10 Inch Neodymium Speaker

$769
SKU: FA-10HX240-8 Category:

Experience crystal-clear, powerful sound with the Faital Pro 10HX240 8 Ohm 10 Inch Neodymium Speaker. Up to 500 watts for the low-frequency section and 60 watts for the high-frequency driver.

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

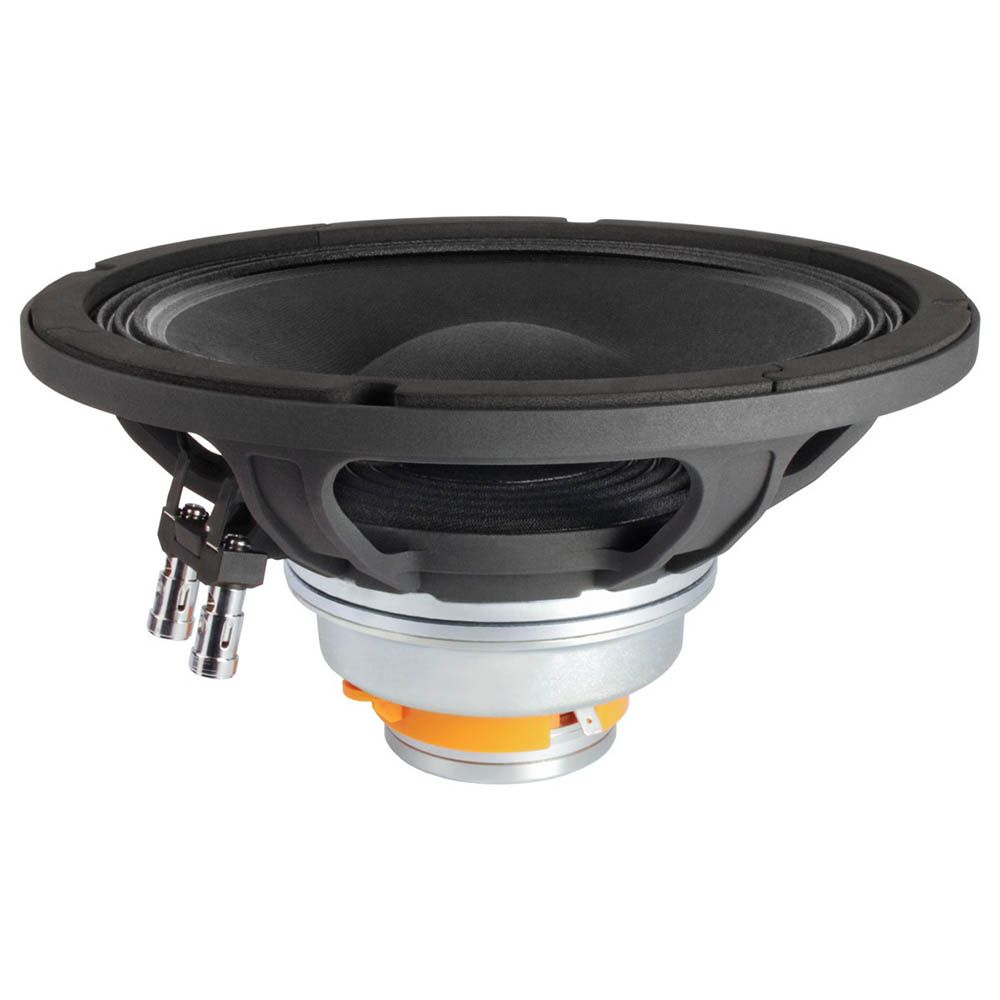

Faital Pro 10HX240 8 Ohm 10 Inch Neodymium Speaker

The 10HX240 8 Ohm 10 Inch Neodymium Speaker is engineered for professionals who demand outstanding sound clarity. This 10-inch neodymium driver combines a robust low-frequency woofer with a high-output compression driver. Ultimately, delivering natural, clear audio that stands out in any live or installed sound setup.

Powerful Sound and Wide Frequency Coverage

Firstly, with a frequency range covering 65 Hz to 20 kHz, this speaker handles both deep lows and crystal-clear highs effortlessly. Its impressive power handling—up to 500 watts for the low-frequency section and 60 watts for the high-frequency driver—ensures your sound remains rich and distortion-free.

Designed for Versatility and Portability

This speaker excels in various applications, from compact professional stage monitors and floor wedges to portable full-range PA loudspeakers. It’s also ideal for side fills, front fills, small column systems, and permanent installations such as ceiling or wall mounts. Moreover, its lightweight 4.1 kg design makes it easy to transport and integrate.

High-Quality Components for Reliable Performance

Built with an aluminium basket and a neodymium ring magnet, this speaker boasts durability and efficiency. The triple roll cone surround and a specialised spider profile ensure stable operation and extended lifespan. Additionally, the phase-coherent design delivers excellent off-axis consistency and clear point-source imaging. Thus, helping your audio sound better everywhere in the room.

Key Features

  • Ideal for compact professional stage monitors and floor wedges
  • Designed for portable full-range PA loudspeakers
  • Perfect for side fills, front fills, and small column systems
  • Suitable for installed sound systems with ceiling or wall mount
  • Fits high-quality compact monitor cabinets
  • Ideal for compact professional stage monitors and floor wedges
  • Designed for portable full-range PA loudspeakers
  • Perfect for side fills, front fills, and small column systems
  • Suitable for installed sound systems with ceiling or wall mount
  • Fits high-quality compact monitor cabinets

Nom. Diameter: 250 mm (10 in)
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 230 mm (9.06 in)
Depth: 137 mm (5.39 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 4.1 kg (9.0 lb)
Nom. Impedance LF: 8 Ohm
Nom. Impedance HF: 8 Ohm
Minimum Impedance LF: 6.4 Ohm
Minimum Impedance HF: 6.8 Ohm
AES Power Handling LF: 250 W
AES Power Handling HF: 30 W
Max Power Handling LF: 500 W
Max Power Handling HF: 60 W
Sensitivity LF (1W/1m): 96 dB
Sensitivity HF (1W/1m): 107 dB
Frequency Range LF: 65÷4000 Hz
Frequency Range HF: 1500÷20000 Hz
Voice Coil Diameter LF: 65 mm (2.56 in)
Voice Coil Diameter HF: 37 mm (1.46 in)
Winding Material LF: Al
Winding Material HF: Al
Former Material LF: Glass Fiber
Former Material HF: Kapton
Winding Depth LF: 17.4 mm (0.69 in)
Winding Depth HF: 2.1 mm (0.08 in)
Magnetic Gap Depth LF: 8 mm (0.31 in)
Magnetic Gap Depth HF: 2.6 mm (0.10 in)
Flux Density LF: 1.25 T
Flux Density HF: 1.85 T
Min. Cross. Freq. HF: 1.7 kHz
Dispersion Angle HF: 110°
Diaphragm Material HF: Ketone Polymer
Diaphragm Shape HF: Annular
Magnet LF: Neodymium Ring
Magnet HF: Neodymium Ring
Basket Material LF: Aluminum
Demodulation LF: Aluminum Ring
Cone Surround LF: Triple Roll
NET Air Volume filled by Loudspeaker: 1.25 dm^3 (0.044 ft^3)
Spider Profile LF: 1x variable height waves

For more information, please visit the manufacturer's website.
