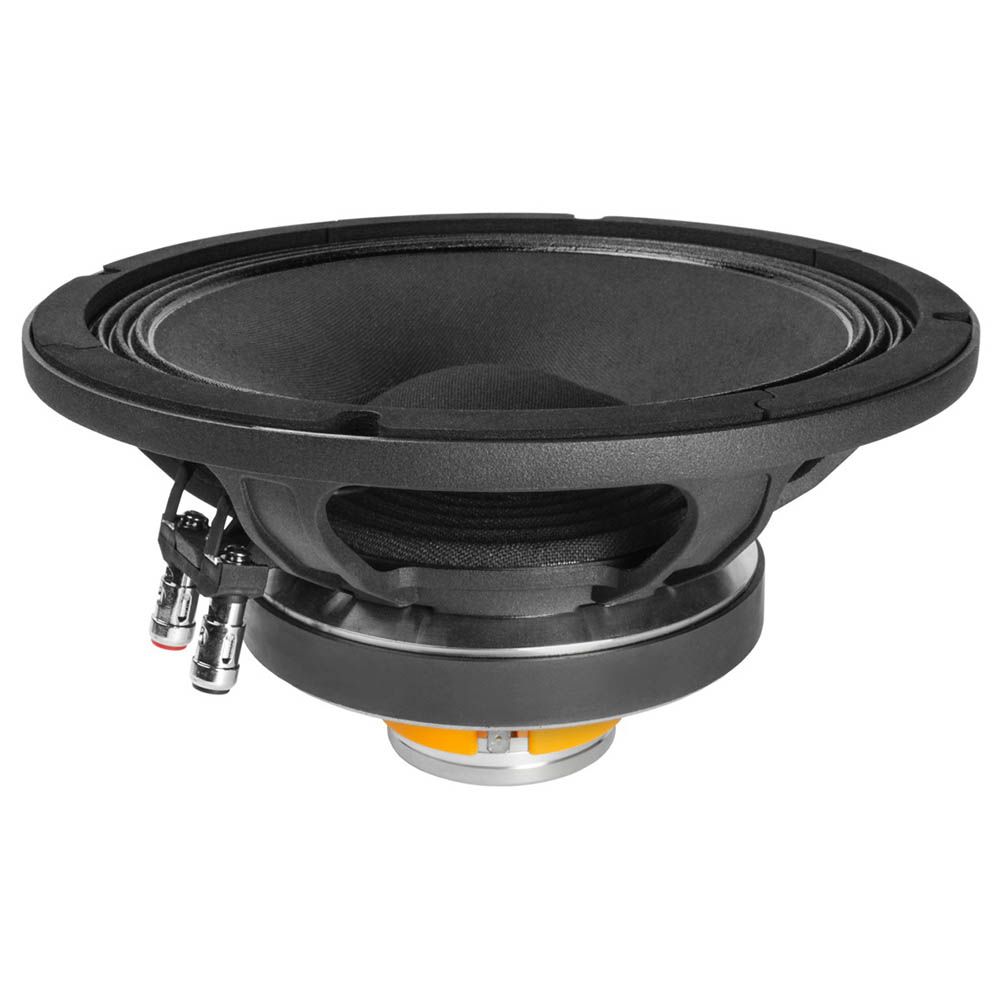

Faital Pro 10HX230 8 Ohm 10 Inch Ferrite Speaker

$669
SKU: FA-10HX230-8 Category:

Experience premium sound quality and robust performance with the Faital Pro 10HX230 8 Ohm 10 Inch Ferrite Speaker. Frequency range of 65 Hz to 20 kHz through dual-section design.

PID: 6690

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 10HX230 8 Ohm 10 Inch Ferrite Speaker

The 10HX230 8 Ohm 10 Inch Ferrite Speaker brings powerful and clear sound to your professional audio setup. Engineered in Italy with precision, this speaker combines high-quality components for a balanced and natural audio experience that stands out in compact systems.

Robust Performance in a Lightweight Design

Despite its solid build, this 10-inch ferrite speaker remains surprisingly lightweight, making it perfect for portable full-range PA loudspeakers and compact monitor cabinets. Its durable aluminum basket and triple roll cone surround ensure reliability for demanding stage and installed sound applications.

Wide Frequency Range and High Sensitivity

Delivering a frequency range of 65 Hz to 20 kHz through dual-section design, it captures detailed lows and crisp highs. High sensitivity ratings of 96 dB for lows and 107 dB for highs ensure your audio is loud and clear, perfect for front fills, side fills, and professional monitors.

Versatile Usage Options

This speaker excels in many environments including stage monitors, floor wedges, and installed systems mounted on ceilings or walls. Its controlled directivity and clear sound make it an excellent choice for high-quality compact monitor cabinets or small column systems.

  • Compact professional stage monitors and floor wedges
  • Portable full-range PA loudspeakers
  • Side fills, front fills, and small column systems
  • Installed sound systems (ceiling or wall mount)
  • High-quality compact monitor cabinets
  • Compact professional stage monitors and floor wedges
  • Portable full-range PA loudspeakers
  • Side fills, front fills, and small column systems
  • Installed sound systems (ceiling or wall mount)
  • High-quality compact monitor cabinets

Nom. Diameter: 250 mm (10 in)
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 230 mm (9.06 in)
Depth: 136.5 mm (5.37 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 5 kg (11.0 lb)
Nom. Impedance: 8 Ohm
Minimum Impedance: 6.4 Ohm (LF), 6.9 Ohm (HF)
AES Power Handling: 250 W (LF), 30 W (HF)
Max Power Handling: 500 W (LF), 60 W (HF)
Sensitivity: 96 dB (LF), 107 dB (HF)
Frequency Range: 65÷4000 Hz (LF), 1500÷20000 Hz (HF)
Voice Coil Diameter: 65 mm (LF), 37 mm (HF)
Winding Material: Aluminum (LF and HF)
Former Material: Glass Fiber (LF), Kapton (HF)
Winding Depth: 17.4 mm (LF), 2.1 mm (HF)
Magnetic Gap Depth: 8 mm (LF), 2.6 mm (HF)
Flux Density: 1.15 T (LF), 1.85 T (HF)
Dispersion Angle: 110° (HF)
Diaphragm Material: Ketone Polymer (HF)
Magnet: Ferrite Ring (LF), Neodymium Ring (HF)
Basket Material: Aluminum
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 1.5 dm^3
Spider Profile: 1x variable height waves

For more information, please visit the manufacturer's website.
