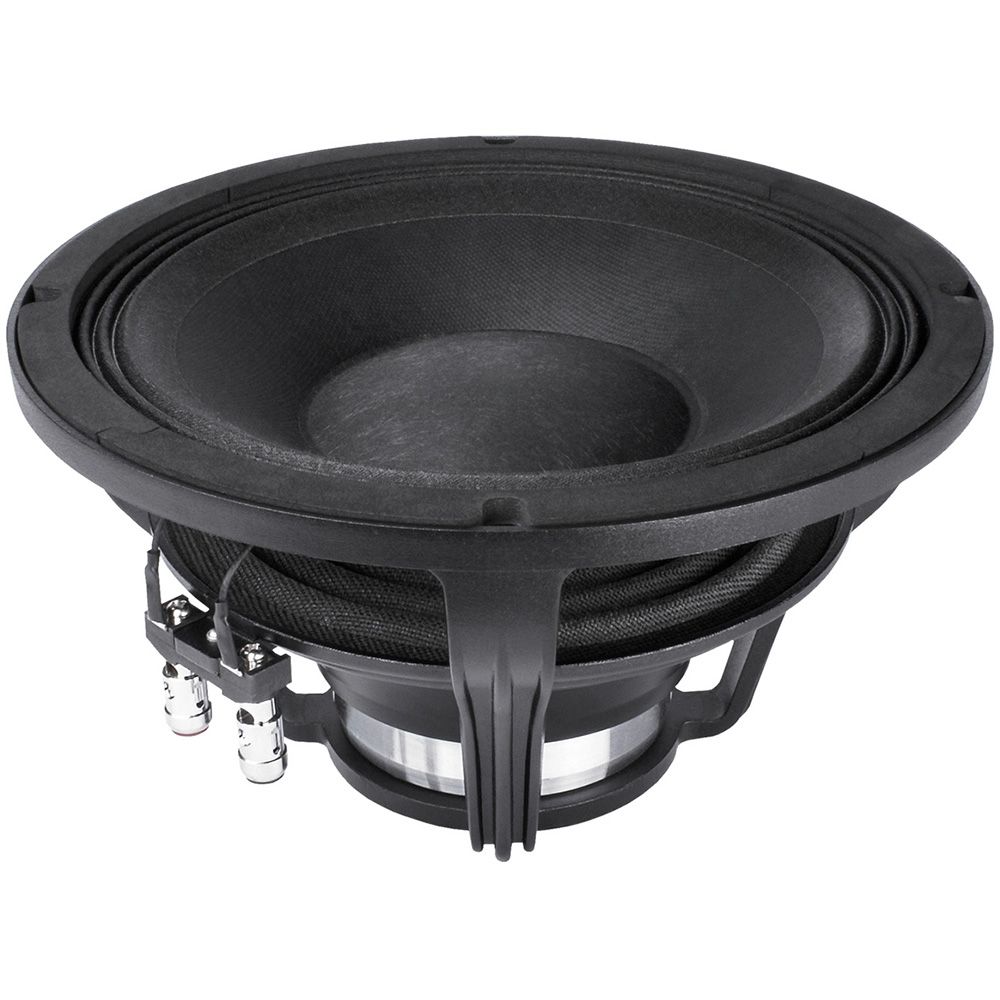

Faital Pro 10FH500 (8Ω) Low-Frequency Neodymium Loudspeaker

Experience powerful, clear low frequencies with the Faital Pro 10FH500. Its neodymium magnet and high sensitivity make it perfect for professional audio systems. 96 dB sensitivity and 500W AES power handling.

PID: 3309

Order-In

$449
Add to Quote
Shipping Info
Order-In Products

Please note: Some item(s) in your order are Order-In item(s) and stock is not kept on hand.

Once your order is placed you will be contacted with an ETA on your item as soon as possible.

Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 10FH500 (8Ω) Low-Frequency Neodymium Loudspeaker

Unleash powerful, clear, low-frequency sound with the Faital Pro 10FH500. Designed for professional audio applications, this 10-inch loudspeaker delivers exceptional performance with its neodymium magnet and robust construction.

Why Choose the 10FH500?

This loudspeaker is built for high performance and durability. Its 8 Ohm impedance and 500 W AES power handling mean it can handle demanding audio loads with ease. The 96 dB sensitivity ensures your sound is loud and clear, perfect for live sound reinforcement or studio use.

Superior Design for Exceptional Sound

The neodymium slug magnet provides a strong magnetic field with less weight, making the 10FH500 lightweight at just 3.4 kg. Its triple roll cone surround enhances reliability and audio fidelity by managing cone movement precisely, resulting in cleaner bass and midrange tones across the 60 to 4000 Hz frequency range.

Built to Fit and Last

With a nominal diameter of 250 mm and an overall diameter of 261 mm, this loudspeaker fits standard 10-inch mounts seamlessly. Its aluminum basket adds strength without extra bulk. Additionally, the carefully designed mounting dimensions like bolt circle and baffle cutout diameters ensure easy installation into your audio system.

Key Features

  • Nominal Diameter: 250 mm (10 in)
  • Nominal Impedance: 8 Ohm
  • AES Power Handling: 500 W
  • Sensitivity (1W/1m): 96 dB
  • Frequency Range: 60÷4000 Hz
  • Magnet: Neodymium Slug
  • Cone Surround: Triple Roll
  • Nominal Diameter: 250 mm (10 in)
  • Nominal Impedance: 8 Ohm
  • AES Power Handling: 500 W
  • Sensitivity (1W/1m): 96 dB
  • Frequency Range: 60÷4000 Hz
  • Magnet: Neodymium Slug
  • Cone Surround: Triple Roll

Nominal Diameter: 250 mm (10 in)
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 232 mm (9.13 in)
Depth: 141.3 mm (5.56 in)
Flange and Gasket Thickness: 12.5 mm (0.49 in)
Net Weight: 3.4 kg (7.5 lb)
Shipping Box Dimensions: 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
Shipping Weight: 4 kg (8.8 lb)
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.4 Ohm
AES Power Handling: 500 W
Maximum Power Handling: 1000 W
Sensitivity (1W/1m): 96 dB
Frequency Range: 60÷4000 Hz
Voice Coil Diameter: 77 mm (3 in)
Winding Material: Al
Former Material: Glass Fiber
Winding Depth: 18.5 mm (0.73 in)
Magnetic Gap Depth: 10.5 mm (0.41 in)
Flux Density: 1.2 T
Magnet: Neodymium Slug
Basket Material: Aluminum
Demodulation: No
Cone Surround: Triple Roll
Net Air Volume Filled by Loudspeaker: 1.6 dm^3 (0.057 ft^3)
Spider Profile: 1x constant height waves
Fs: 60 Hz
Re: 5.1 Ohm
Qes: 0.28
Qms: 3.3
Qts: 0.26
Vas: 25.8 dm^3 (0.91 ft^3)
Sd: 351 cm^2 (54.41 in^2)
Xmax: 7.50 mm
Xdamage: 12.5 mm
Mms: 47.0 g
Bl: 17.9 N/A
Le: 0.85 mH
Mmd: 39.6 g
Cms: 0.15 mm/N
Rms: 5.4 kg/s
Eta Zero: 1.91 %
EBP: 214 Hz

For more information, please visit the manufacturer's website.
