Dynacord L2800FD Professional DSP Amplifier

Name: Dynacord L2800FD Professional DSP Amplifier
Brand: Dynacord
SKU: L2800FD
Availability: InStock

FREE SHIPPING

$2199

SKU: L2800FD Category: Amplifiers

Bring controlled, high-output amplification to live and mobile setups with the Dynacord L2800FD. Integrated FIR Drive speaker processing, Class H output, front-panel supervision and SONICUE control keep system management practical.

PID: 4004

In stock

Order Online for Delivery

or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)

Web

Online

3 in stock

Updating stores stocks...

Shipping Info

Seen a cheaper price elsewhere?

We'll match it!

Price Match

Dynacord L2800FD Professional DSP Amplifier

The Dynacord L2800FD combines professional DSP amplification with integrated speaker processing for live and mobile applications. FIR Drive technology, Class H output and front-panel supervision give operators practical control. Meanwhile, SONICUE sound system software supports fast setup, flexible system control and comprehensive supervision.

Shape the System in DSP

Firstly, integrated FIR filters, audio limiters, output and array delay, a 10-band user PEQ and a 5-band array PEQ per channel put essential system tools inside the amplifier. Load impedance settings are also available. Thus, giving sound-system operators a focused way to configure processing for the application.

Power for Flexible System Configurations

Moreover, the amplifier supports 2 Ω, 2.7 Ω, 4 Ω and 8 Ω load impedances, with separate single-channel, dual-channel and bridged output figures. Its listed dual-channel values are 2200 W, 1800 W, 1300 W and 650 W, while bridged operation is specified at 4400 W or 2600 W.

Clear Control on Site or in Software

A front-panel LC display allows local control and supervision when working at the rack. For broader system management, SONICUE sound system software with firmware 2.0 provides intuitive setup, flexible control and comprehensive supervision, keeping amplifier operation accessible during live and mobile work.

Built for Demanding Audio Work

Class H output topology, front-to-rear cooling with 3-stage fans and a range of protection circuits support dependable operation. Audio, temperature, DC, HF, Back-EMF, peak current, inrush current and turn-on delay protection are included, while the 483 x 88 x 462.4 mm chassis suits standard rack-based installations.

Key Features

Professional DSP amplification for live and mobile applications
Integrated FIR Drive speaker processing and flexible DSP tools
Single-channel, dual-channel and bridged output modes

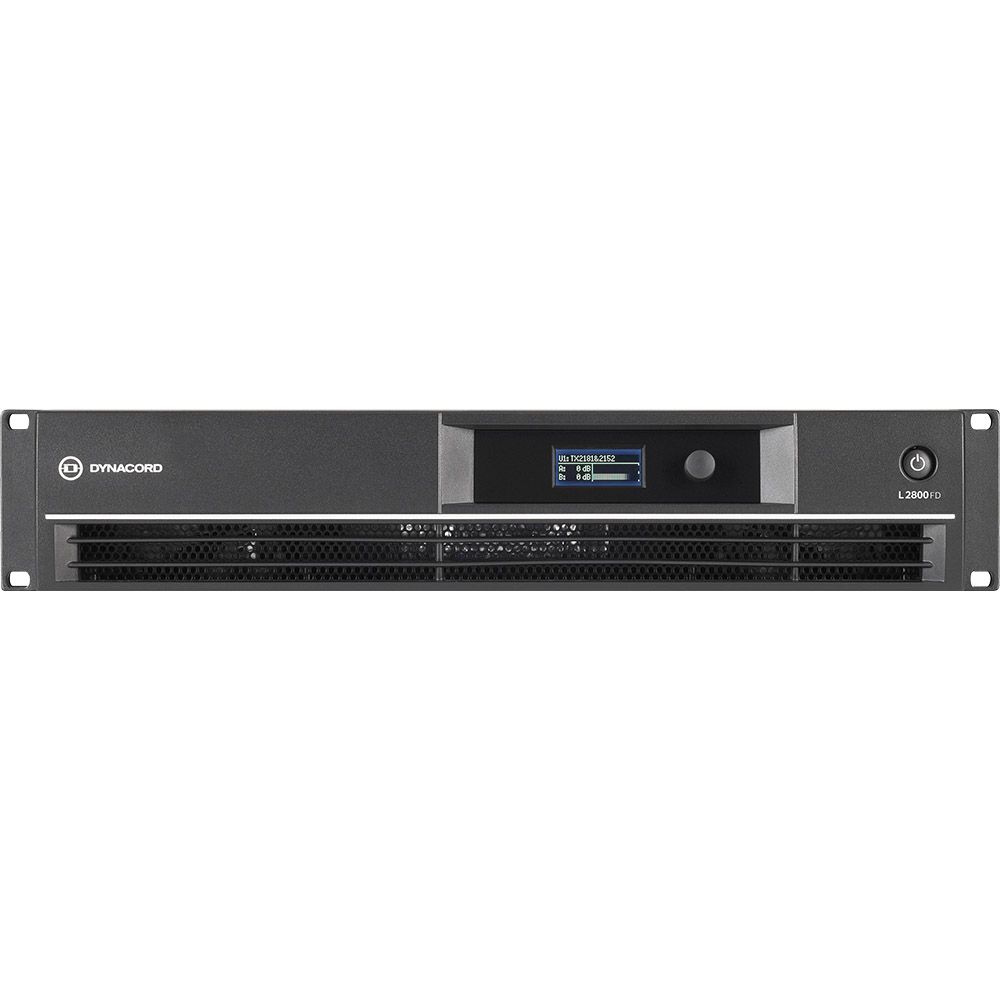

Front-panel LC display for local control and supervision
SONICUE software for system setup, control and supervision

Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR Drive technology
Market-leading acoustic performance and rock solid reliability
Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Load Impedance: 2 Ω, 2.7 Ω, 4 Ω, 8 Ω
Maximum Output Power, Single Channel: 2300 W, 2000 W, 1400 W, 700 W
Maximum Output Power, Dual Channel: 2200 W, 1800 W, 1300 W, 650 W
Maximum Output Power, Bridged: 4400 W, 2600 W
Maximum RMS Voltage Swing THD = 1%, 1 kHz: 78.8 V
Voltage Gain Ref.1 kHz: 32.0 dB
THD at 900 W/4 Ω MBW = 80 kHz, 1kHz: < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
DIM30, 3.15 kHz, 15 kHz: < 0.05%
Maximum Input Level: +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 Ω: < -80 dB
Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced: 20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω: >107 dB
Output Noise, A-weighted: < -68 dBu
Output Stage Topology: Class H
Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured)
Power Consumption ⅛ Maximum Output Power @ 4 Ω: 700 W
Mains Fuse: 240 V/230 V: T15AH; 120 V/100 V: T25AH
Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling: Front-to-rear, 3-stage-fans
Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
Safety Class: I
Color: Black
Dimensions (W x H x D), mm: 483 x 88 x 462.4
Weight: 16.2 kg (35.7 lb)
Signal Processing: FIR filters, audio limiters, output and array delay, 10-band user PEQ, 5-band array PEQ per channel, load impedance
Remote Control: SONICUE sound system software
Accessories: RMK15 (rear rack mount kit)

For more information, please visit the manufacturer's website.
