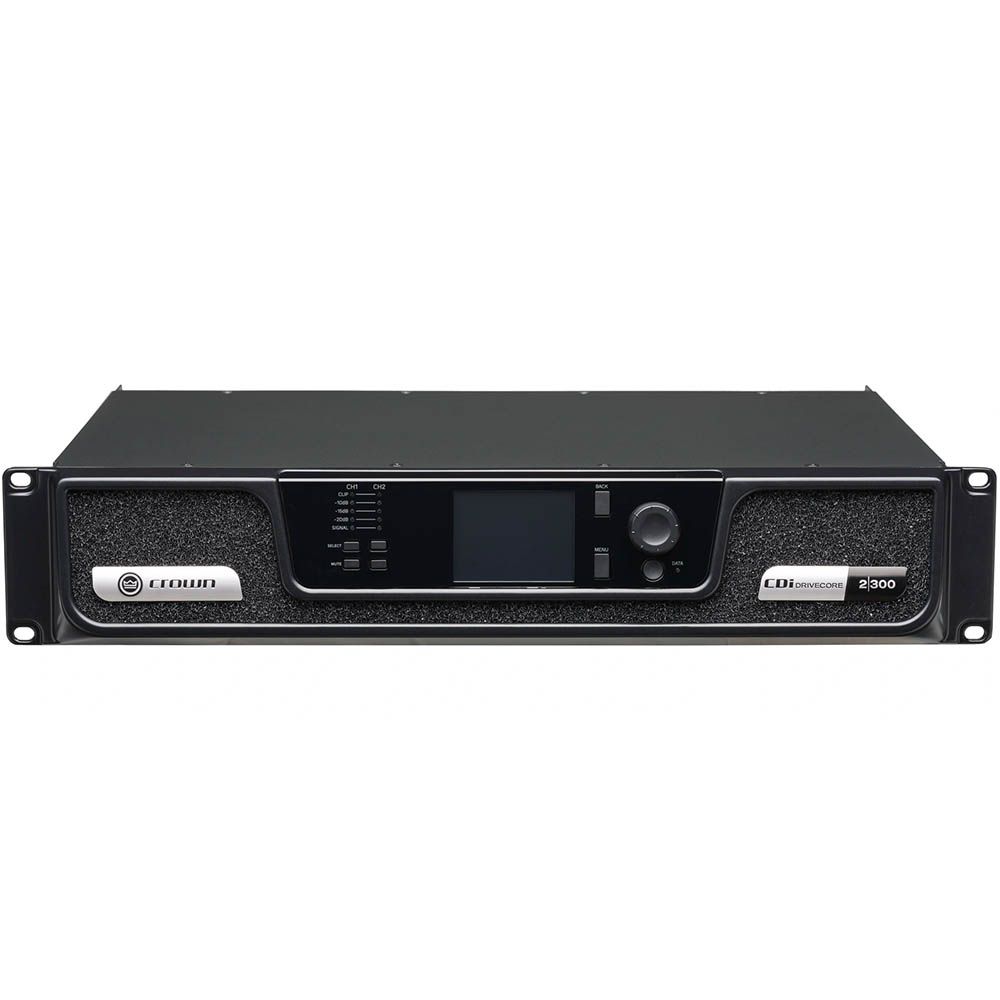

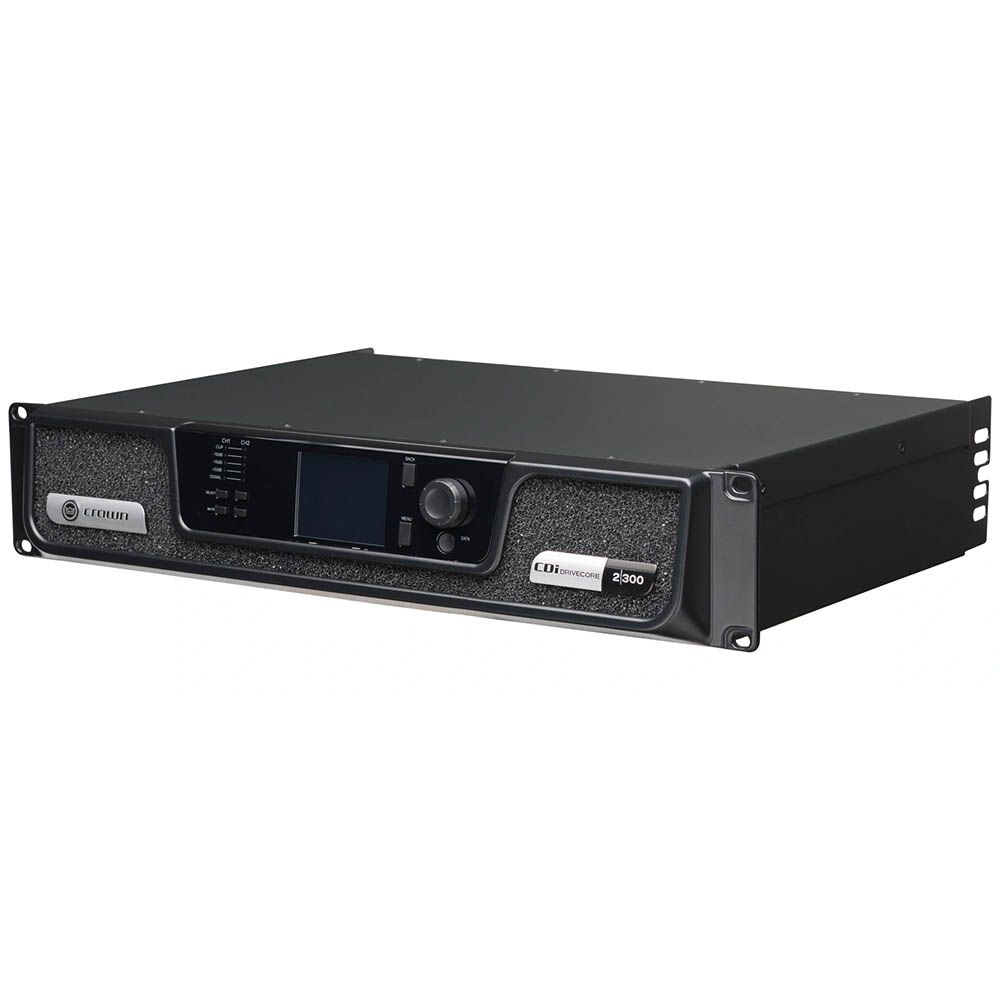

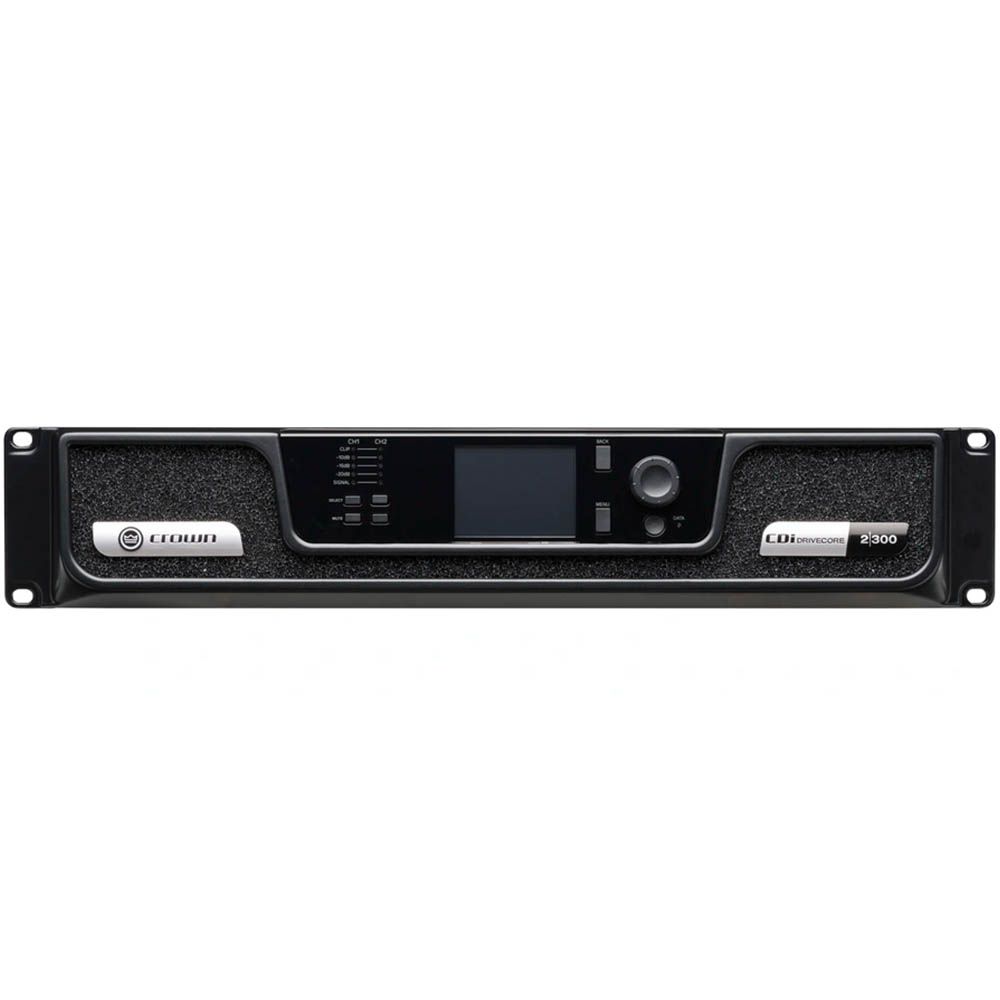

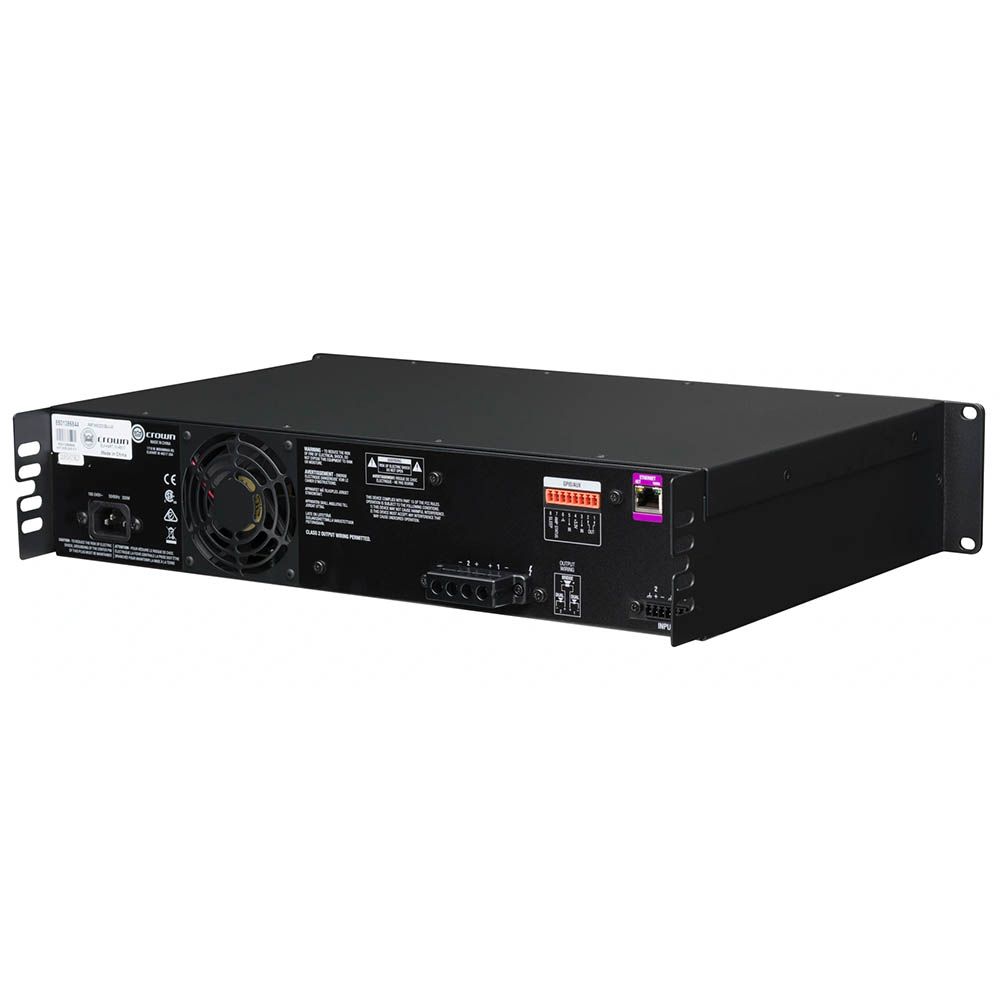

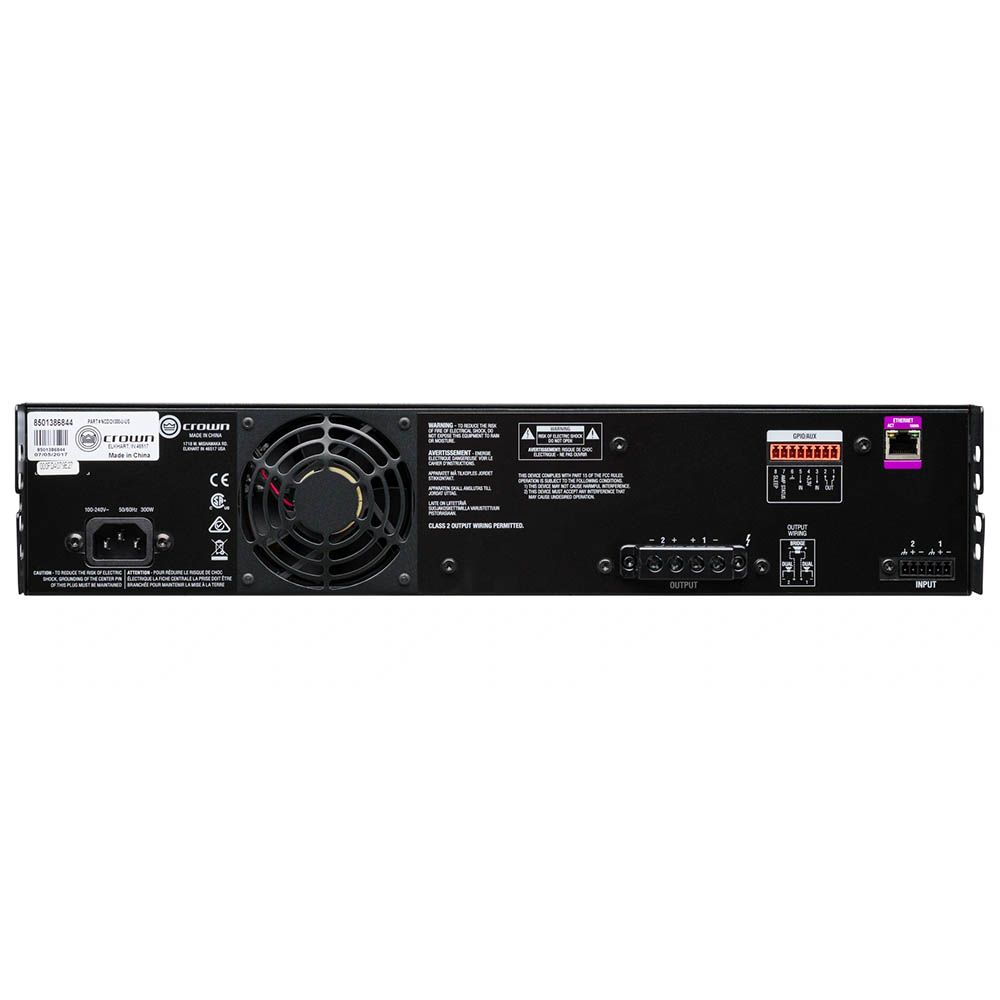

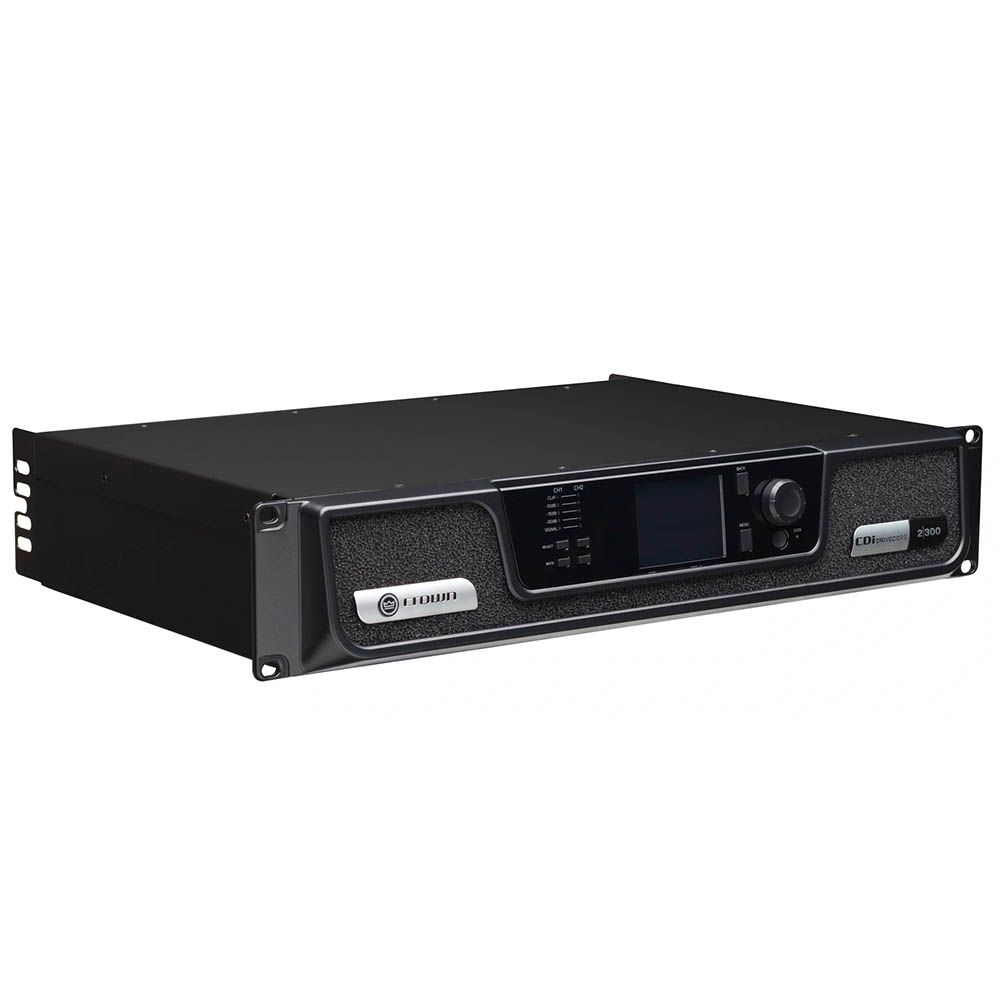

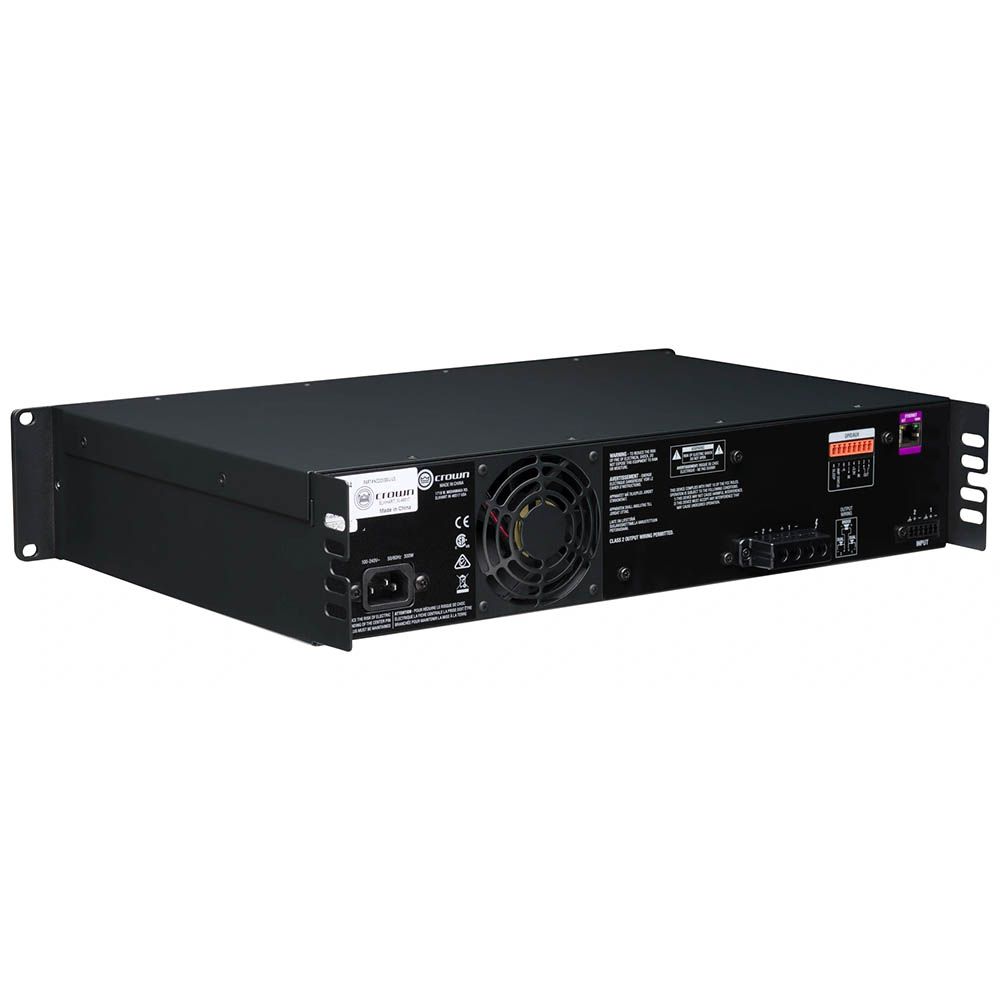

Crown Amplifiers CDI2300 2-Channel Power Amplifier
The Crown CDi 2|300 amplifier combines two-channel power with the control tools needed for small and medium-sized installations. DriveCore Technology, network control and monitoring, on-board DSP, and direct 70V/100Vrms output make it a practical choice.
Streamlined Installation Control
Firstly, Network Control and Monitoring lets the amplifier be controlled, configured, and monitored through standard TCP/IQ network using Harman’s HiQnet Audio Architect software. For hands-on setup, the Front-Panel Interface allows complete amplifier configuration directly from the unit.
Shape the System with Built-In DSP
Moreover, the on-board Digital Signal Processor provides custom configuration for the installation. Lean on the Input Router, Input Delay up to 1000ms, Input Parametric EQ with 8 bands, Crossover, Output Parametric EQ with 8 bands, Output Delay up to 100ms, and LevelMAX™ Limiter.
Drive High-Impedance Speaker Loads Directly
Furthermore, each output channel can provide either 70V or 100V for high impedance applications. All without requiring a transformer. That direct-drive design simplifies the amplifier-to-speaker stage for installations using these speaker loads. Meanwhile, the two-channel layout keeps separate output channels available for the system.
Practical Connections for Installed Audio
Additionally, the GPIO/AUX Port can recall presets, mute channels, monitor faults, and power the amplifier on or off. DriveCore Technology reduces the number of components within the amplifier. Therefore, reducing component-value variability while supporting an efficient design and the audio fidelity described for the CDi DriveCore Series.
Key Benefits
- Two channels with 300W rated power output per channel at 4 ohms
- Network control and monitoring through standard TCP/IQ network
- Custom system configuration through on-board DSP
- Direct 70V or 100V output for high impedance applications
- Hands-on configuration through the front-panel interface
- Preset, muting, fault-monitoring, and power-control functions through the GPIO/AUX Port
