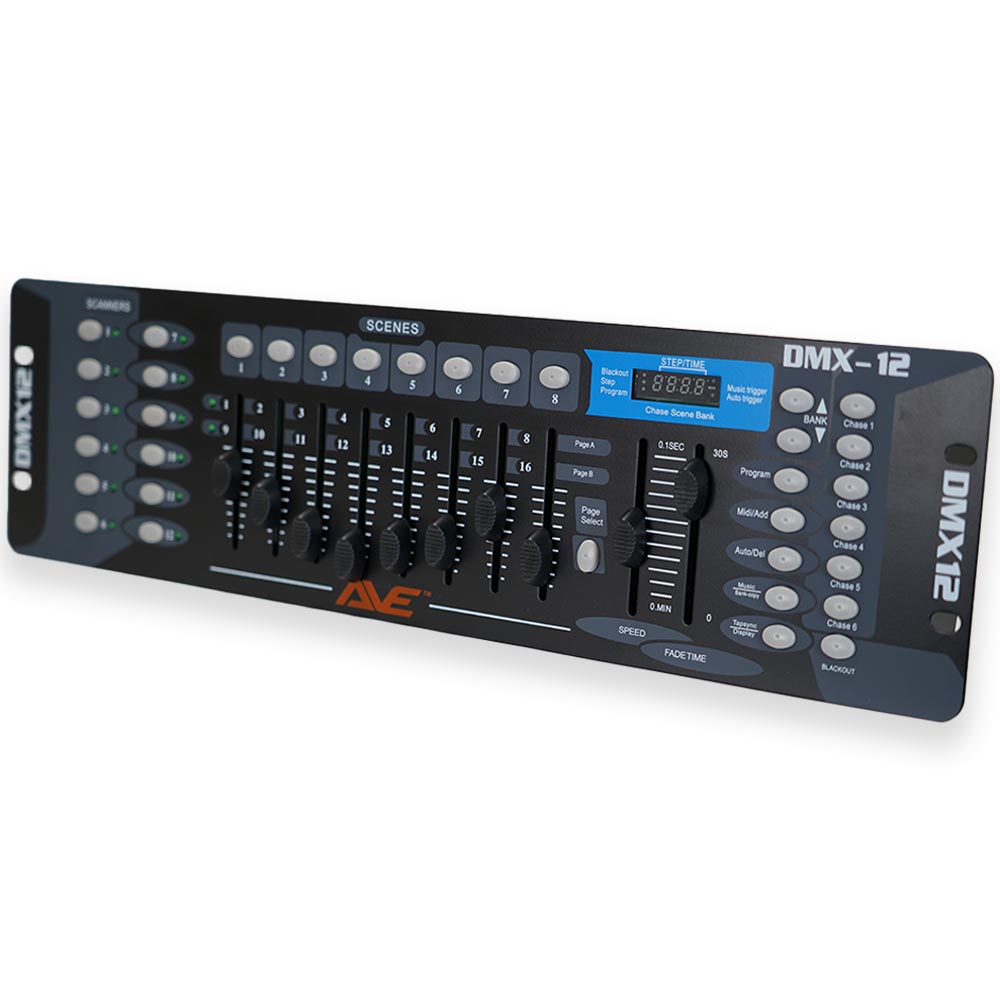

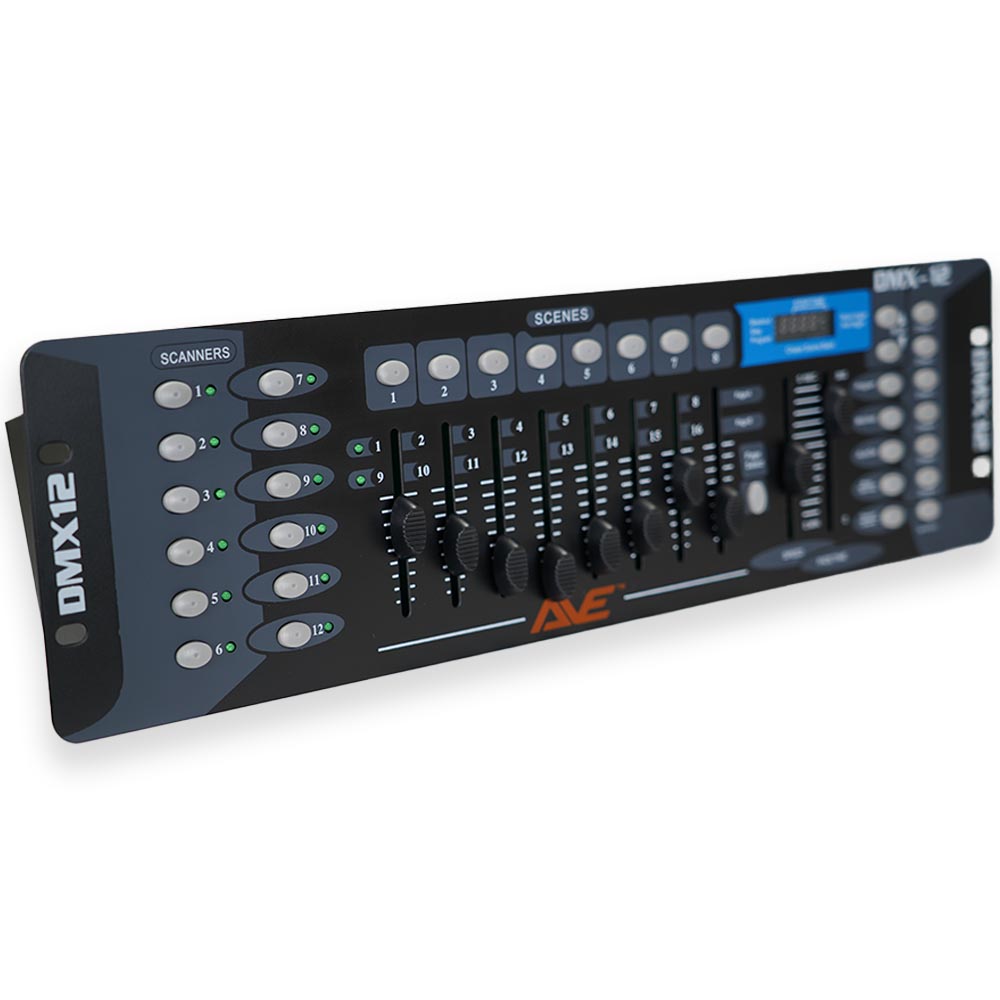

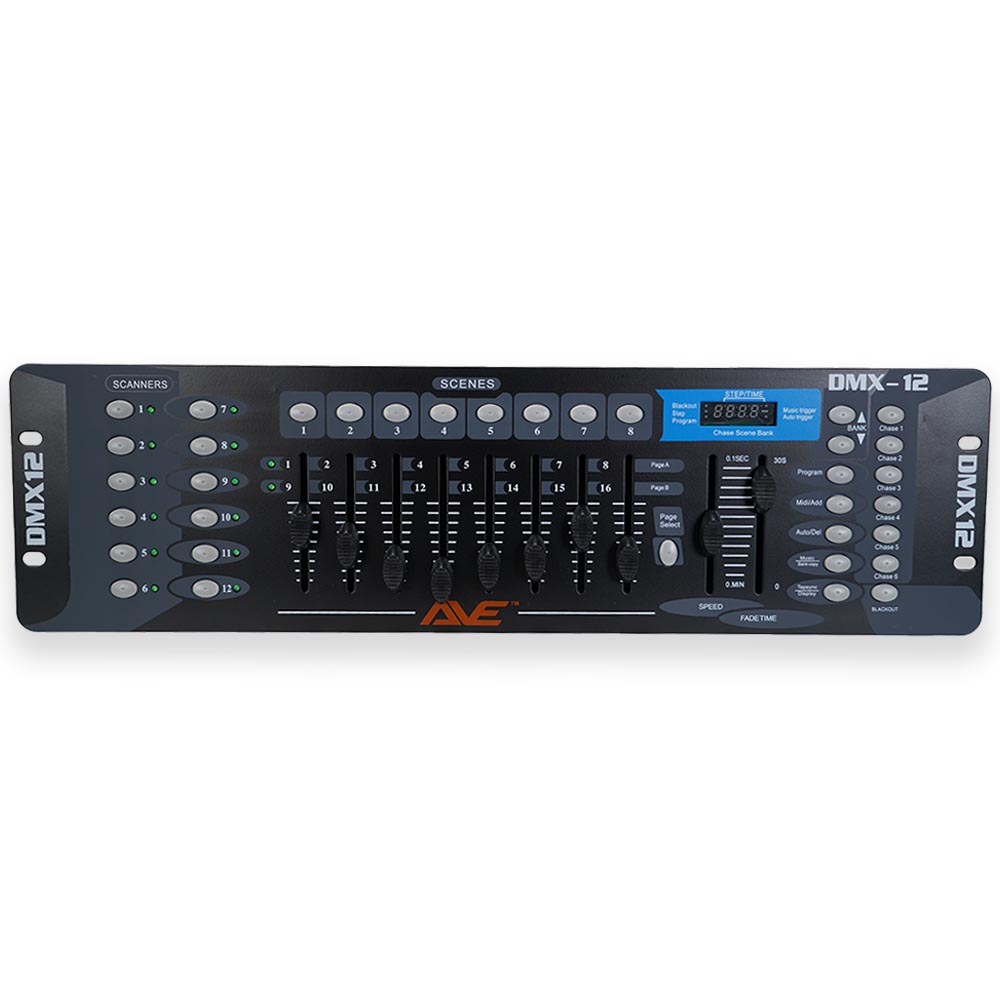

AVE DMX12 Compact 192 Channel DMX Controller
The AVE DMX12 Controller offers reliable and intuitive lighting control for DJs, venues, and small stage productions. Designed to manage up to 12 lighting fixtures with up to 16 channels each, it delivers flexible control over a wide range of DMX lighting effects.
Comprehensive Lighting Control
Firstly, with support for up to 192 DMX channels, the DMX-12 allows users to program and manage complex lighting setups with ease. Select multiple fixtures simultaneously and toggle between channel pages to access all 16 channels per fixture.
Programmable Scenes and Chases
Secondly, create dynamic lighting shows with up to 240 programmable scenes across 30 banks. The controller also supports six programmable chase sequences, allowing automated lighting transitions perfect for live performances, DJs, and event production.
Flexible Performance Features
The DMX-12 includes sound-active mode via its built-in microphone, enabling lights to react to music. With adjustable fade time and chase speed sliders, users can fine-tune transitions and timing for smooth and professional lighting effects.
Key Features
- Controls up to 12 DMX fixtures with up to 16 channels each
- 192 DMX channels total output
- 240 programmable scenes across 30 scene banks
- 6 programmable chase sequences
- Sound-active mode via built-in microphone
- Page A / Page B channel switching for fixtures with more than 8 channels
- Fade time and speed controls for chase and scene transitions
- Blackout function for instant output shutdown
- 4-digit LCD display for bank, scene, and channel values
- 16 channel sliders with DMX output levels from 0–255
