AVE Digital Audio Processor 4-In 8-Out (48KHz)
The AVE Digital Audio Processor (AVE48) is a high-performance professional audio solution designed for demanding sound reinforcement applications. Featuring advanced 32-bit DSP processing and pristine 48KHz sampling, this versatile processor delivers studio-grade audio quality with comprehensive control over every aspect of your sound.
Professional DSP Processing Power
Built around TI’s OMAP-L138 high-performance DSP chip, this processor delivers exceptional computing power of up to 3648 MIPS. Moreover, the 32-bit ADC and 24-bit DAC conversion ensures every nuance of your audio is captured and reproduced with remarkable clarity. Additionally, the processor maintains an impressive signal-to-noise ratio of ≥110dB and THD+N of ≤0.002%, guaranteeing pristine sound quality for the most critical applications.
Comprehensive Input and Output Processing
Each channel receives dedicated processing with 11-band parametric EQ, providing precise tonal control across the entire frequency spectrum. Furthermore, the processor includes independent high-pass and low-pass filters with multiple slope options, input compressors, and brick-wall output limiters. Each input and output channel also features up to 2000ms of adjustable delay, allowing for perfect time alignment in complex sound systems.
Flexible Configuration Options

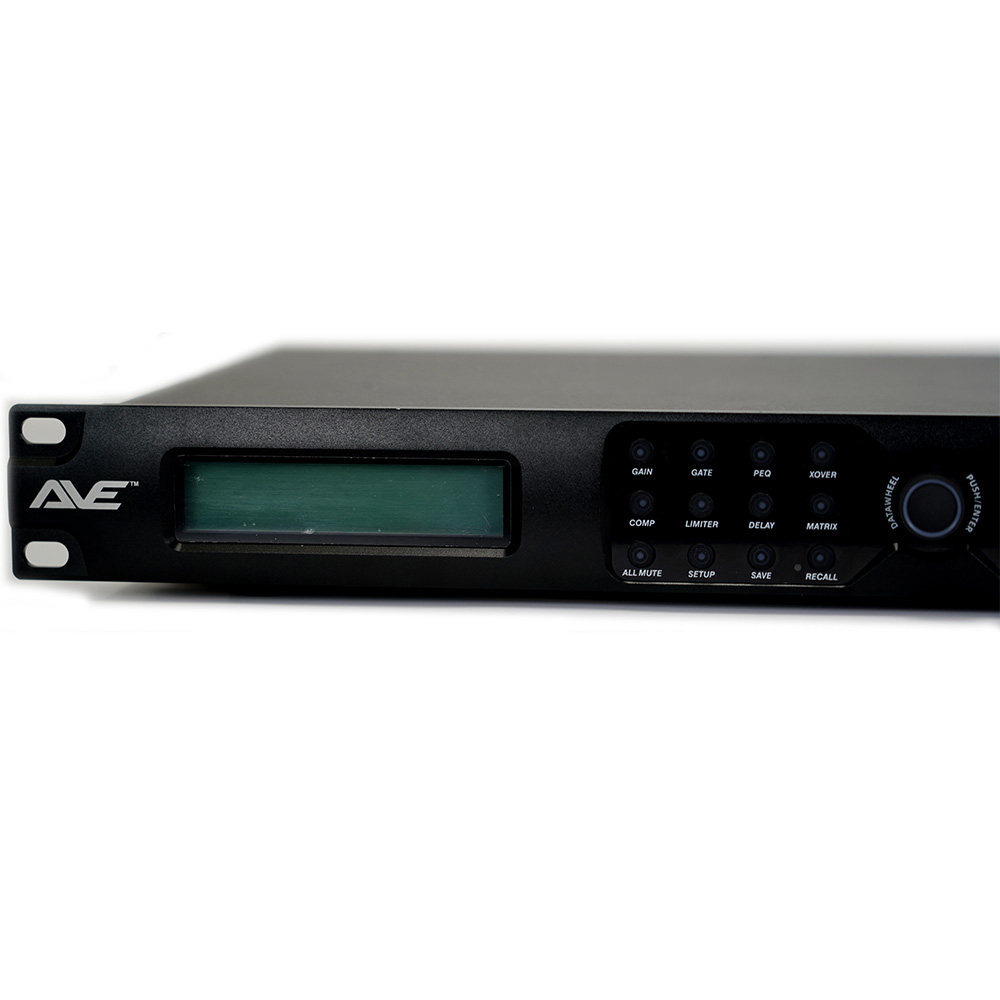

Available in three versatile configurations to suit different system requirements: 2 input/4 output, 3 input/6 output, or 4 input/8 output. What’s more, all channels support free routing between any input and output, giving you complete flexibility in system design. The intuitive front panel features an LCD screen, level indicators, and direct-access function buttons for quick adjustments during live events.

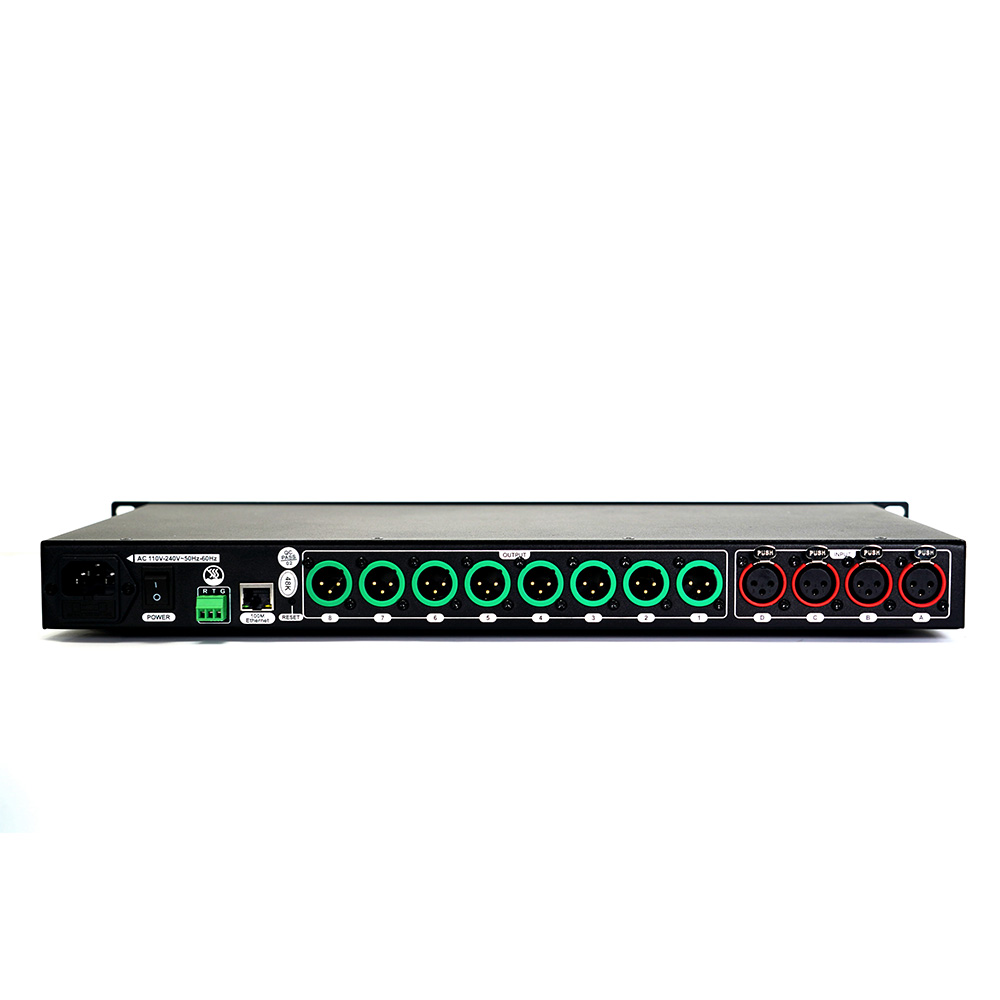

Advanced Connectivity and Control
The processor offers multiple control options including Ethernet, USB, and RS-232 ports for seamless integration with existing systems. Additionally, the device supports 32 preset scenes for instant recall of different configurations, making it ideal for venues with varying setups. The built-in signal generator provides pink noise, white noise, and swept sine waves for system tuning and optimization.
Key Features:
- Three configuration options: 2×4, 3×6, or 4×8 channels
- 32-bit DSP processing with 48KHz sampling rate
- 11-band parametric EQ on every input and output channel
- Multiple filter types: Butterworth, Bessel, and Linkwitz-Riley
- Up to 2000ms adjustable delay per channel
- Input noise gate and compressor with full parameter control
- Brick-wall output limiter for speaker protection
- Free routing matrix between all inputs and outputs
- Built-in signal generator with multiple test signals

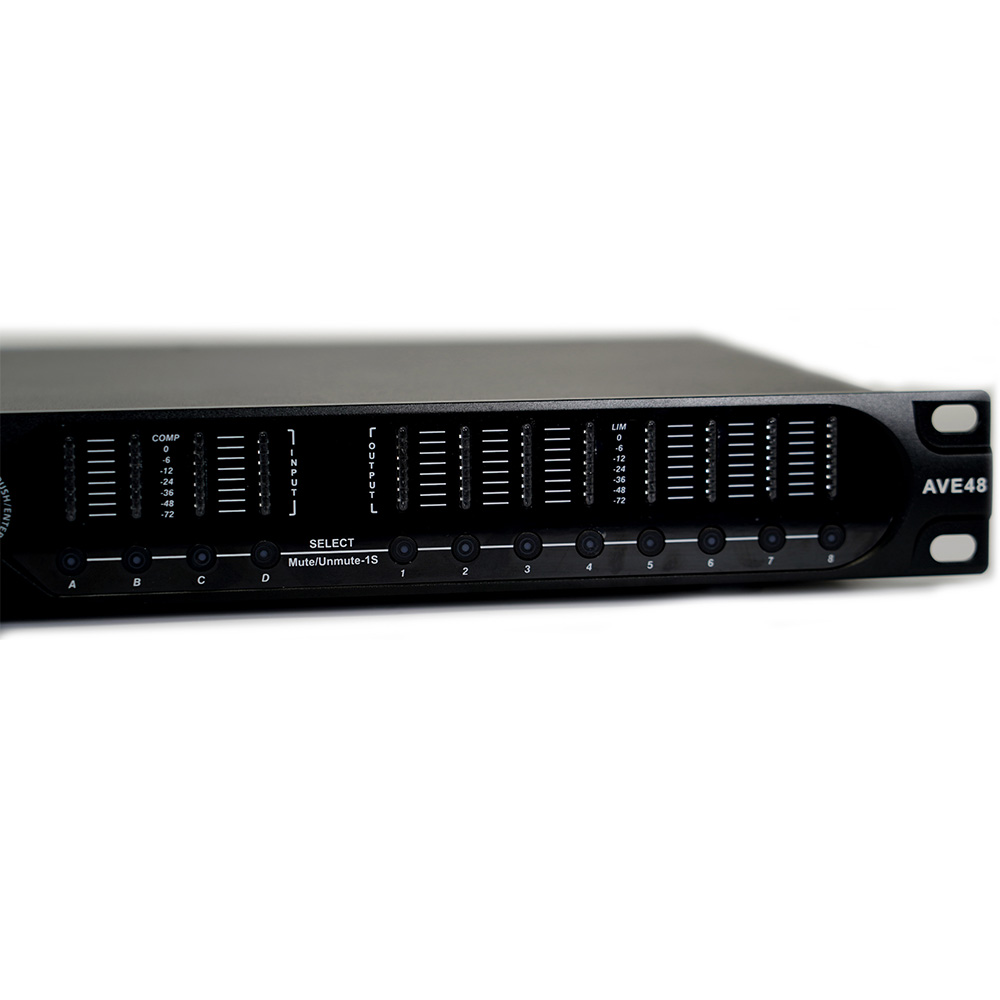

- Front panel LCD display with intuitive controls
- Network, USB, and RS-232 connectivity
- 32 preset scene memories

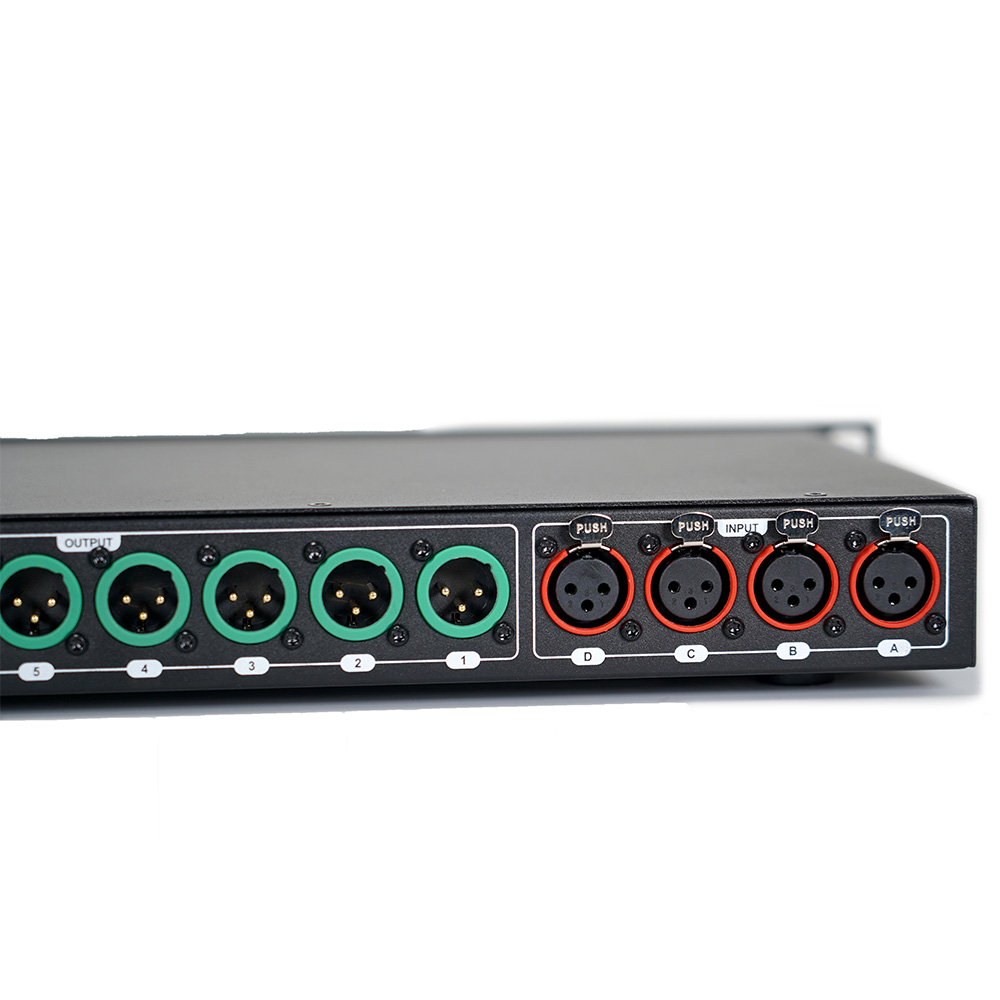

- Professional Neutrik XLR connectors
- Dynamic range ≥110dB with ultra-low noise floor
- Universal power supply (100V-240V)
