AVE 8-In 8-Out Matrix Digital Audio Processor (AVE0808)
The AVE0808 delivers professional-grade audio processing for conference rooms, classrooms, and courtrooms with its powerful 8-in-8-out matrix configuration. Furthermore, this versatile processor combines advanced DSP algorithms with intuitive control, ensuring crystal-clear sound reproduction for presentations, meetings, and live events.
Advanced Algorithm Processing
Experience superior audio quality with built-in feedback suppression (AFC), echo cancellation (AEC), and automatic noise reduction (ANS). Additionally, the system features automatic mixing (AM) and automatic gain control (AGC) for seamless audio management. Moreover, the 32-bit floating-point DSP processor with 24-bit/48kHz sampling ensures pristine audio reproduction across all channels.
Comprehensive Matrix Mixing Capabilities
The AVE0808 offers extensive signal processing with 5-band input EQ and 8-band output EQ for precise tonal control. Furthermore, input processing includes signal generator, gain control, expander, and compressor functions. Consequently, output processing features frequency dividers, time delay up to 2000ms, limiters, and grouping controls for complete audio management.
Versatile Connectivity & Control
Built for flexibility, this processor includes USB interface for recording and broadcasting, plus GPIO control supporting 8-channel custom input/output. Additionally, RS232 and RS485 control interfaces enable seamless integration with existing systems. Thus, you can manage multiple devices simultaneously through the user-friendly Windows software interface with scene presets and saving functions.
Professional Scene Controller (AD-8KZQ)
The included 5-inch touchscreen scene controller provides intuitive access to all essential functions. Moreover, its four modules—input volume, output volume, archive recall, and device information—offer complete control at your fingertips. The high-resolution 800×480 TFT LCD display with LED backlight ensures clear visibility, while individual channel muting and system mute functions deliver quick performance adjustments.
Key Features:
- 8 analog input and 8 analog output channels
- USB extended recording and broadcasting channel
- Built-in AFC, AEC, ANS, AGC, and AM algorithms
- 32-bit floating-point DSP processor with 24-bit A/D and D/A conversion
- 5-band input EQ and 8-band output EQ
- Output delay up to 2000ms with 100us increments
- Multiple high-pass and low-pass filter types
- GPIO control interface with 8-channel custom I/O

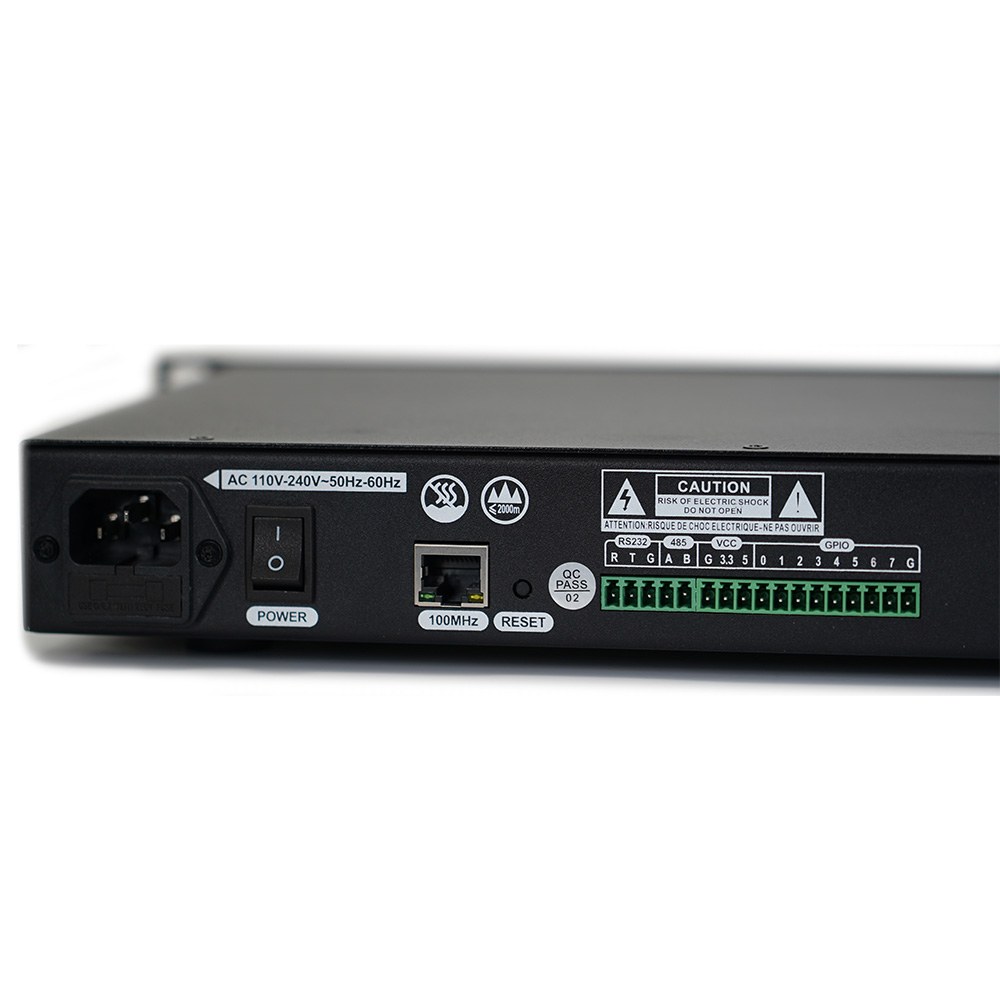

- RS232 and RS485 control interfaces
- Scene preset and saving functionality
- 5-inch touchscreen scene controller included

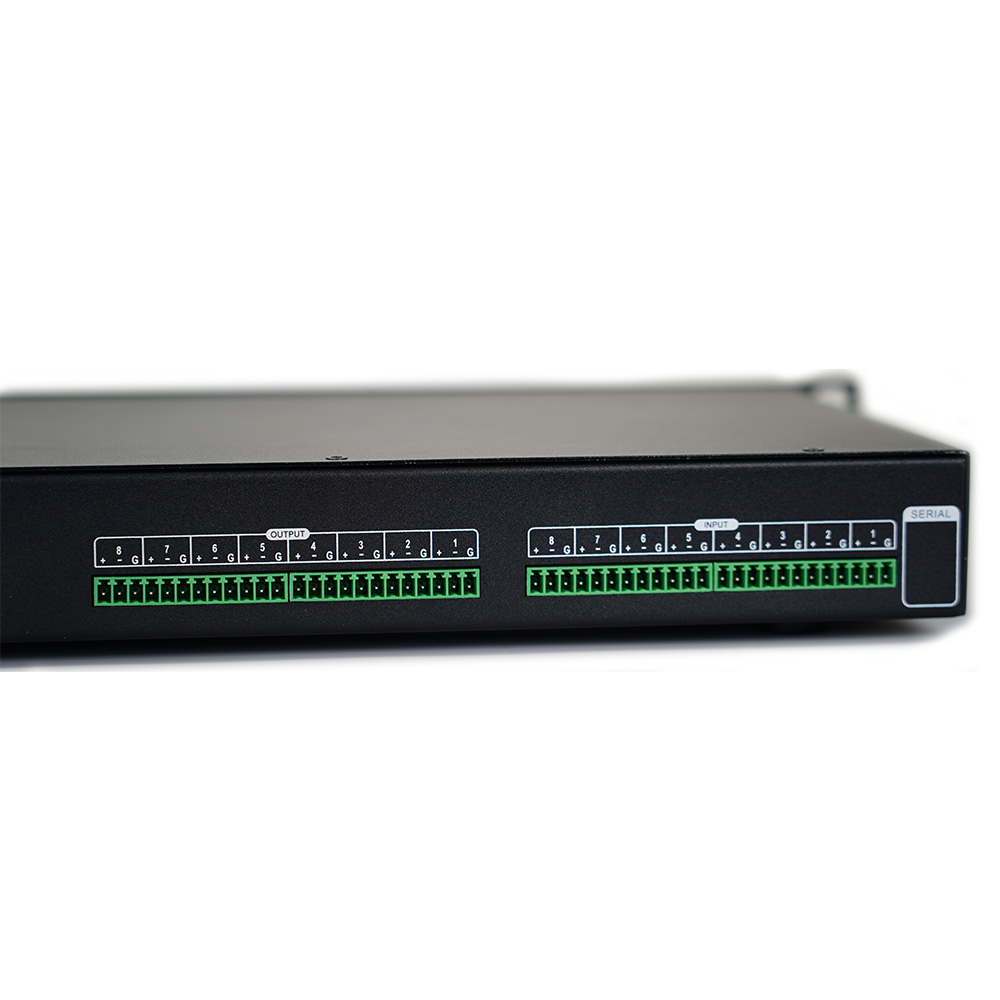

- Phoenix socket connectors for professional installation
- Universal power supply (100-240V AC)

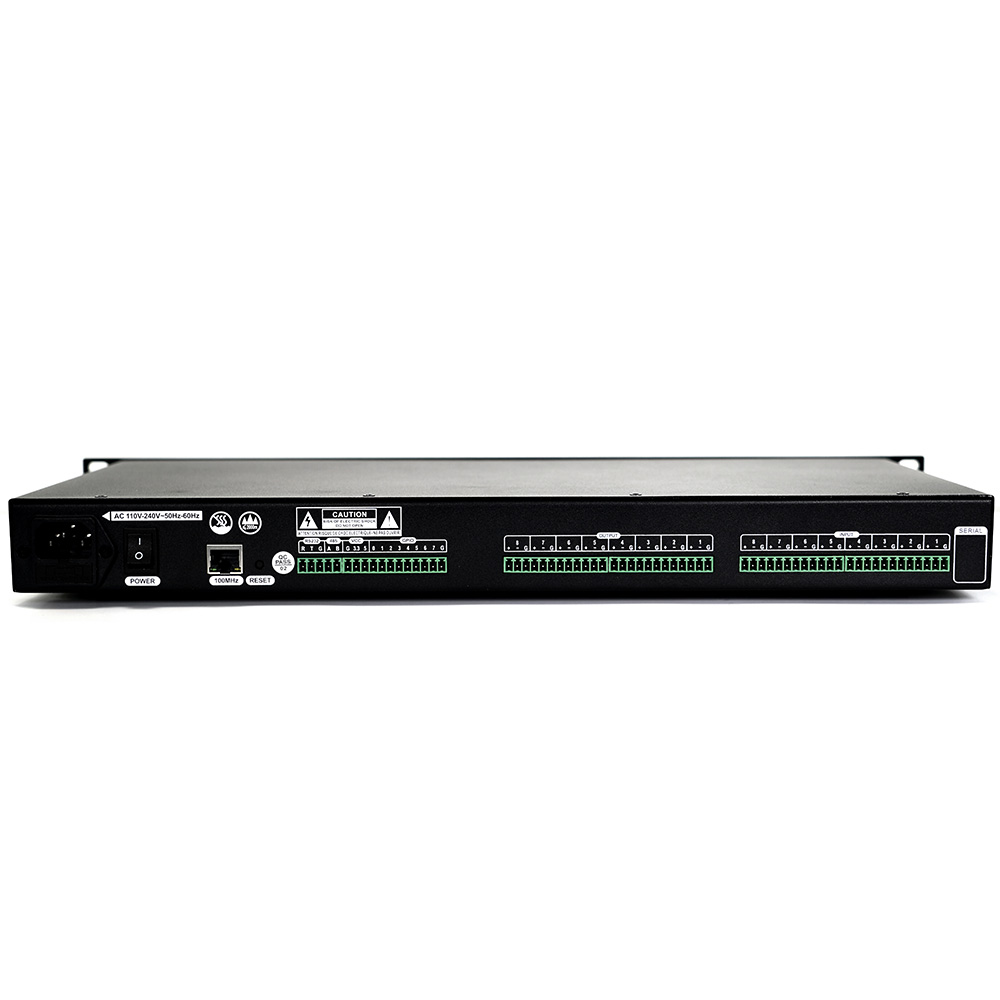

- Compact rack-mountable design
