Sennheiser EW 500 G4-KK205-GW Wireless Vocal Set

$3149
SKU: EW500G4-KK205-GW Categories: ,

The Sennheiser EW 500 is the best of two brands. Sennheiser and Neumann combine to bring the reliability of wireless transmission and the excellence of studio sound together.

Order-In

Add to Quote
Shipping Info
Order-In Products

Please note: Some item(s) in your order are Order-In item(s) and stock is not kept on hand.

Once your order is placed you will be contacted with an ETA on your item as soon as possible.

Ask for ETA
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Shipping Calculator
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Sennheiser EW 500

The Sennheiser EW 500 is the best of two brands. Sennheiser and Neumann combine to bring the reliability of wireless transmission and the excellence of studio sound together.

Included in this Vocal Set is the Neumann super-cardioid condenser capsule KK 205, offering true Neumann sound. Combining with the Sennheiser G4 wireless transmission to provide you the freedom of wireless operation, with the pop protection and feedback resistance of a rugged stage microphone. As a result, the EW 500 G4 is highly flexible. Providing you with up to 88MHZ bandwidth, and also up to 32 channels. Furthermore, the system features an ethernet connection. Allowing you to connect with Wireless Systems Manager control software, for advanced frequency coordination in multi-channel setups



  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW)
  • Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems

EM 300-500 G4 Receiver

Dimensions: Approx. 202 x 212 x 43 mm

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dB, XLR socket (balanced): +18 dB

Signal-to-noise ratio: ≥ 115 dBA

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Current consumption: 350 mA

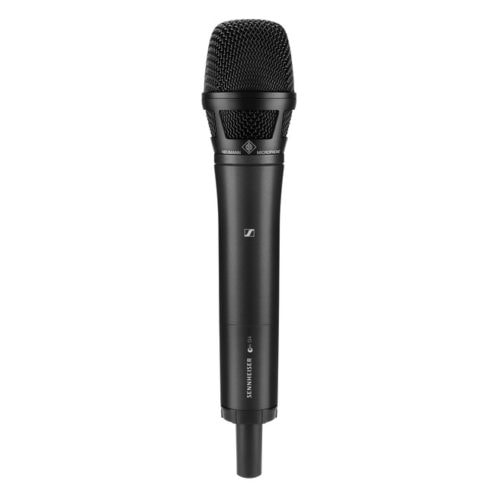

SKM 500 G4

Dimensions: Approx. Ø 50 x 265 mm

Brand: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: approx. 450 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 µA

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

















For more information, please visit the manufacturer's website.
