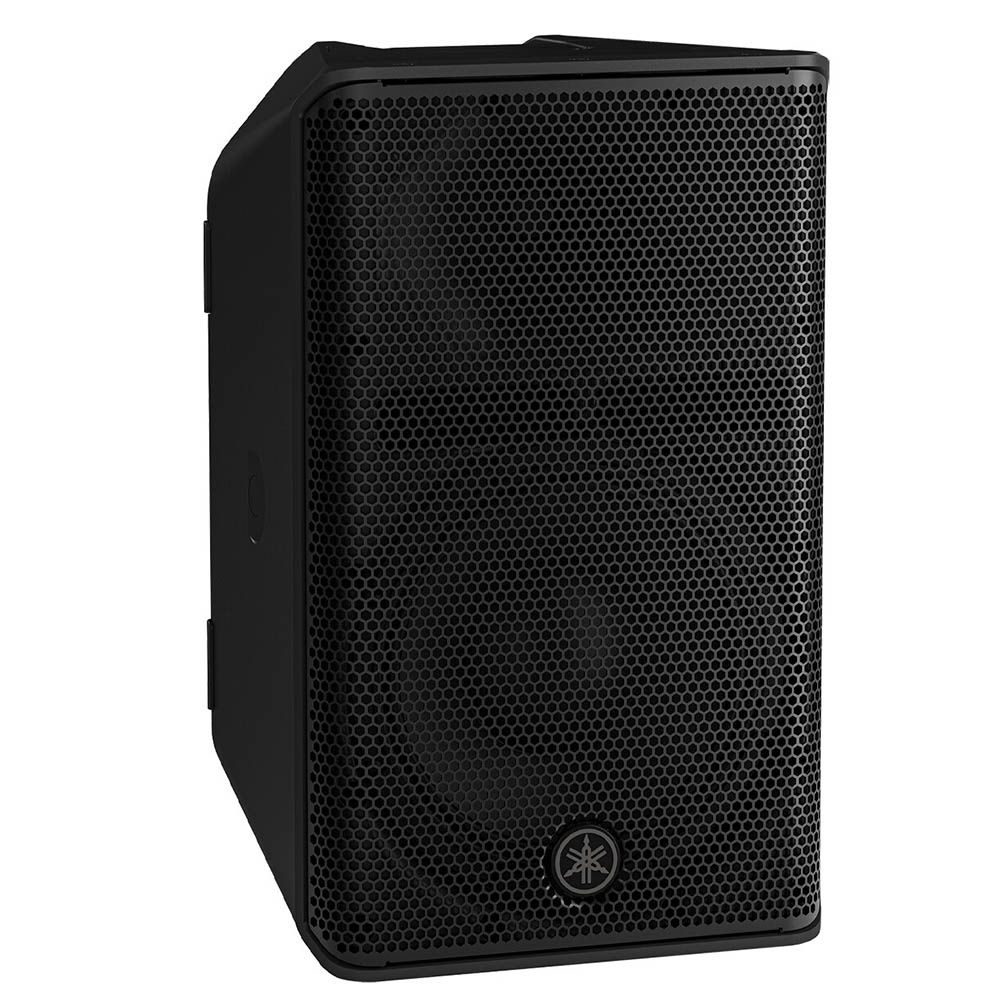

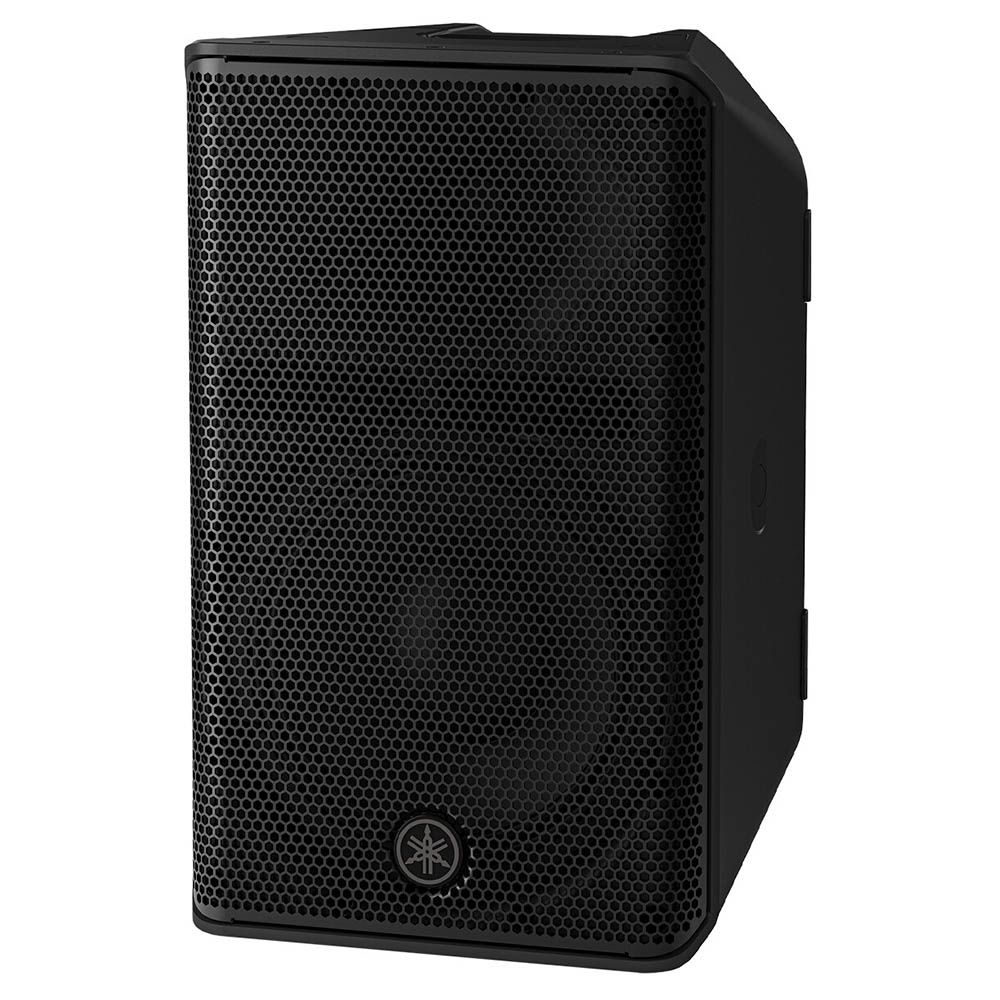

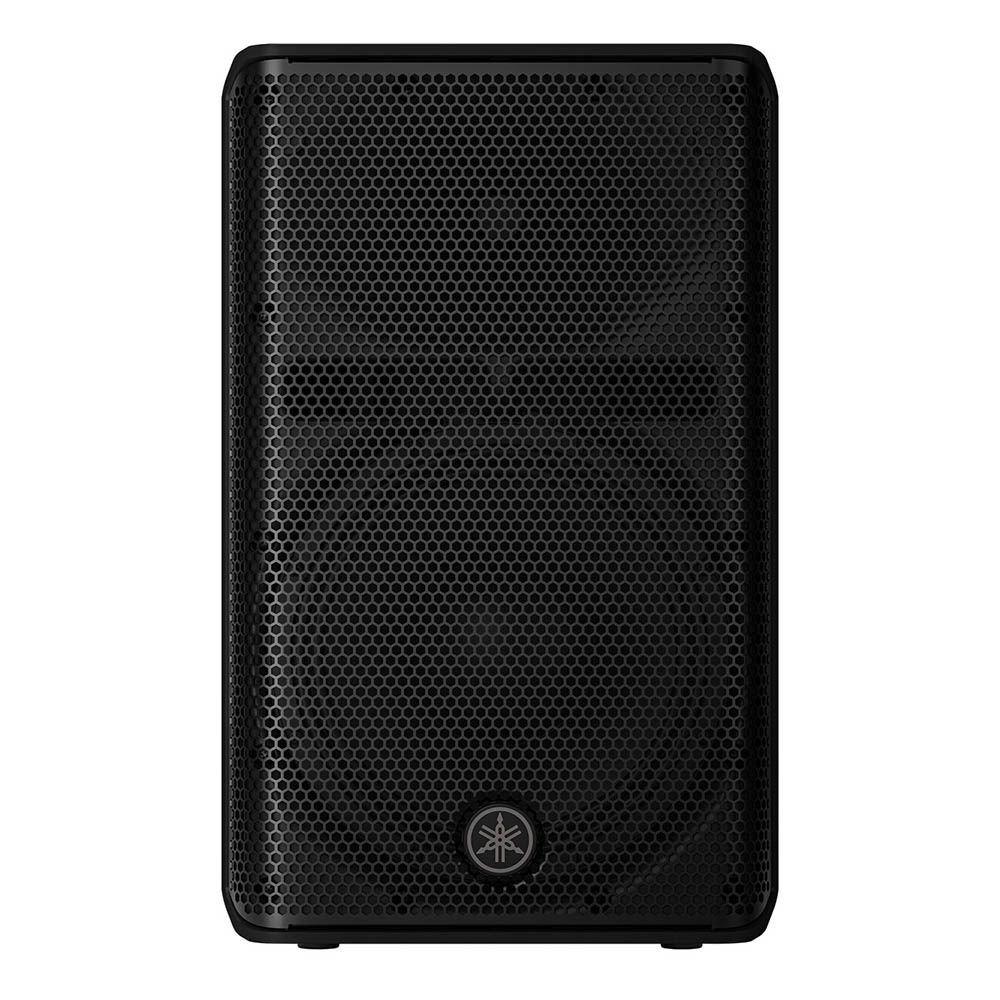

Yamaha CXR10 mk3 2-Way Loudspeaker
The Yamaha CXR10 mk3 brings clear, controlled sound to sound reinforcement setups without taking up much space. Its compact enclosure combines a 10-inch LF section, a 1.75-inch HF section and carefully shaped coverage, making it a practical choice when a versatile loudspeaker is needed.
Compact Sound Reinforcement
Firstly, as the most compact model in the series, this loudspeaker fits neatly into a wide range of sound reinforcement environments. The bass-reflex design reaches from 54 Hz to 20 kHz. Meanwhile, the 93 dB sensitivity gives the system a strong starting point for efficient operation in suitable setups.
Controlled Coverage Across the Room
Moreover, the large-diameter horn provides H90° × V60° coverage and maintains directivity control across a wide frequency range. That defined spread helps shape where sound is directed. All while the 2.0 kHz crossover brings the LF cone and HF compression driver together for a coherent full-range presentation.
Flexible Placement Options
Furthermore, dual-angle Ø35 mm pole sockets allow either 0° or -7° down tilt, giving installers and performers a practical way to adjust the speaker’s position. It can also be used as a floor monitor at a 55° angle, while the rigging points accommodate eye-bolt mounting.
Ready for Transport and Installation

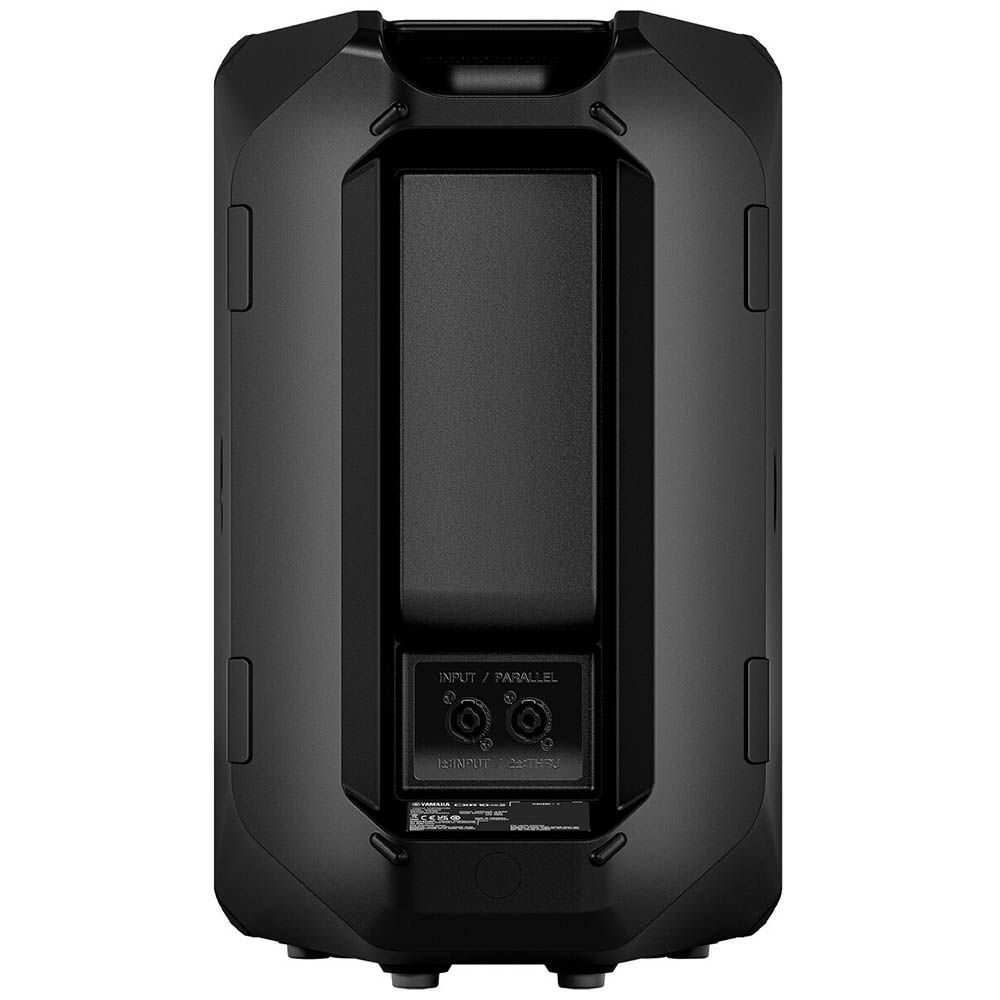

Additionally, the lightweight, form-injection molded plastic (PP) enclosure uses a symmetrical, functional design with a top handle for handling. Two parallel-connected SpeakON NL4MP inputs simplify connection choices, and the optional UB-DXRDHR10A U-bracket supports vertical or horizontal use.
Key Features
- Compact enclosure for a variety of sound reinforcement environments
- Wide H90° × V60° coverage with controlled directivity
- Dual-angle pole mounting and 55° floor-monitor positioning
- Rigging points for eye-bolt installation
- Optional U-bracket for vertical or horizontal mounting
