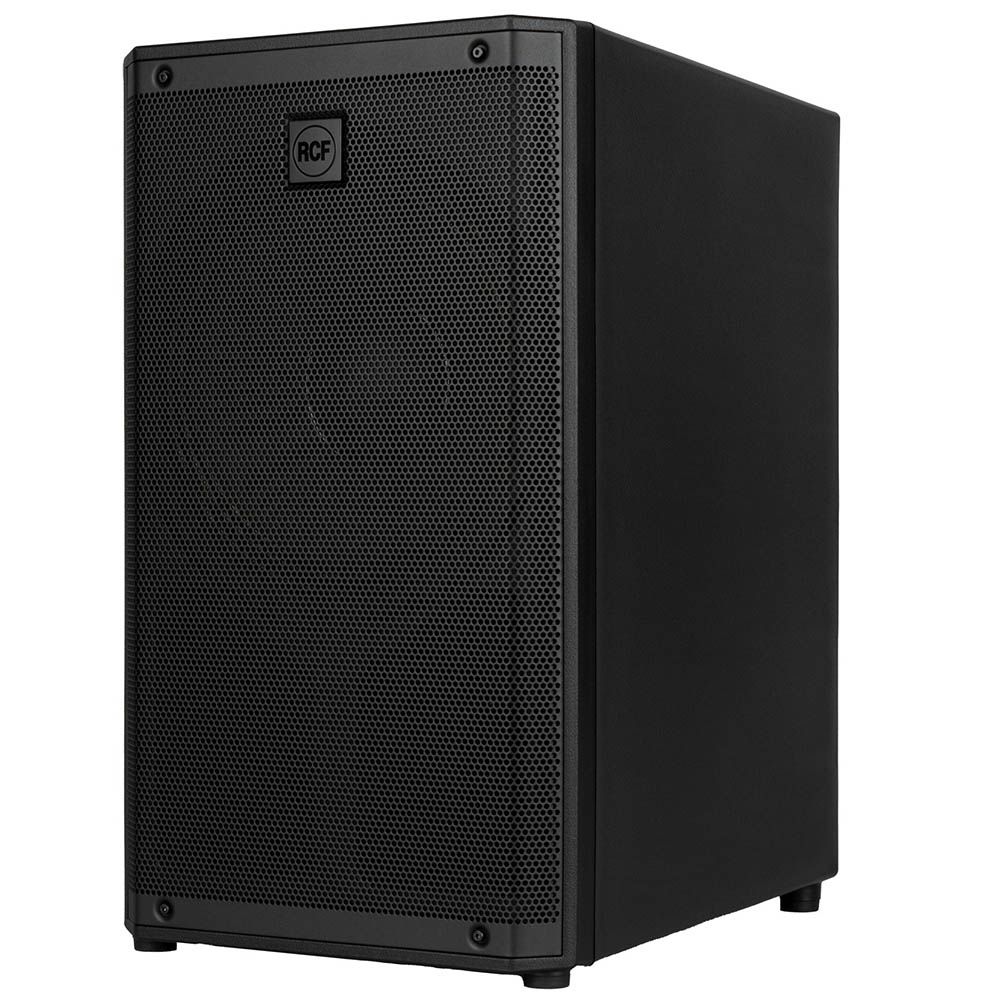

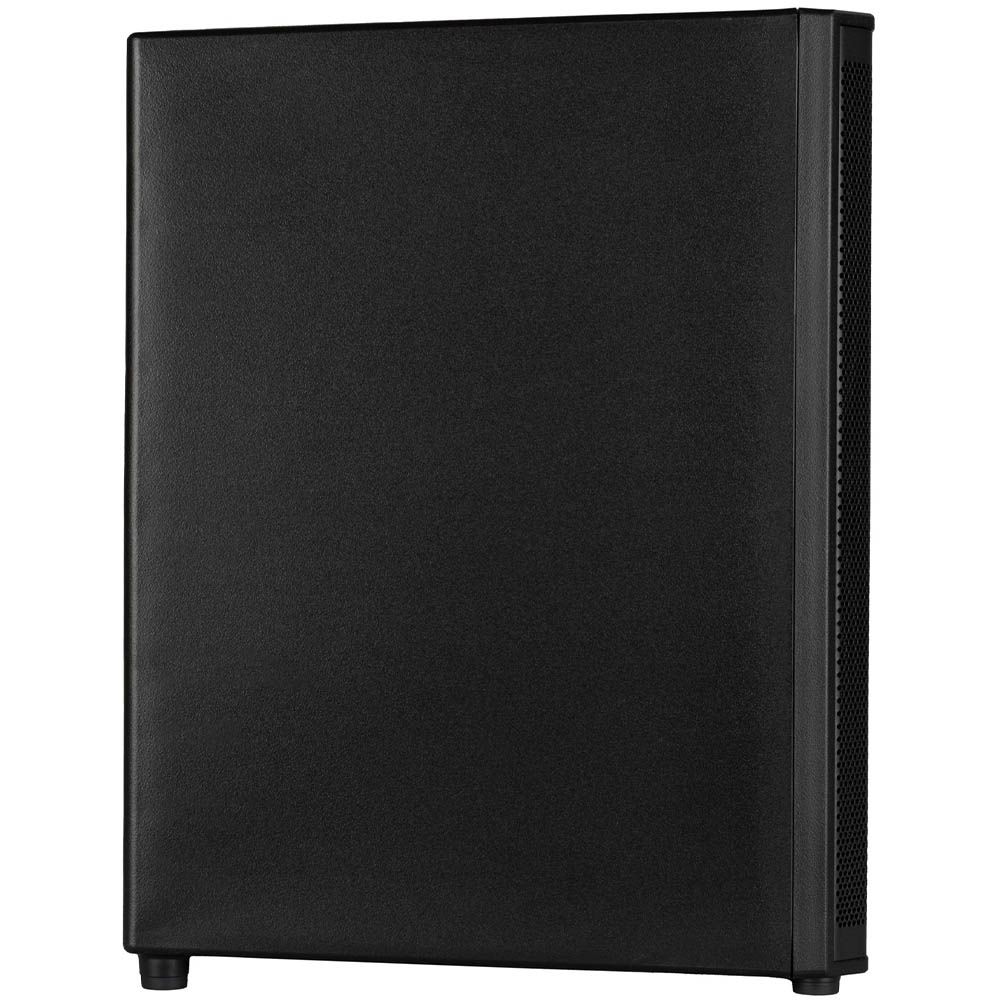

RCF EVOX J11 Active Three-Way Portable Column Speaker

$4995
SKU: EVOXJ11 Category:

The RCF EVOX J11 is an active column speaker built for clear vocals, controlled lows, and easy setup. 132 dB Max SPL, 3500 W Class-D Amplifier with Built-In DSP, 1.75” neo compression driver with 120° x 40° true resistive waveguide and more.

In stock

$4995
Add to Quote
Shipping Info
Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
5 in stock
Web
Online 5 in stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

RCF EVOX J11 Active Three-Way Portable Column Speaker

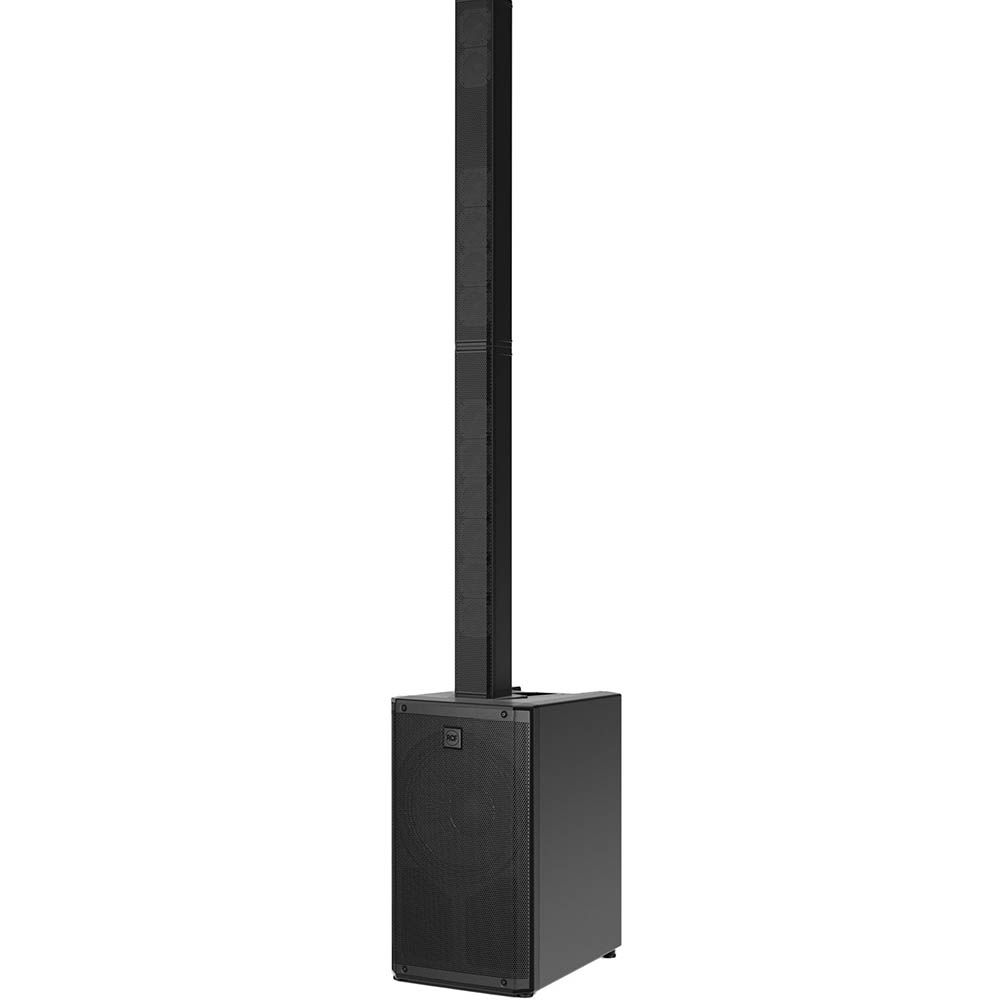

The RCF EVOX J11 gives you a compact active column system with the kind of clarity and output that makes setup feel simple. With 132 dB Max SPL, a 3500 W Class-D amplifier, and a wide 120° x 40° pattern, the EVOX J11 is built to deliver clean, controlled sound.

Big output in a compact column

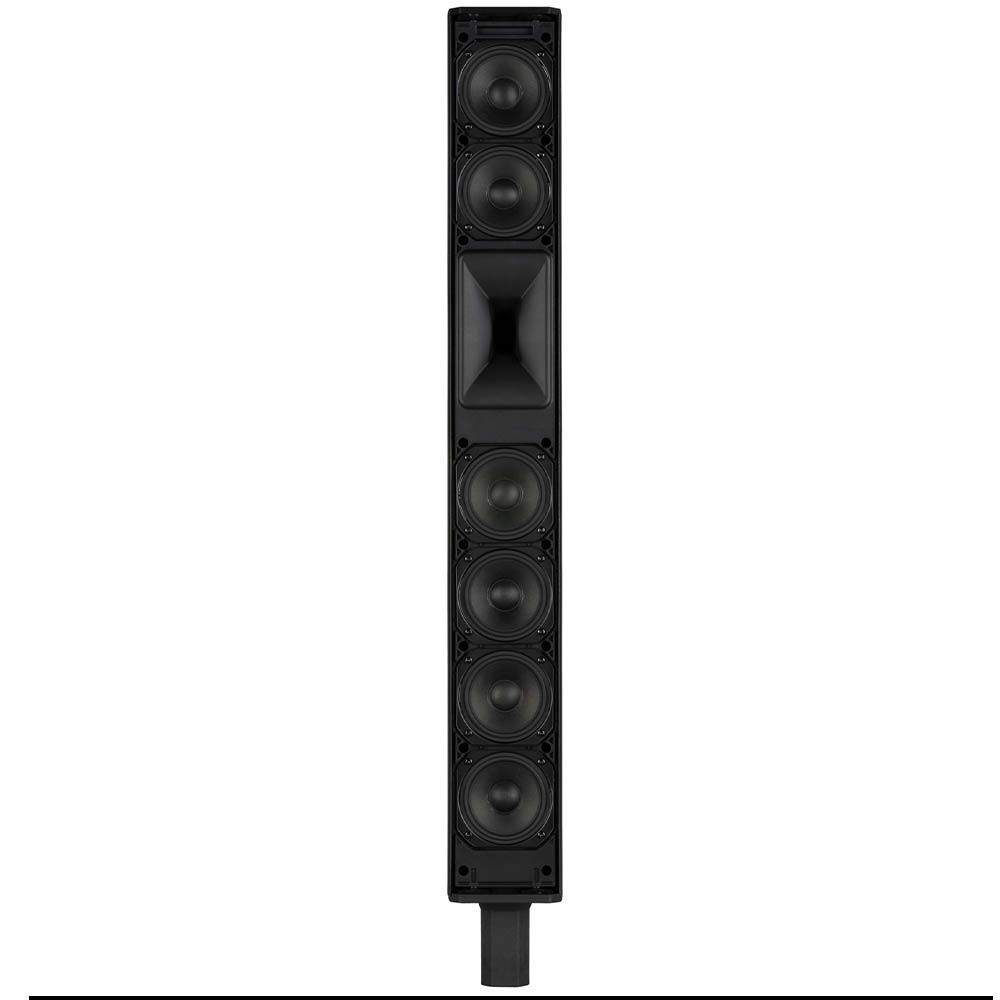

Firstly, this active column speaker brings together 12 x 3” full-range transducers and a 12” high-power woofer for a balanced sound. The result is strong low-end support, clear mids, and easy-to-follow vocals. All from a system that stays neat and unobtrusive on site.

RCF EVOX J11 clarity across the listening area

Moreover, the 1.75” neo compression driver and True Resistive Waveguide help spread sound evenly with a 120° x 40° coverage pattern. That makes the EVOX J11 a solid choice when you want consistent sound from the front through to the wider audience area. All while keeping speech and music sounding natural and easy to hear.

Built for fast setup and regular use

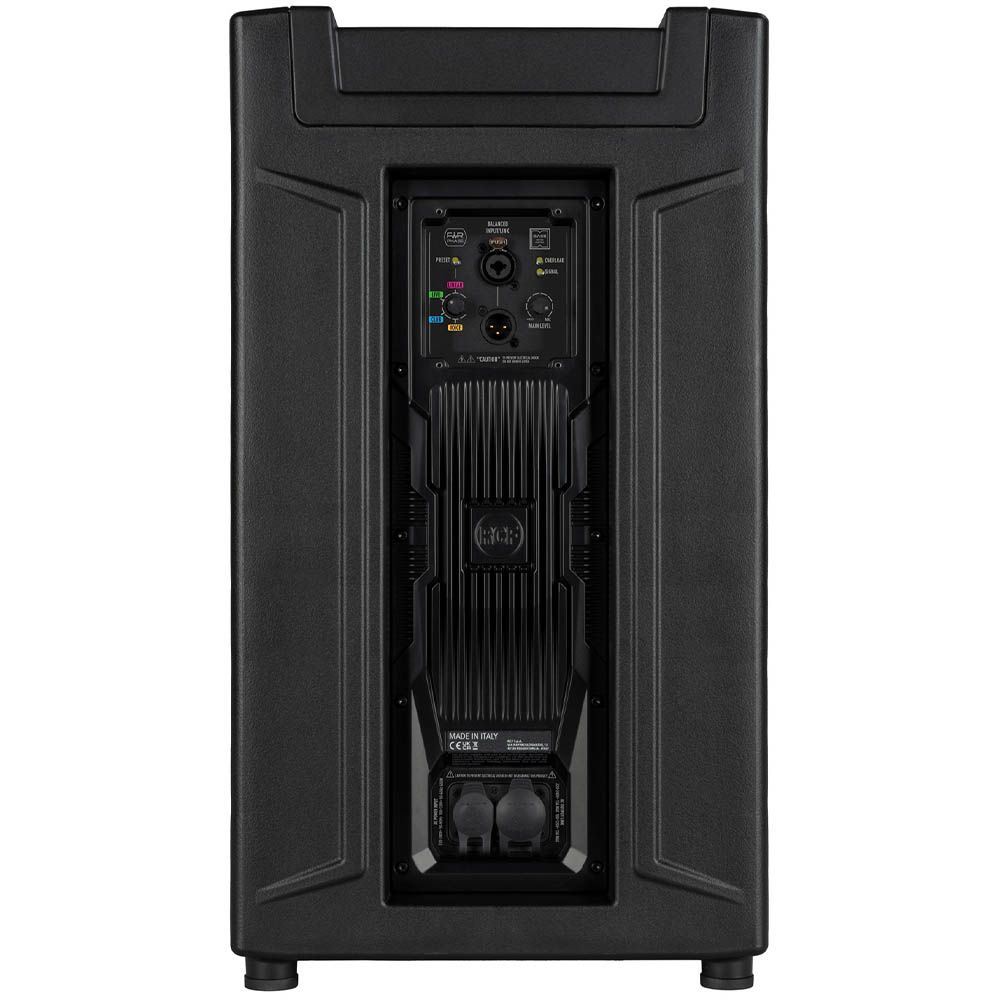

Additionally, the EVOX J11 is ready for straightforward setup and transport. Especially with the Combo XLR/Jack input, XLR output, Powercon TRUE1 TOP IN/OUT connections, and included padded carrying bag for the column array. The composite cabinet, steel grille, and quick-fit socket also add to the road-ready feel.

Control that suits different gigs

Volume control and presets for LINEAR/LIVE, CLUB, and VOICE make it easy to tailor the sound to the job at hand. Also, built-in DSP, Thermal and RMS protections, Soft Limiter, and convection cooling help keep the system running smoothly. Thus, the EVOX J11 stays practical for repeat use.

Key Features

  • 132 dB Max SPL
  • 3500 W Class-D Amplifier with Built-In DSP
  • 1.75” Neo Compression Driver with 120° x 40° True Resistive Waveguide
  • 12 x 3” Full-Range Neo Transducers

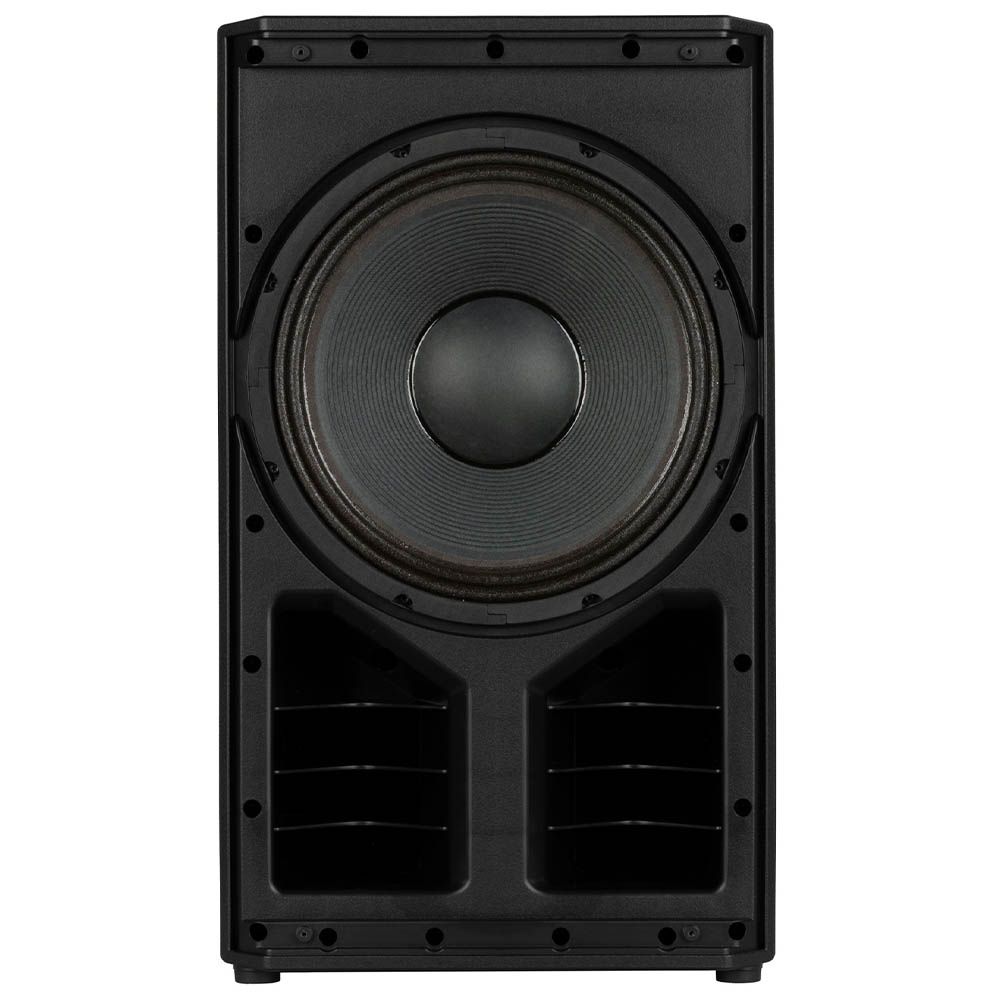

  • 12” High-Power Woofer
  • Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR
  • Cabinet/Case Material: PP Composite
  • Top Speaker Padded Carrying Bag Included
  • 132 dB Max SPL
  • 3500 W Class-D Amplifier – Built-In DSP
  • 1.75” Neo Compression Driver – 120° X 40° True Resistive Waveguide
  • 12 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Composite Cabinet
  • Sleek, Road-Ready Design
  • Top Speaker Padded Carrying Bag Included

Frequency Response: 37 Hz – 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Compression Driver: 1 x 0.75” neo, 1.75” v.c
Fullrange: 12 x 3.0” neo, 1.0” v.c
Woofer: 1 x 12”, 2.5” v.c
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: +4 dBu
Crossover Frequencies: 160 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Total Power: 3500 W Peak
High frequencies: 1500 W Peak
Low frequencies: 2000 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Safety agency: CE compliant
Cabinet/Case Material: PP Composite
Handles: 1 Top

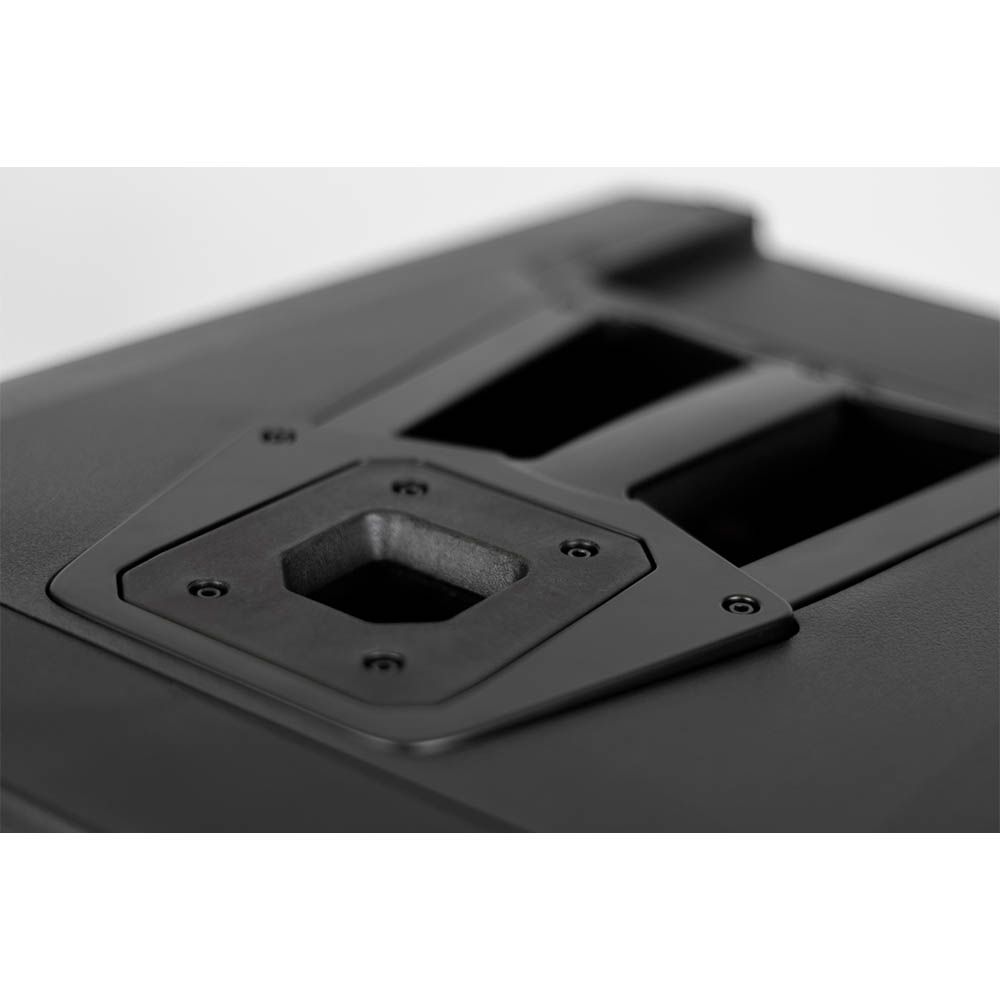

Pole mount/Cap: Quick-fit socket
Grille: Steel
Color: Black, White – RAL 9003
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 463 mm / 18.23 inches
Weight: 29 kg / 63.93 lbs
Package Height: 676 mm / 26.61 inches
Package Width: 451 mm / 17.76 inches
Package Depth: 581 mm / 22.87 inches
Package Weight: 35 kg / 77.16 lbs

For more information, please visit the manufacturer's website.
