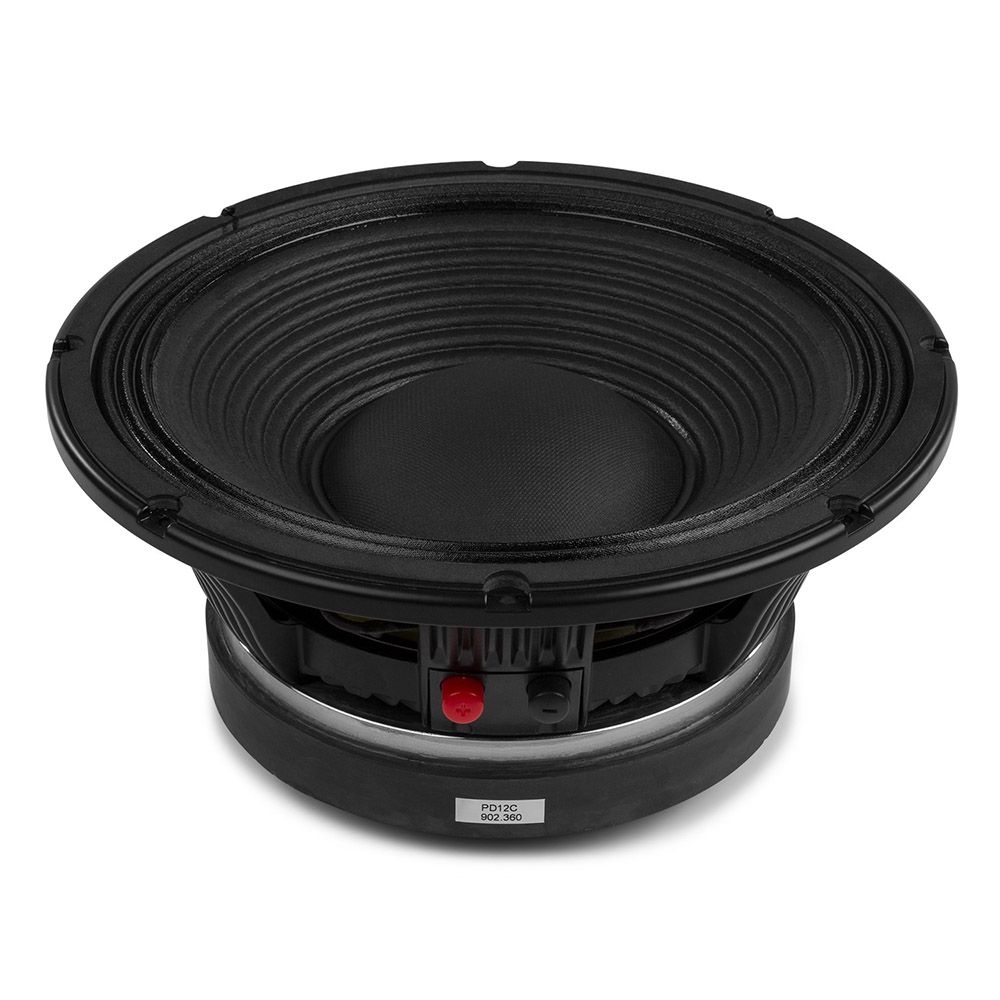

Power Dynamics PD12C 12-inch 1200W Ferrite Woofer
Build a powerful low-frequency section for a custom speaker project with the Power Dynamics PD12C woofer. Its 600 W RMS rating, ferrite magnet and reinforced paper cone give designers a solid foundation for two-way speakers, bass reflex solutions and other applications that need controlled, high-power operation.
Power for Custom Speaker Builds
With 600 W RMS and 1200 W peak power handling, this woofer is made for speaker designs where substantial power handling matters. The nominal 8 Ω impedance gives it a clear electrical specification for planning a matching system. Meanwhile, the stated 50 – 2,000 Hz frequency response suits low-frequency speaker work.
Built Around a Strong Cone Assembly

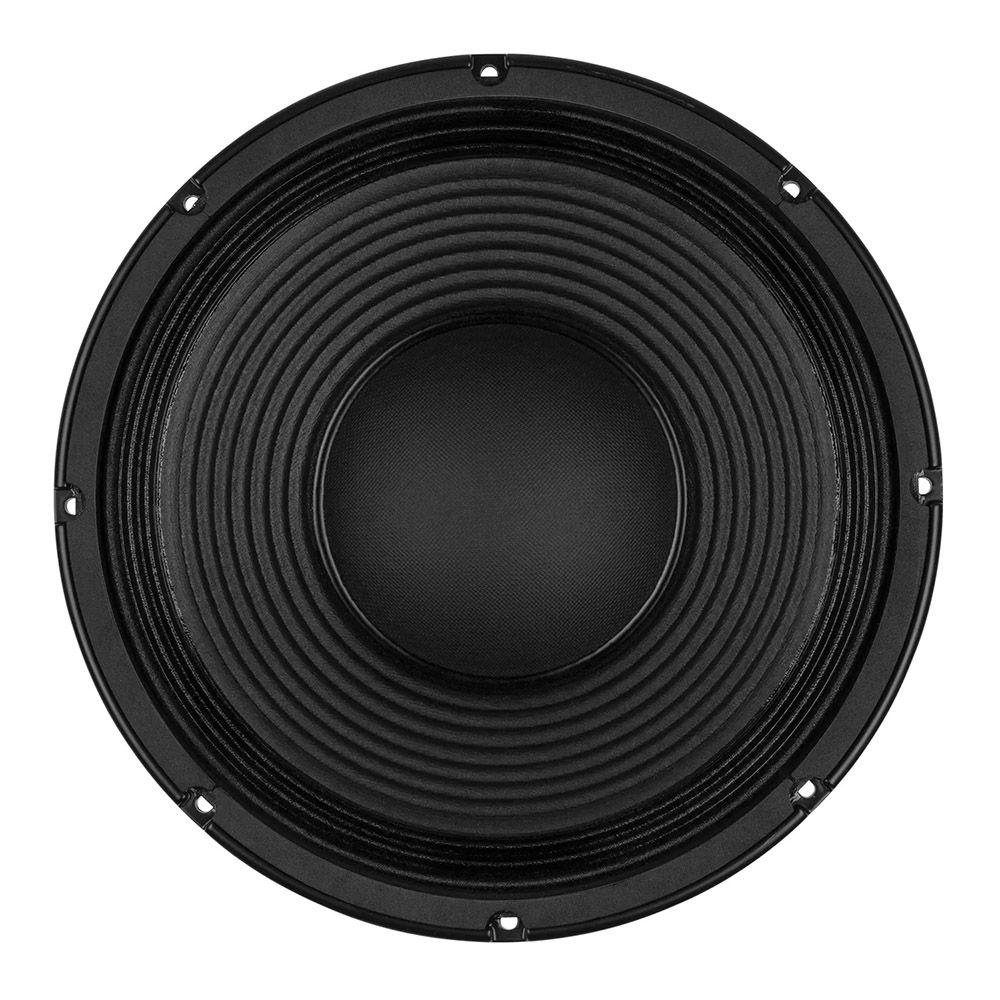

Moreover, the glass-fibre reinforced paper cone combines with a radial cone shape to form the moving part of the design. This construction is suited to applications requiring long excursion and control. Also, the 4-inch (100 mm) inside-outside copper voice coil forms a substantial part of the woofer’s power-handling assembly.
Designed for Practical Enclosure Projects

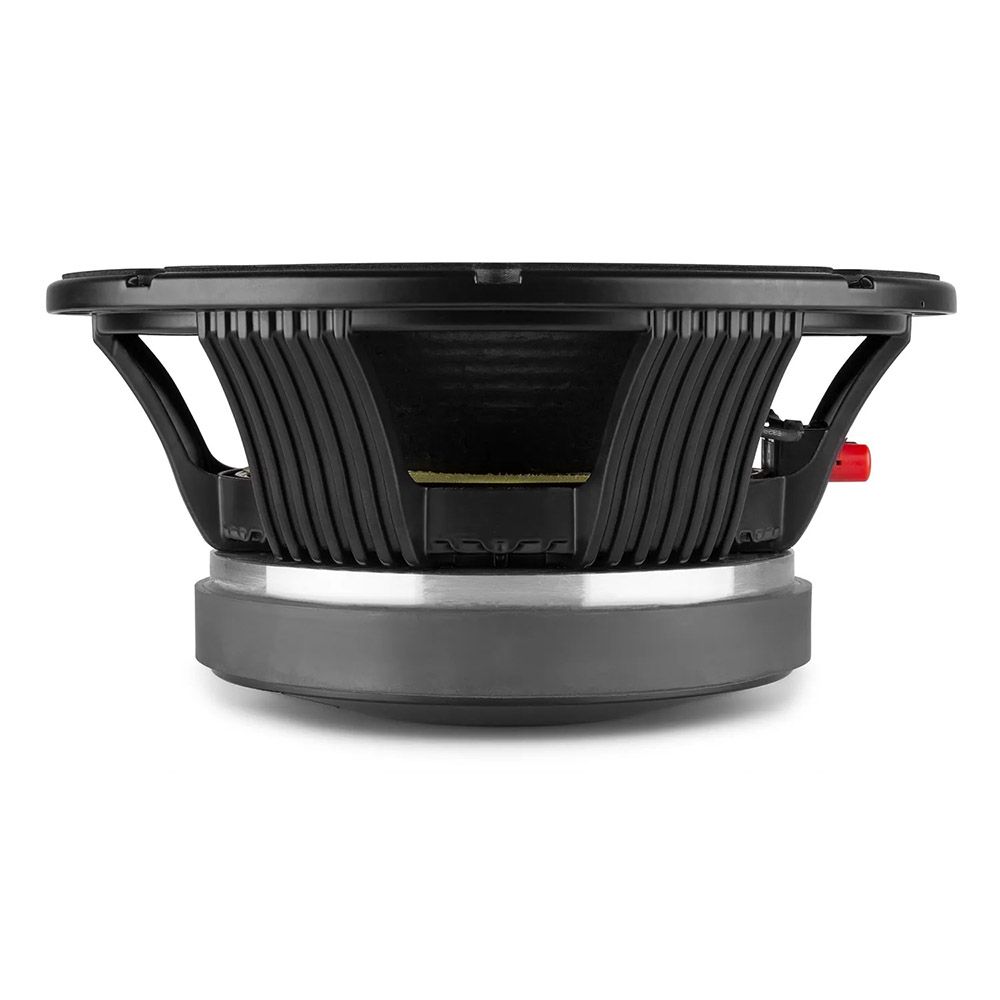

An aluminium basket reduces magnetic interference and provides the woofer with a sturdy mounting structure. The ferrite magnet and 97 dB sensitivity complete the core design, making this component a practical choice when planning two-way speakers, bass reflex solutions or other custom enclosures.
Key Features
- High power handling for demanding custom speaker designs
- Reinforced paper cone and radial cone shape for controlled woofer movement
- Aluminium basket designed to reduce magnetic interference
- Suitable for two-way speakers, bass reflex solutions and varied applications
