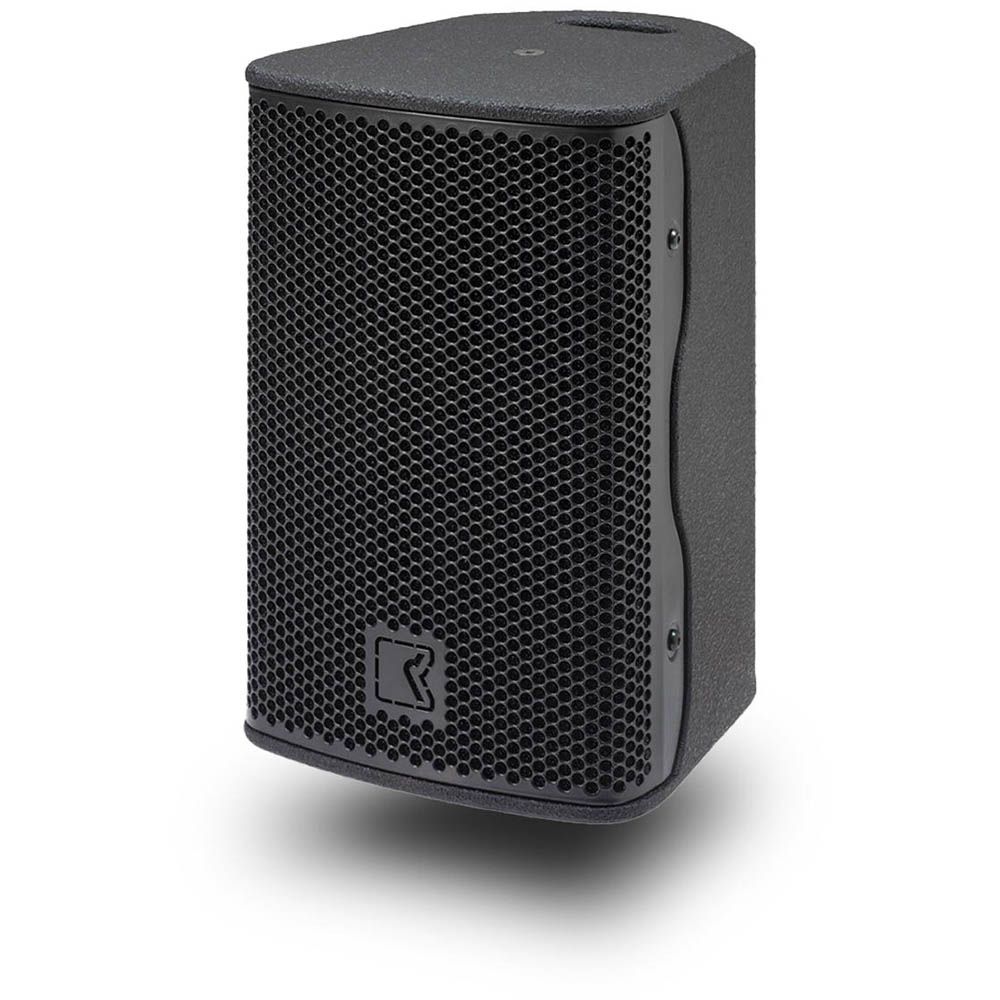

Outline VEGAS 6.5 Installation Loudspeaker
The Outline VEGAS 6.5 is built for installs where space is tight but output still matters. As an Outline VEGAS 6.5 installation loudspeaker, it combines a 6.5″ woofer and 1″ diaphragm compression driver with a 122 dB SPL maximum output. That makes it a strong fit for mobile and fixed setups. Anything that need compact size, flexible mounting, and dependable performance.
Compact size, serious output
Firstly, with a weight of 7.5 kg and a super-compact enclosure, this loudspeaker is easy to work into smaller installs without giving up output. The 65 Hz – 19 kHz frequency response and 100° x 60° dispersion give it a practical range. Perfect for many playback jobs, while the bass-reflex low end and moulded horn high end support clear coverage.
Outline VEGAS 6.5 mounting flexibility
The cabinet includes a receptacle for fitting a support stand plus 2 x M8 and 4 x M6 threaded points. That gives installers vertical and horizontal mounting hardware options, which is handy when every room layout is different. Whether it is for fixed installation or a mobile application, the design gives more ways to place the speaker neatly.
Built for installation use
The multi-connector design uses 2 x NL4 PAR Pins 1+/1- and 4PIN PHX connections, allowing parallel connectivity between multiple devices. It can also be controlled via Outline’s iP24 DSP device, based on iMode technology. Together, those features make it a practical choice for installed systems that need a straightforward setup and consistent operation.
Key Features
- Super-compact loudspeaker designed for mobile and fixed installation applications
- Maximum SPL Output: 122 dB SPL
- Component Low: 6.5″ woofer
- Component High: 1″ diaphragm compression driver
- Installation Points: 2 x M8, 4 x M6 threaded points
- Connectors: 2 x NL4 PAR Pins 1+/1-, 4PIN PHX
- Cabinet Material: Baltic birch plywood
- Cabinet Finish: Black polyurea coating
