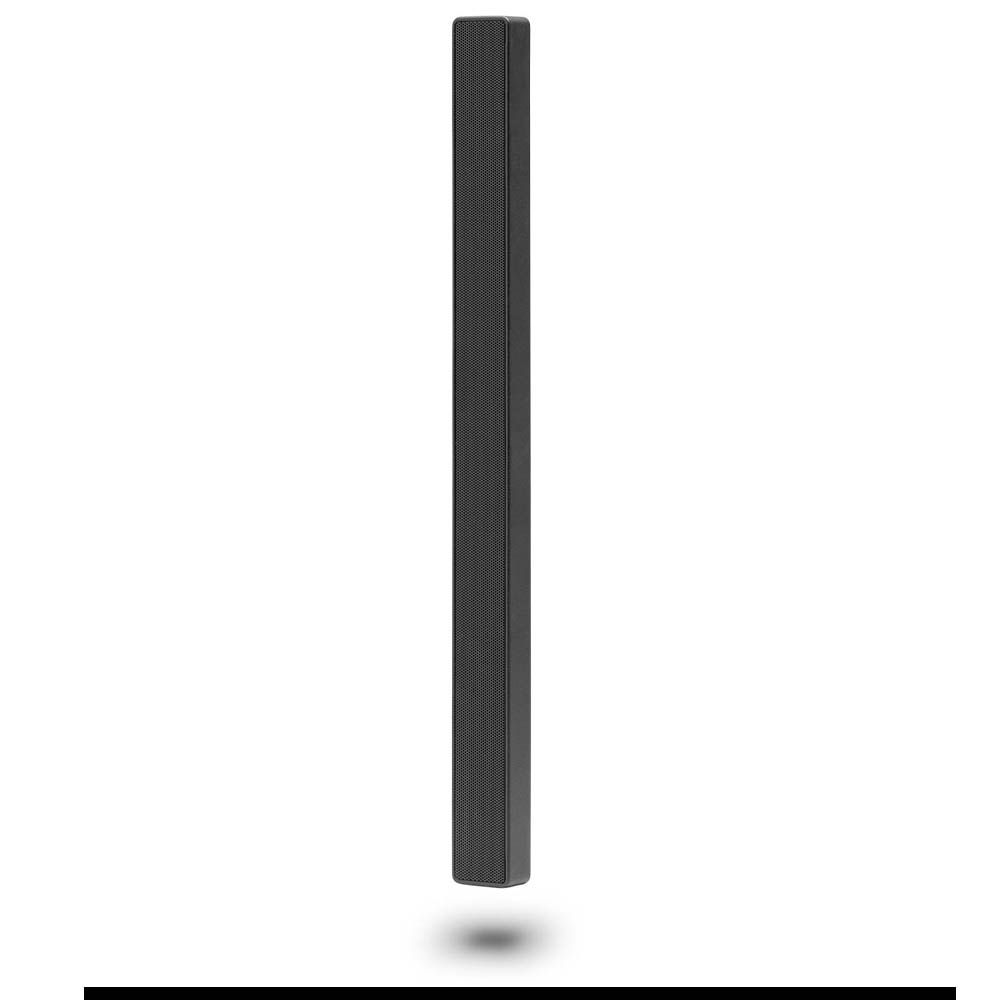

Outline Ai 81 Ultra-Slim Column Loudspeaker
The Outline Ai 81 is built for spaces where sound needs to be heard clearly without taking over the room. This Outline Ai 81 column loudspeaker keeps a slim profile. Meanwhile, its 2-way passive design, wide dispersion and 112 dB peak output help deliver clean, intelligible audio for discreet installations.
Discreet Sound for Tight Spaces
Firstly, when the visual look matters just as much as the audio, the Ai 81 fits in neatly. Its ultra-slim cabinet and compact dimensions make it easy to integrate into lounges, restaurants, museums and conference spaces. Meanwhile, still giving listeners focused sound coverage. That makes it a smart choice for architectural installs.
Outline Ai 81 Performance That Stays Clear
Moreover, with eight 1.3” neodymium magnet drivers and a 0.7” treated silk dome tweeter, the Ai 81 is designed for balanced coverage and strong intelligibility. Furthermore, the wide 160° horizontal dispersion and 40° vertical dispersion help keep speech and music even across the listening area.
Built for Flexible Installation
Additionally, the Ai 81 uses a nominal impedance of 16 ohms and a 2-pin Euroblock connector. Thus, suiting straightforward installation setups. A passive crossover with driver protection is included, and the cabinet is made from HCDF with a polyurethane finish. The epoxy powder coated grille and optional RAL colours help it blend into the space.
Key Features
- 2-way passive ultra-slim column loudspeaker
- Eight 1.3” neodymium magnet drivers
- One 0.7” treated silk dome tweeter
- Maximum SPL peak of 112 dB
- Frequency Response (-10 dB): 300 Hz – 20 kHz
- Horizontal Dispersion: 160°
- Vertical Dispersion: 40°
- Nominal impedance of 16 ohms
- Passive crossover with single and double protection for drivers
- Cabinet Material: HCDF (Hydrophobic Compact Density Fiber)
- Cabinet Finish: Black or White textured polyurethane paint (overpainted RAL colors on request)
- Grill: Epoxy powder coated
