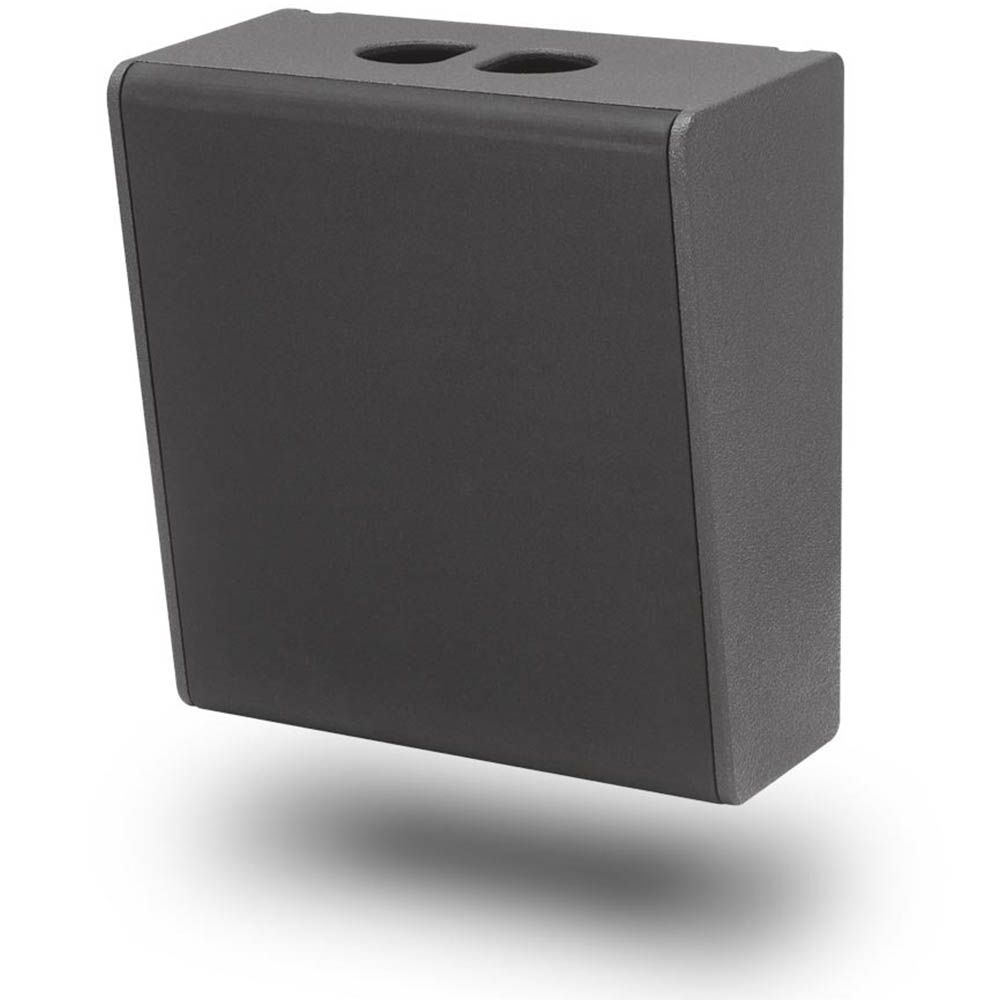

Outline MOVIE FX101 Surround Channel Module
The Outline MOVIE FX101 is a compact surround sound option for cinema installs that need controlled output in a small footprint. Suits movie environments with a 10” bass-reflex loaded woofer, 1” horn loaded compression driver and 20° firing down front panel.
Built for cinema surround installs
Firstly, designed for small to large size cinemas, this movie fx module fits into surround setups where a downward-facing unit is needed. Its 90° x 60° directivity and 101.3 dB SPL sensitivity give integrators practical options when planning speaker placement around the room.
Outline MOVIE FX101 and the surround detail
The Outline MOVIE FX101 also brings a frequency response of 57 Hz – 18 kHz. Therefore, able to handle wider range of cinema surround content. If your system needs dependable output, the 250W AES power handling and 1000W peak of this module guarantees that.
Practical fit for theatre systems
This surround unit is optimized for iP 24 model systems with AES3 connections and uses a 1+/1- speaker screw type connector. It is a straightforward choice for cinema builds where the speaker needs to slot into a planned system layout. Furthermore, delivers consistent placement-friendly performance.
Key Features
- Surround unit with 20° firing down front panel
- Small to large size cinemas applications
- Cinema system optimized for iP 24 model with AES3 connections
- Equipped with a 10” bass-reflex loaded woofer and 1” horn loaded compression driver
- Max Short-Term SPL @ 1 m: 134.4 dB SPL
