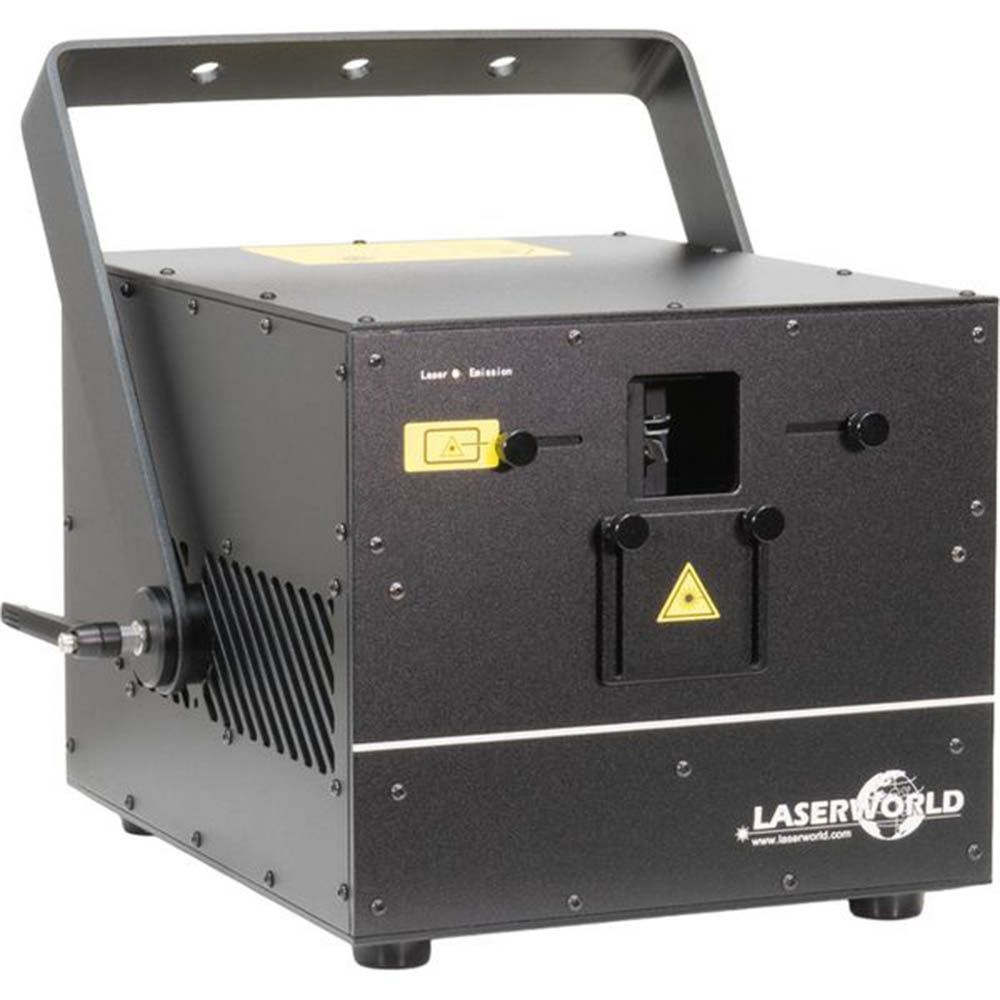

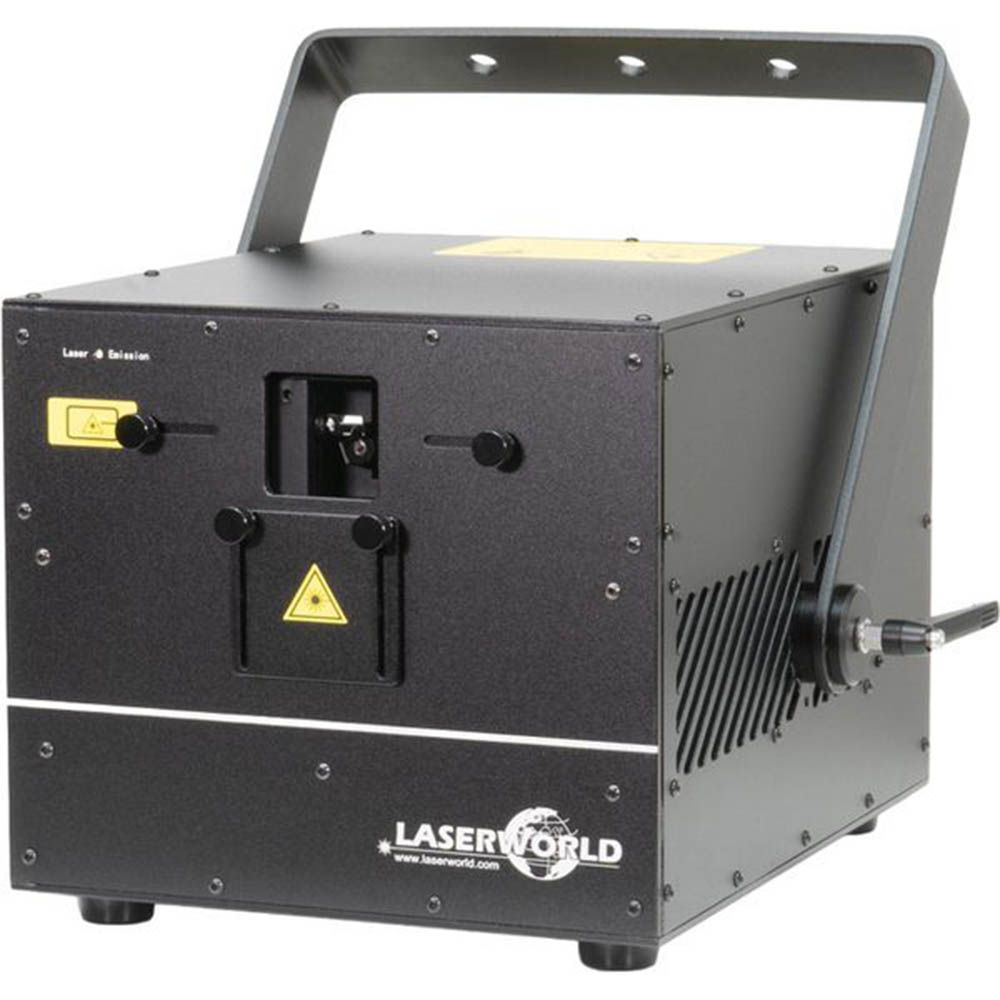

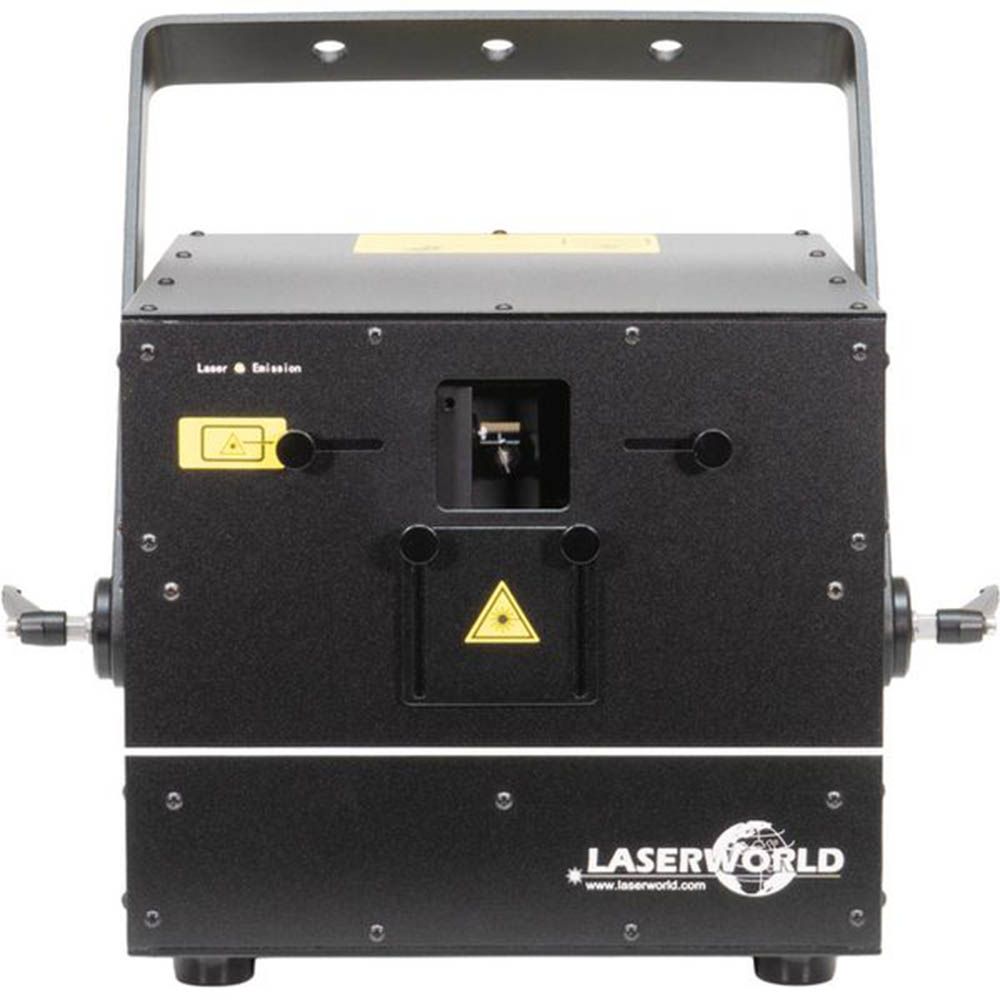

Laserworld DS-15.000 IP65 Full Colour Diode Laser
The Laserworld DS-15.000 IP65 combines a full-colour RGB diode source with analogue modulation, a wide maximum scan angle and integrated ShowNET motherboard technology. Over 120 built-in patterns and effects add visual variety. Meanwhile, ILDA, DMX, Art-Net and LAN control give the unit several documented ways to manage its output.
Full-Colour RGB Output
Analogue modulation blends the red, green and blue diode sources for full-colour laser effects. The separately specified outputs are 4,000 mW at 638 nm for red, 4,500 mW at 520 nm for green and 8,000 mW at 450 nm for blue, with 15,000 mW guaranteed power at the aperture.
Defined Scan Performance
A maximum scan angle of 50° works alongside a Galvo scanner rated at 30 kpps @ 8°. The optics are specified with an approximately 5.5 mm beam diameter and 1.1 mrad divergence, giving shoppers clear technical figures when comparing the unit with other animation lasers.
Control and Built-In Effects
ILDA, DMX, Art-Net, LAN, ILDA streaming, a built-in SD card and automatic mode cover the listed control methods. The unit also includes over 120 patterns and effects, such as layers, tunnels, grids and waves, so visual options are available directly from the laser.
Protected Metal Construction

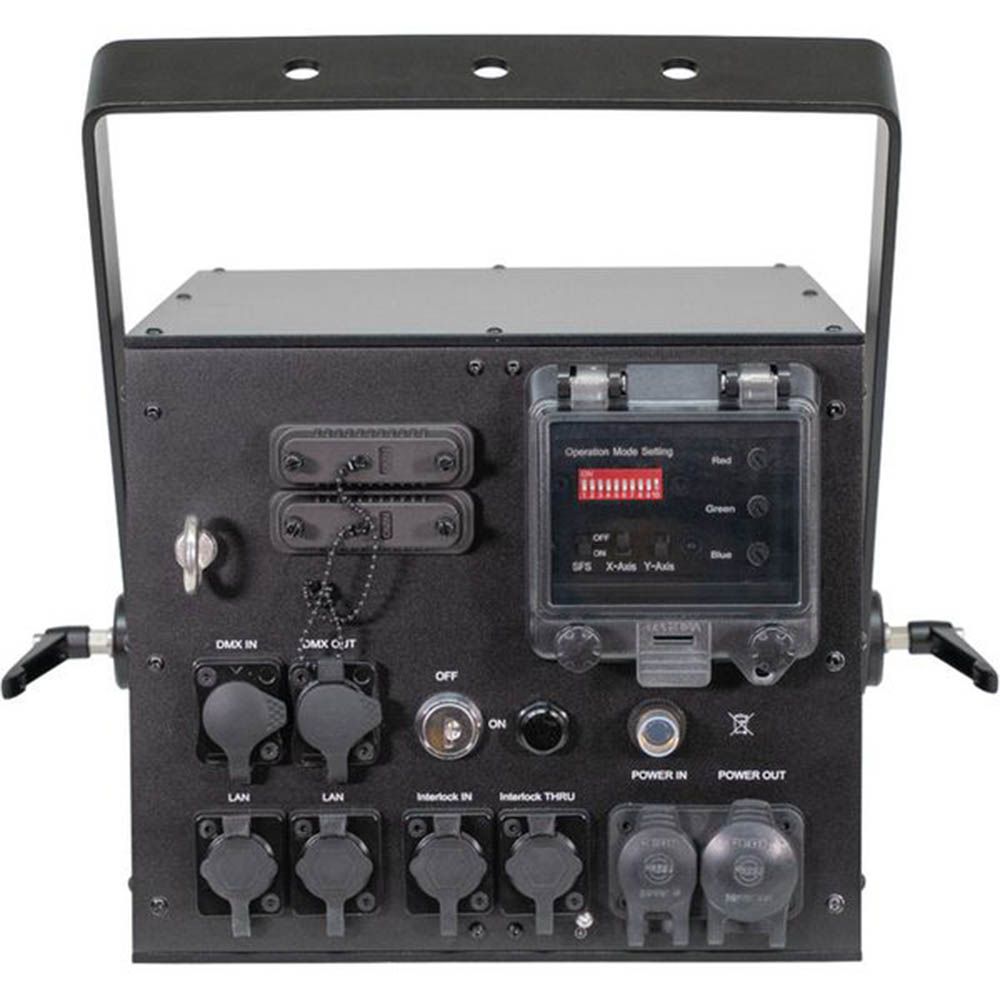

The black metal housing has an IP65 protection rating, while the integrated ShowNET motherboard is specified without a traditional display. Connections include ILDA In / Out, DMX In / Out, LAN In / Out, Interlock and Power Twist TR1 In / Out. As a Class 4 laser, operation requires appropriate laser-safety procedures.
Key Features
- Full-colour RGB diode laser with analogue modulation
- Over 120 built-in patterns and effects
- Multiple listed control options, including ILDA, DMX, Art-Net and LAN
- IP65 protection rating and black metal housing
- Includes key, interlock dongle, power supply cable, user manual and full Showeditor software licence
