JBL COL800 Slim Column Loudspeaker (Black)
The JBL COL800 Slim Column Loudspeaker delivers wide sound coverage while maintaining controlled vertical dispersion for clear audio throughout a listening area. Its built-in downward aiming design supports flat-wall installation, while the slim enclosure blends neatly into spaces that require both strong performance and a discreet appearance.
Wide Coverage, Focused Aim
Firstly, wide horizontal dispersion reaches across conference rooms, lecture halls, retail spaces, concourses and transit areas. Meanwhile, the narrower vertical pattern keeps coverage more focused. The built-in downward aiming axis is designed to cover most listening areas. Thus, the cabinet itself is not required to be physically tilted down.
Clear Driver Arrangement

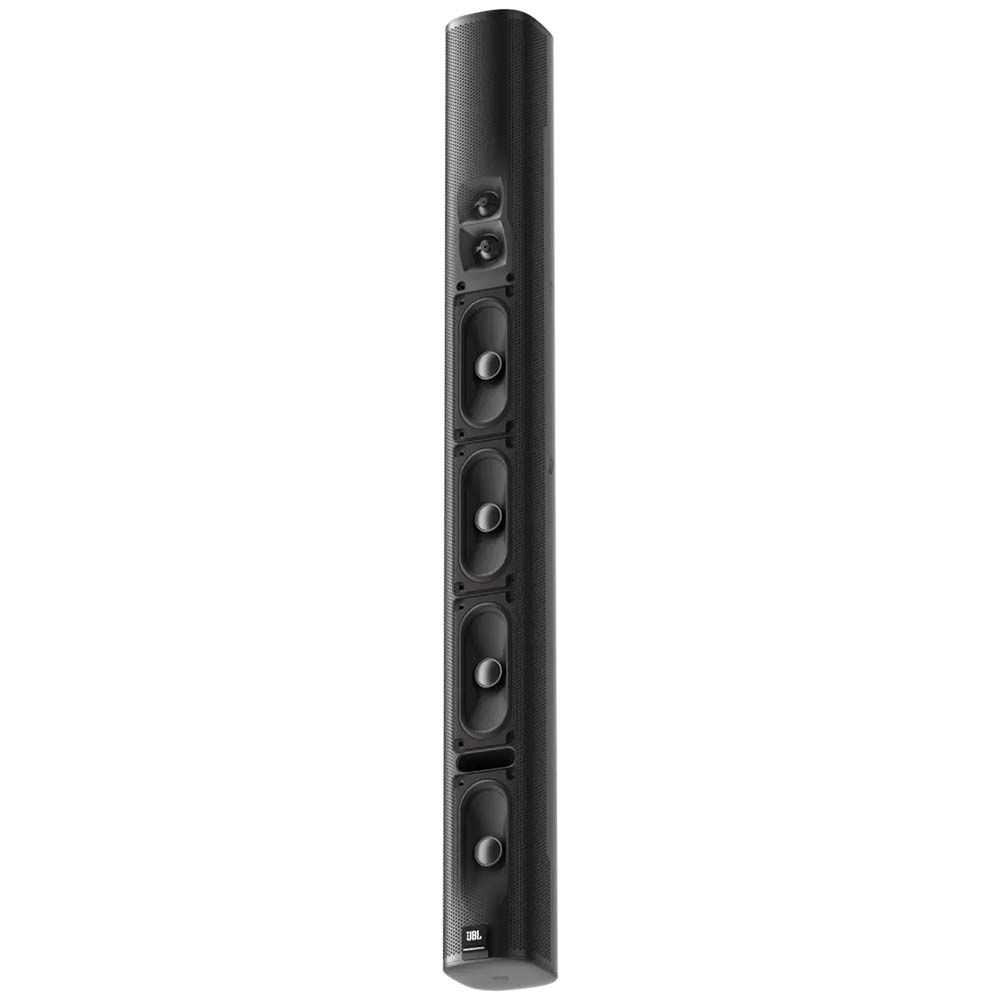

Moreover, four racetrack low-frequency drivers handle the lower part of the range. Two tweeters sit near the top of the column to help provide unobstructed coverage through the listening space. Together, this driver layout suits speech, audio for video and fill applications where consistent distribution matters.
Flexible System Connections
Additionally, choose the 8 Ω direct input or select transformer taps of 60W, 30W or 15W at both 70V and 100V; a 7.5W tap is also available at 70V. This gives installers a clear way to match the loudspeaker to the documented system connection and power requirements.
Neat, Adaptable Installation

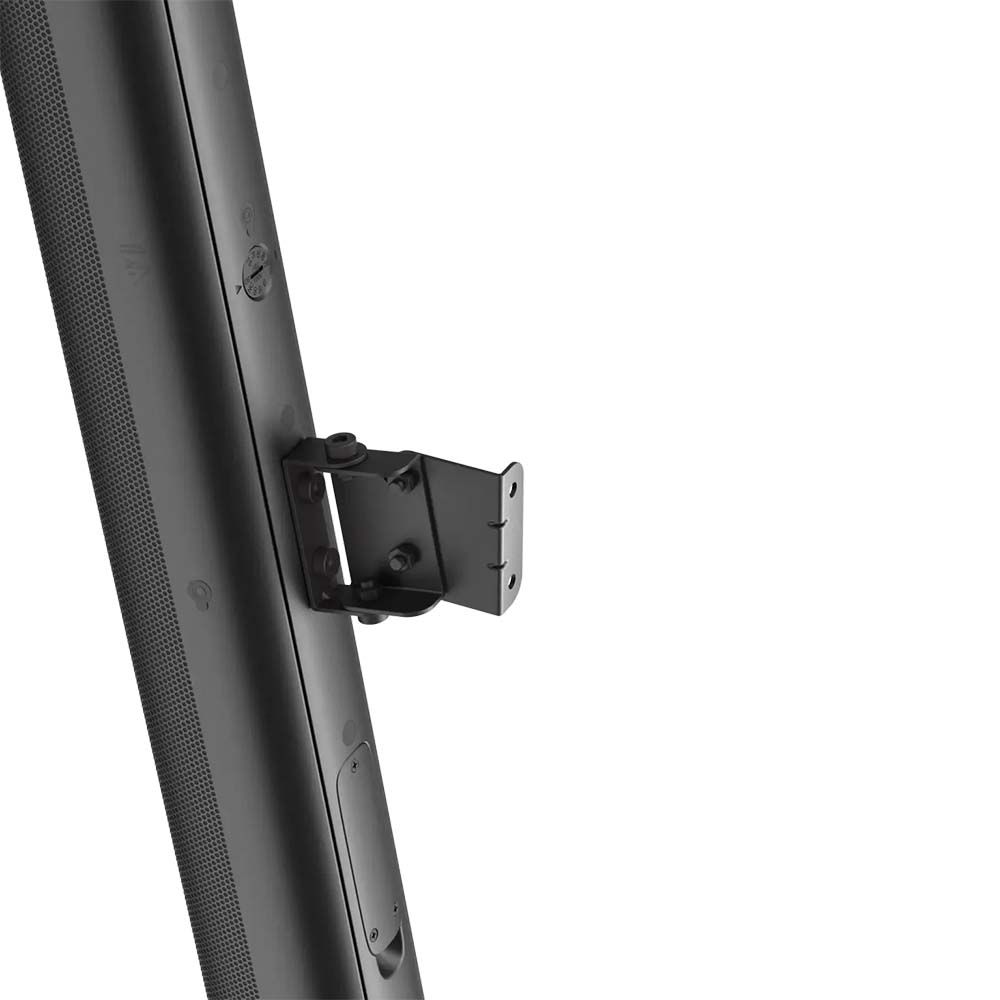

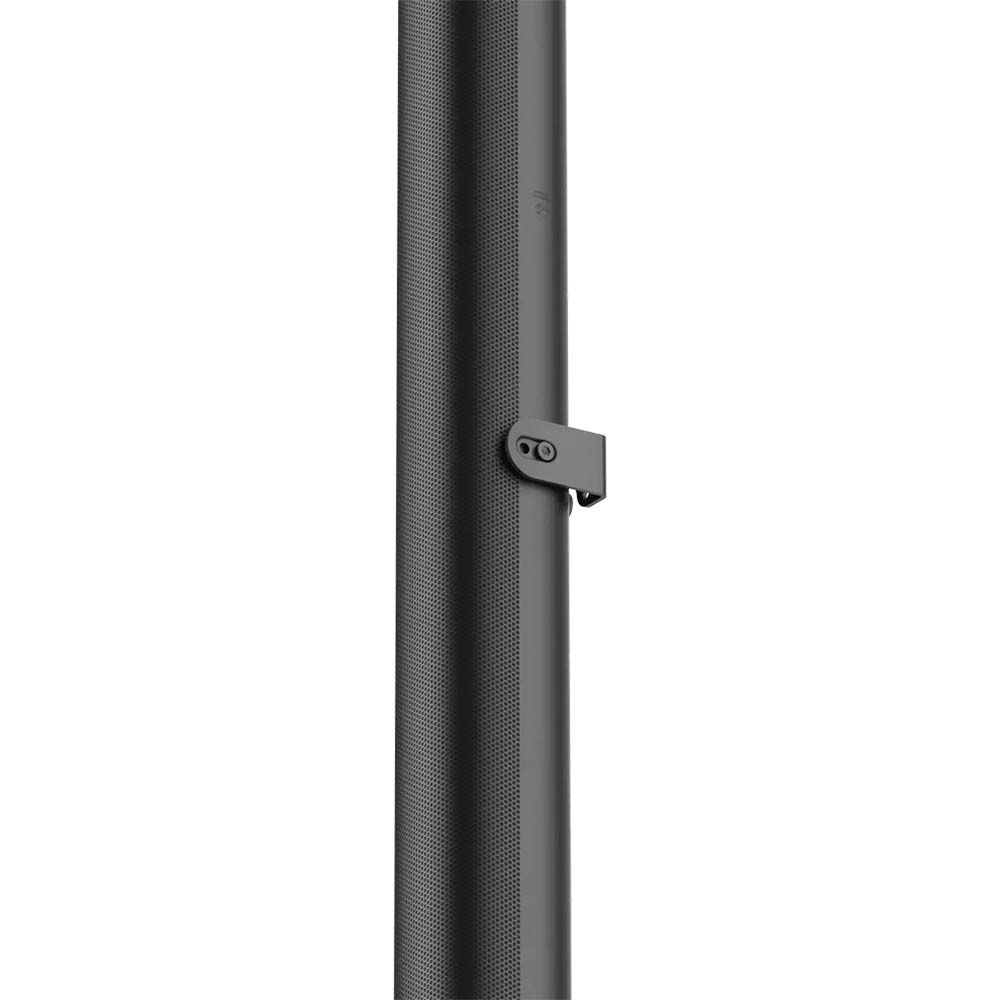

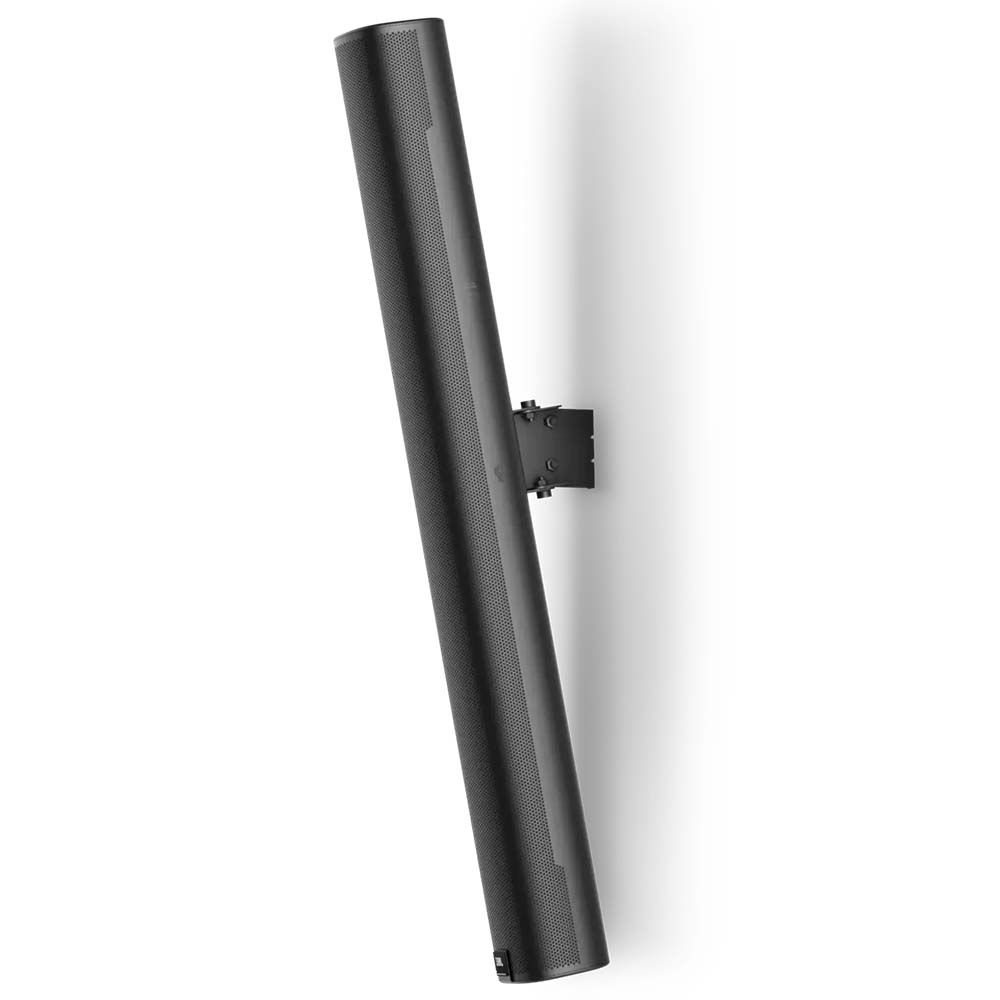

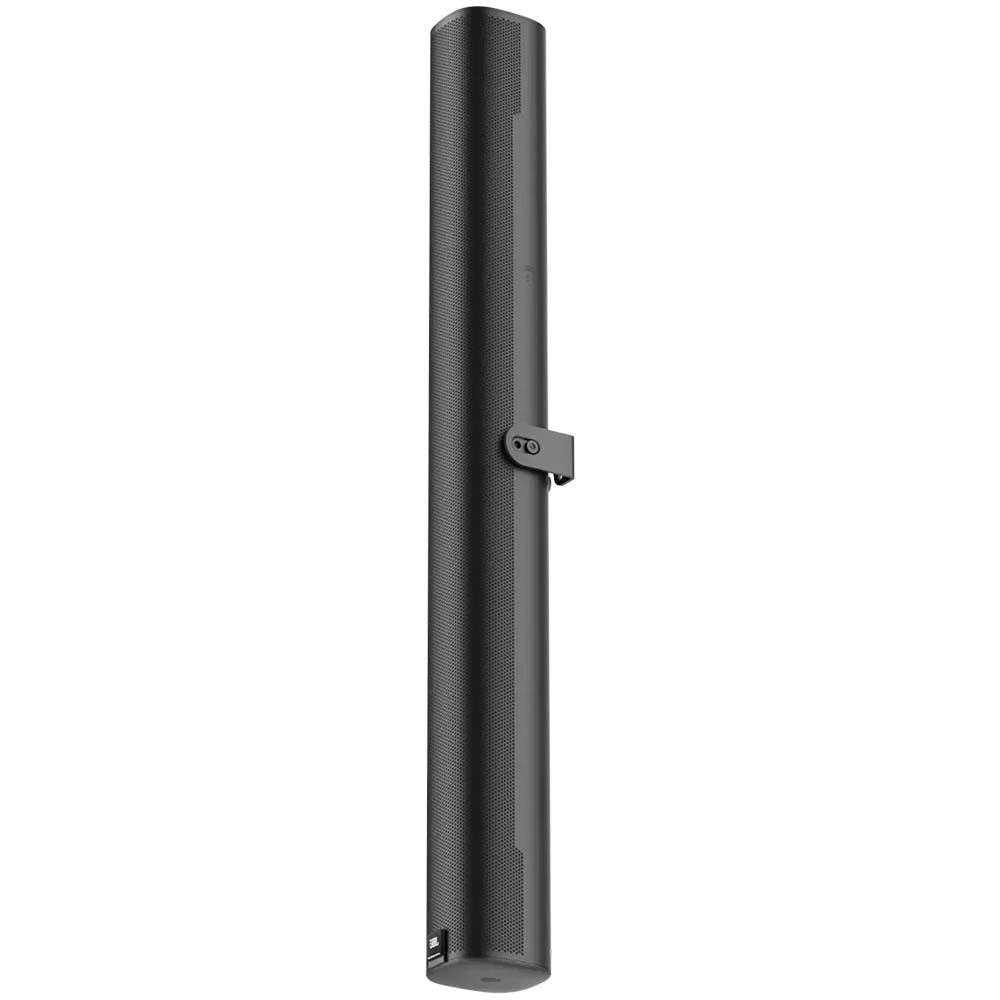

The shallow cabinet sits close to the wall. The included low-profile swivel/pan/tilt wall bracket provides continuously variable horizontal aiming and adjustable vertical tilt. Two included L-brackets can be positioned on either the top-and-bottom insert points or the side-to-side insert points for another mounting approach.
Key Features
- Slim 32-inch column format with a shallow 3.7-inch cabinet depth
- Wide 160° horizontal and focused 60° vertical coverage
- 150W continuous pink-noise power handling and 600W peak handling for 2 hours
- PC + ABS enclosure with UL94-V0 flammability rating
- Included swivel/pan/tilt wall bracket and two L-brackets
Frequency Range (-10 dB): 85 Hz – 20 kHz
Frequency Response (+/-3 dB): 125 Hz – 18 kHz
Power Rating (8Ω setting): 300W Continuous Program (2 hrs); 150W (600W peak) Continuous Pink Noise (2 hrs); 100W (400W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m): 88 dB
Coverage Pattern: Vertical 60° [1 kHz-4 kHz average]; 10° down-tilt to vertical aiming axis for +20°/-40° coverage in relation to physical cabinet aim; Horizontal 160° [1 kHz – 4 kHz average]
Directivity (Q): 8.1
Directivity Index (DI): 9.1 dB
Rated Maximum SPL: 110 dB Continuous (116 dB peak) @ 1m
Nominal Impedance: 8Ω (in Thru/direct mode)
Minimum Impedance: 7.7 Ω @ 290 Hz
Transformer Taps: 60W, 30W, 15W @ both 70V & 100V (plus 7.5W @ 70V), and 8Ω thru, selectable via switch
Transformer Insertion Loss: Less than 1 dB for all taps
Maximum Input Voltage: 33 V RMS (2 hrs), 66 V peak
Recommended Protective High-Pass: 75 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (60W, 30W, 15W and 7.5W)
Drivers: Four 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers; two 20 mm (0.8 in.) tweeters (tweeters located at top of array for better coverage of listening space)
Enclosure Material: PC + ABS, UL94-V0 flammability rating
Grille: Plated SPCC with polyester powder coat finish
Agency Ratings: Transformer UL recognized. RoHS, REACH compliance. LVD for CE.
Environmental Rating: IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]
Terminals: 4-pin Euroblock connection for bare wire, accepts 24 to 14 AWG gauge wire (0.25 to 2.5 sq mm) wire; rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)
Insert Points: Back panel: 2 threaded insert points for wall bracket, plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep; top and bottom caps: 1 threaded insert point on each cap for L-bracket; side panels: 1 threaded insert point on each side for L-bracket
Mounting: Included swivel (pan)/tilt wall bracket with continuously variable ±95° horizontal left-right swivel and continuously adjustable +0°/-10° vertical tilt; two included L-brackets positionable on either top-and-bottom or side-to-side insert points; installer-supplied mounting methods may use the top, bottom and two side threaded insert points
Dimensions (H x W x D): 800 x 102 x 93 mm (31.5 x 4.1 x 3.7 inches)
Net Weight: 5.2 kg (11.5 lbs) each
Included Accessories: Low-profile SWIVEL (PAN) / TILT WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points
